Square D

HCP32688 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus

Category Square D I-Line

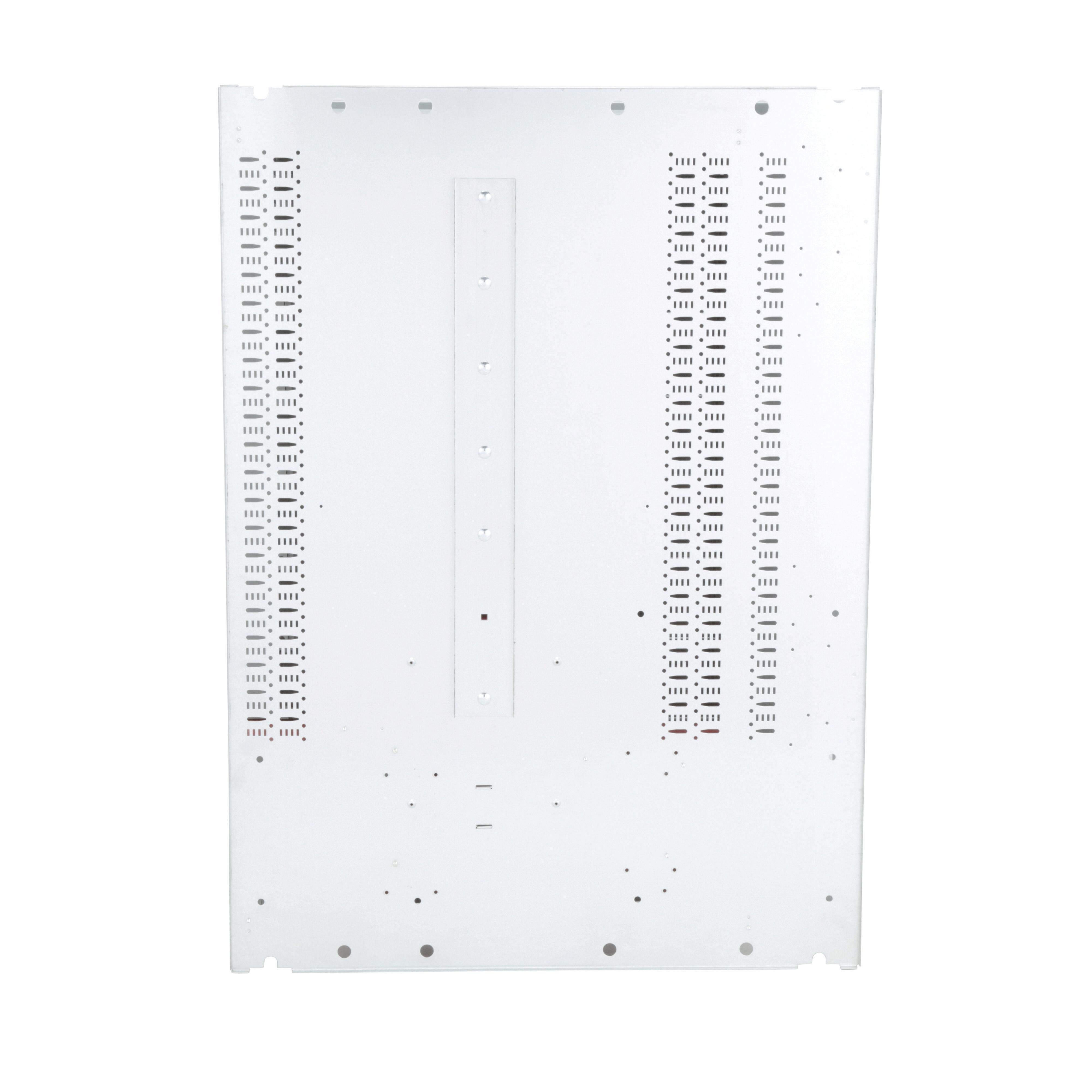

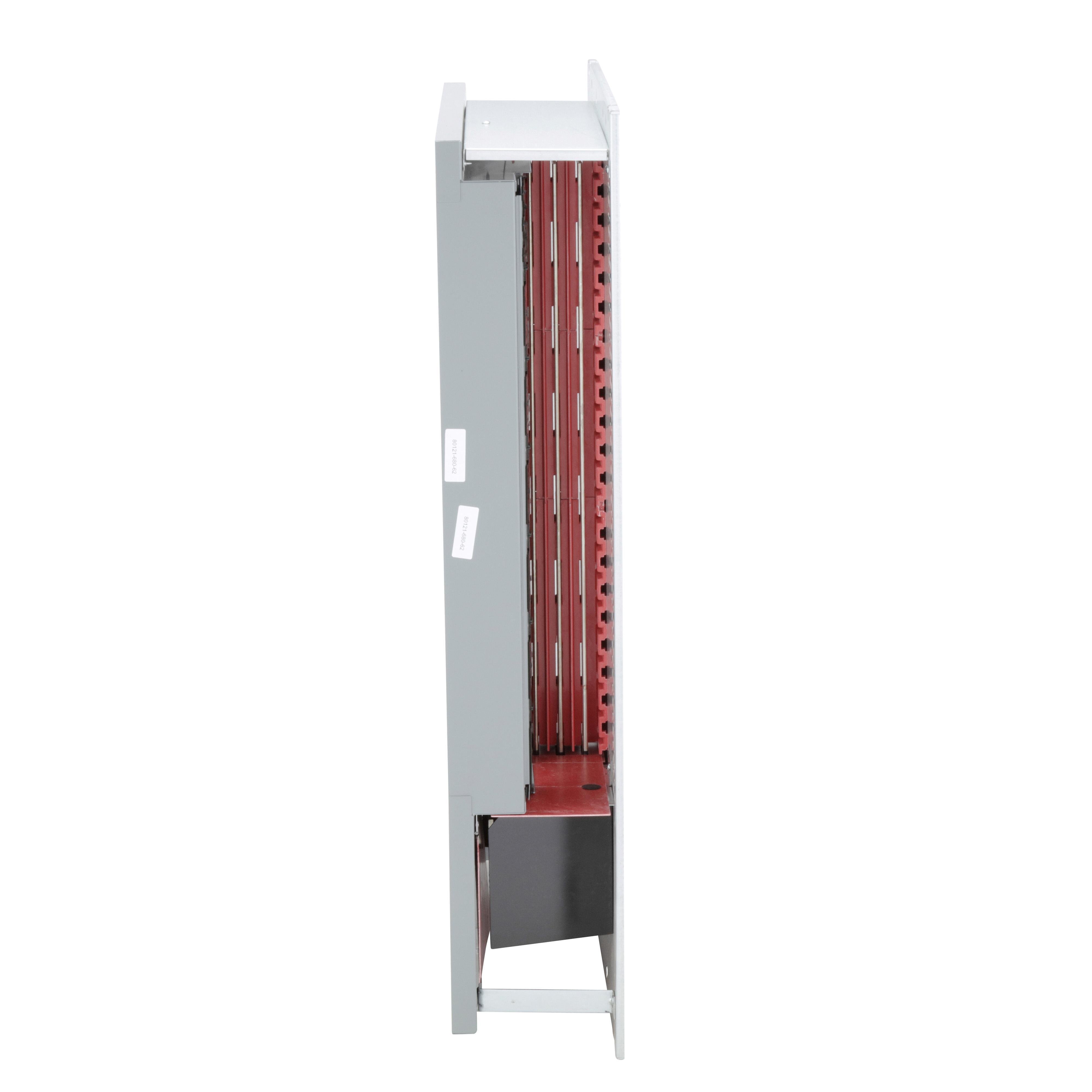

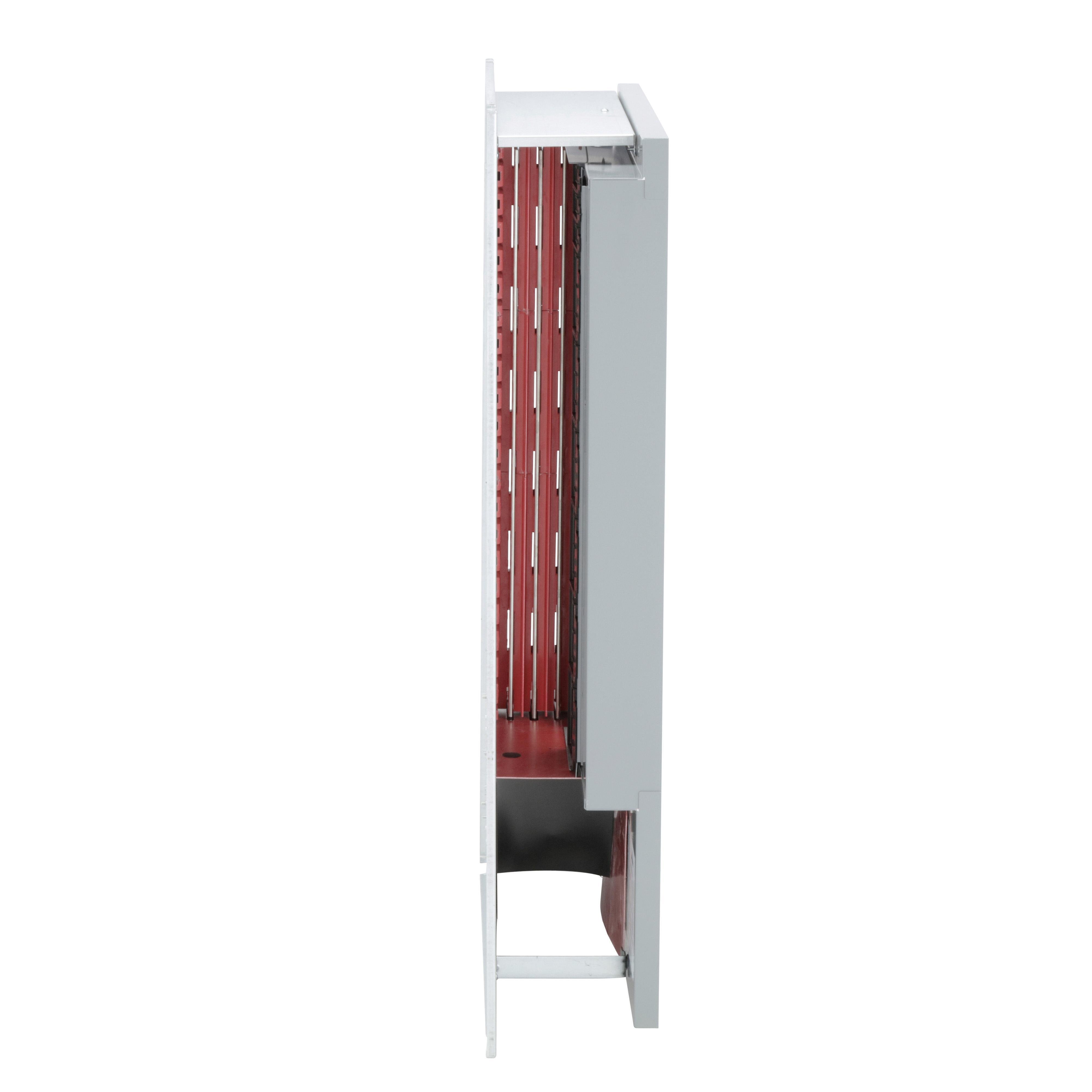

Picture of HCP32688 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus Picture of HCP32688 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus
Picture of HCP32688 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus Picture of HCP32688 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus
Picture of HCP32688 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus Picture of HCP32688 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus
Picture of HCP32688 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus Picture of HCP32688 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus
Square D

HCP32688 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Cu bus

Item Code: 18130
Category Square D I-Line
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HCP32688

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCP I-Line panelboard interior is a 800A and has main lugs. The dimesnions are 68 in (H), 42 in (W). This product is certified to cULus & CE standards. This product comes with an 18 month warranty.

Specifications

Weight

216.54lb

Height

10mm

Width

37.63mm

Length

68.33mm

AD All Features

600VAC, 250VDC maximum

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

INTERIOR PANELBOARD 600 VAC/250 VDC 800A

AD Item Features 01

600VAC, 250VDC maximum

AD Item Features 02

Fully rated and series rated system available

AD Item Features 03

Dead front trim is easily installed

AD Item Features 04

Factory assembled or ready to install

AD Manufacturer (Description)

Schneider Electric

AD Package Height

10.0000

AD Package Height UOM

IN

AD Package Length

68.3300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

19380.0000

AD Package Volume UOM

cu-in

AD Package Weight

216.5400

AD Package Weight UOM

LB

AD Package Width

37.6300

AD Package Width UOM

IN

Brand

Square D

Category

Square D I-Line

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

800

Spec 10 Attribute

Short Circuit Current Rating

Spec 10 Attribute UOM

KA

Spec 10 Attribute Value

200

Spec 11 Attribute

Type

Spec 11 Attribute Value

3-Phase Bottom Type HCP

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute Value

600 V AC/250 V DC

Spec 13 Attribute

Wiring Configuration

Spec 13 Attribute Value

3-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

QJ

Spec 3 Attribute

Bus Material

Spec 3 Attribute Value

Copper

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

42 in W x 9-1/2 in D x 68 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

ALUMINUM/COPPER

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Panel

Spec 9 Attribute

Number of Spaces

Spec 9 Attribute Value

63
