Square D

HCP50866 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 99in CB space, for 42in W x 86in H x 9.5in D box, Al bus

Category Square D I-Line

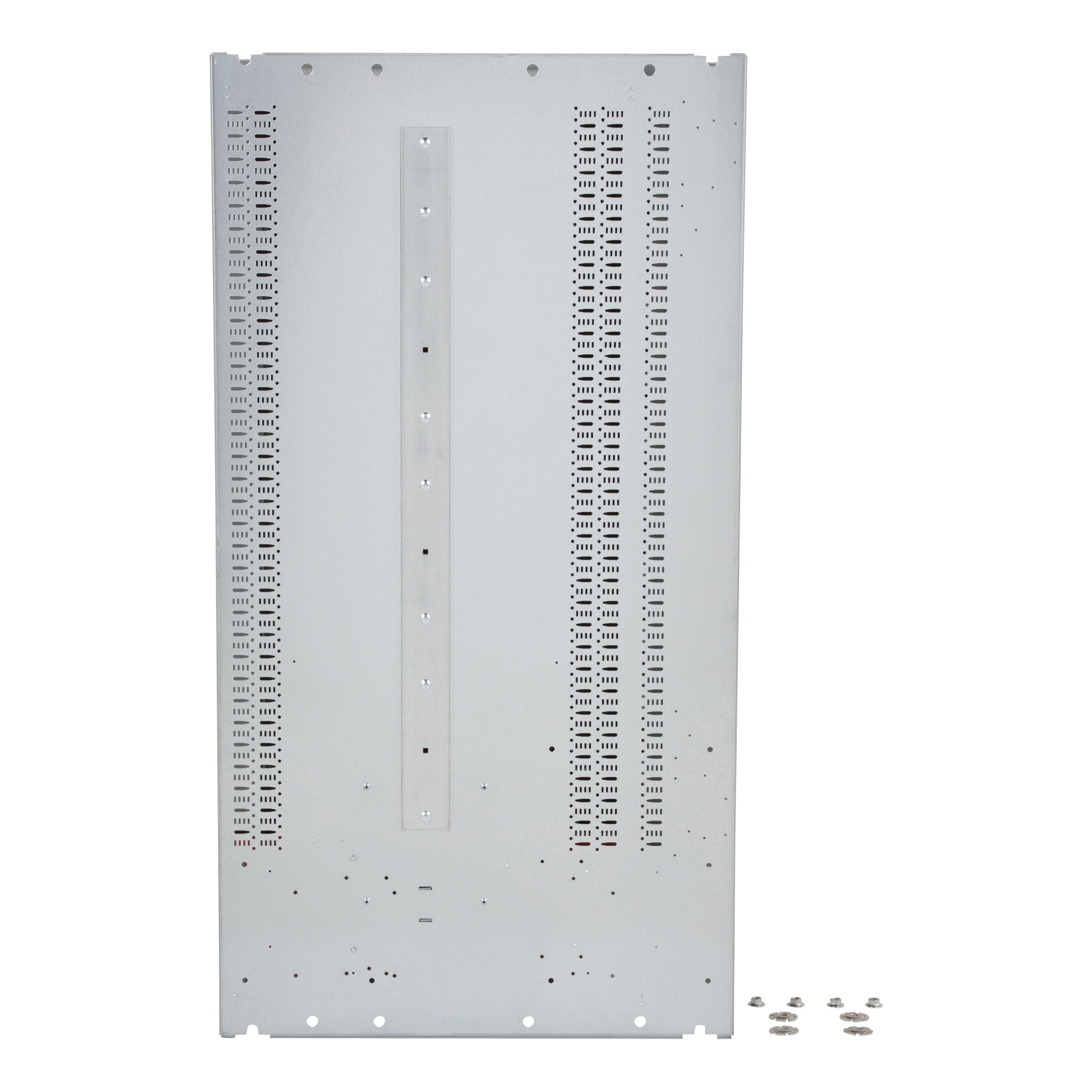

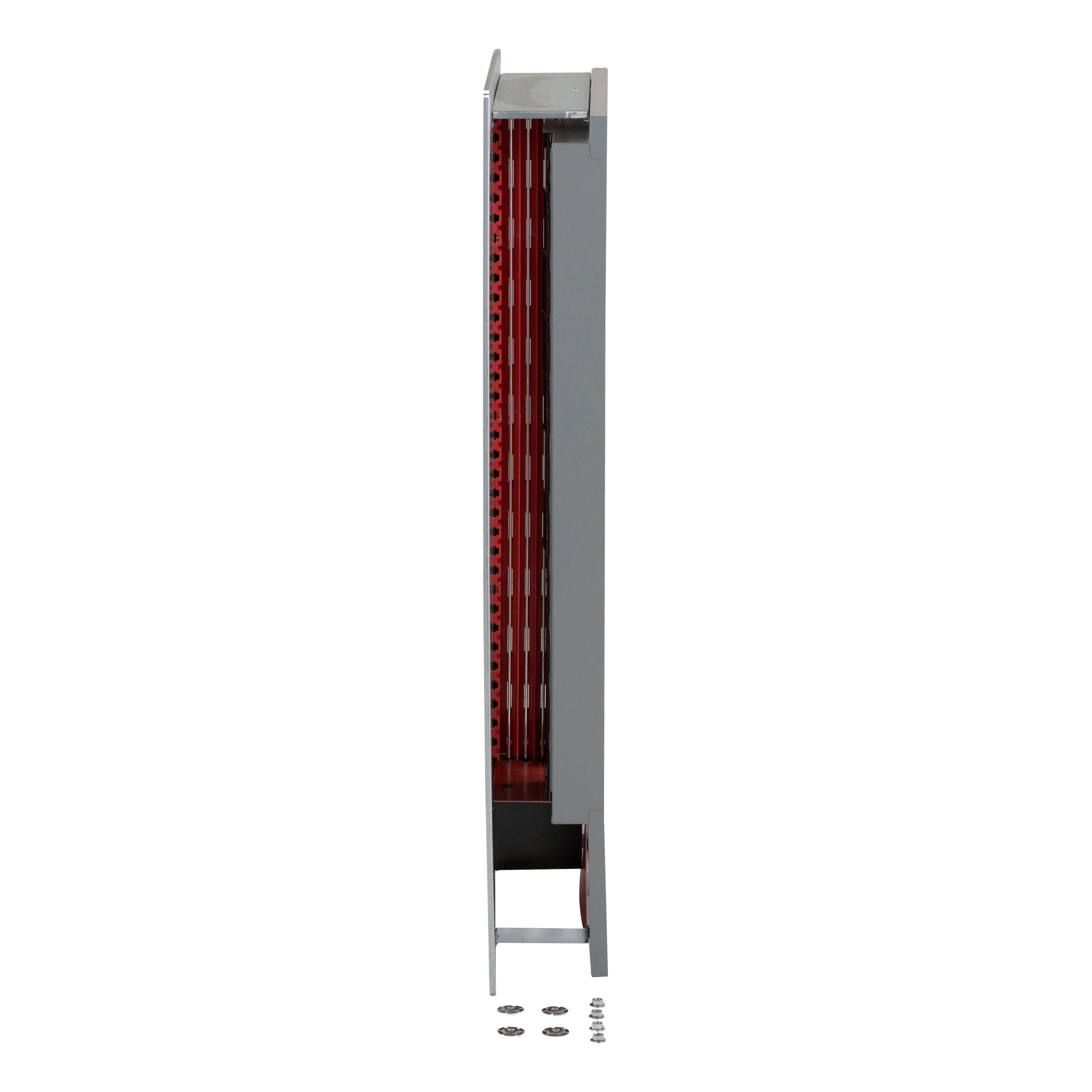

Picture of HCP50866 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 99in CB space, for 42in W x 86in H x 9.5in D box, Al bus Picture of HCP50866 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 99in CB space, for 42in W x 86in H x 9.5in D box, Al bus
Picture of HCP50866 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 99in CB space, for 42in W x 86in H x 9.5in D box, Al bus Picture of HCP50866 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 99in CB space, for 42in W x 86in H x 9.5in D box, Al bus
Picture of HCP50866 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 99in CB space, for 42in W x 86in H x 9.5in D box, Al bus Picture of HCP50866 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 99in CB space, for 42in W x 86in H x 9.5in D box, Al bus
Square D

HCP50866 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 99in CB space, for 42in W x 86in H x 9.5in D box, Al bus

Item Code: 577454
Category Square D I-Line
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HCP50866

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D-brand I-Line circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.

Specifications

Weight

157.67lb

Height

66mm

Width

37.95mm

Length

68.64mm

AD All Features

600VAC, 250VDC maximum

AD Application

For main lug load center applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

INTERIOR PANELBOARD 600 VAC 250 VDC 99

AD Item Features 01

600VAC, 250VDC maximum

AD Item Features 02

Fully rated and series rated system available

AD Item Features 03

Dead front trim is easily installed

AD Item Features 04

Factory assembled or ready to install

AD Item Features 05

Circuit breaker plug-on jaws have no fasteners - less installation time

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

68.6400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

157.6700

AD Package Weight UOM

LB

AD Package Width

37.9500

AD Package Width UOM

IN

Brand

Square D

Category

Square D I-Line

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

600

Spec 10 Attribute

Short Circuit Current Rating

Spec 10 Attribute UOM

KA

Spec 10 Attribute Value

200

Spec 11 Attribute

Type

Spec 11 Attribute Value

3-Phase Bottom

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute Value

600 V AC/250 V DC

Spec 13 Attribute

Wiring Configuration

Spec 13 Attribute Value

3-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

FA/FI/HD/JD

Spec 3 Attribute

Bus Material

Spec 3 Attribute Value

ALUMINUM/COPPER

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

42 in W x 9-1/2 in D x 86 in H

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

60

Spec 6 Attribute

Housing Material

Spec 6 Attribute Value

ALUMINUM/COPPER

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Panel

Spec 8 Attribute

Number of Spaces

Spec 8 Attribute Value

99

Spec 9 Attribute

Series

Spec 9 Attribute Value

HCP
