Square D

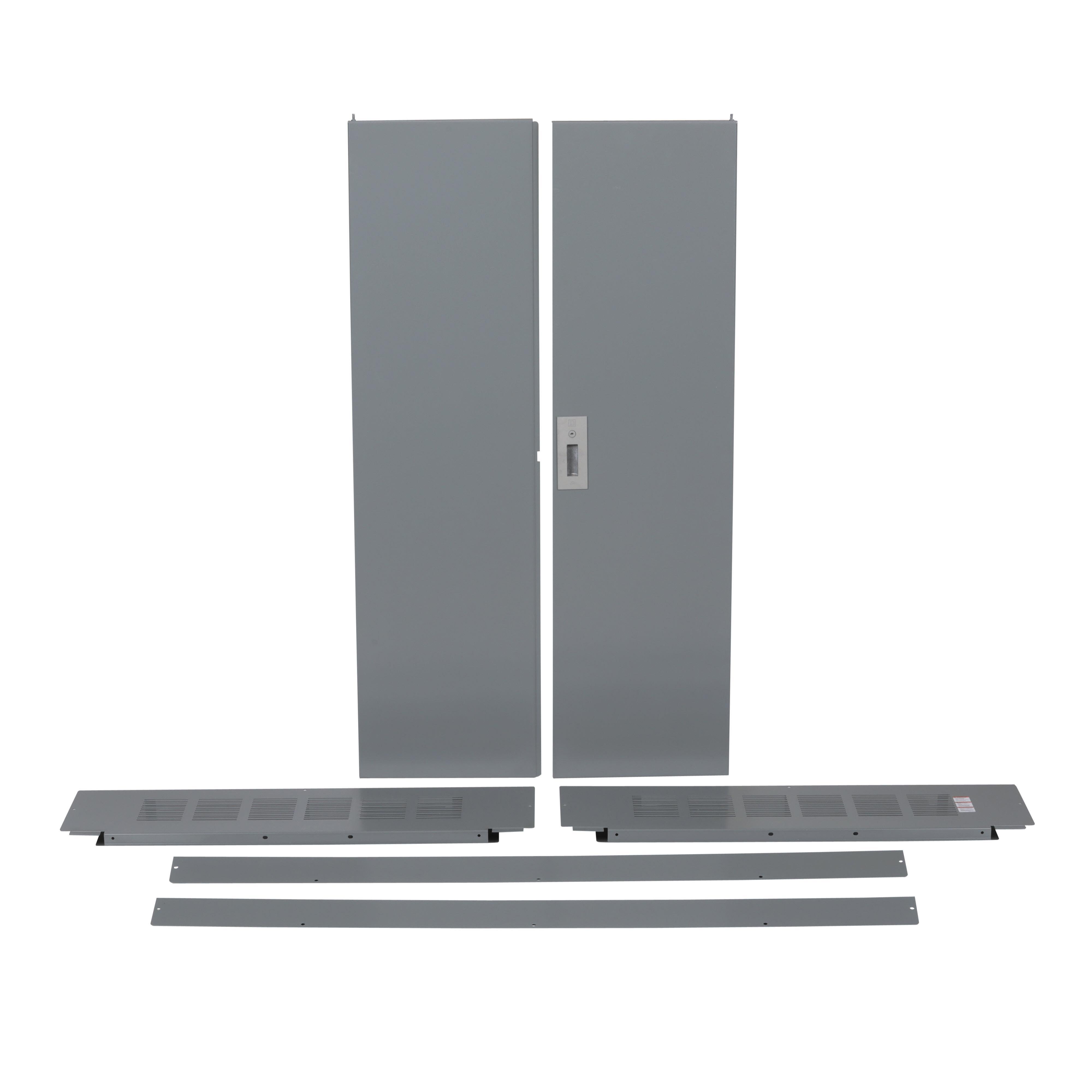

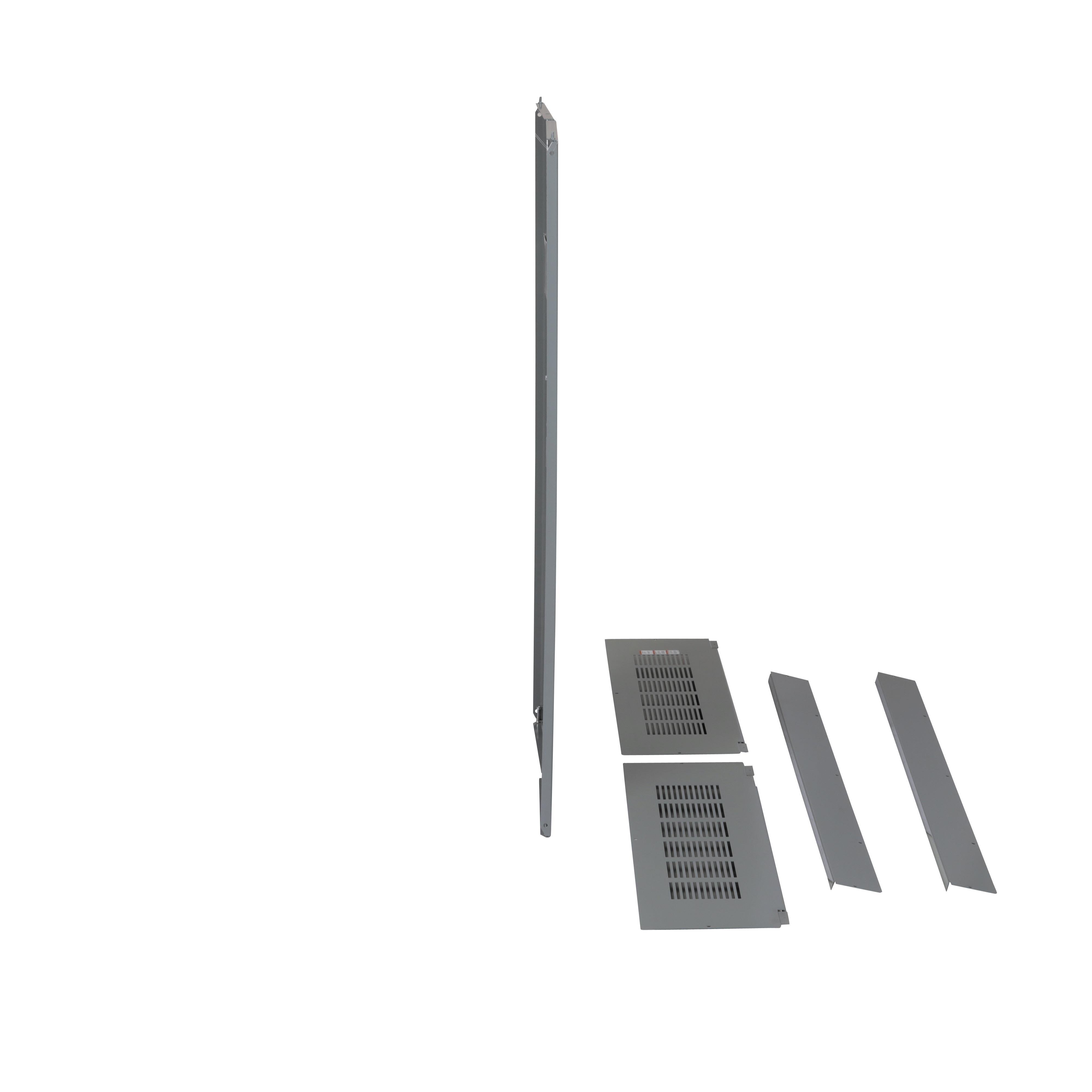

HCR86TSD - Trim front, I-Line Panelboard, HCR-U, surface mount, w/door, 44in W x 86in H

Category Power Distribution Panelboards
Picture of HCR86TSD - Trim front, I-Line Panelboard, HCR-U, surface mount, w/door, 44in W x 86in H Picture of HCR86TSD - Trim front, I-Line Panelboard, HCR-U, surface mount, w/door, 44in W x 86in H
Picture of HCR86TSD - Trim front, I-Line Panelboard, HCR-U, surface mount, w/door, 44in W x 86in H Picture of HCR86TSD - Trim front, I-Line Panelboard, HCR-U, surface mount, w/door, 44in W x 86in H
Picture of HCR86TSD - Trim front, I-Line Panelboard, HCR-U, surface mount, w/door, 44in W x 86in H Picture of HCR86TSD - Trim front, I-Line Panelboard, HCR-U, surface mount, w/door, 44in W x 86in H
Square D

HCR86TSD - Trim front, I-Line Panelboard, HCR-U, surface mount, w/door, 44in W x 86in H

Item Code: 1525446
Category Power Distribution Panelboards
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HCR86TSD

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ I-Line Power Distribution Panelboards is ideal for service entrance equipment or downstream distribution panels in the electrical system and is used to feed NQ and NF lighting and appliance panelboards. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line panelboards are capable of feeding large motor loads and are UL Listed for use on systems with up to 200K max. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This trim front kit is used with HCR-U I-line distrubution panelboard and is surface mounted. This trim front kit has a height of 86 in and width of 44.25 in. This product is certified to cULus & CE standards.

Specifications

Weight

107.77

Width

22.39

Length

63.41

AD All Features

600VAC, 250VDC maximum

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

FRONT TRIM 86IN 44IN SURF PTD 4-PC

AD Item Features 01

600VAC, 250VDC maximum

AD Item Features 02

Fully rated and series rated system available

AD Item Features 03

Dead front trim is easily installed

AD Item Features 04

Factory assembled or ready to install

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

63.4100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

107.7700

AD Package Weight UOM

LB

AD Package Width

22.3900

AD Package Width UOM

IN

Brand

Square D

Category

POWER DISTRIBUTION PANELBOARDS

Spec 1 Attribute

Finish

Spec 1 Attribute Value

Painted

Spec 2 Attribute

Length

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

86

Spec 3 Attribute

Mounting Type

Spec 3 Attribute Value

Surface

Spec 4 Attribute

Suitable For Use With

Spec 4 Attribute Value

I-Line™ Circuit Breaker Combination Panelboard

Spec 5 Attribute

Type

Spec 5 Attribute Value

4-Piece

Spec 6 Attribute

Width

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

44
