Square D

HCW68TS - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, 42in W x 68in H

Category Miscellaneous

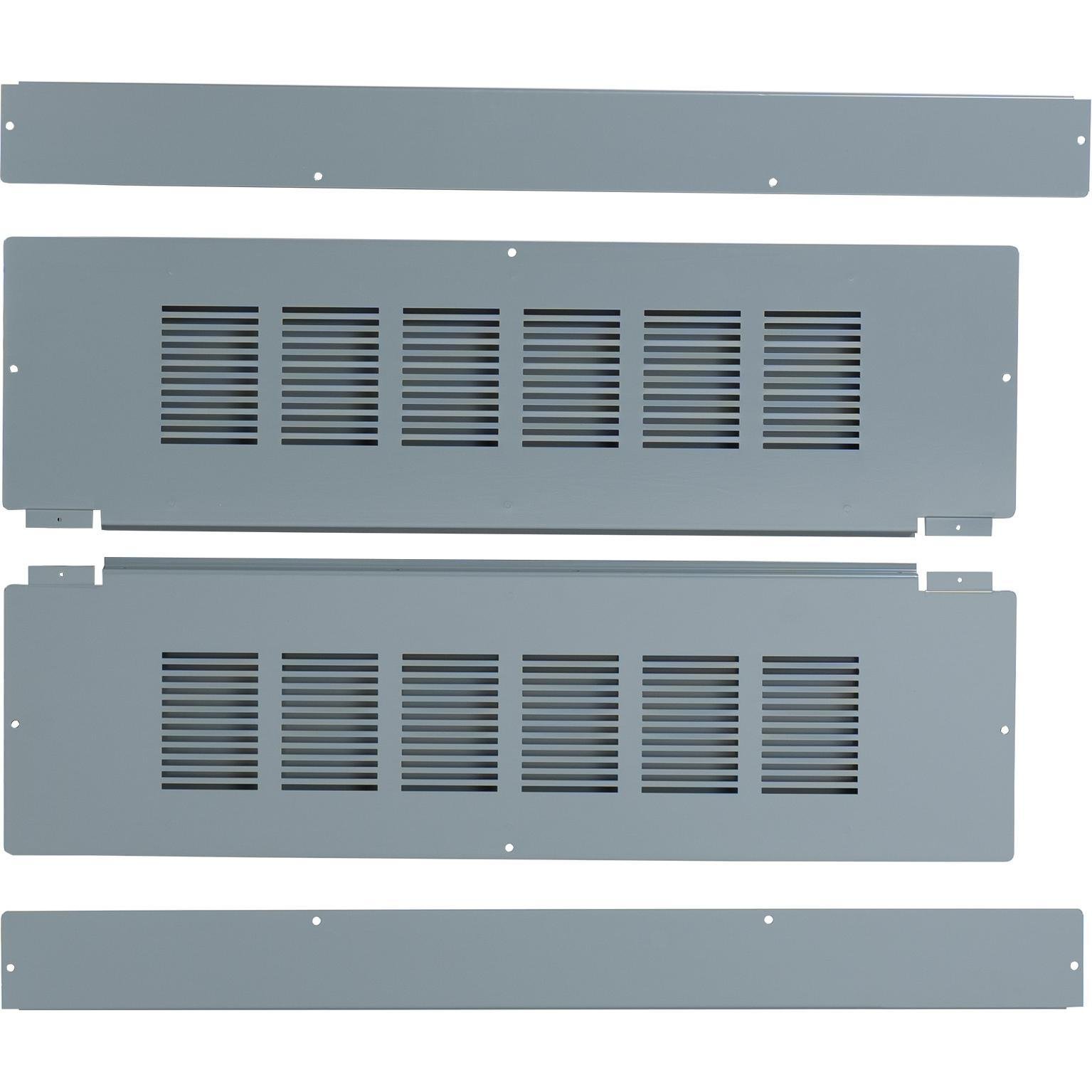

Picture of HCW68TS - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, 42in W x 68in H
Square D

HCW68TS - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, 42in W x 68in H

Item Code: 32884
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HCW68TS

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. A wide variety of accessories are available for field or factory installation of I-Line panelboards. This I-Line trim, are for an HCP, panelboards. This panelboard trim comes in 4 pieces and are surface mounted. The dimensions for this product are 68 in (H) 42 in (W) (D) and have a product weight of 18.6 kg. This product complys to CE & cULus standards.

Specifications

Weight

40.91

Height

1.9

Width

21.8

Length

48.55

AD All Features

600VAC, 250VDC maximum

AD Alternative Part Number

8014663

AD Application

Use as service equipment when provided with a main circuit breaker and for vertically mounted main circuit breaker

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901089438

AD Gtin

00785901089438

AD IDEA Index ID

8014663

AD Invoice Description

FRONT TRIM 68IN 42IN SURF HCW

AD Item Features 01

600VAC, 250VDC maximum

AD Item Features 02

Fully rated and series rated system available

AD Item Features 03

Dead front trim is easily installed

AD Item Features 04

Factory assembled or ready to install

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.9000

AD Package Height UOM

IN

AD Package Length

48.5500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2048.2000

AD Package Volume UOM

cu-in

AD Package Weight

40.9100

AD Package Weight UOM

LB

AD Package Width

21.8000

AD Package Width UOM

IN

AD Part Number Keywords

HCW68TS ; 8014663 ; 785901089438 ; 78590108943 ; 00785901089438 ; 0785901089438

Brand

Square D

Spec 1 Attribute

Length

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

68

Spec 2 Attribute

Mounting Type

Spec 2 Attribute Value

Surface

Spec 3 Attribute

Series

Spec 3 Attribute Value

HCW

Spec 4 Attribute

Suitable For Use With

Spec 4 Attribute Value

I-Line™ HCP 3-Pole Main Lug and Main Circuit Breaker Panelboard

Spec 5 Attribute

Type

Spec 5 Attribute Value

4-Piece Bottom Feed Standard

Spec 6 Attribute

Width

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

42
