Square D

HCW68TSD - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, w/door, 42in W x 68in H

Category Square D I-Line

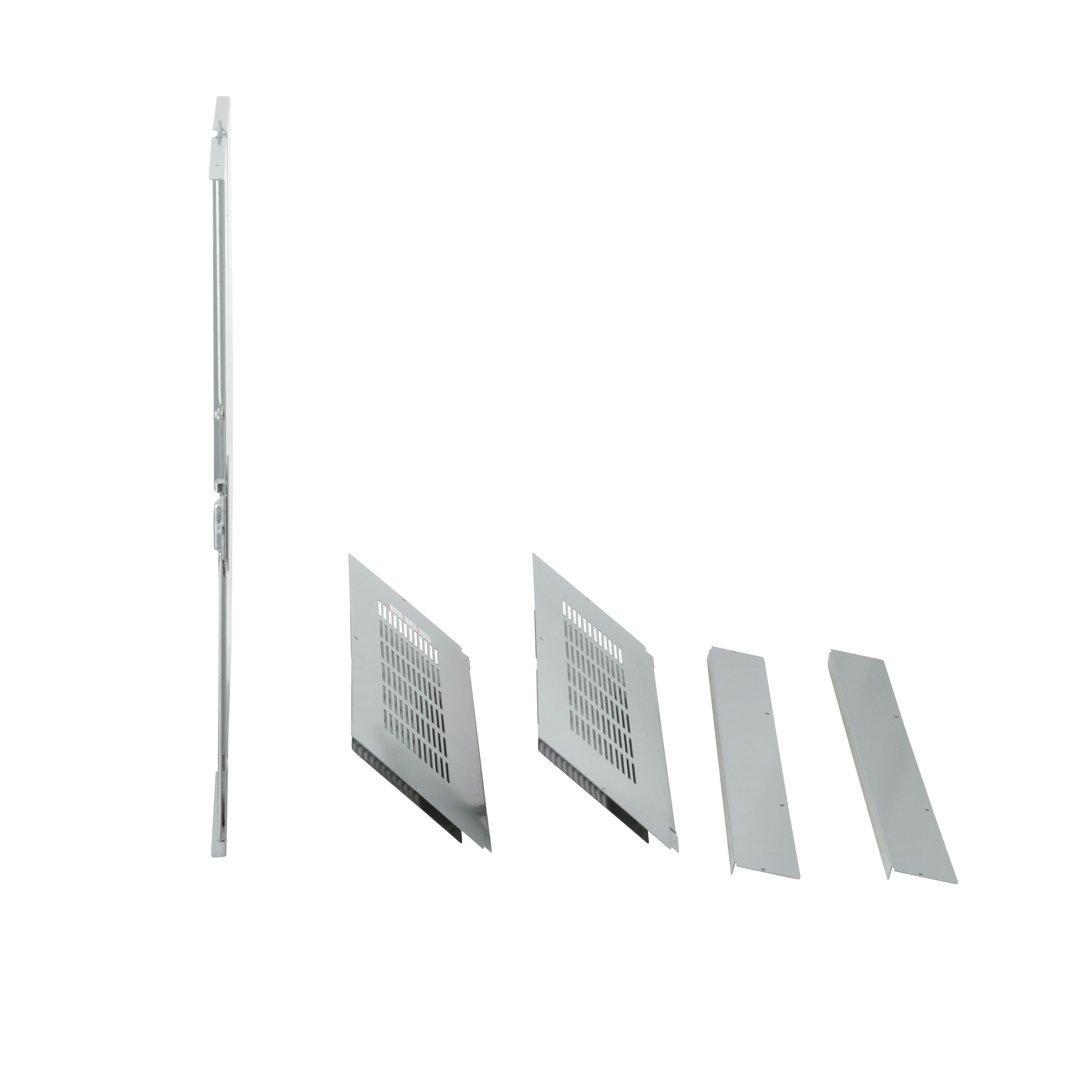

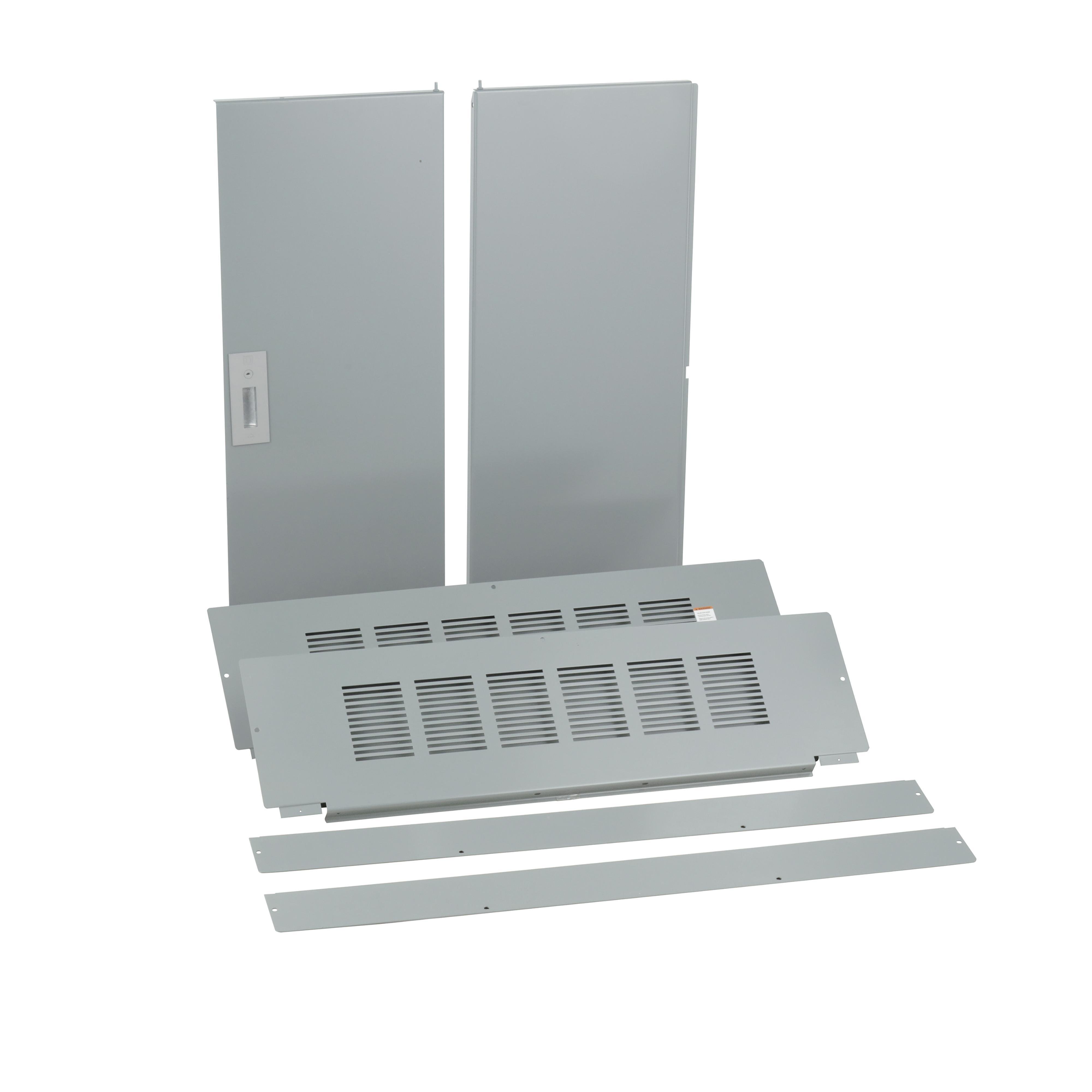

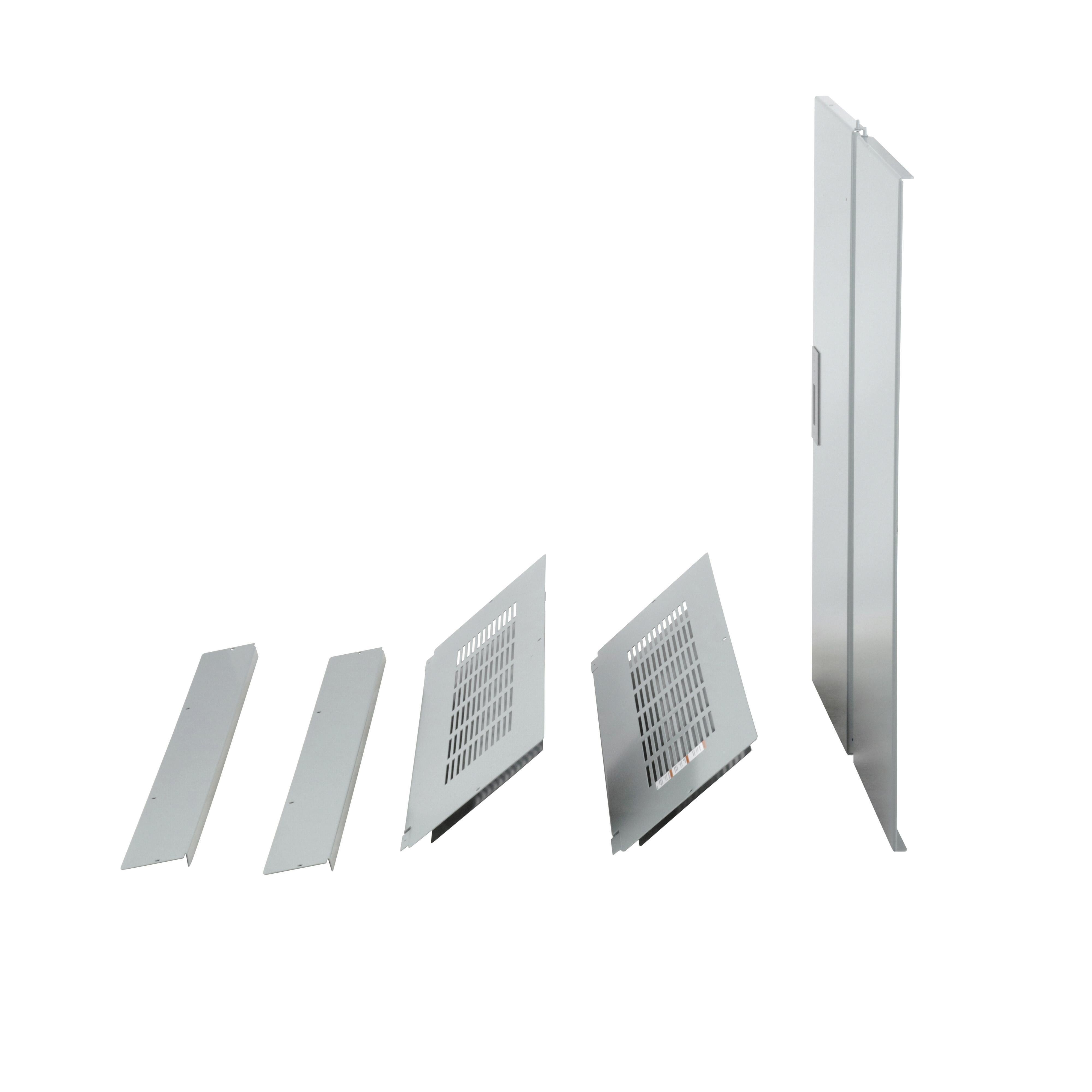

Picture of HCW68TSD - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, w/door, 42in W x 68in H Picture of HCW68TSD - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, w/door, 42in W x 68in H
Picture of HCW68TSD - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, w/door, 42in W x 68in H Picture of HCW68TSD - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, w/door, 42in W x 68in H
Picture of HCW68TSD - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, w/door, 42in W x 68in H Picture of HCW68TSD - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, w/door, 42in W x 68in H
Picture of HCW68TSD - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, w/door, 42in W x 68in H Picture of HCW68TSD - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, w/door, 42in W x 68in H
Square D

HCW68TSD - Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, w/door, 42in W x 68in H

Item Code: 18136
Category Square D I-Line
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HCW68TSD

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCP I-Line panelboard is surface mounted and has trim. The dimesnions are 68 in (H), 42 in (W). This product is certified to cULus & CE standards. This product comes with an 18 month warranty.

Specifications

Weight

91.81lb

Height

4mm

Width

21.8mm

Length

45.55mm

Depth

9.5mm

AD All Features

600VAC, 250VDC maximum

AD Application

For panelboard component

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

KIT COVER/TRIM 68IN 42-1/4IN SURF PTD

AD Item Features 01

600VAC, 250VDC maximum

AD Item Features 02

Fully rated and series rated system available

AD Item Features 03

Dead front trim is easily installed

AD Item Features 04

Factory assembled or ready to install

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.0000

AD Package Height UOM

IN

AD Package Length

45.5500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

4048.0000

AD Package Volume UOM

cu-in

AD Package Weight

91.8100

AD Package Weight UOM

LB

AD Package Width

21.8000

AD Package Width UOM

IN

Brand

Square D

Category

Square D I-Line

Spec 1 Attribute

Depth

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

9/1/2002

Spec 2 Attribute

Finish

Spec 2 Attribute Value

Painted

Spec 3 Attribute

Length

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

68

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Surface

Spec 5 Attribute

Series

Spec 5 Attribute Value

HCW

Spec 6 Attribute

Suitable For Use With

Spec 6 Attribute Value

I-Line™ 400/600/800/1200 A Main Lug Panelboard and 600/800 A Main Breaker Panelboard

Spec 7 Attribute

Type

Spec 7 Attribute Value

4-Piece

Spec 8 Attribute

Width

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

42-1/4
