Square D™

HD100S - Circuit breaker enclosure, PowerPacT H, 15A to 100A, 3 pole, surface mount, NEMA 1, HDS breaker

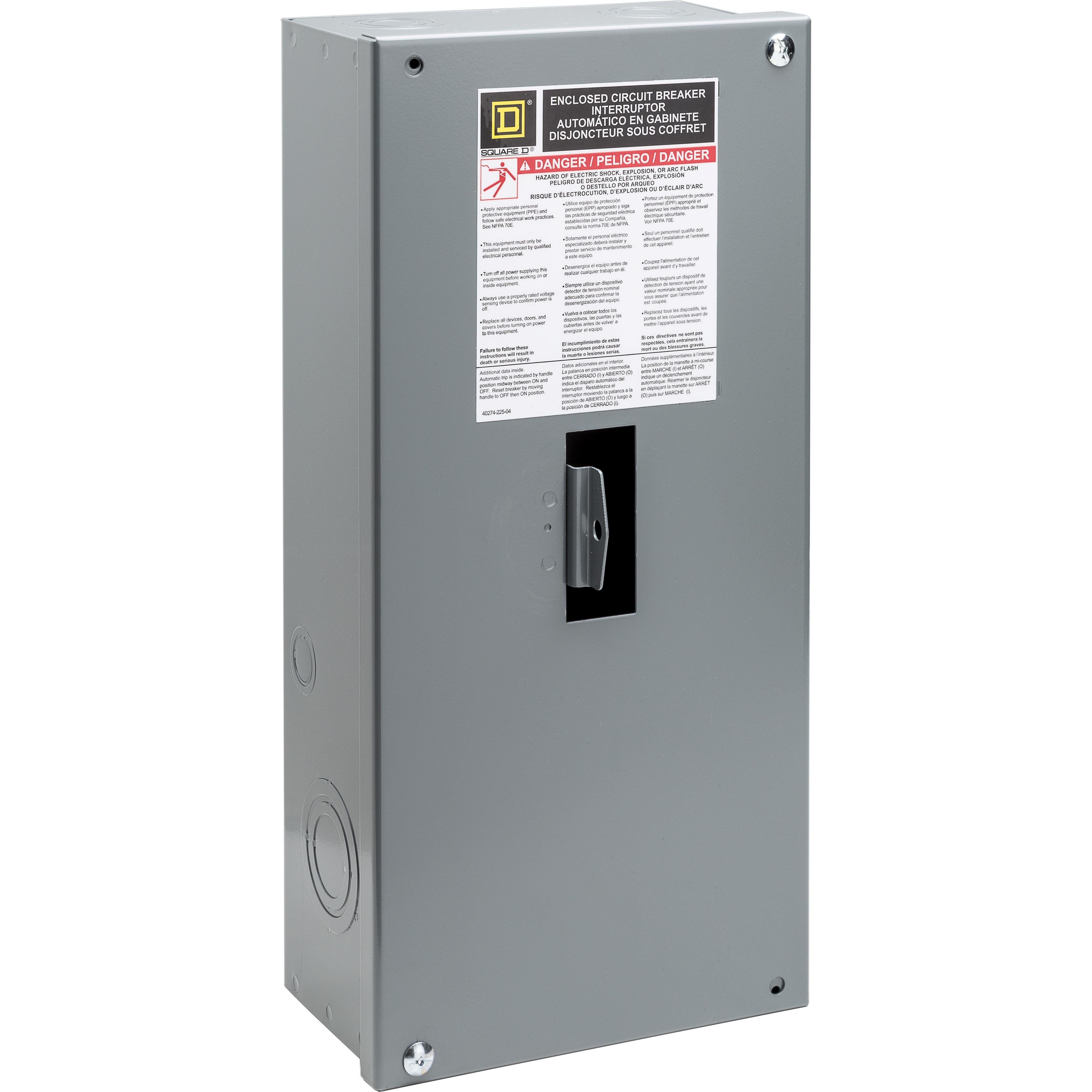

Picture of HD100S - Circuit breaker enclosure, PowerPacT H, 15A to 100A, 3 pole, surface mount, NEMA 1, HDS breaker
Square D™

HD100S - Circuit breaker enclosure, PowerPacT H, 15A to 100A, 3 pole, surface mount, NEMA 1, HDS breaker

Item Code: 719670
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HD100S

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. The enclosure is rated for 240 Vac maximum. Short circuit current rating is 25kAIR at 240VAC. The enclosure is not compatible with earth-leakage or ground-fault modules, H-frame circuit breakers with MicroLogic trip units can be used with these enclosure without communication accessories and trip unit is not accessible or visible Encloser acceptes 80 % rated 3 poles 15A to 100A circuit breakers. This surface NEMA 1 enclosure has dimensions as Height of 17 inch, Width of 7.9 inch and Depth of 4.75 inch. Provides NEC 100 compliant sealable equipment. Meet the lock out/tag out requirements of OSHA 29 CFR 1910.147 subpart S. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Complies with NEC 240.30. cULus listed. Protect breaker from physical damage. Allow breaker operation without removing cover

Specifications

Weight

10.47lb

Height

6.3mm

Width

8.92mm

Length

17.83mm

Depth

120.7mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HD100S/HD100S.spin

AD Alternative Part Number

10864497

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901472797

AD Gtin

00785901472797

AD IDEA Index ID

10864497

AD Invoice Description

ENCLOSURE 200.7MM 120.7MM 431.8MM NEMA

AD Item Features 01

PowerPacT H circuit breaker enclosure 15 to 100A rated

AD Item Features 02

The short circuit current rating of the enclosed circuit breaker is equal to the rating of the circuit breaker installed

AD Item Features 03

Circuit breakers are ordered and shipped separately for field installation

AD Item Features 04

The enclosures are not compatible with earth-leakage or ground-fault modules

AD Keywords

HD100S A01 Enclosure, 200.7 mm W x 120.7 mm D x 431.8 mm H, NEMA 1 NEMA Rating, Steel ; Schneider Electric ; Square D ; HD100S ; HD100S ; 785901472797 ; Circuit Breaker Enclosures

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.3000

AD Package Height UOM

IN

AD Package Length

17.8300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1020.6000

AD Package Volume UOM

cu-in

AD Package Weight

10.4700

AD Package Weight UOM

LB

AD Package Width

8.9200

AD Package Width UOM

IN

AD Part Number Keywords

HD100S ; 10864497 ; 785901472797 ; 78590147279 ; 00785901472797 ; 0785901472797

Brand

Square D

Spec 1 Attribute

Depth

Spec 1 Attribute UOM

MM

Spec 1 Attribute Value

120.7

Spec 10 Attribute

Width

Spec 10 Attribute UOM

MM

Spec 10 Attribute Value

200.7

Spec 2 Attribute

Electrical Ratings

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

15 to 100

Spec 3 Attribute

Frame

Spec 3 Attribute Value

H

Spec 4 Attribute

Height

Spec 4 Attribute UOM

MM

Spec 4 Attribute Value

431.8

Spec 5 Attribute

Material

Spec 5 Attribute Value

Steel

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Surface

Spec 7 Attribute

NEMA Rating

Spec 7 Attribute Value

NEMA 1

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Series

Spec 9 Attribute Value

A01
