Schneider Electric

HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC

Category Thermal Magnetic Trip Molded Case Circuit Breakers

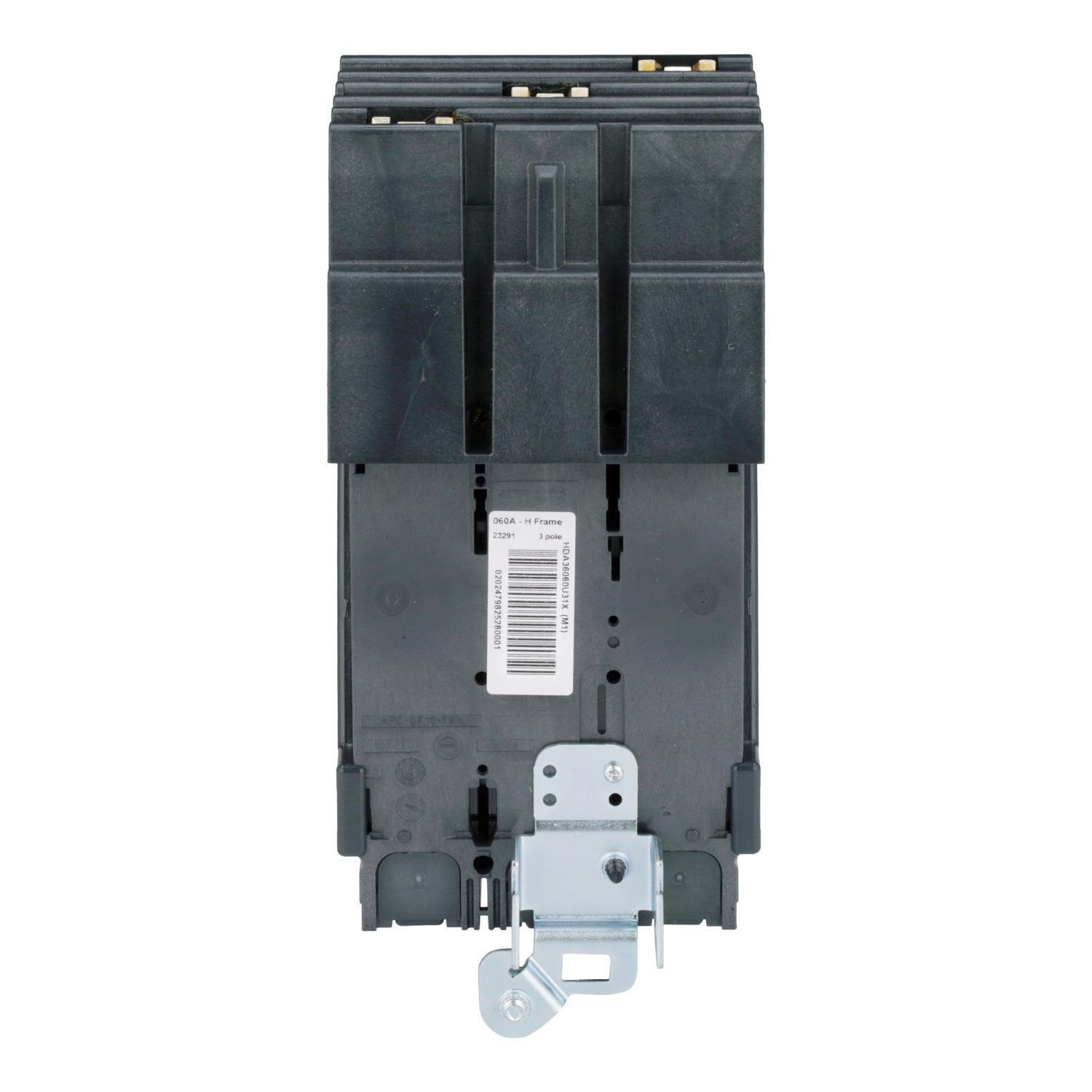

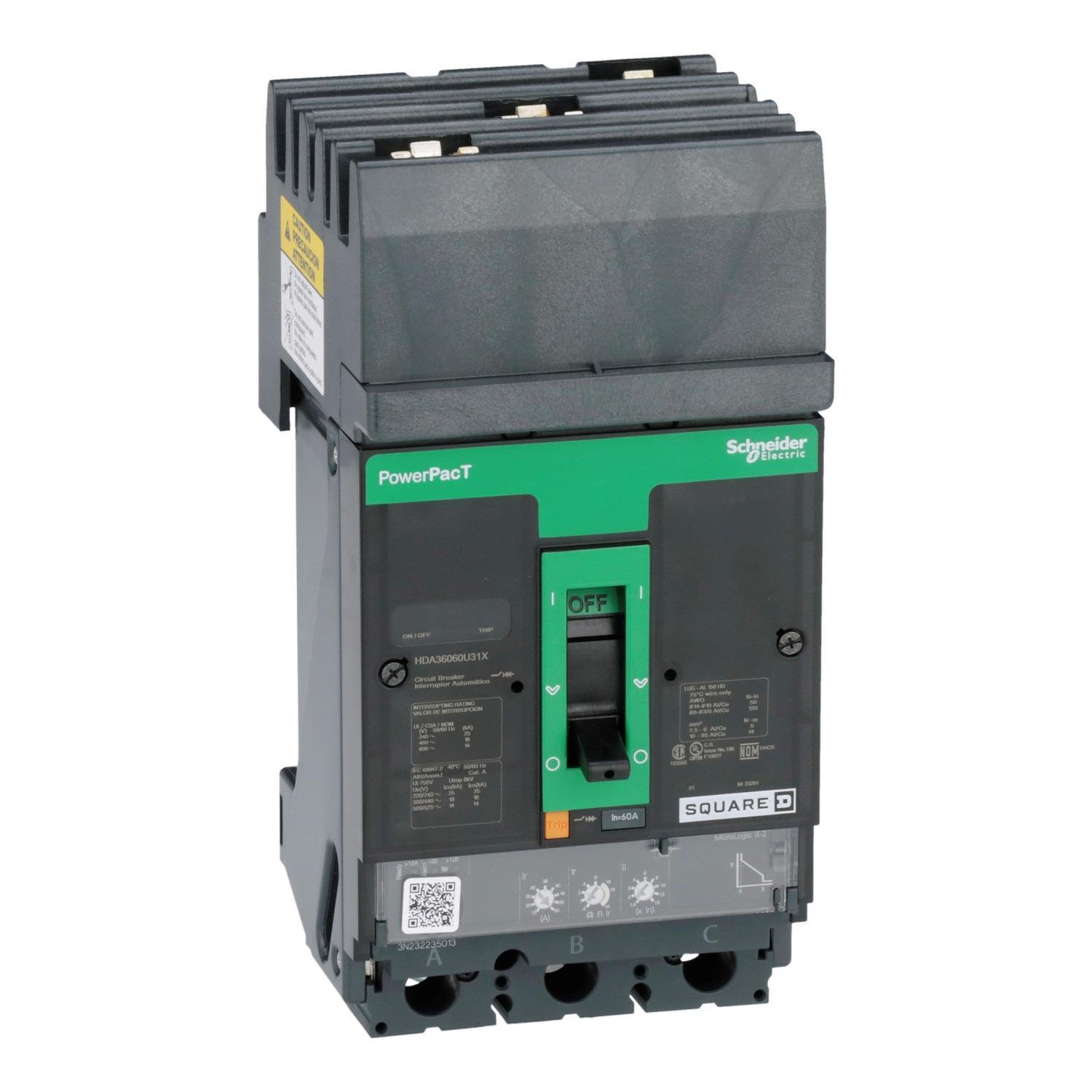

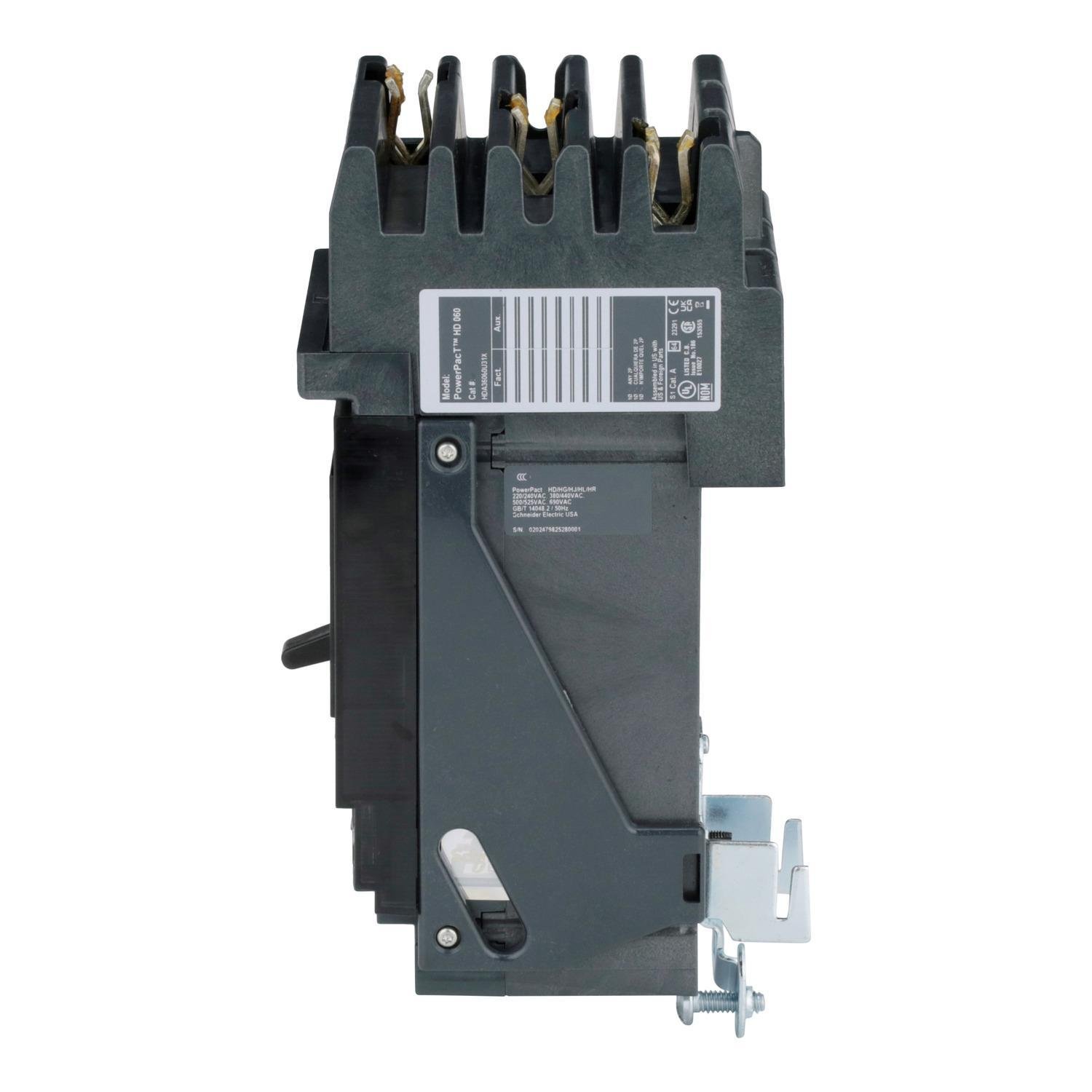

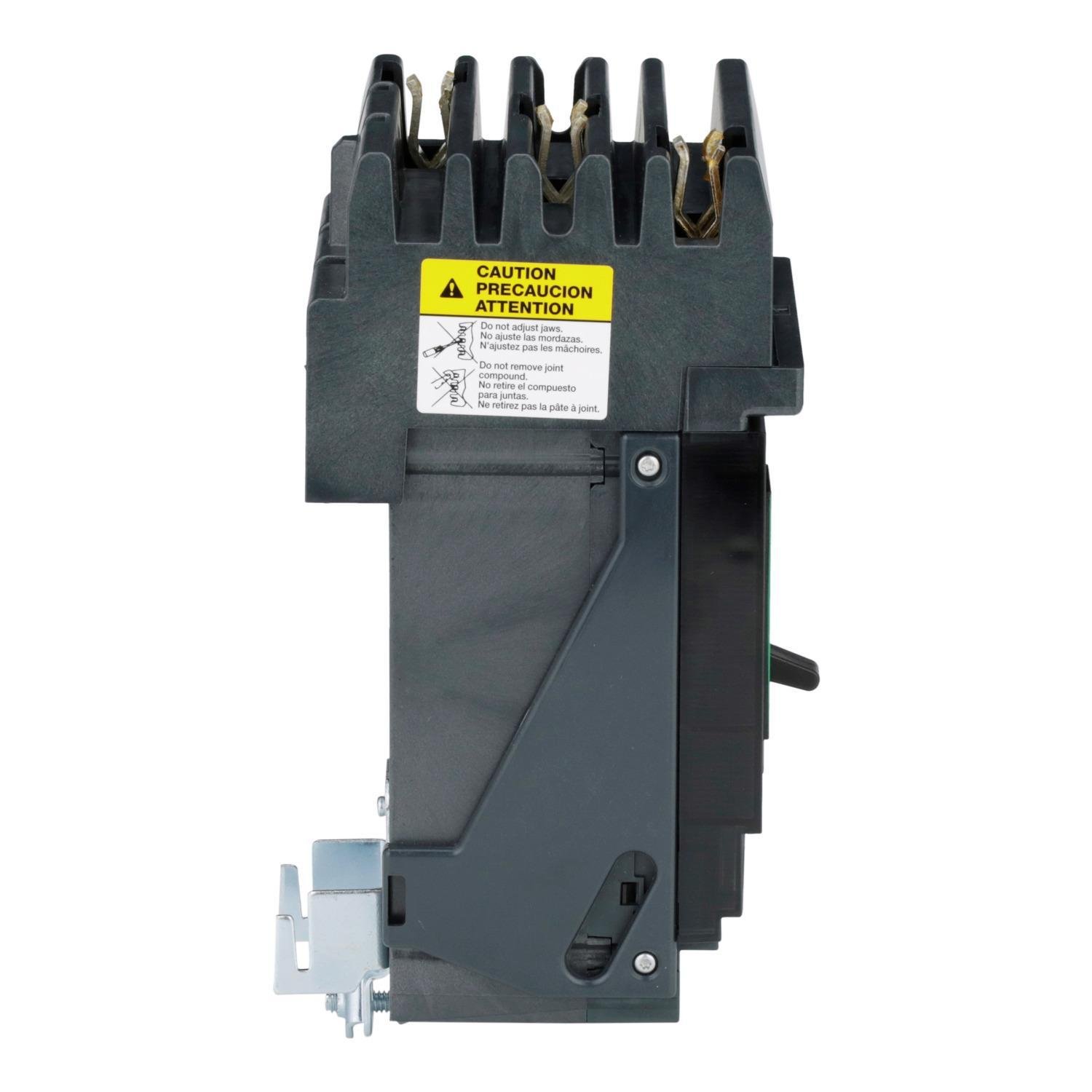

Picture of HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC Picture of HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC
Picture of HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC Picture of HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC
Picture of HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC Picture of HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC
Picture of HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC Picture of HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC
Picture of HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC Picture of HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC
Schneider Electric

HDA36060U31X - Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 14kA, I-Line, Micrologic 3.2, 80%, ABC

Item Code: 1011603
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HDA36060U31X

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

6.39

Width

8.05

Length

14.49

AD All Features

Standard 80% or 100% rating

AD Application

Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 60A 3 H

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

14.4900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

6.3900

AD Package Weight UOM

LB

AD Package Width

8.0500

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/1PjFQgO_-Ik

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

60

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

104

Spec 12 Attribute

Trip Range

Spec 12 Attribute Value

800 to 1450 A

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Electronic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type HDA

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

14 to 3/0 AWG Al/Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

6.4 in H x 4.12 in W x 4.36 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

H

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250 VDC

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
