HDL26020 - Circuit breaker, PowerPacT H, 20A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

Category Miscellaneous

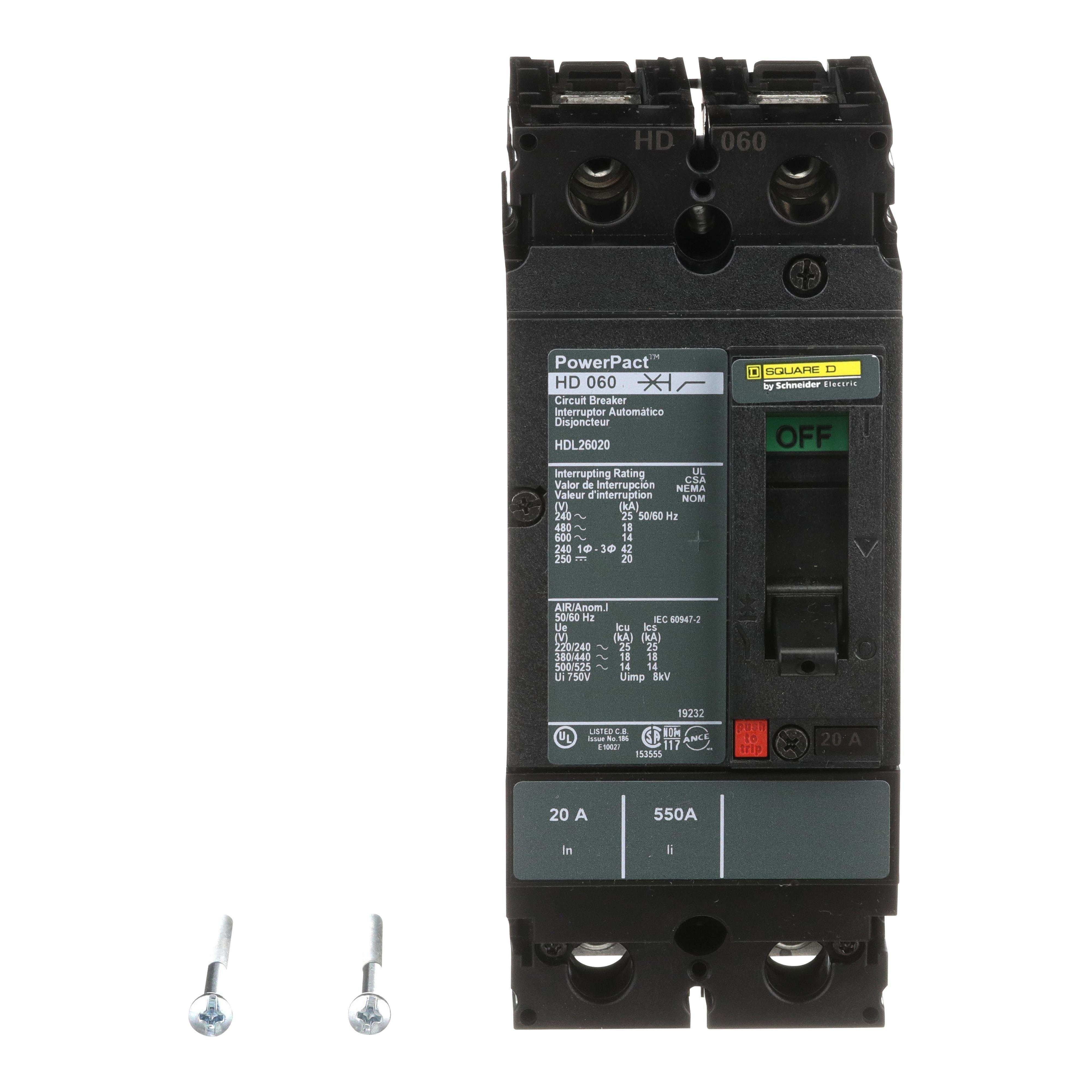

Picture of HDL26020 - Circuit breaker, PowerPacT H, 20A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL26020 - Circuit breaker, PowerPacT H, 20A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

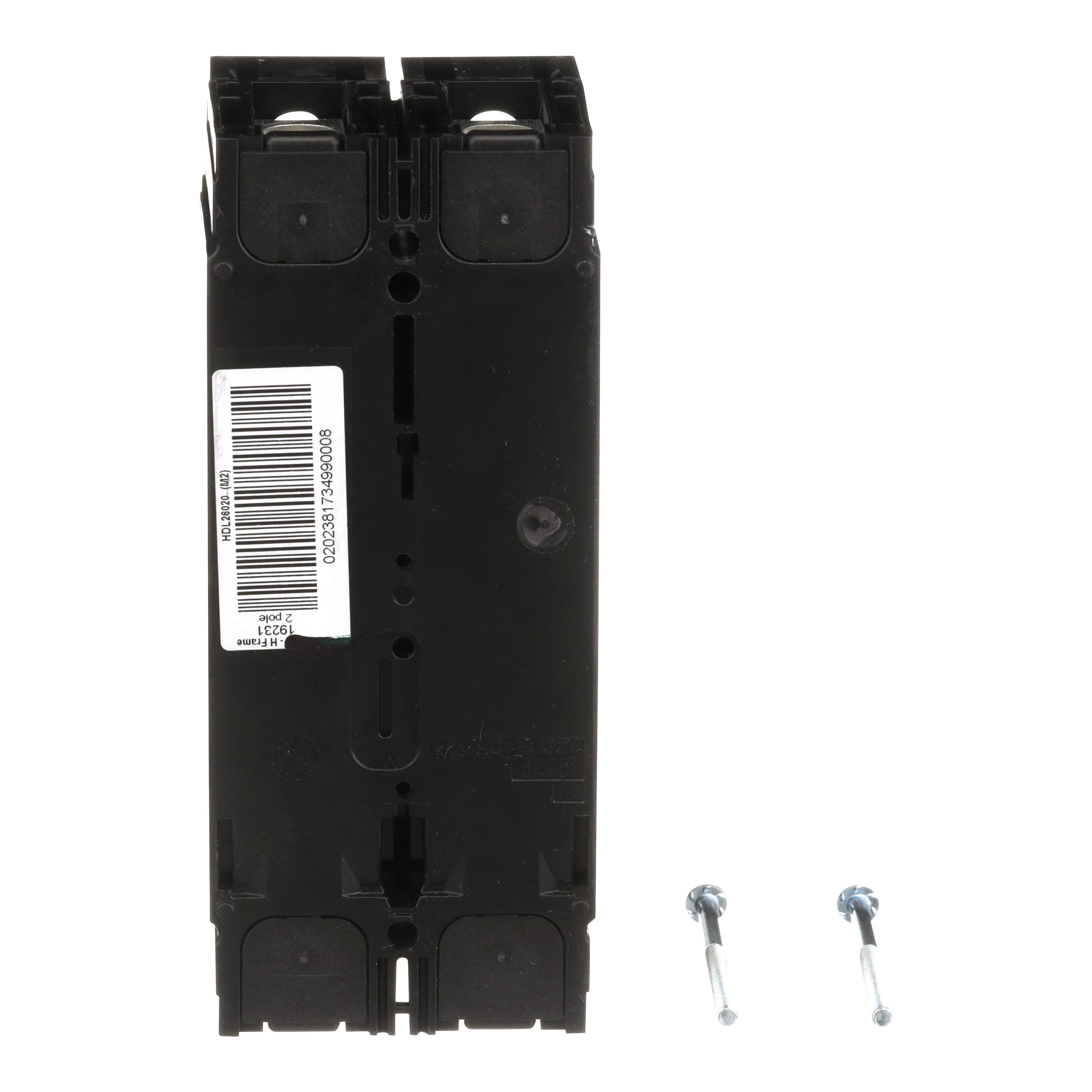

Picture of HDL26020 - Circuit breaker, PowerPacT H, 20A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL26020 - Circuit breaker, PowerPacT H, 20A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

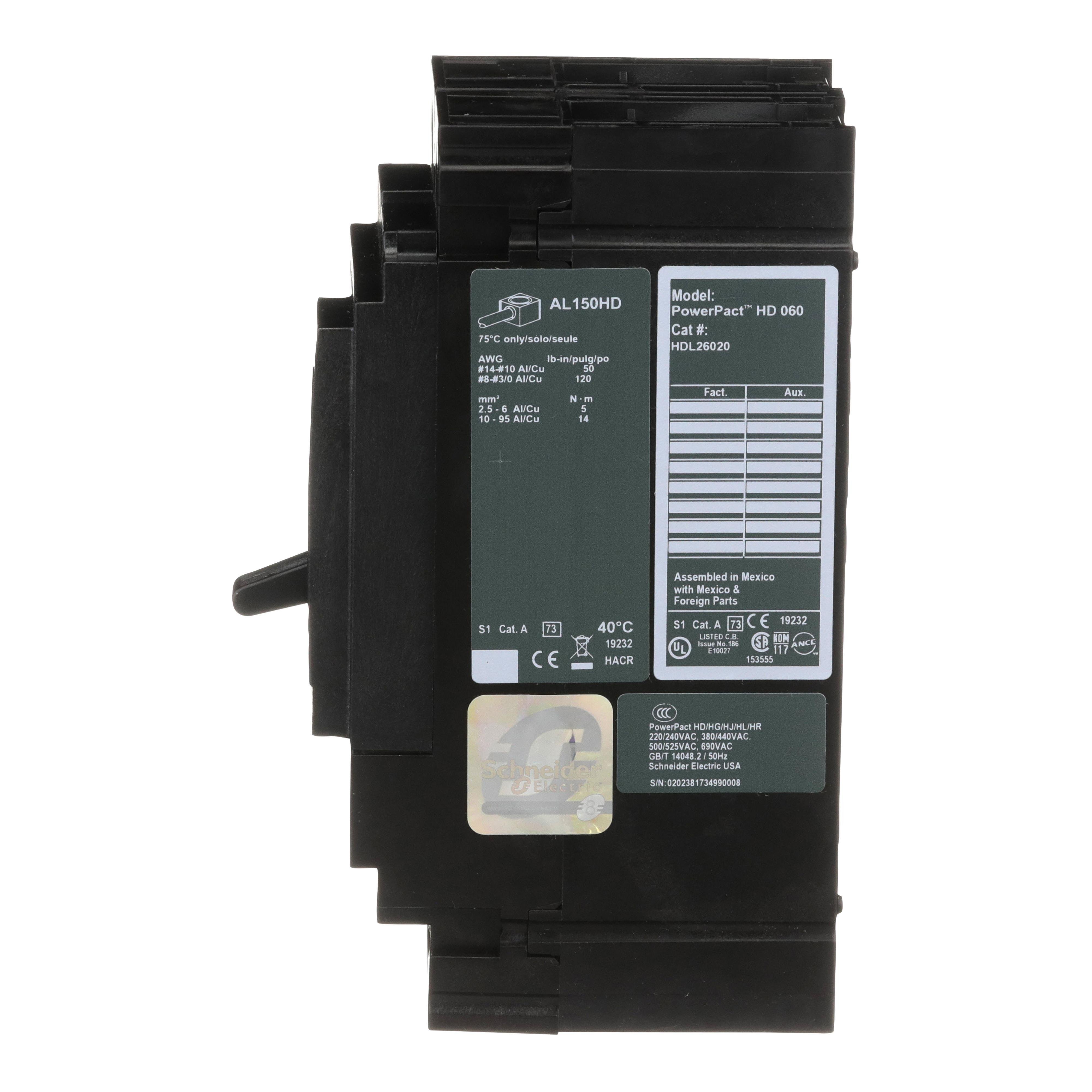

Picture of HDL26020 - Circuit breaker, PowerPacT H, 20A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL26020 - Circuit breaker, PowerPacT H, 20A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Picture of HDL26020 - Circuit breaker, PowerPacT H, 20A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL26020 - Circuit breaker, PowerPacT H, 20A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Square D

HDL26020 - Circuit breaker, PowerPacT H, 20A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

Item Code: 570809
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HDL26020

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 20A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
