Square D

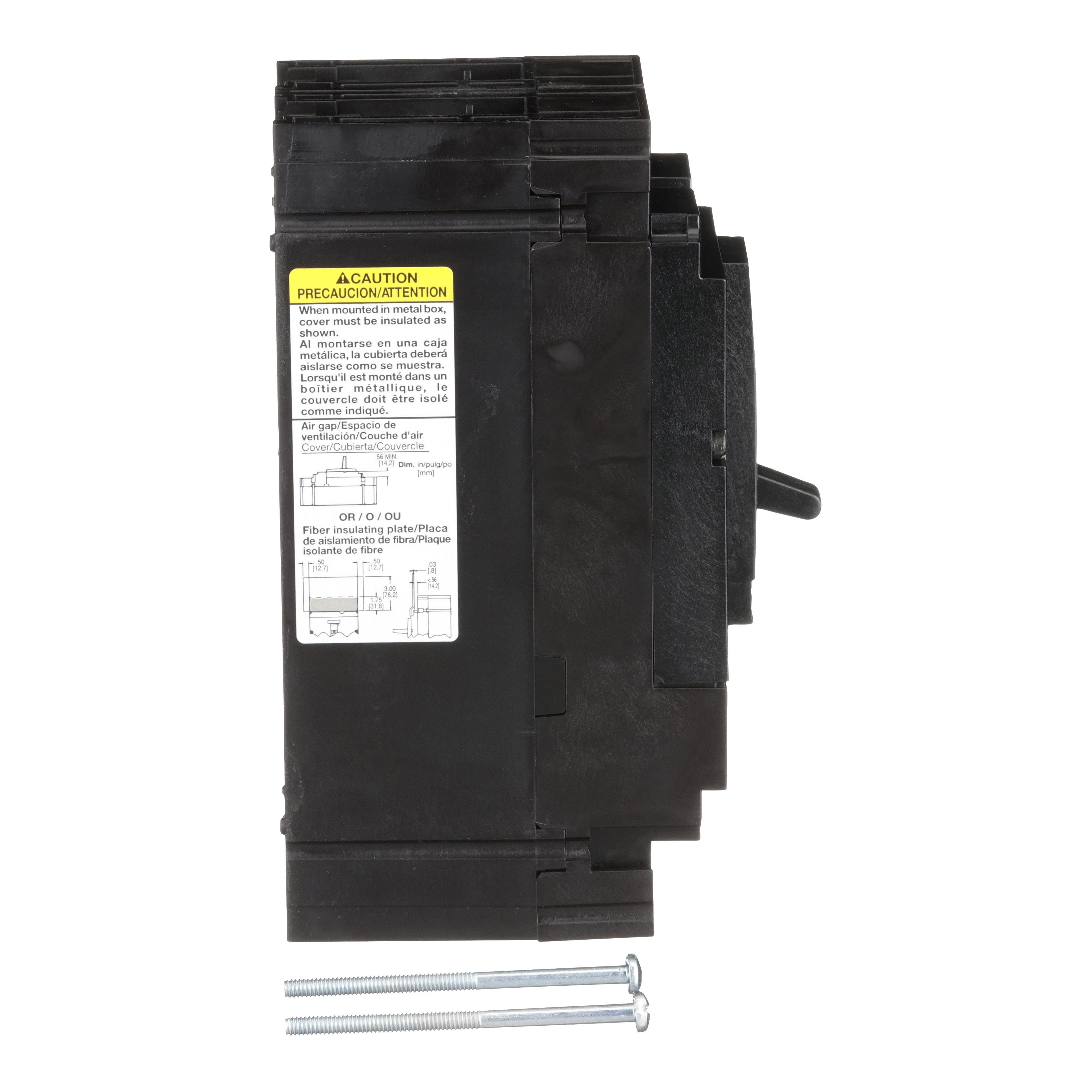

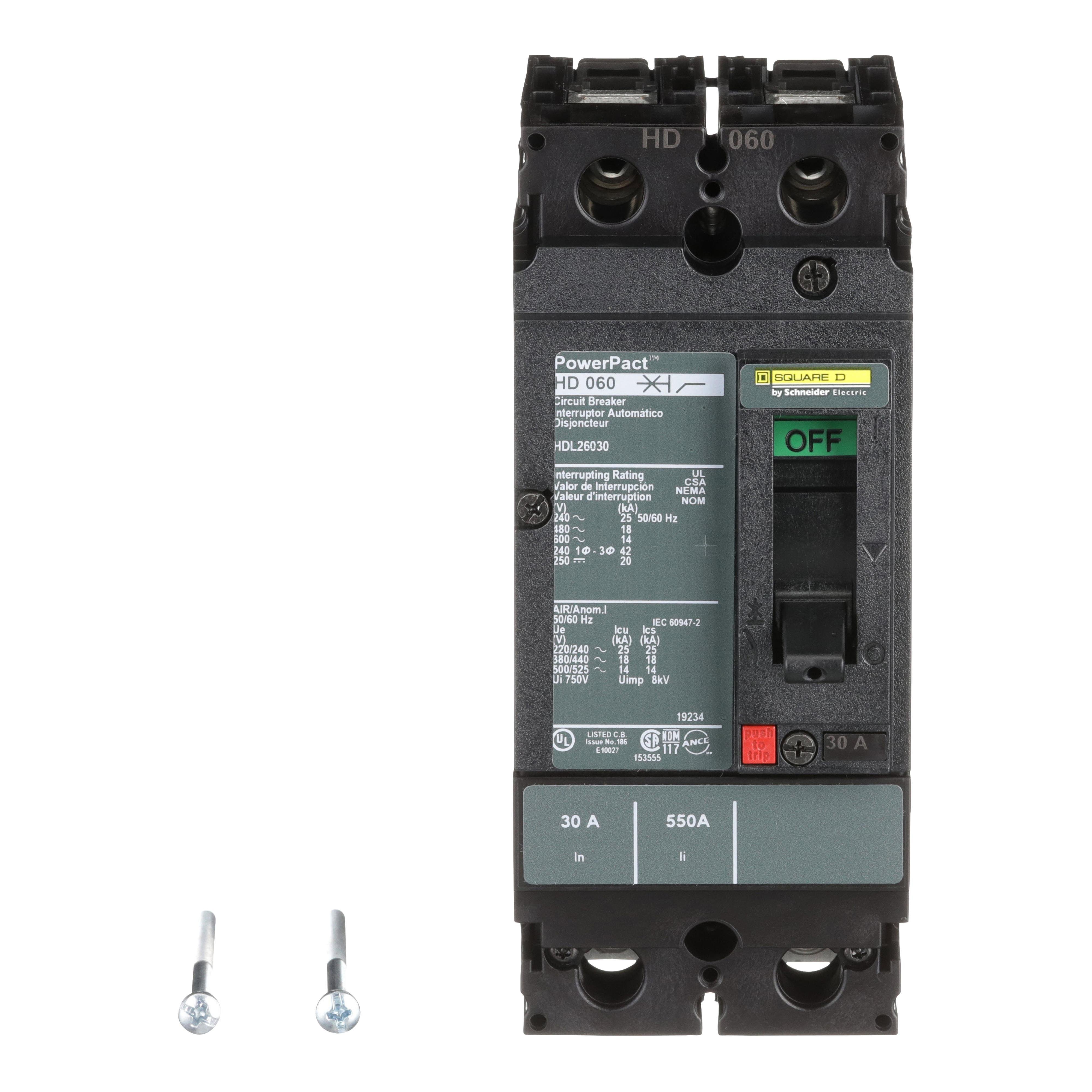

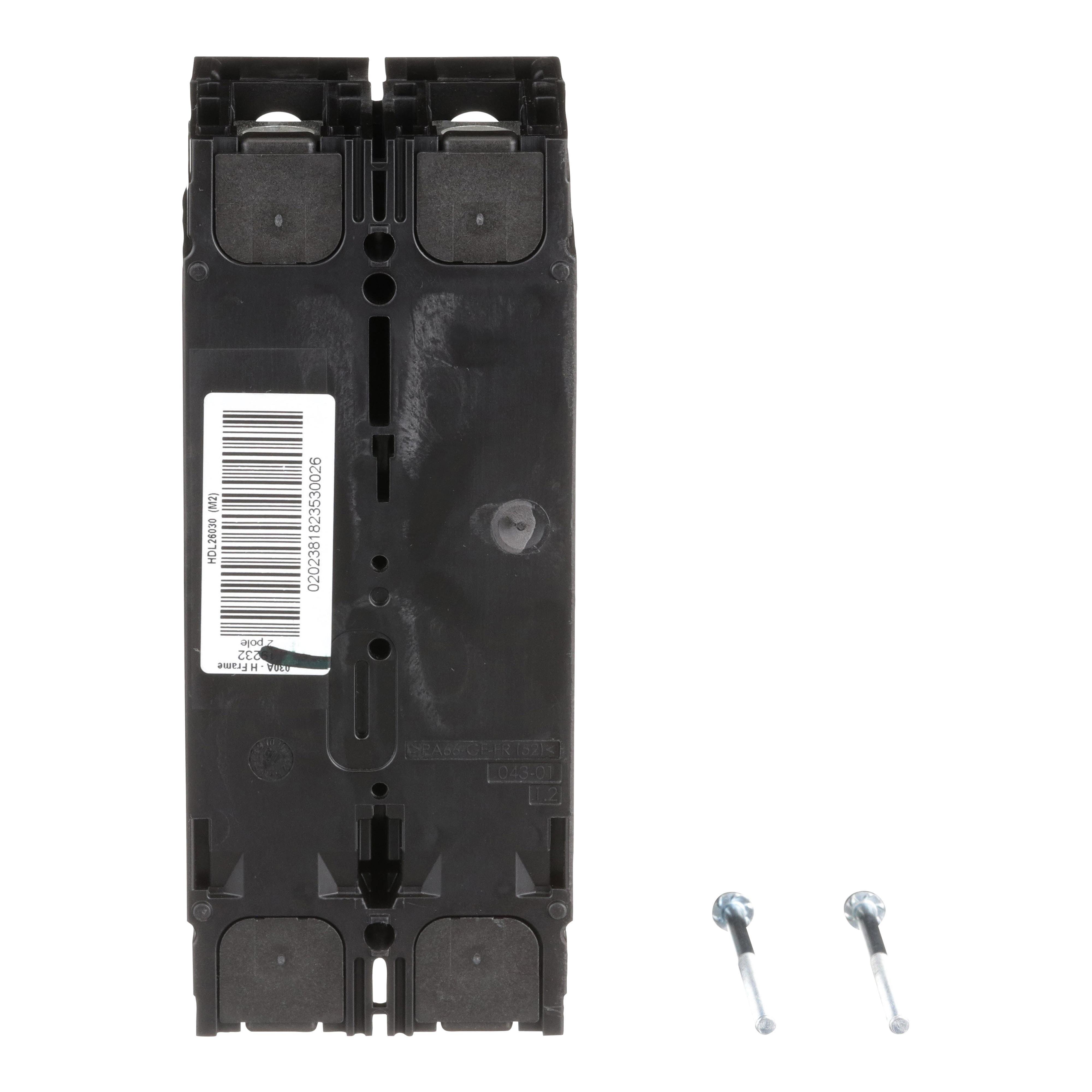

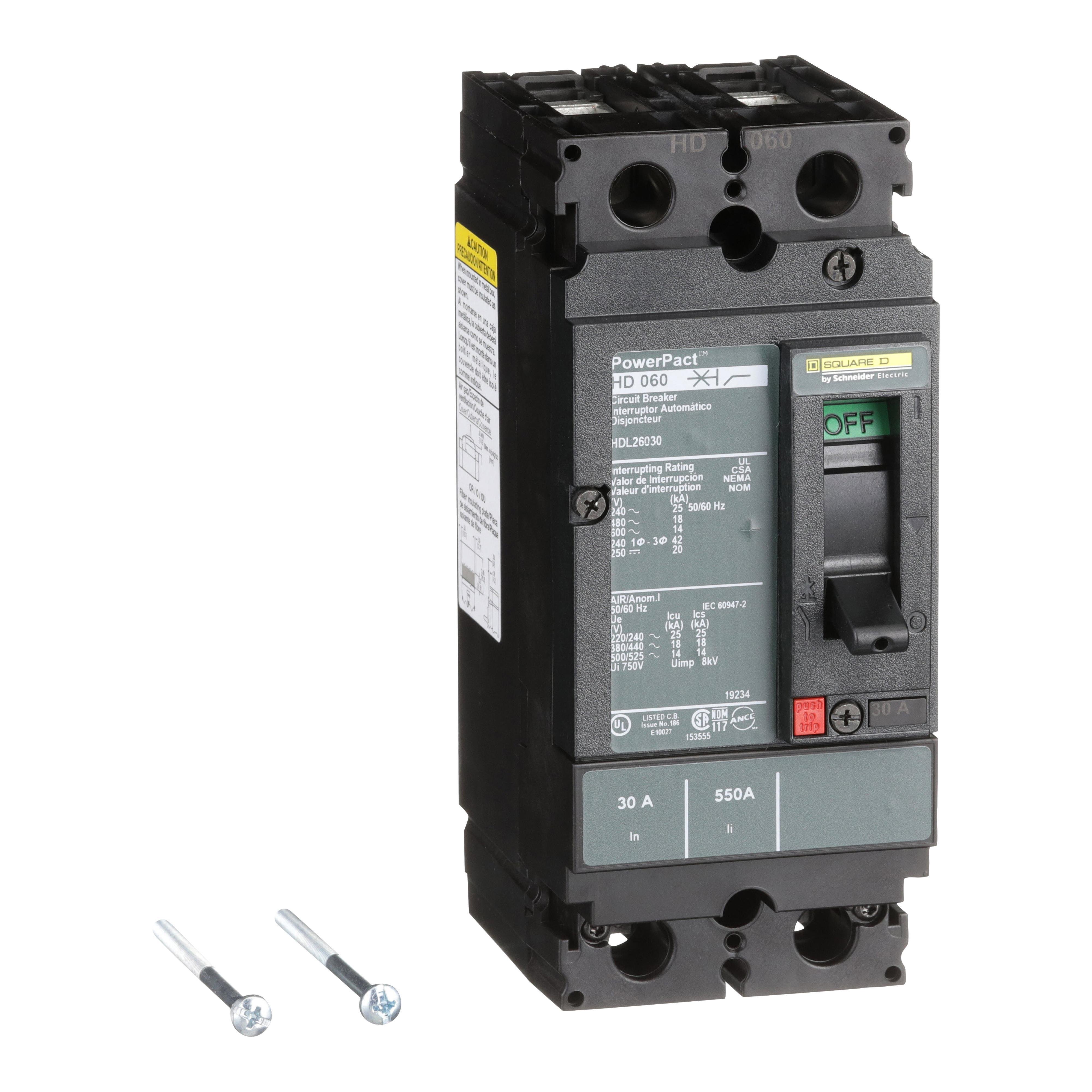

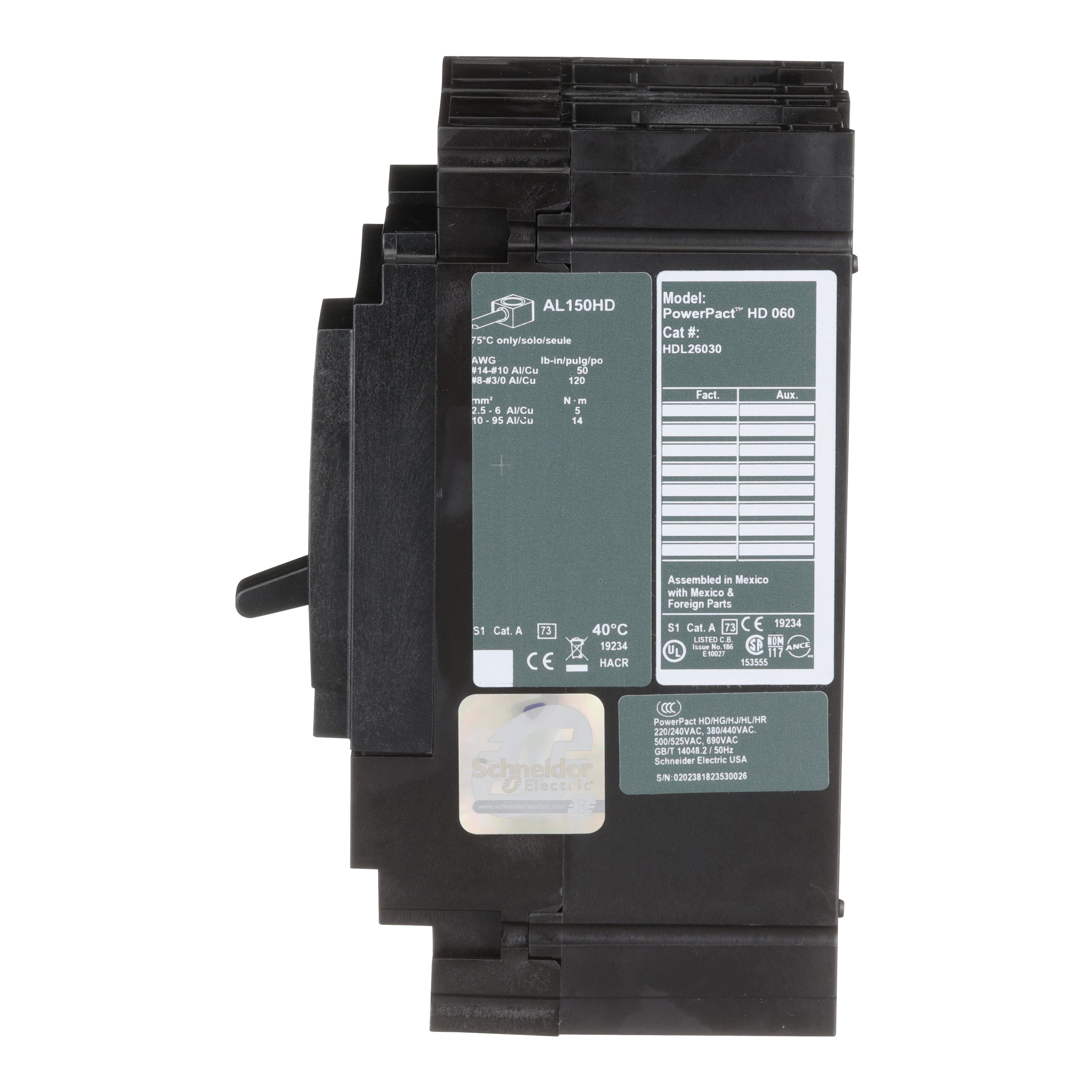

HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

Category Miscellaneous
Picture of HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Picture of HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Picture of HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Picture of HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Picture of HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Square D

HDL26030 - Circuit breaker, PowerPacT H, 30A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

Item Code: 569603
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HDL26030

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 30A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

2.99

Height

5.7

Width

7.33

Length

8.81

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HDL26030/HDL26030.spin

AD All Features

Standard 80% or 100% rating

AD Alternative Part Number

8054921

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901458920

AD Gtin

00785901458920

AD IDEA Index ID

8054921

AD Invoice Description

BREAKER MLD CASE CKT 600 VAC/250 VDC 30A

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.7000

AD Package Height UOM

IN

AD Package Length

8.8100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

366.9700

AD Package Volume UOM

cu-in

AD Package Weight

2.9900

AD Package Weight UOM

LB

AD Package Width

7.3300

AD Package Width UOM

IN

AD Part Number Keywords

HDL26030 ; 8054921 ; 785901458920 ; 78590145892 ; 00785901458920 ; 0785901458920

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 10 Attribute

Trip Range

Spec 10 Attribute Value

350 A Hold, 750 A

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

80% Rated Type HDA

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute Value

600 V AC/250 V DC

Spec 14 Attribute

Wire Size

Spec 14 Attribute UOM

AWG

Spec 14 Attribute Value

14 to 3/0

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

86 mm L x 70 mm W x 163 mm H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

H

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute Value

25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

-13 To 158
