Square D

HDL36025 - Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

Category Miscellaneous

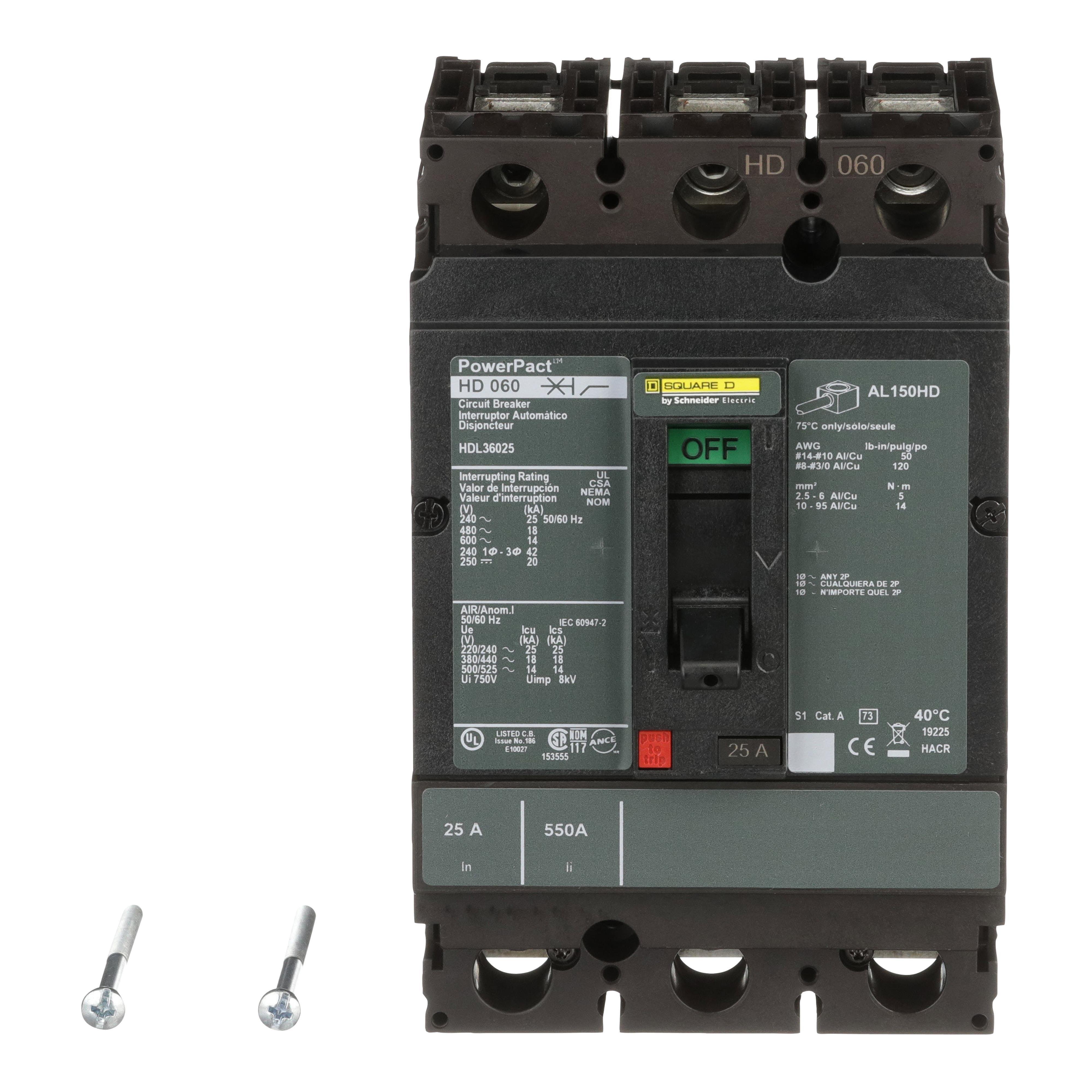

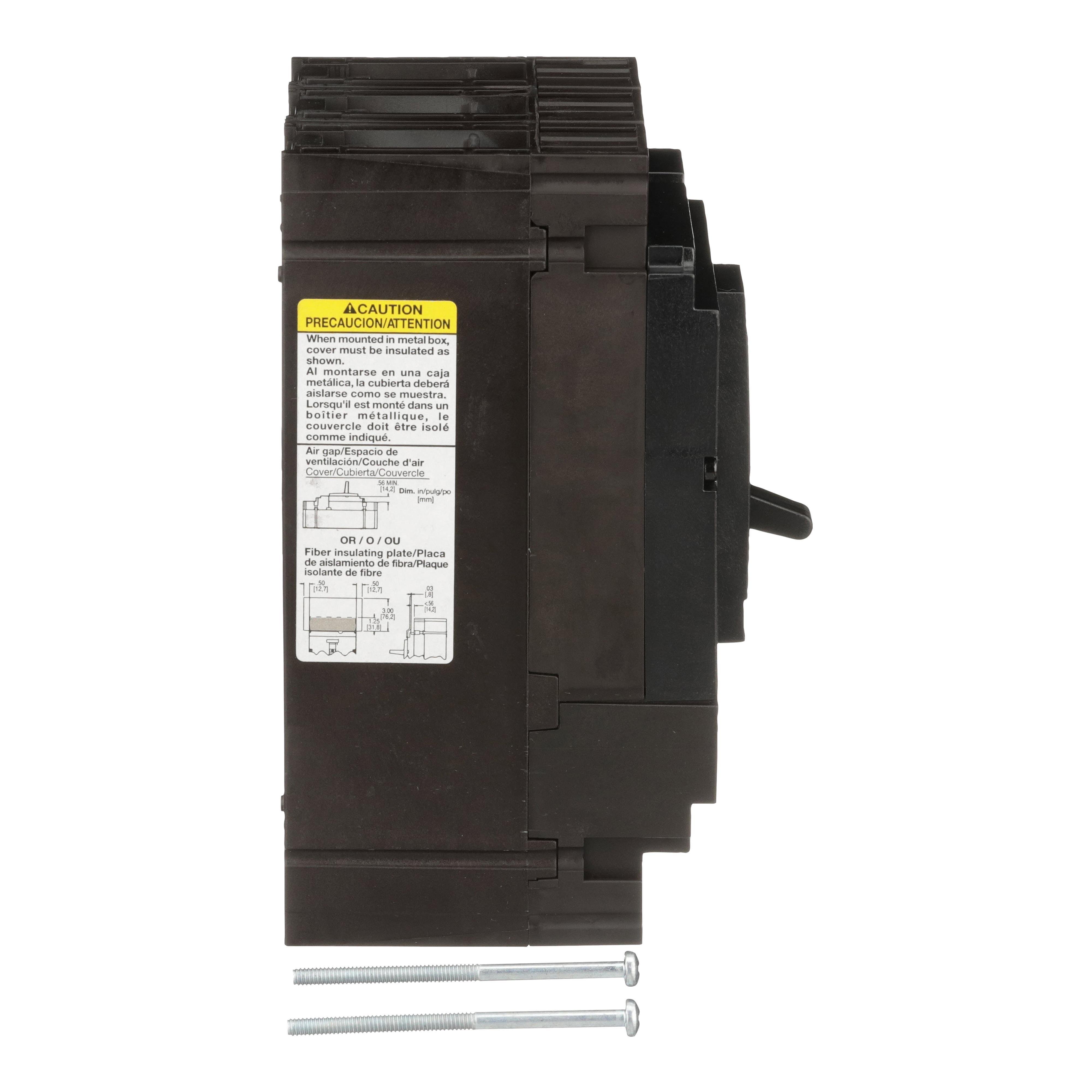

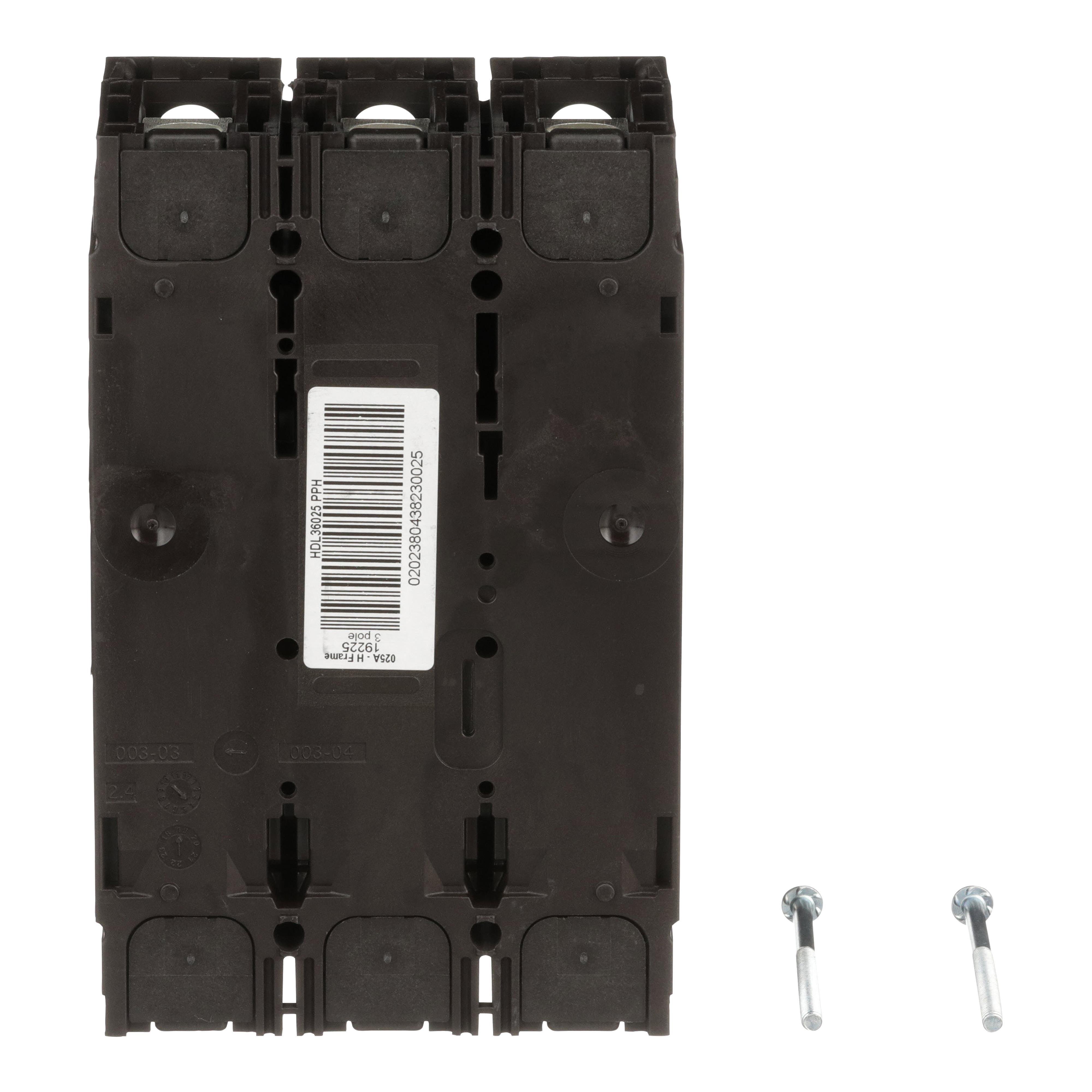

Picture of HDL36025 - Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL36025 - Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Picture of HDL36025 - Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL36025 - Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Picture of HDL36025 - Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL36025 - Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Picture of HDL36025 - Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80% Picture of HDL36025 - Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
Square D

HDL36025 - Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

Item Code: 566473
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HDL36025

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 25A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

4.11

Height

9

Width

7.23

Length

6.24

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HDL36025/HDL36025.spin

AD All Features

Standard 80% or 100% rating

AD Alternative Part Number

8101016

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901577898

AD Gtin

00785901577898

AD IDEA Index ID

8101016

AD Invoice Description

BREAKER MLD CASE CKT 600 VAC/250 VDC 25A

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Keywords

HDL36025 HDL Hda Molded Case Circuit Breaker, 600 V AC/250 V DC, 25 A, 14 to 20 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Square D ; HDL36025 ; 8101016 ; 785901577898 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

9.0000

AD Package Height UOM

IN

AD Package Length

6.2400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

4.1100

AD Package Weight UOM

LB

AD Package Width

7.2300

AD Package Width UOM

IN

AD Part Number Keywords

HDL36025 ; 8101016 ; 785901577898 ; 78590157789 ; 00785901577898 ; 0785901577898

AD Video Links

https://www.youtube.com/watch?v=3SxmA3ubihc

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

25

Spec 10 Attribute

Trip Range

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

350 To 750

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

80% Rated Type HDA

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute Value

600 V AC/250 V DC

Spec 14 Attribute

Wire Size

Spec 14 Attribute UOM

AWG

Spec 14 Attribute Value

14 to 3/0

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

6.4 in H x 4.12 in W x 4.36 in D

Spec 4 Attribute

Frame

Spec 4 Attribute Value

H

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

14 to 20

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Series

Spec 8 Attribute Value

HDL

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

104
