Square D™

HDL36150CU33X - Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 14kA, lugs, Micrologic 3.2S, 100%

Category Miscellaneous

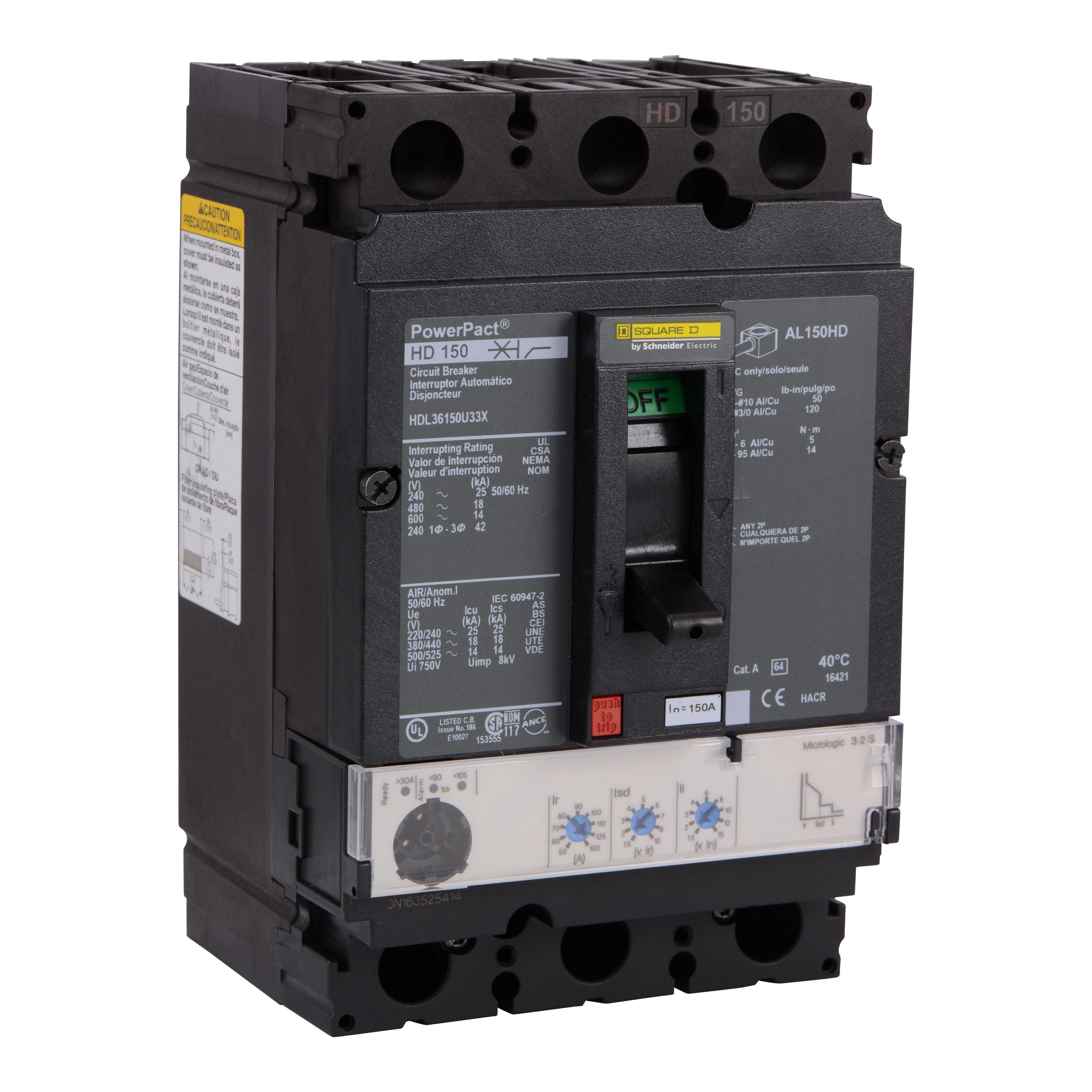

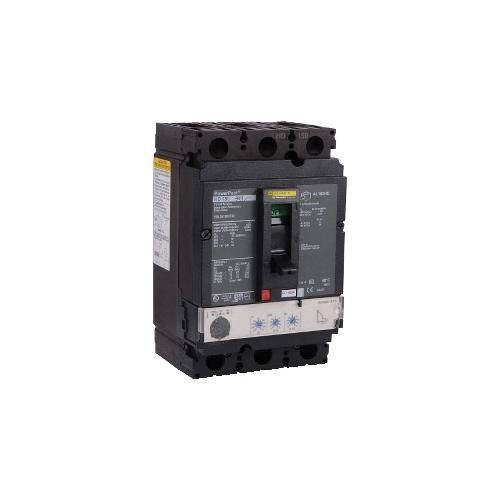

Picture of HDL36150CU33X - Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 14kA, lugs, Micrologic 3.2S, 100% Picture of HDL36150CU33X - Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 14kA, lugs, Micrologic 3.2S, 100%

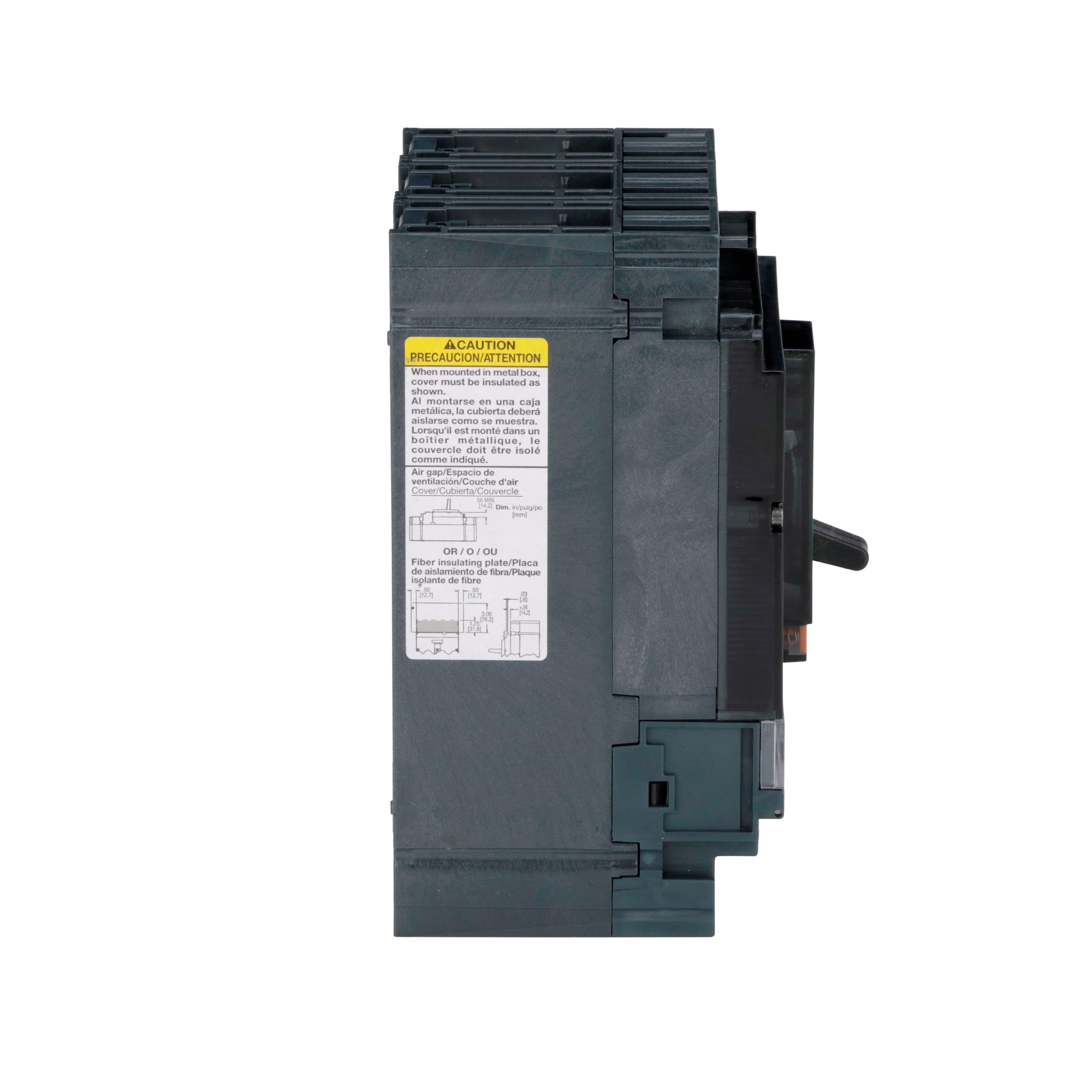

Picture of HDL36150CU33X - Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 14kA, lugs, Micrologic 3.2S, 100% Picture of HDL36150CU33X - Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 14kA, lugs, Micrologic 3.2S, 100%
Picture of HDL36150CU33X - Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 14kA, lugs, Micrologic 3.2S, 100% Picture of HDL36150CU33X - Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 14kA, lugs, Micrologic 3.2S, 100%
Square D™

HDL36150CU33X - Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 14kA, lugs, Micrologic 3.2S, 100%

Item Code: 1225461
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HDL36150CU33X

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

4.99

Width

7.18

Length

8.36

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HDL36150CU33X/HDL36150CU33X.spin

AD All Features

Standard 80% or 100% rating

AD Alternative Part Number

14898486

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901950295

AD Gtin

00785901950295

AD IDEA Index ID

14898486

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 150A 14KA

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Keywords

PowerPact HDL36150CU33X H Molded Case Circuit Breaker, 600 V AC, 150 A, 14 kA Interrupt, 3 Poles, Electronic Trip ; Schneider Electric ; Square D ; HDL36150CU33X ; HDL36150CU33X ; 785901950295 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

8.3600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

4.9900

AD Package Weight UOM

LB

AD Package Width

7.1800

AD Package Width UOM

IN

AD Part Number Keywords

HDL36150CU33X ; 14898486 ; 785901950295 ; 78590195029 ; 00785901950295 ; 0785901950295

AD Video Links

https://www.youtube.com/embed/eoDTK_hod_s

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Wire Size

Spec 10 Attribute UOM

AWG

Spec 10 Attribute Value

14 to 3/0

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

150

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

104.65 mm W x 110.74 mm D x 162.56 mm H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

D

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

14

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Trip Type

Spec 8 Attribute Value

Electronic

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

600
