Square D

HEPD50 - Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1

Category Receptacles & Surge Protectors

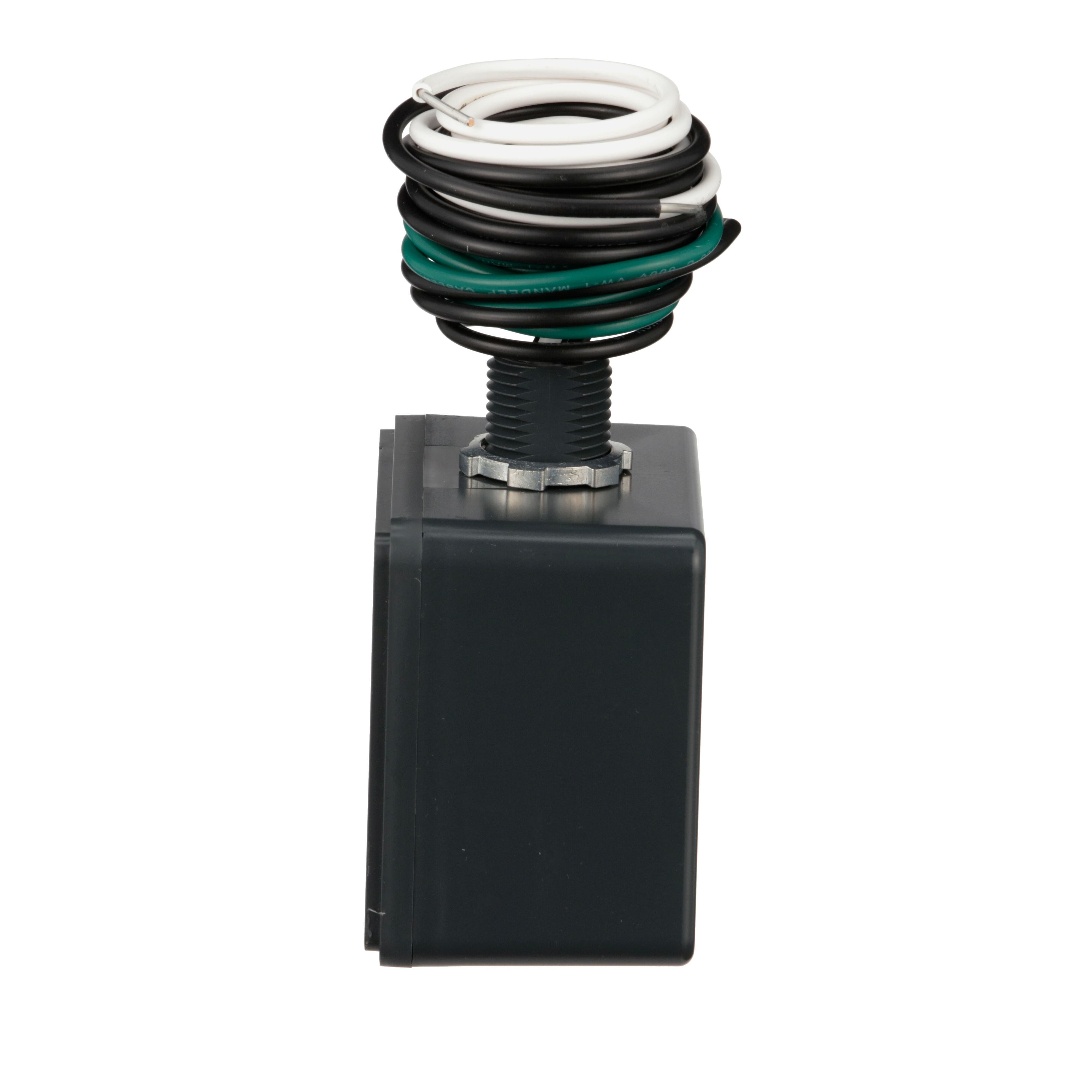

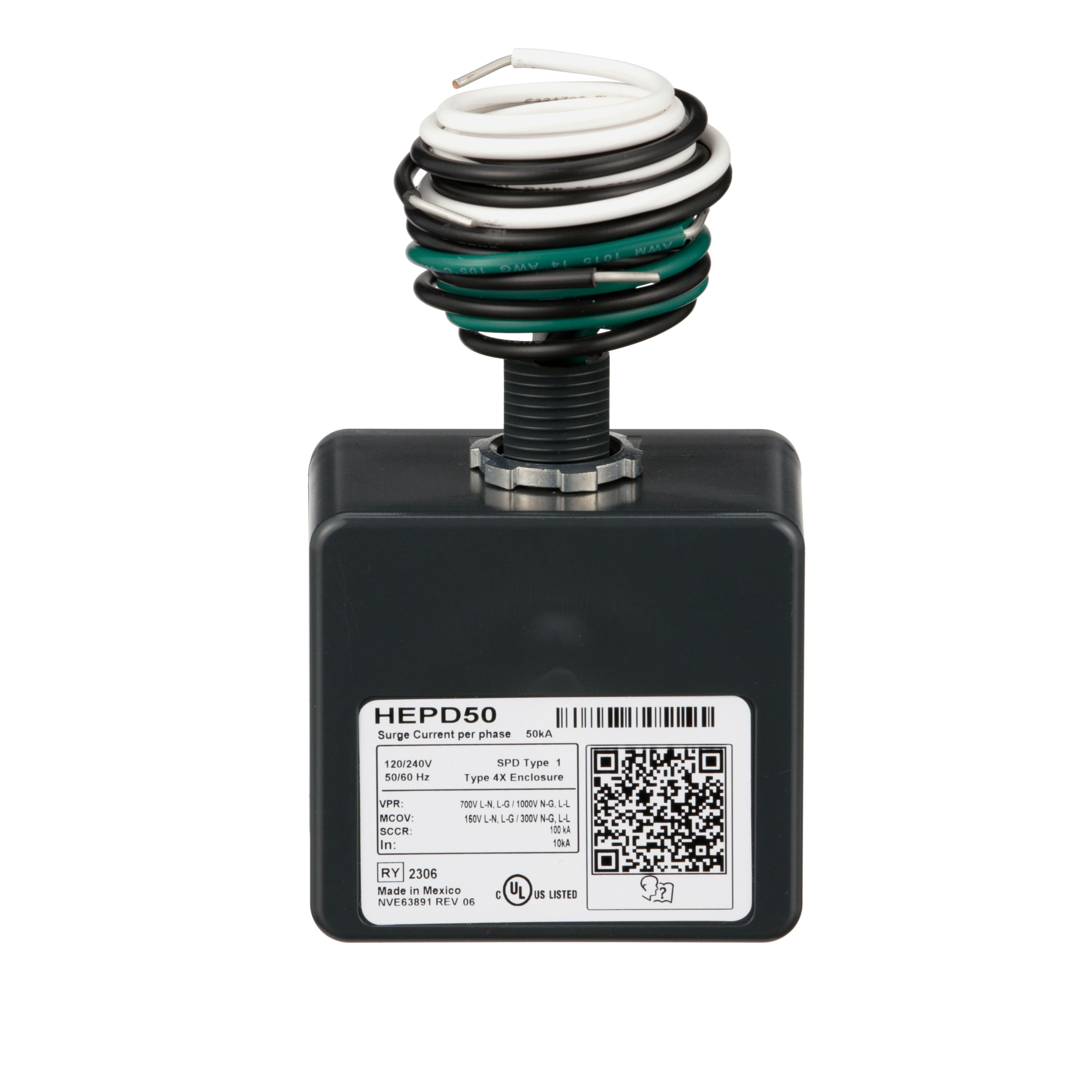

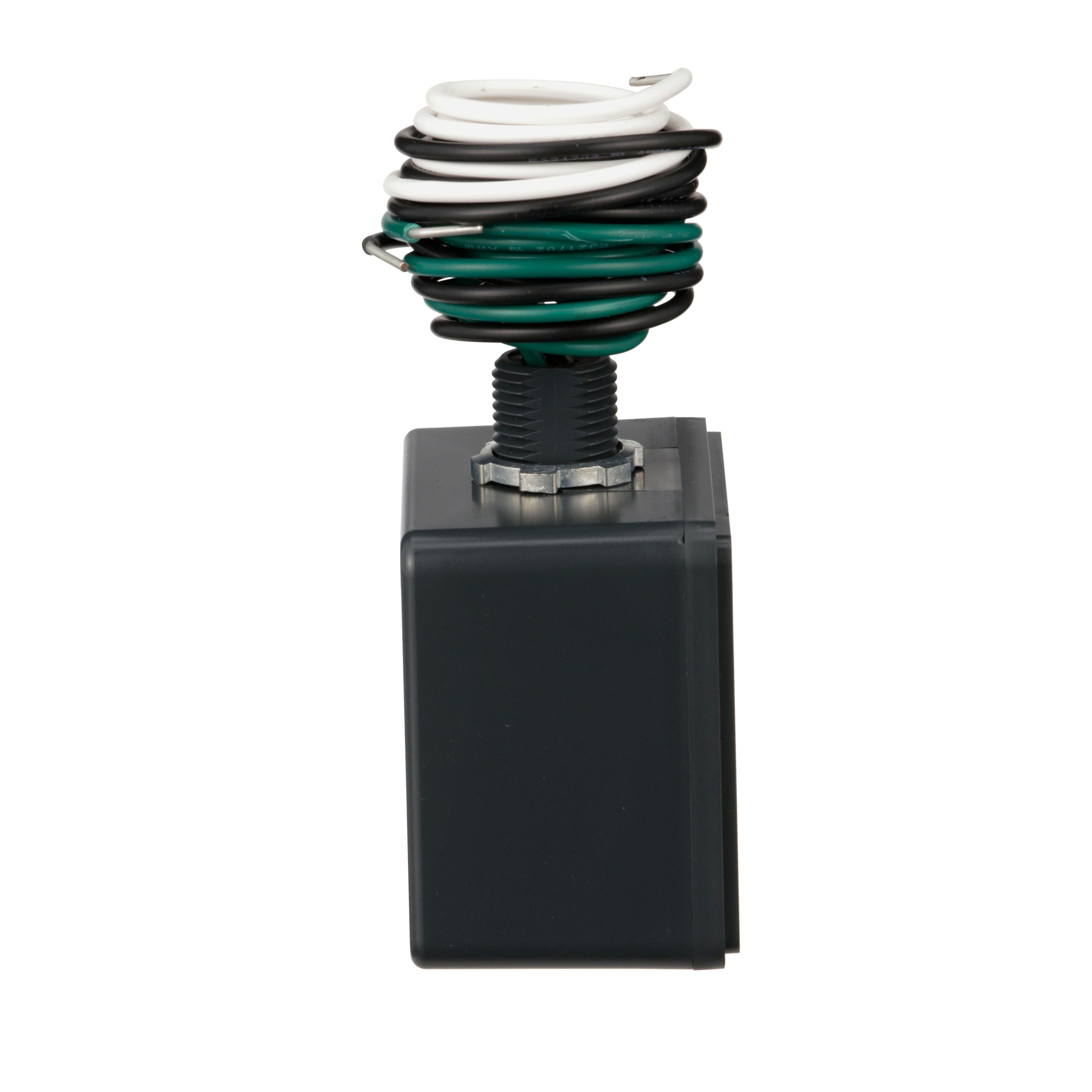

Picture of HEPD50 - Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1 Picture of HEPD50 - Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1
Picture of HEPD50 - Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1 Picture of HEPD50 - Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1
Picture of HEPD50 - Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1 Picture of HEPD50 - Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1
Picture of HEPD50 - Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1 Picture of HEPD50 - Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1
Square D

HEPD50 - Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1

Item Code: 976250
Category Receptacles & Surge Protectors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HEPD50

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 50 kA of surge protection per phase. The surge protection device is in a NEMA 4X housing. The surge protection device is 3.23 inches tall, 3.72 inches wide and 2.10 inches deep. The surge protection device is UL listed.

Specifications

Weight

0.9lb

Height

3.23mm

Width

5.85mm

Length

7.96mm

Depth

2.1mm

AD All Features

Comes in a space-saving design

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

DEVICE PROT SRG 120/240VAC 25KA 1PH

AD Item Features 01

Comes in a space-saving design

AD Item Features 02

Bending radius for side and bottom access to the transformer

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.9600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.9000

AD Package Weight UOM

LB

AD Package Width

5.8500

AD Package Width UOM

IN

Brand

Square D

Category

RECEPTACLES & SURGE PROTECTORS

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

3.72 in W x 2.1 in D x 3.23 in H

Spec 10 Attribute

Series

Spec 10 Attribute Value

HEPD

Spec 11 Attribute

Short Circuit Current Rating

Spec 11 Attribute UOM

KA

Spec 11 Attribute Value

25

Spec 12 Attribute

Type

Spec 12 Attribute Value

Isolated Ground

Spec 2 Attribute

Electrical Ratings

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

120/240

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 4X

Spec 4 Attribute

Environmental Conditions

Spec 4 Attribute Value

-31 to 149 deg F Operating

Spec 5 Attribute

Indicator Type

Spec 5 Attribute Value

LED Status Light

Spec 6 Attribute

Modes of Protection

Spec 6 Attribute Value

L-N/L-G/N-G

Spec 7 Attribute

Nominal Discharge Current

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

10

Spec 8 Attribute

Number Of Wires

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
