Square D

HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1

Category Receptacles & Surge Protectors

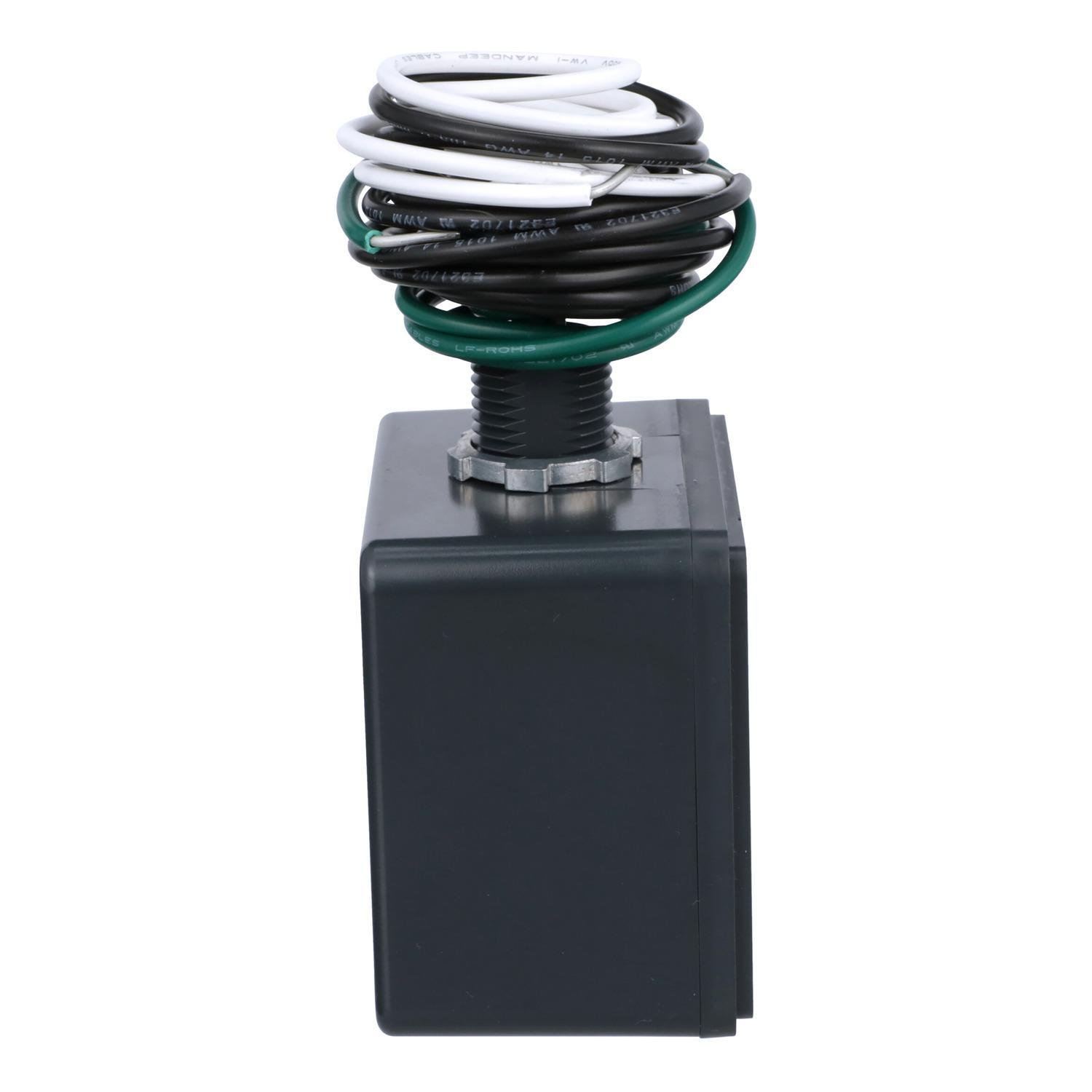

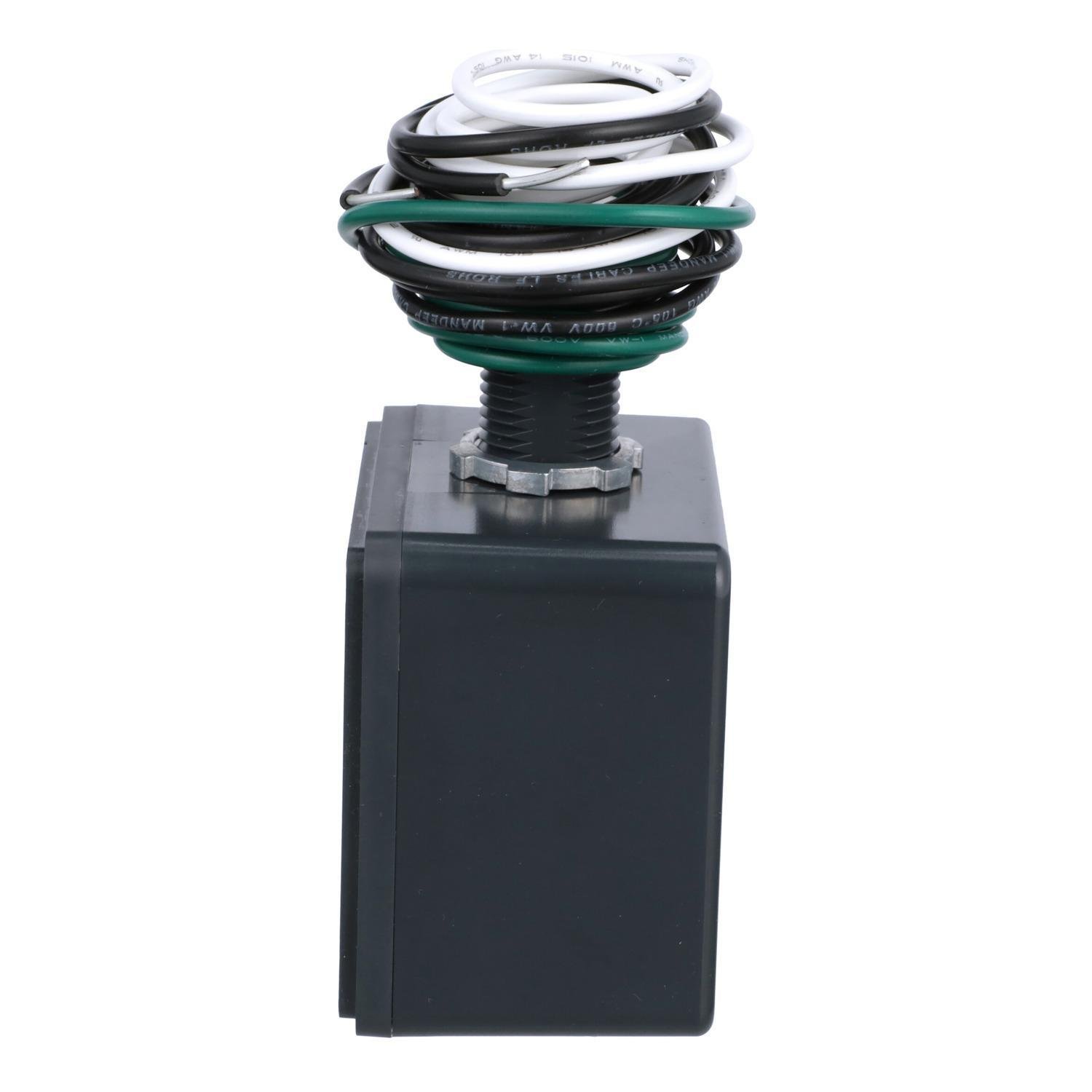

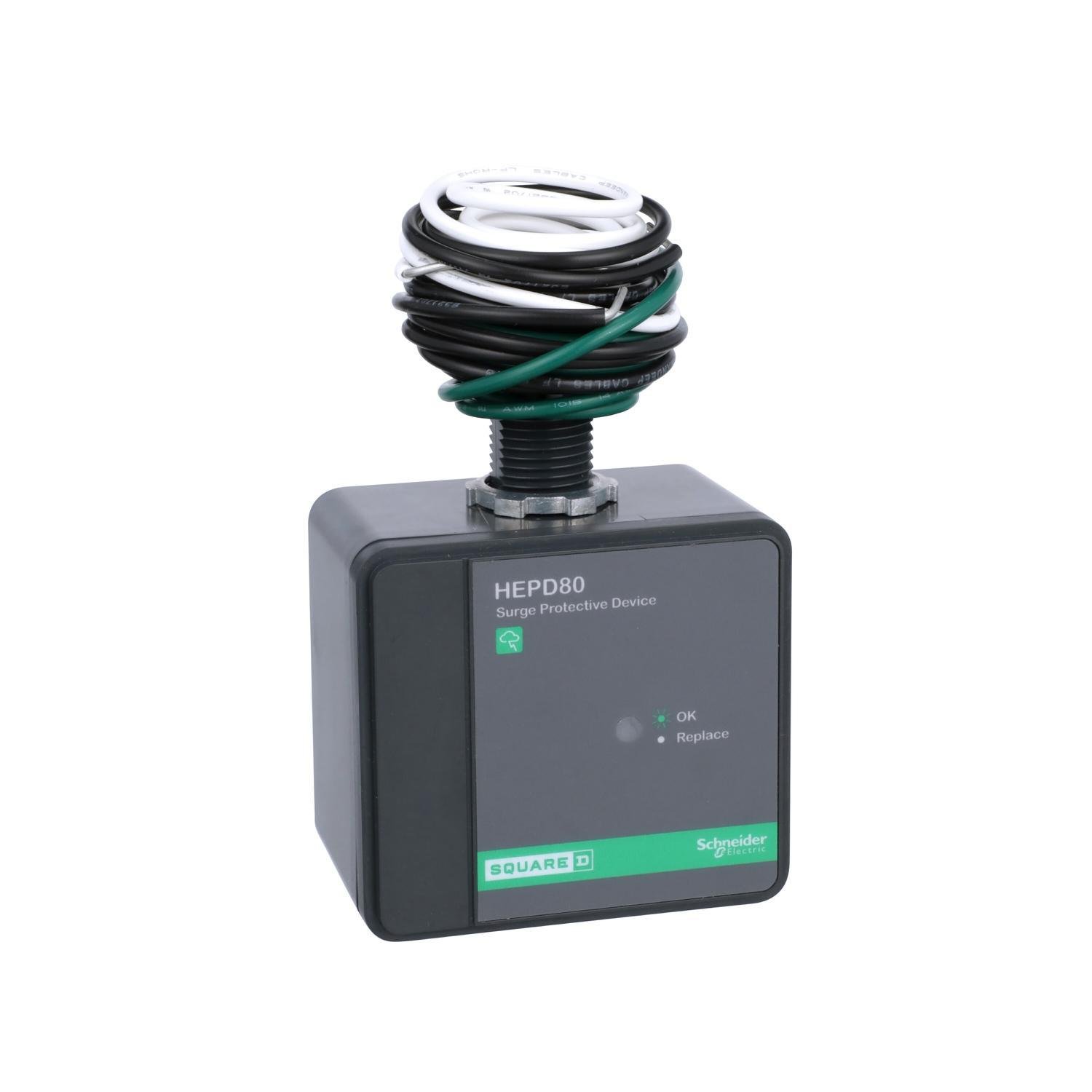

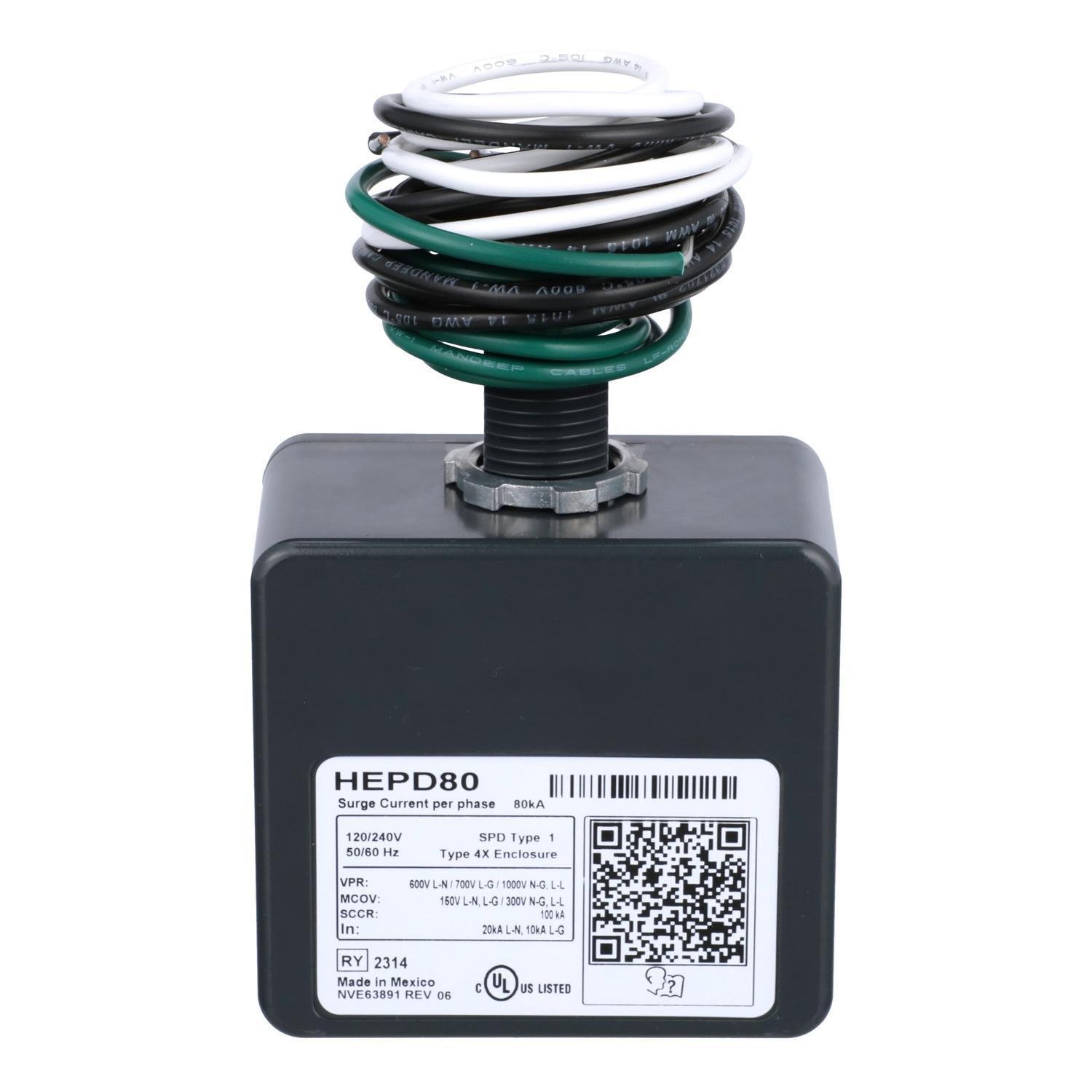

Picture of HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1 Picture of HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1
Picture of HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1 Picture of HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1
Picture of HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1 Picture of HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1
Picture of HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1 Picture of HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1
Picture of HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1 Picture of HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1
Square D

HEPD80 - Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1

Item Code: 758292
Category Receptacles & Surge Protectors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HEPD80

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 4X housing. The surge protection device is 3.23 inches tall, 3.72 inches wide and 2.10 inches deep. The surge protection device is UL listed. This product comes with a 5 year warranty.

Specifications

Weight

1.07lb

Height

3.2mm

Width

5.97mm

Length

7.96mm

Depth

2.1mm

AD All Features

Type T units are designed for the global market and are the best choice when size and cost are of concern

AD Application

Residential, Small Business, Electrical Protection, Control, Monitoring Solutions, Whole Home, Building Surge Protection, Solar, Temperature Control, Uninterruptible Power Supply, Electric Vehicle Charging and Load Centers/CSED/Metering Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Mounting hardware

AD Invoice Description

CENTER LOAD PROT SRG 120/240VAC 50/60HZ

AD Item Features 01

Type T units are designed for the global market and are the best choice when size and cost are of concern

AD Item Features 02

Protects against accidental shocks through the use of touch-safe terminals

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.2000

AD Package Height UOM

IN

AD Package Length

7.9600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

79.8700

AD Package Volume UOM

cu-in

AD Package Weight

1.0700

AD Package Weight UOM

LB

AD Package Width

5.9700

AD Package Width UOM

IN

Brand

Square D

Category

RECEPTACLES & SURGE PROTECTORS

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

3.6 in L x 3 in W x 3.75 in H

Spec 2 Attribute

Electrical Ratings

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

120/240

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 4X

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

1

Spec 6 Attribute

Number Of Wires

Spec 6 Attribute Value

3

Spec 7 Attribute

Peak Surge Current

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

80

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Type

Spec 9 Attribute Value

Type 1 HEPD
