Square D

HGA36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

Category Thermal Magnetic Trip Molded Case Circuit Breakers

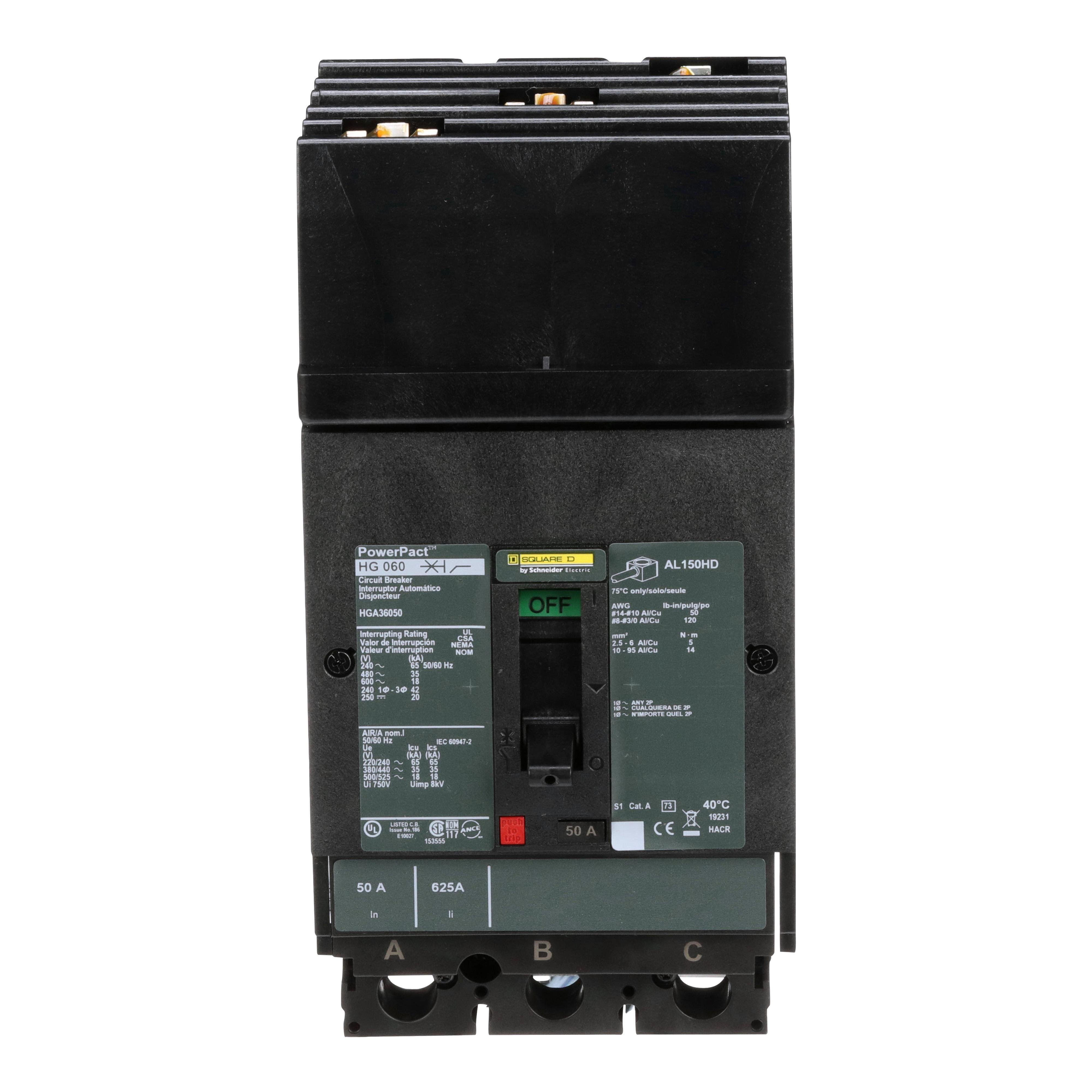

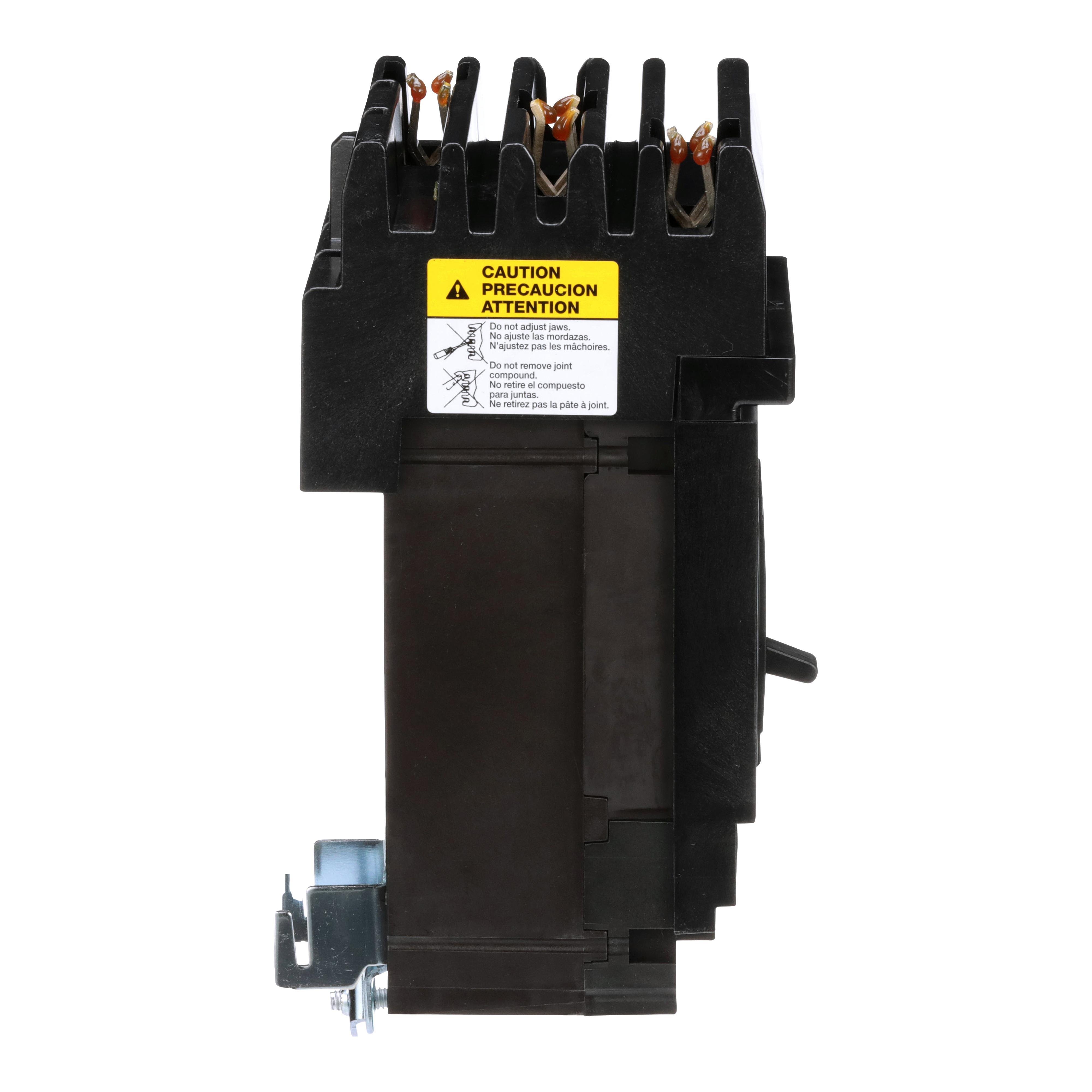

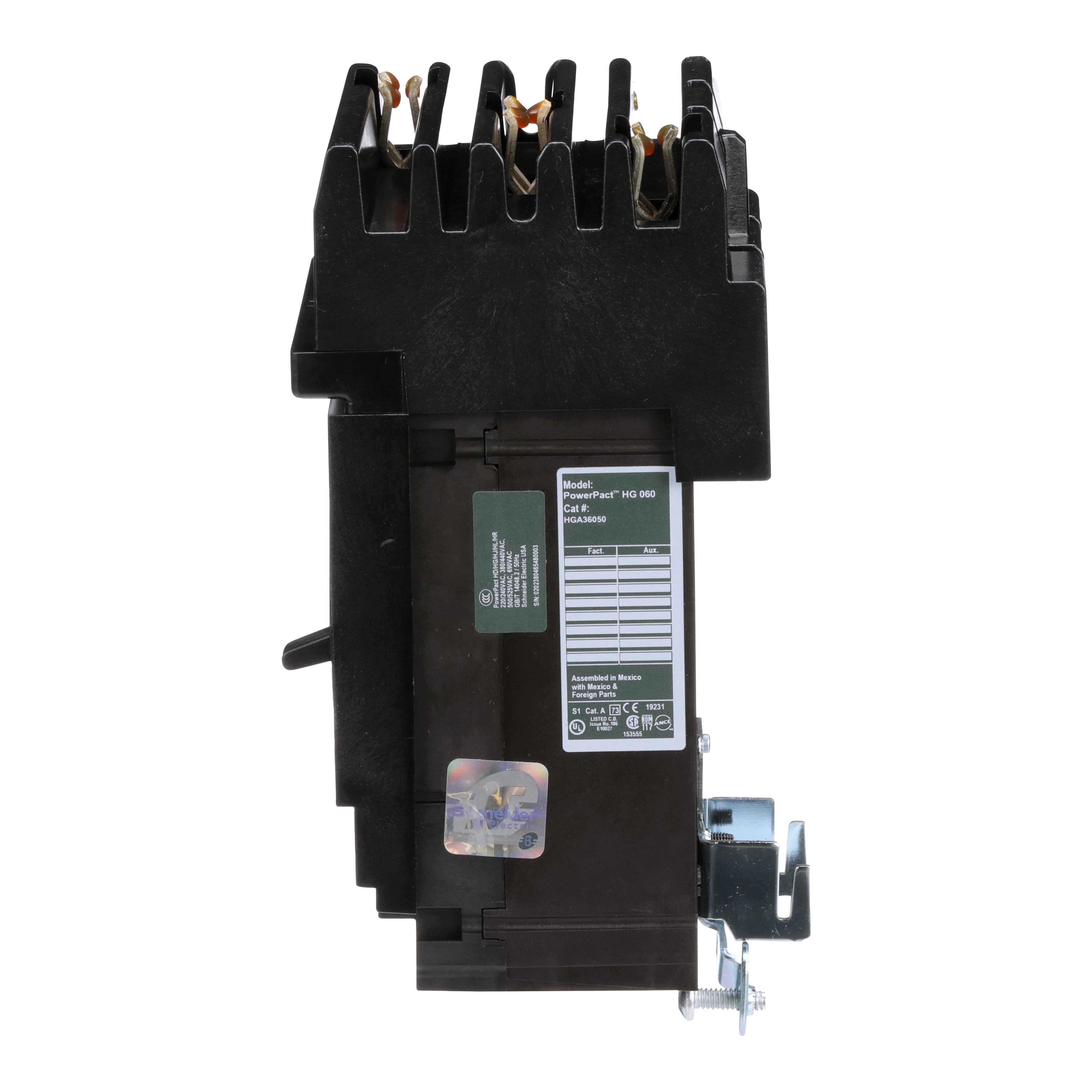

Picture of HGA36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of HGA36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Picture of HGA36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of HGA36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Picture of HGA36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of HGA36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Picture of HGA36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC Picture of HGA36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Square D

HGA36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 623155
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HGA36050

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 50A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

5.5

Height

6

Width

8.31

Length

14.86

AD All Features

Standard 80% or 100% rating

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER MLD CASE CKT 600 VAC/250 VDC 50A

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Item Features 04

QR codes for easy access to device documentation

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.0000

AD Package Height UOM

IN

AD Package Length

14.8600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

5.5000

AD Package Weight UOM

LB

AD Package Width

8.3100

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=yP4g9tSDud4

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

50

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

104

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

400 to 850

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

80% Rated Type HGA

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute Value

600 V AC/250/500 V DC

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

AWG

Spec 15 Attribute Value

14 to 3/0

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

I-Line Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

6.4 in H x 4.12 in W x 4.36 in D

Spec 4 Attribute

Frame

Spec 4 Attribute Value

H

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

18 to 20

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-On

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Series

Spec 9 Attribute Value

HGA
