HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC

Category Miscellaneous

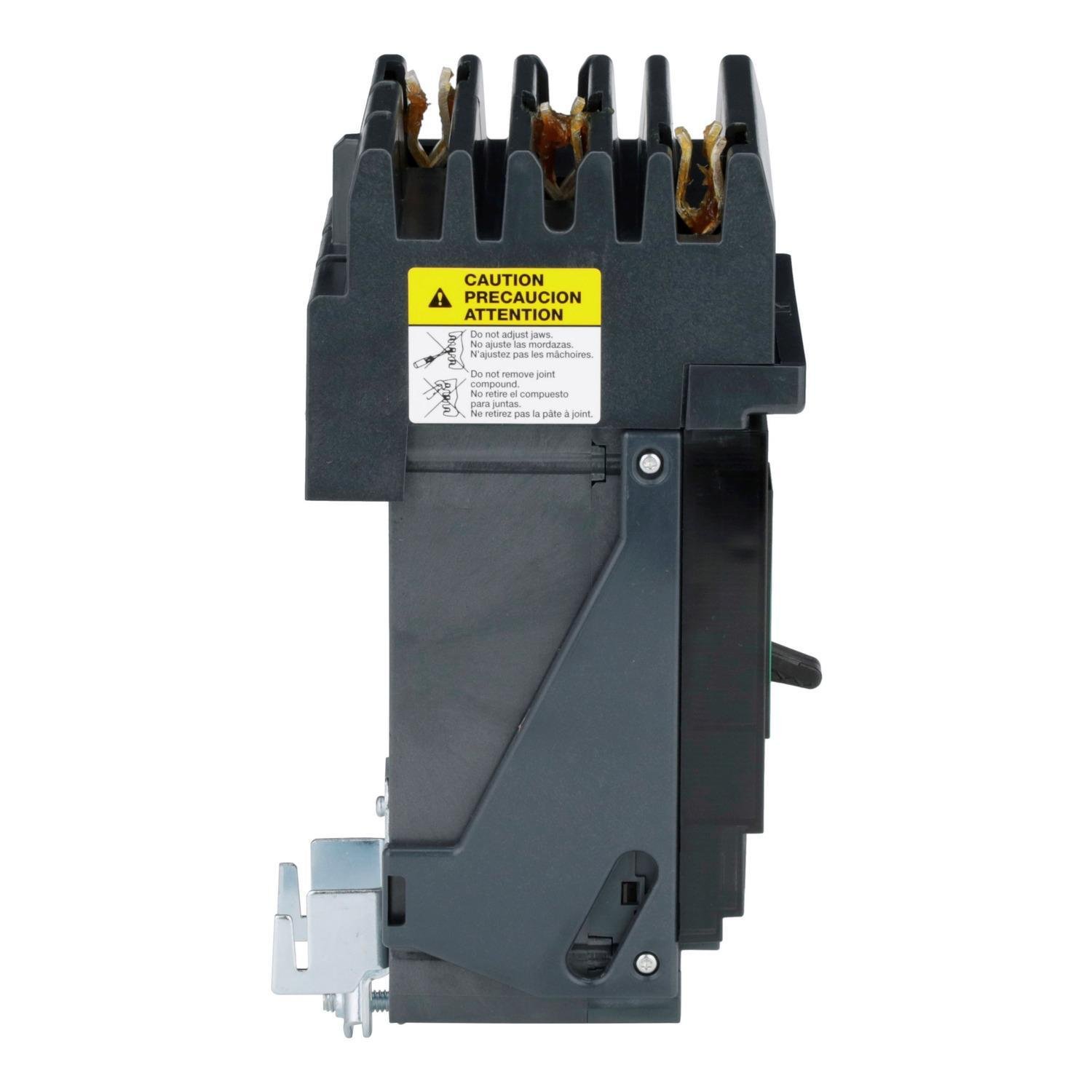

Picture of HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC Picture of HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC

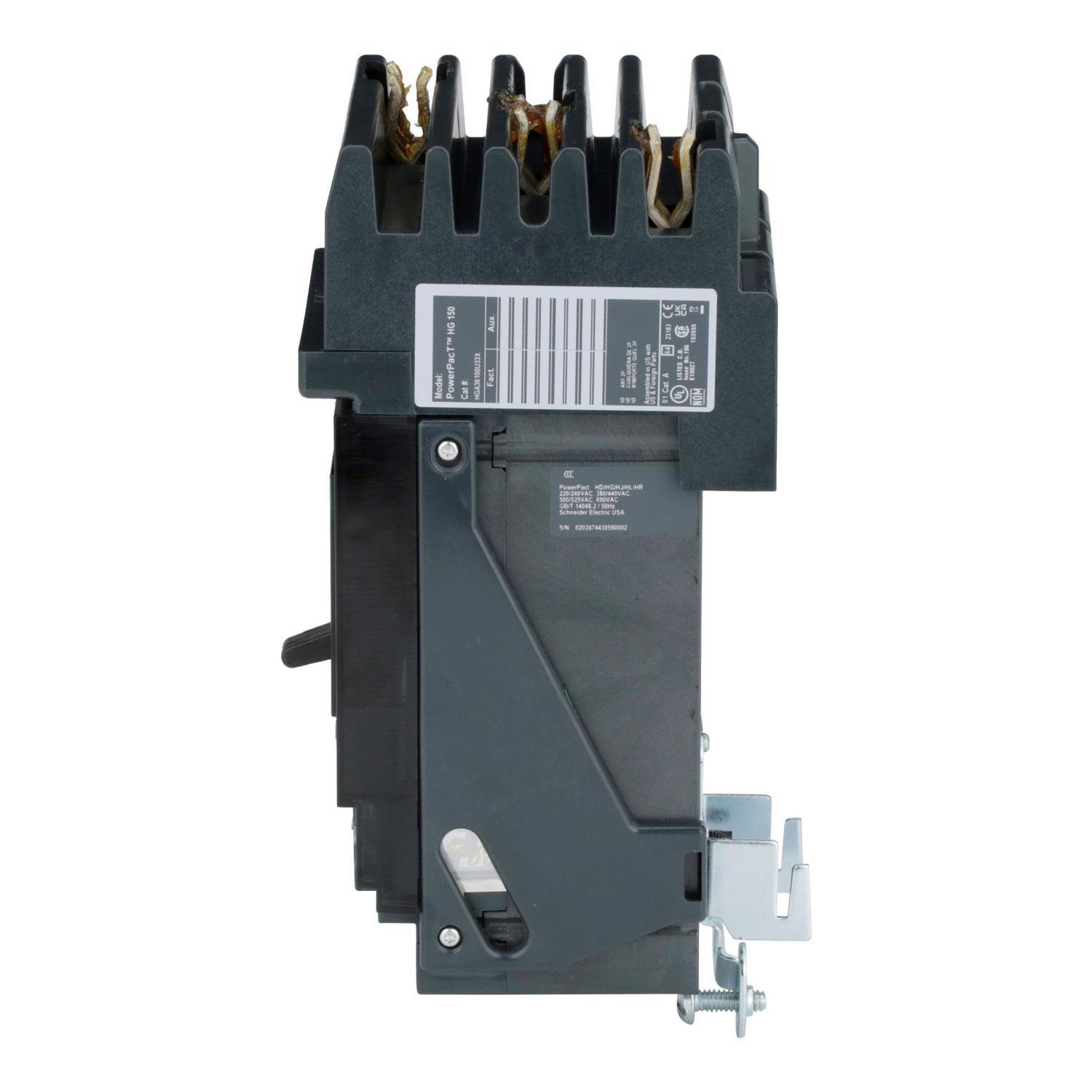

Picture of HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC Picture of HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC

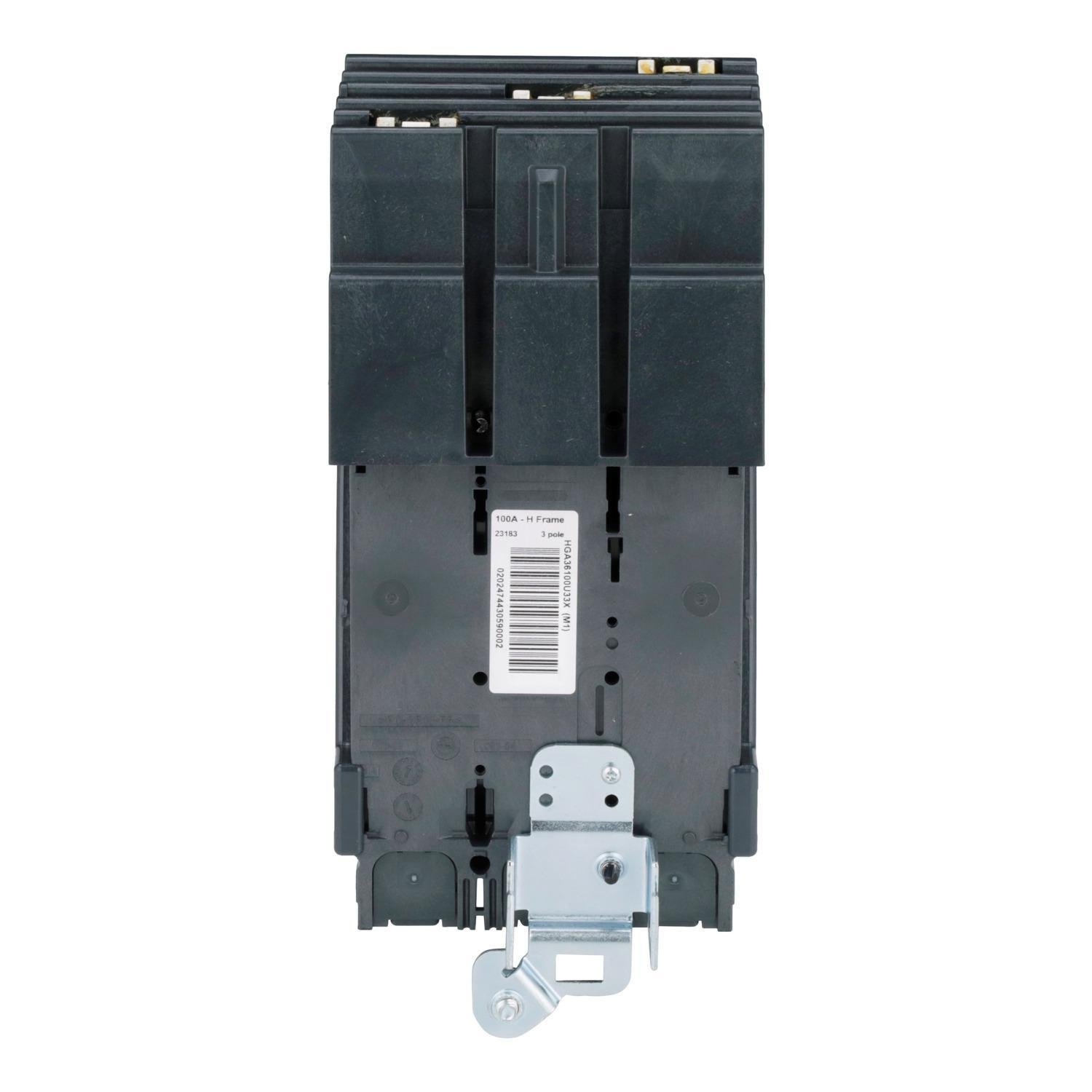

Picture of HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC Picture of HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC

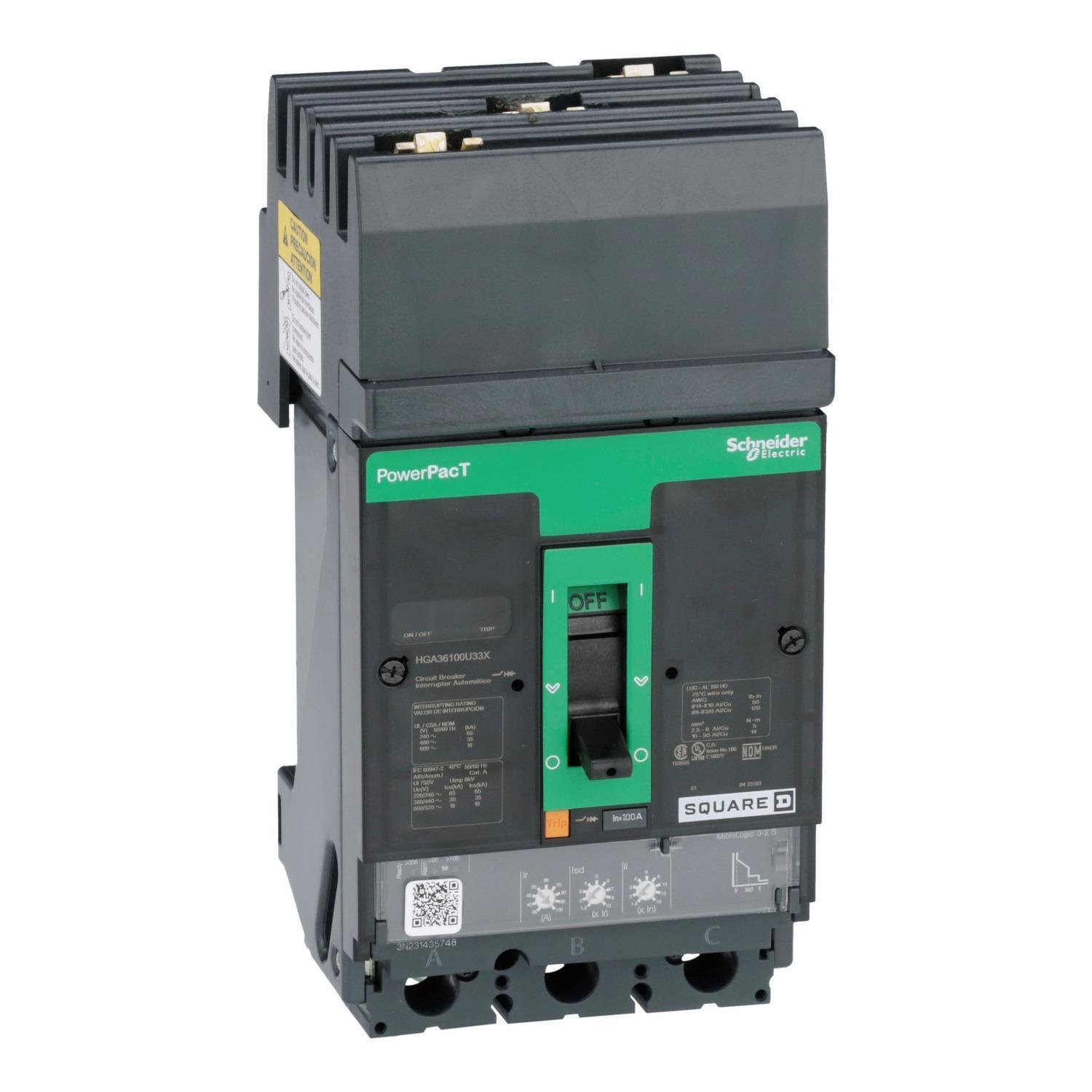

Picture of HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC Picture of HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC
Picture of HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC Picture of HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC
Schneider Electric

HGA36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.2S, 80%, ABC

Item Code: 1205198
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HGA36100U33X

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

7.98

Width

8.05

Length

14.49

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HGA36100U33X/HGA36100U33X.spin

AD All Features

Standard 80% or 100% rating

AD Alternative Part Number

14900789

AD Application

Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD IDEA Index ID

14900789

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 100A 18KA 3

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Keywords

Square D PowerPact HGA36100U33X Molded Case Circuit Breaker, 600 V AC, 100 A, 18 kA Interrupt, 3 Poles, Electronic Trip ; Schneider Electric ; HGA36100U33X ; HGA36100U33X ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

14.4900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

7.9800

AD Package Weight UOM

LB

AD Package Width

8.0500

AD Package Width UOM

IN

AD Part Number Keywords

HGA36100U33X ; 14900789

AD Video Links

https://www.youtube.com/embed/1PjFQgO_-Ik

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Trip Range

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

900 to 1700

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Electronic

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

14 to 2/0 AWG Al/Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

I-Line™ Line/Lug Load

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4.48 in W x 4.8 in D x 9.73 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

H

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

18

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

104
