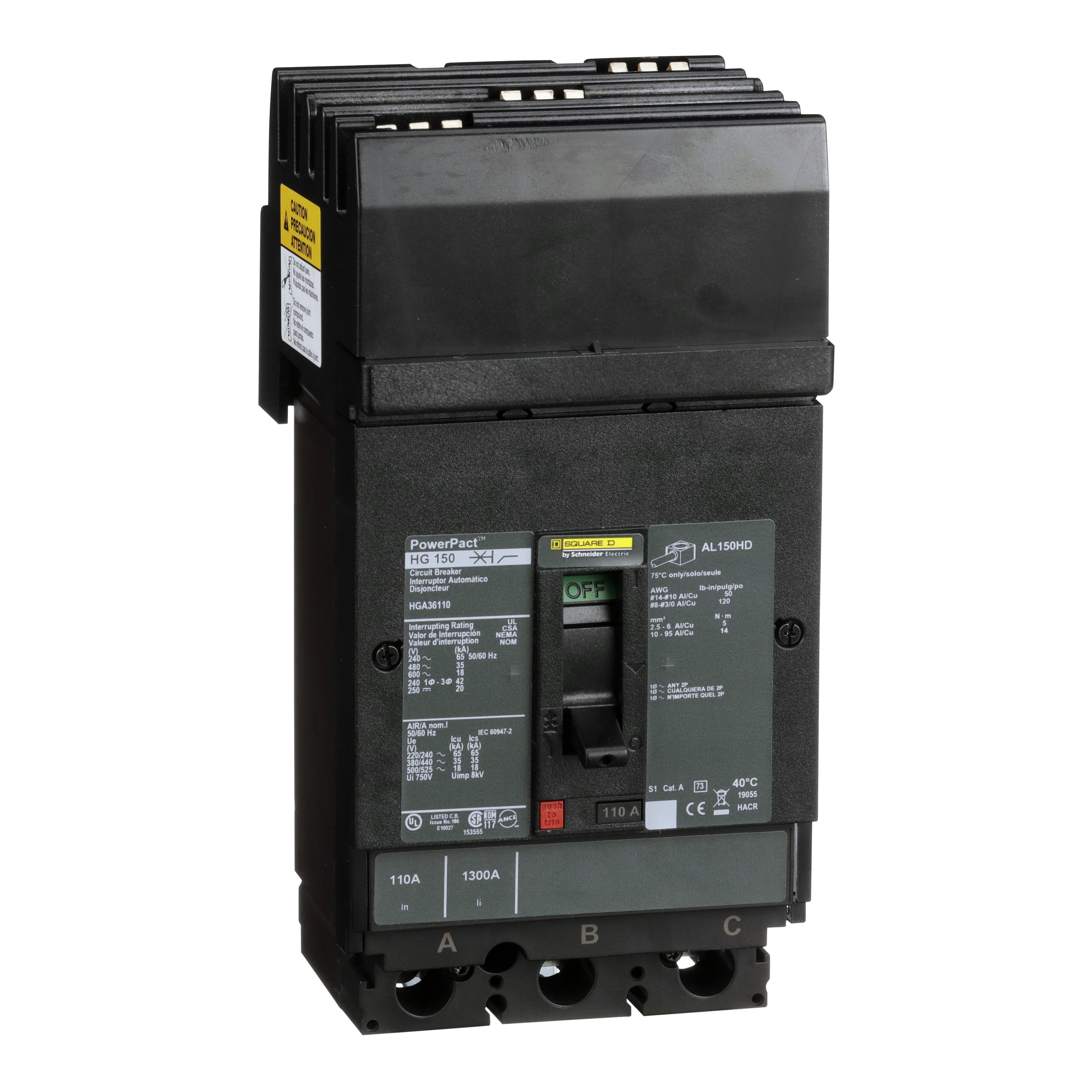

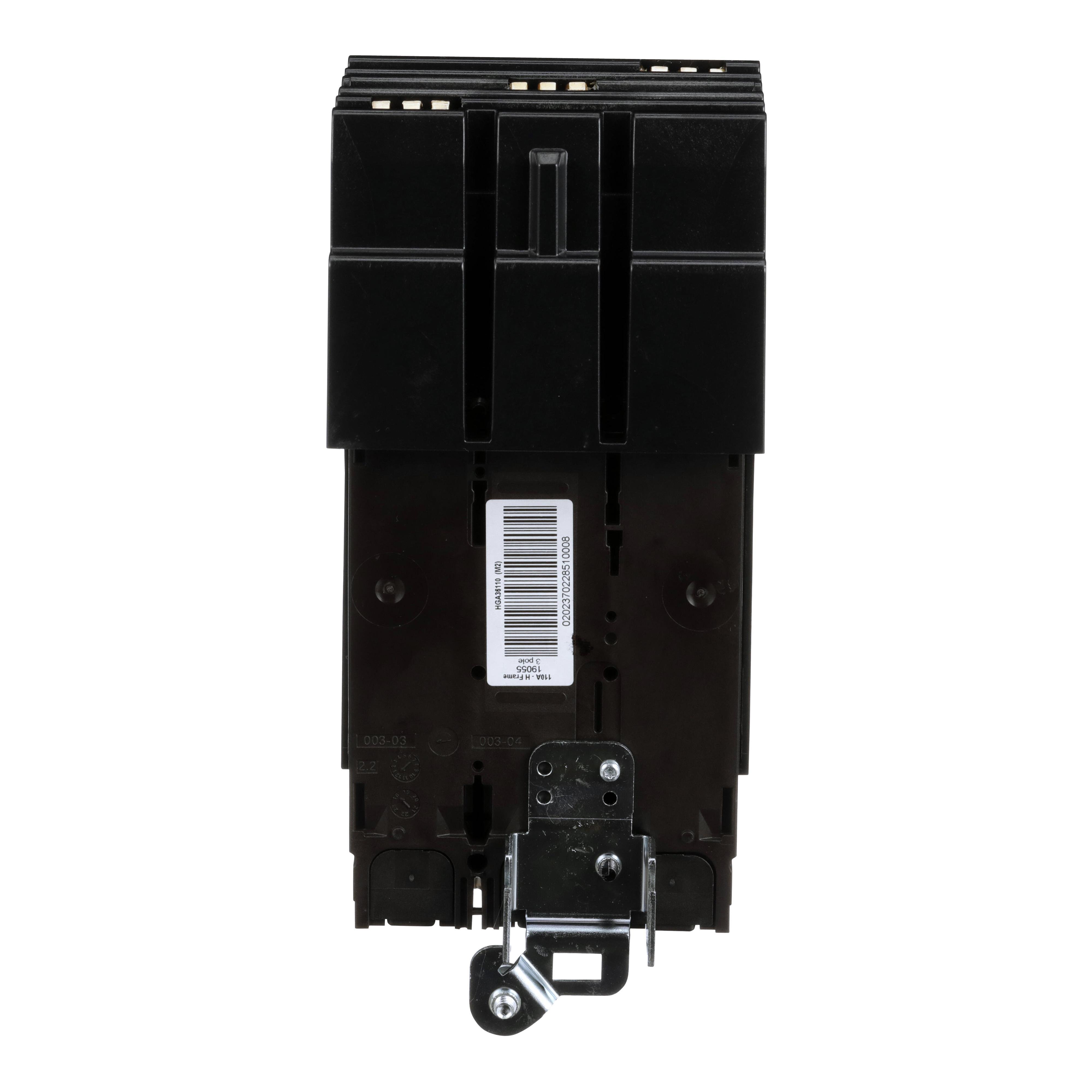

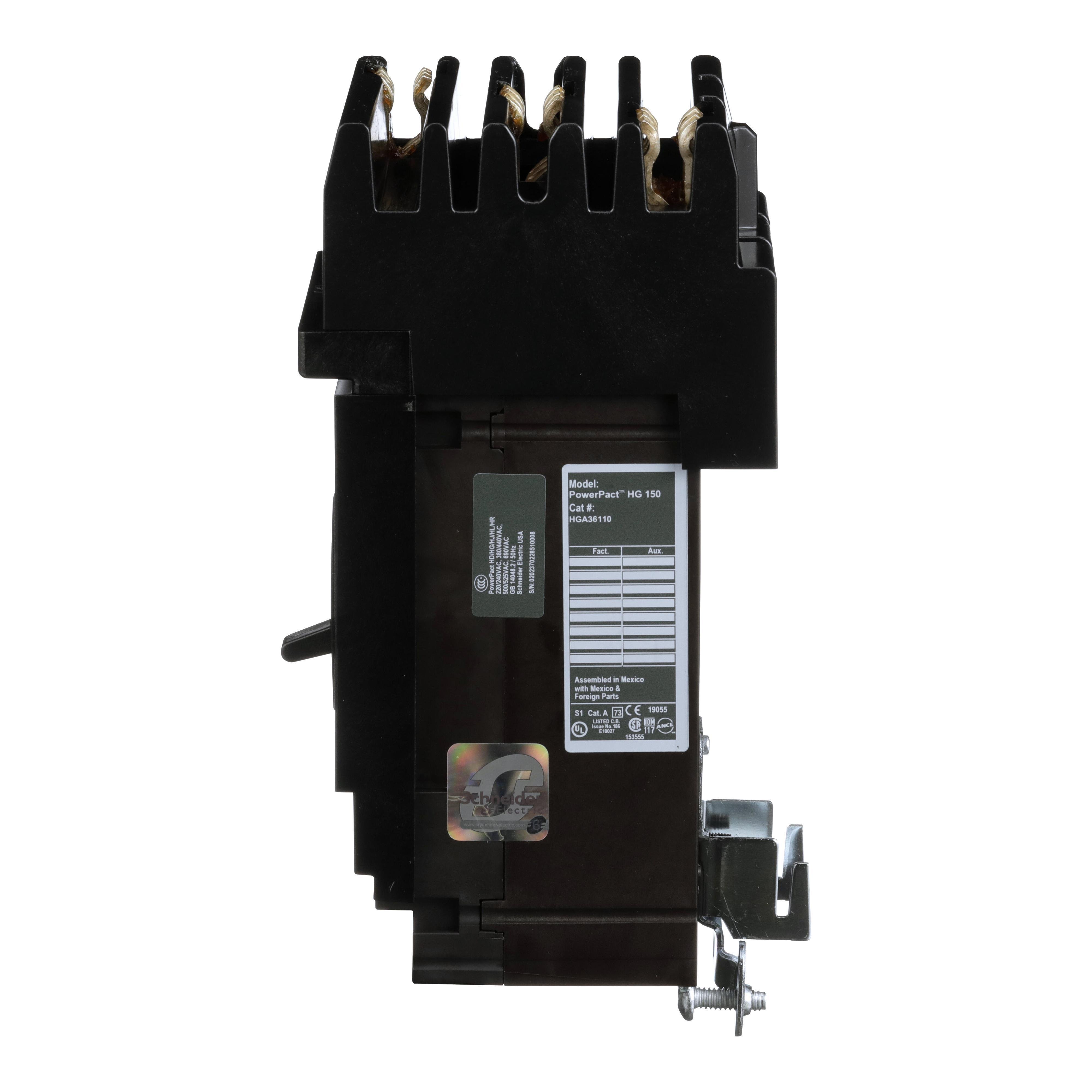

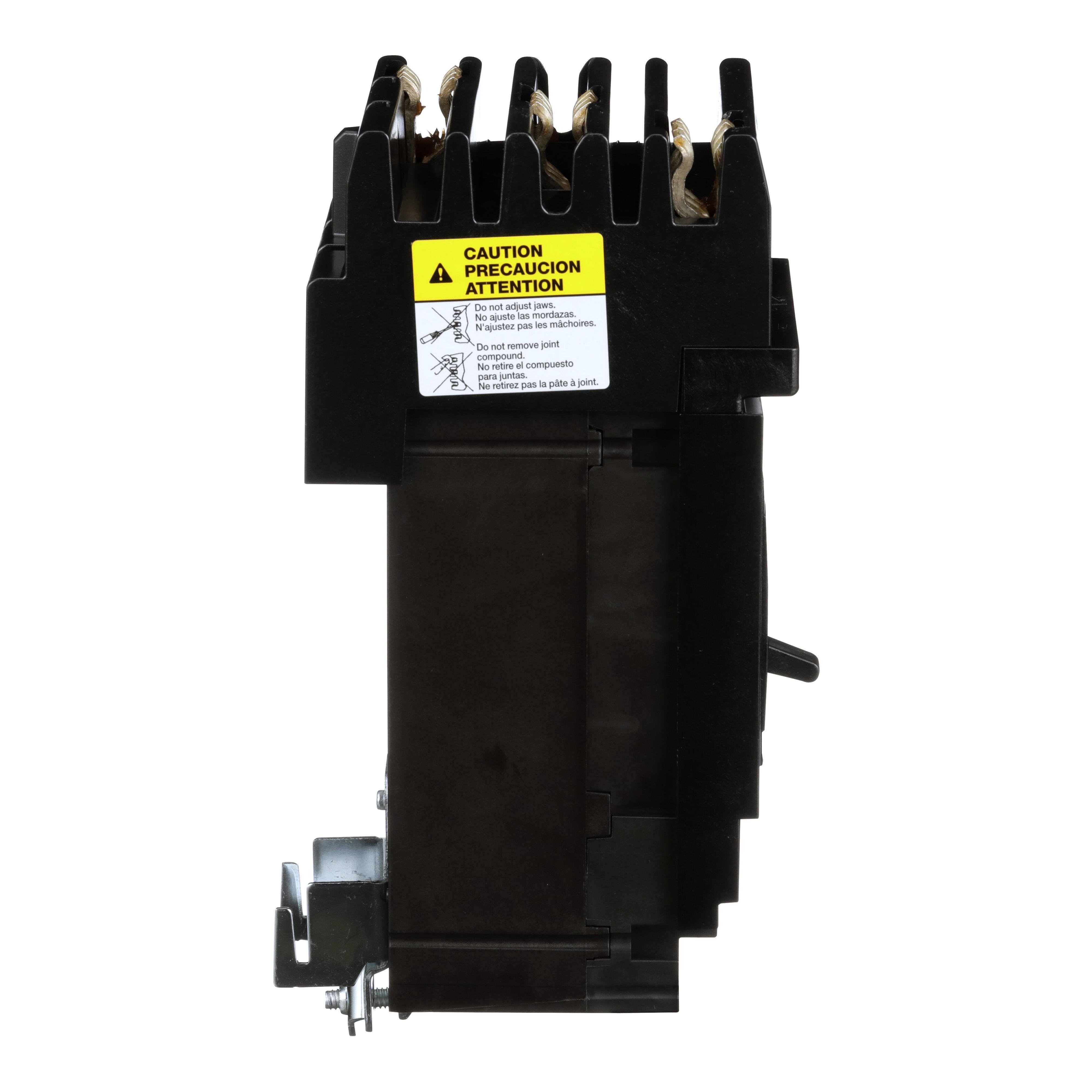

HGA36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

Category Thermal Magnetic Trip Molded Case Circuit Breakers
Picture of HGA36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC
Square D

HGA36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 665683
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HGA36110

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 110A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

5.9

Height

6.1

Width

8.42

Length

14.66

Amperage Rating

110 A

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Connection Type

I-Line Lug

Dimensions

6.4 in H x 4.12 in W x 4.36 in D

Enclosure Type

NEMA AB1

Frame

H

Frequency Rating

50/60 Hz

Interrupt Rating

18 to 20 kA

Number Of Poles

3

Series

HGA

Temperature Rating

104 deg F

Trip Range

900 to 1700 A

Trip Type

Thermal Magnetic

Type

80% Rated Type HGA

Voltage Rating

600 V AC/250/500 V DC

Wire Size

14 to 3/0 AWG
