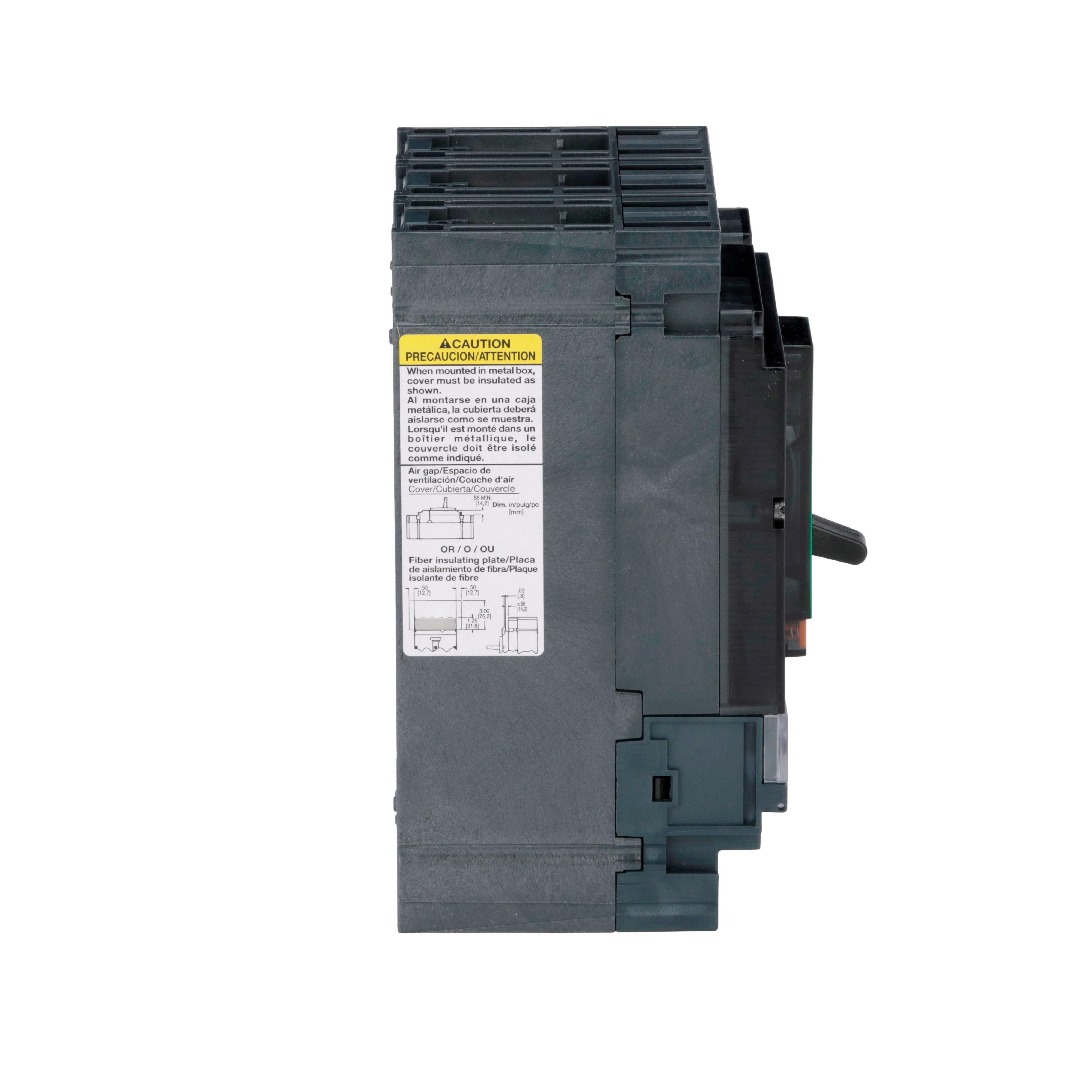

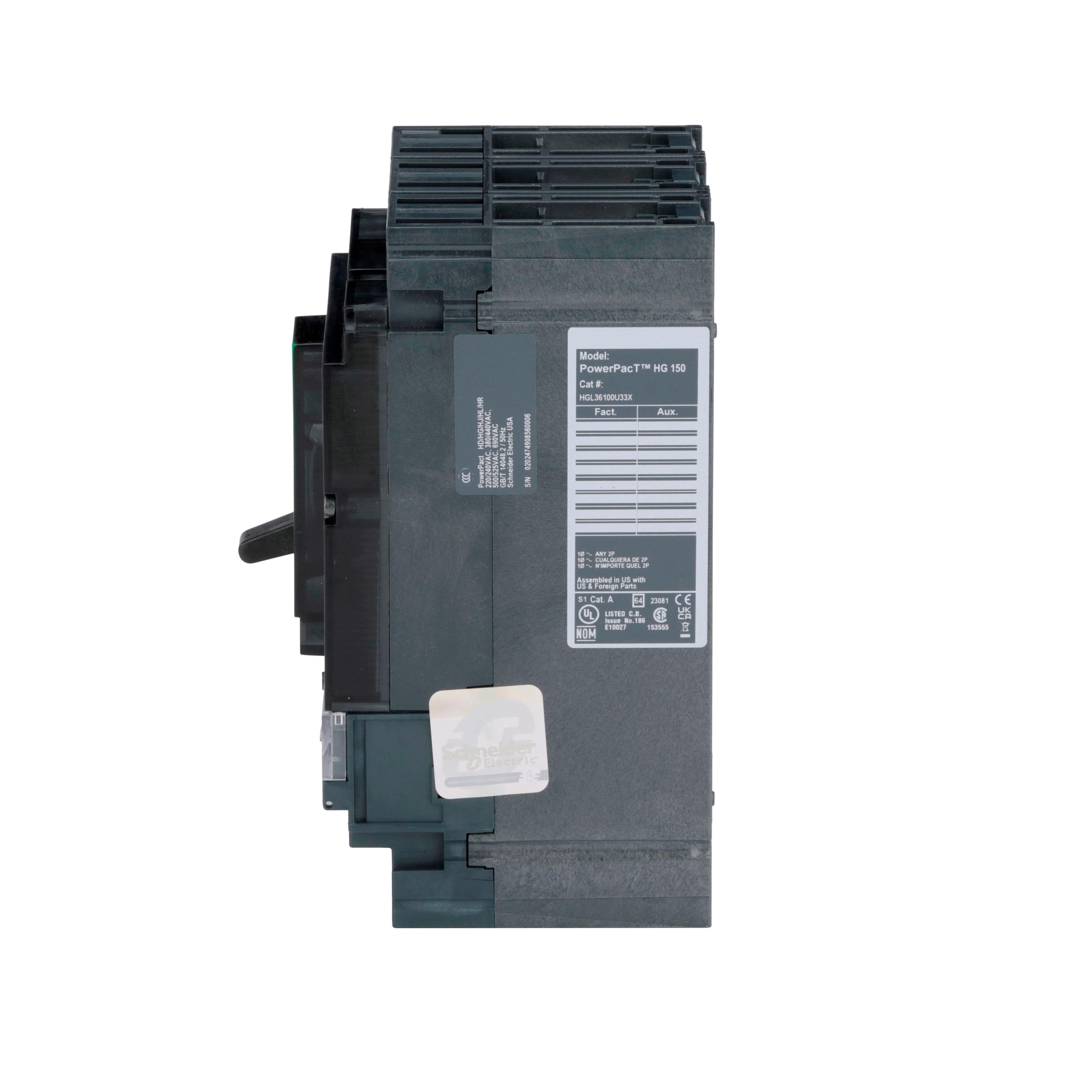

Picture of HGL36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, lugs, Micrologic 3.2S, 80%

Square D™

HGL36100U33X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 18kA, lugs, Micrologic 3.2S, 80%

Item Code: 1011769

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref HGL36100U33X

Document
Document
Document
Document
Document
Watch video

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

4.99

Height

5.13

Width

7.18

Length

8.36

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HGL36100U33X/HGL36100U33X.spin

AD All Features

Standard 80% or 100% rating

AD Alternative Part Number

13948453

AD Application

Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD Gtin

00785901402947

AD IDEA Index ID

13948453

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 100A 3 H

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.1300

AD Package Height UOM

AD Package Length

8.3600

AD Package Length UOM

AD Package Quantity

AD Package Volume

313.4200

AD Package Volume UOM

cu-in

AD Package Weight

4.9900

AD Package Weight UOM

AD Package Width

7.1800

AD Package Width UOM

AD Part Number Keywords

HGL36100U33X ; 13948453 ; 785901402947 ; 78590140294 ; 00785901402947

AD Video Links

https://www.youtube.com/embed/tmiPbq_-Hk0

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

Spec 1 Attribute Value

100

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

104

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

Spec 12 Attribute Value

900 to 1700

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Electronic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type HGL

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

14 to 3/0 AWG Al/Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

6.4 in H x 4.12 in W x 4.36 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value
