HGL36125 - Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%

Category Miscellaneous

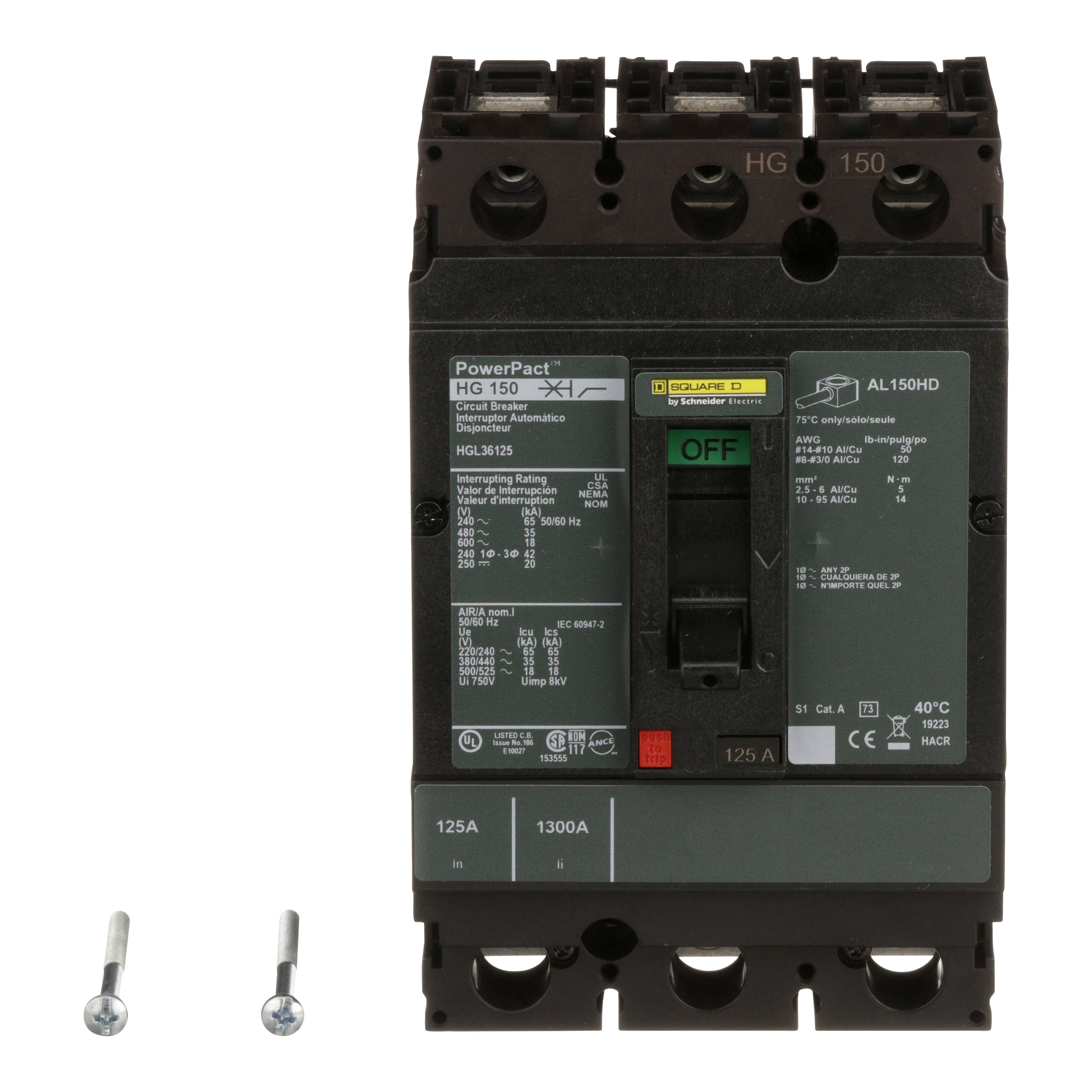

Picture of HGL36125 - Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80% Picture of HGL36125 - Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%

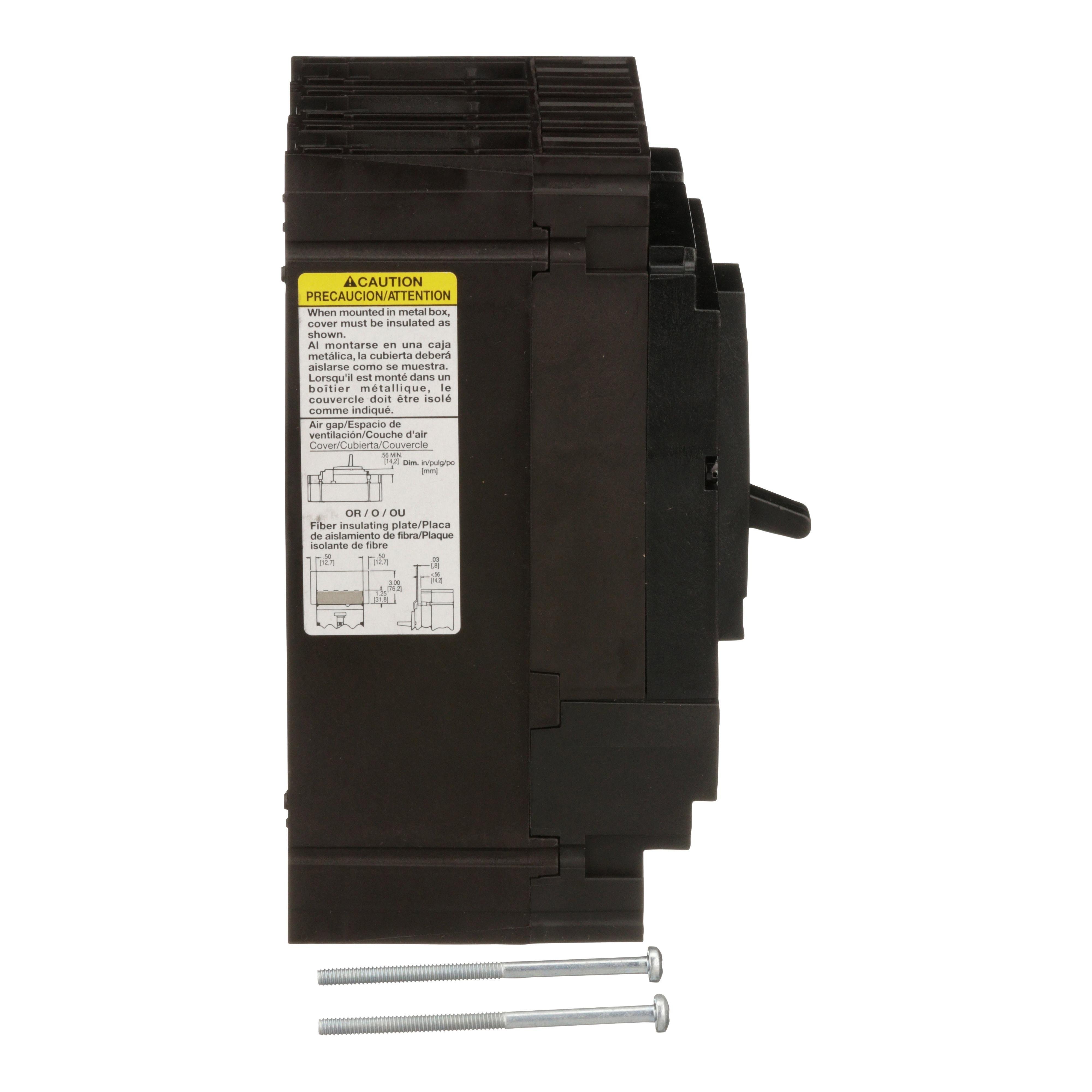

Picture of HGL36125 - Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80% Picture of HGL36125 - Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%

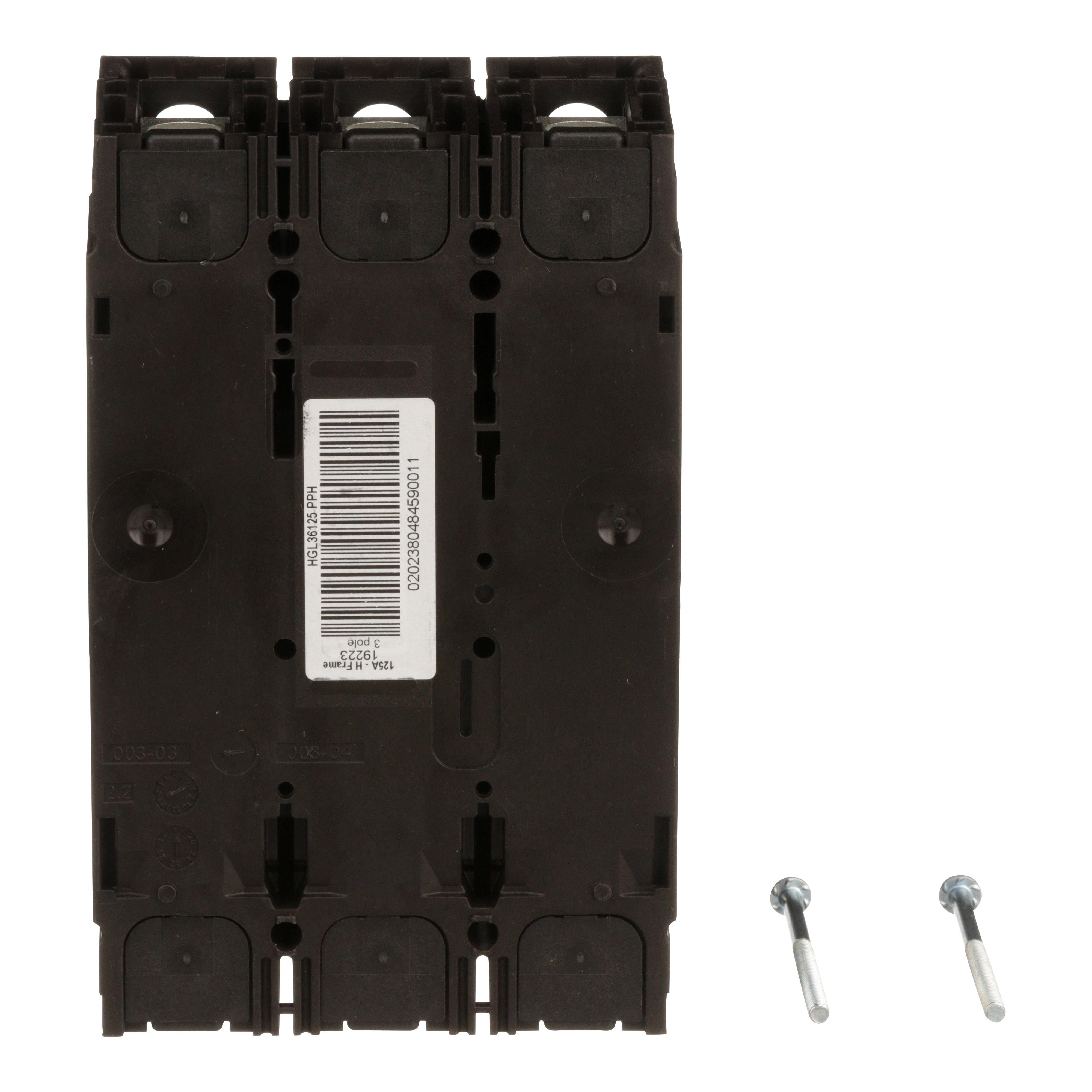

Picture of HGL36125 - Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80% Picture of HGL36125 - Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%
Picture of HGL36125 - Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80% Picture of HGL36125 - Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%
Square D

HGL36125 - Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%

Item Code: 568137
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HGL36125

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 125A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

4.14

Height

7.4

Width

7.43

Length

8.72

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HGL36125/HGL36125.spin

AD All Features

Standard 80% or 100% rating

AD Alternative Part Number

8107790

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901598831

AD Gtin

00785901598831

AD IDEA Index ID

8107790

AD Invoice Description

BREAKER MLD CASE CKT 600 VAC/250 VDC 3 H

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Item Features 04

QR codes for easy access to device documentation

AD Keywords

HGL36125 HGL Molded Case Circuit Breaker, 600 V AC/250/500 V DC, 125 A, 18 to 20 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Square D ; HGL36125 ; 8107790 ; 785901598831 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.4000

AD Package Height UOM

IN

AD Package Length

8.7200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

4.1400

AD Package Weight UOM

LB

AD Package Width

7.4300

AD Package Width UOM

IN

AD Part Number Keywords

HGL36125 ; 8107790 ; 785901598831 ; 78590159883 ; 00785901598831 ; 0785901598831

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Trip Range

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

900 to 1700

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

80% Rated Type HGL

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute Value

600 V AC/250/500 V DC

Spec 14 Attribute

Wire Size

Spec 14 Attribute UOM

AWG

Spec 14 Attribute Value

14 to 3/0

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

6.4 in H x 4.12 in W x 4.36 in D

Spec 4 Attribute

Frame

Spec 4 Attribute Value

H

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

18 to 20

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Series

Spec 8 Attribute Value

HGL

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

104
