Square D

HGP36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%

Category Thermal Magnetic Trip Molded Case Circuit Breakers

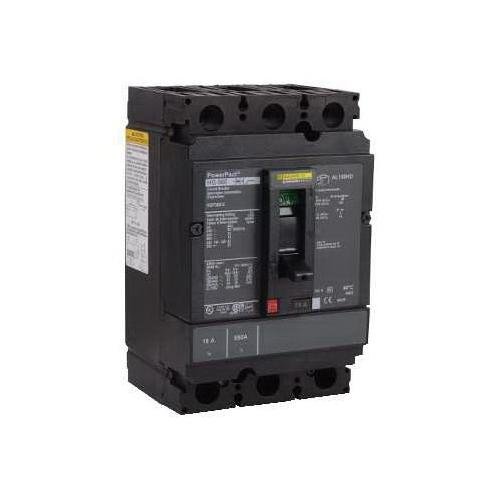

Picture of HGP36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%
Square D

HGP36050 - Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%

Item Code: 1012015
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HGP36050

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has terminal nuts on the line side and lugs on the load side. This PowerPacT H, 50A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Amperage Rating

50 A

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Connection Type

Load Lug

Dimensions

6.4 in H x 4.12 in W x 4.36 in D

Enclosure Type

NEMA AB1

Frame

H

Frequency Rating

50/60 Hz

Interrupt Rating

65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC

Mounting Type

Surface

Number Of Poles

3

Phase

3

Temperature Rating

104 deg F

Trip Range

400 to 850 A

Trip Type

Thermal Magnetic

Type

Type HGP

Voltage Rating

600 V AC/250 to 500 V DC

Wire Size

14 to 3/0 AWG Al/Cu
