Square D

HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC

Category Thermal Magnetic Trip Molded Case Circuit Breakers

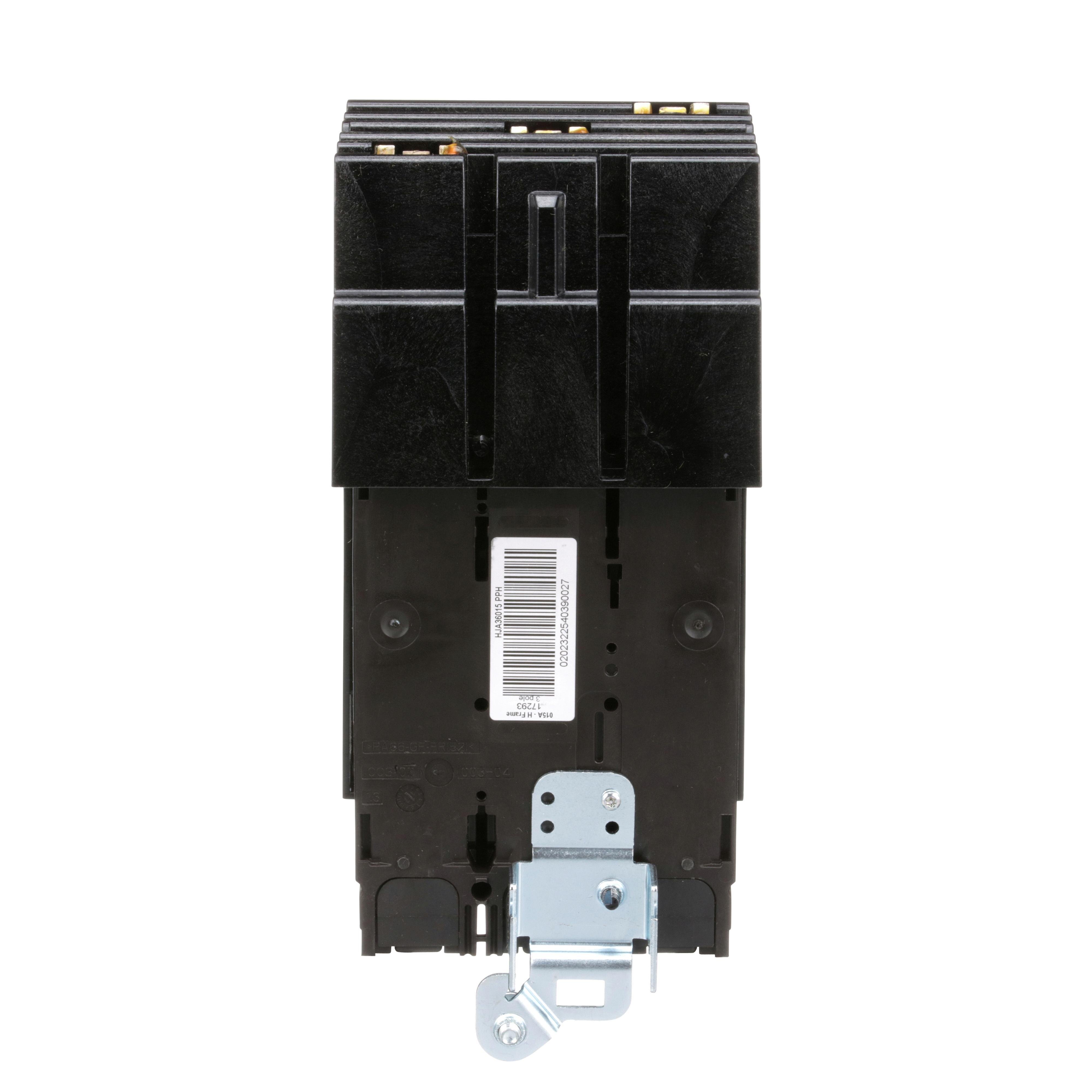

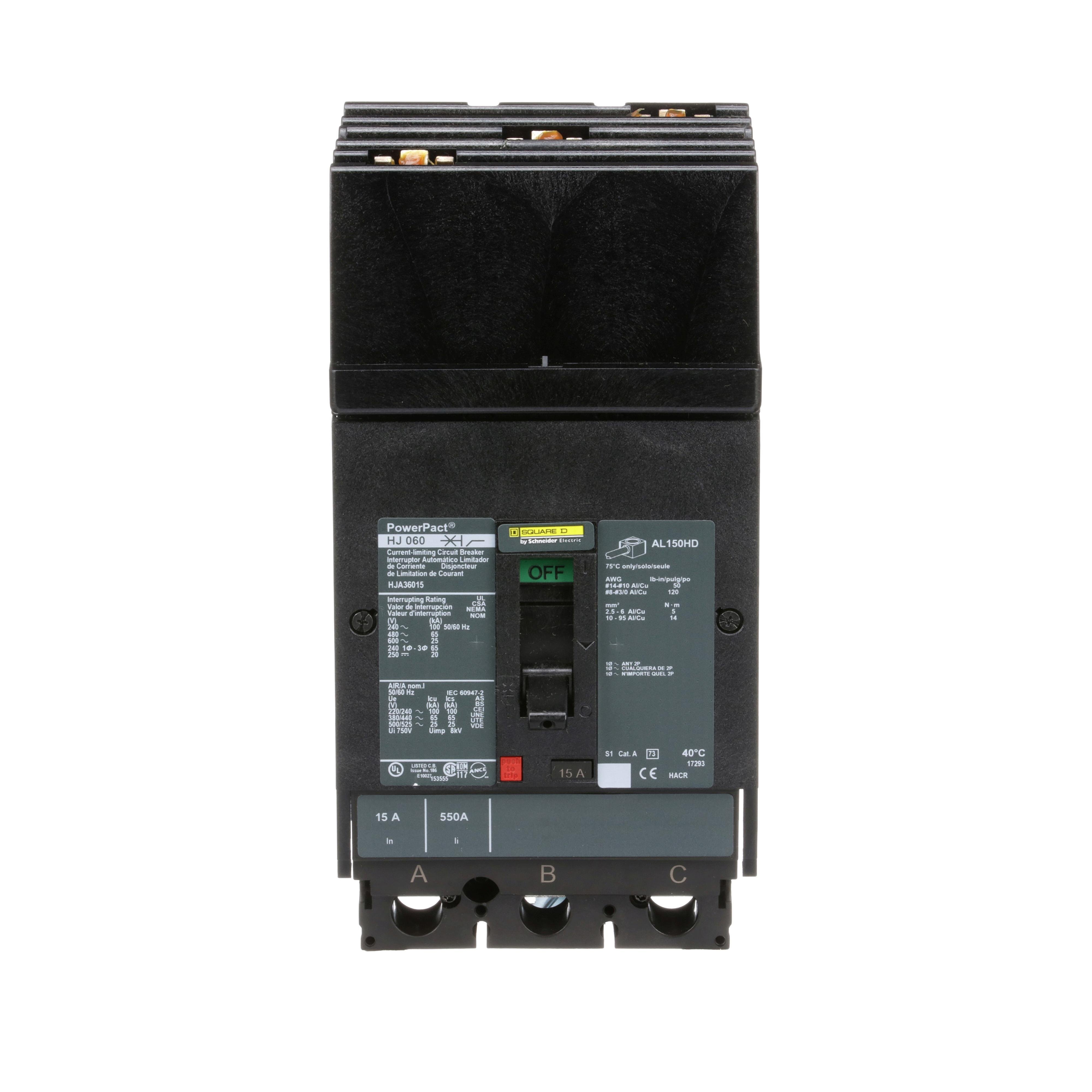

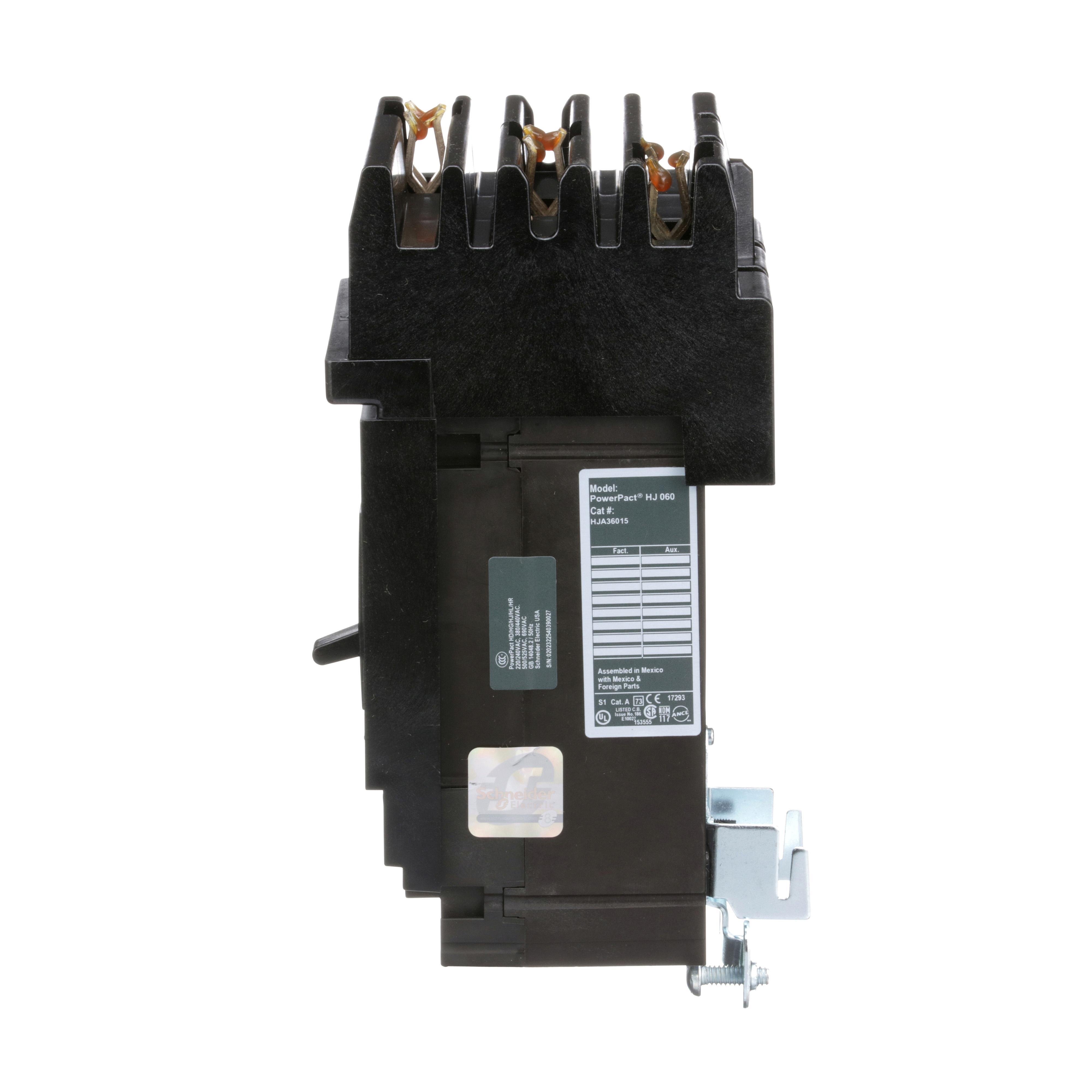

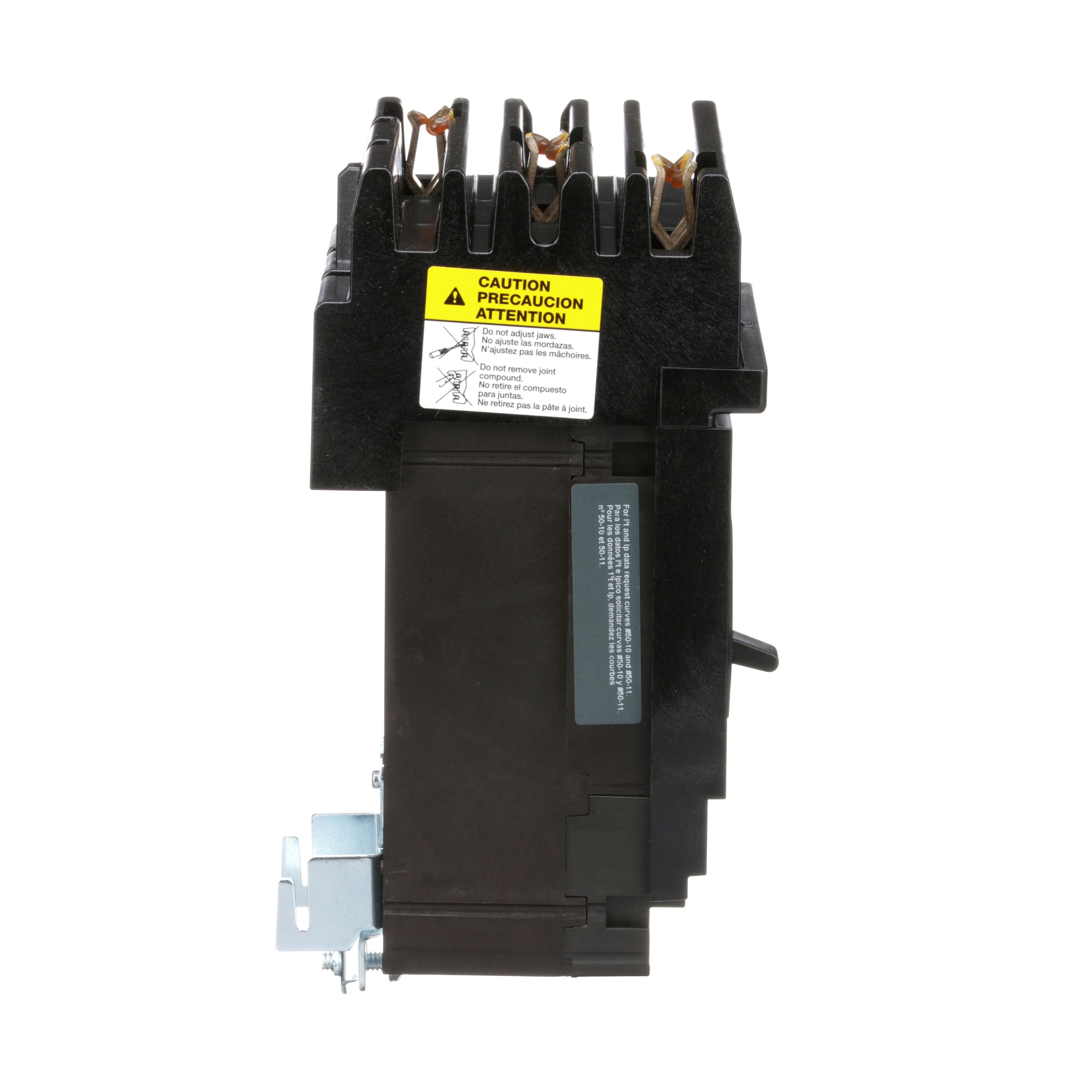

Picture of HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC Picture of HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
Picture of HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC Picture of HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
Picture of HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC Picture of HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
Picture of HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC Picture of HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
Picture of HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC Picture of HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
Square D

HJA36015 - Circuit breaker, PowerPacT H, 15A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 569871
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HJA36015

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 15A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

5.34lb

Height

163mm

Width

8.42mm

Length

14.86mm

Depth

86mm

AD All Features

Standard 80% or 100% rating

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER MLD CASE CKT 600VAC 15A 3 H 3

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Item Features 04

QR codes for easy access to device documentation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

14.8600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

5.3400

AD Package Weight UOM

LB

AD Package Width

8.4200

AD Package Width UOM

IN

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-13 To 158

Spec 12 Attribute

Trip Range

Spec 12 Attribute Value

350 A Hold, 750 A

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Thermal Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

80% Rated Type HJA

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute Value

600 V AC/250 V DC

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

14 to 3/0 AWG Aluminum/Copper

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

I-Line™/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4.8 in L x 4.48 in W x 4.36 in D x 9.73 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

H

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250VDC

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
