HJL36100U31X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, Micrologic 3.2, 80%

Category Miscellaneous

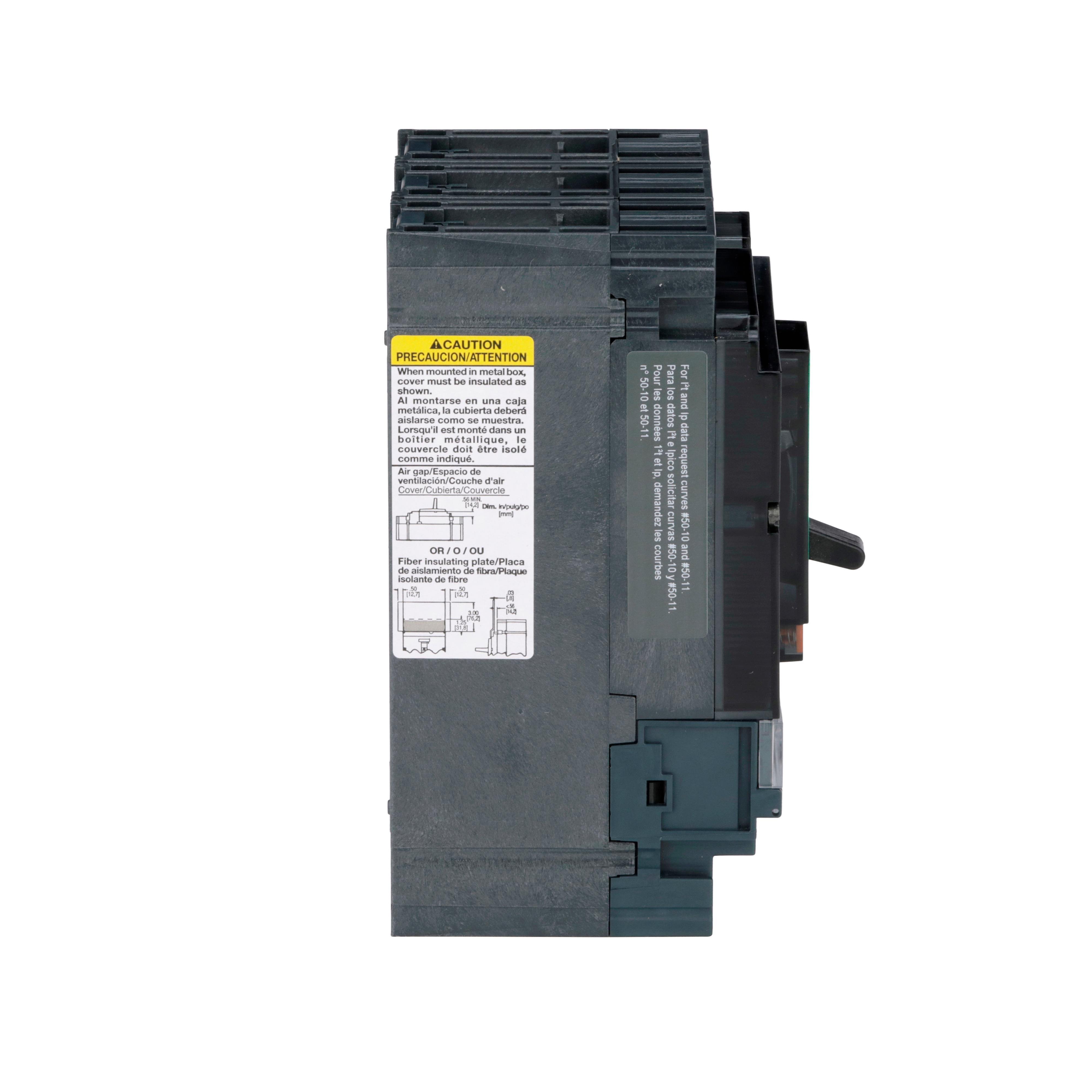

Picture of HJL36100U31X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, Micrologic 3.2, 80% Picture of HJL36100U31X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, Micrologic 3.2, 80%

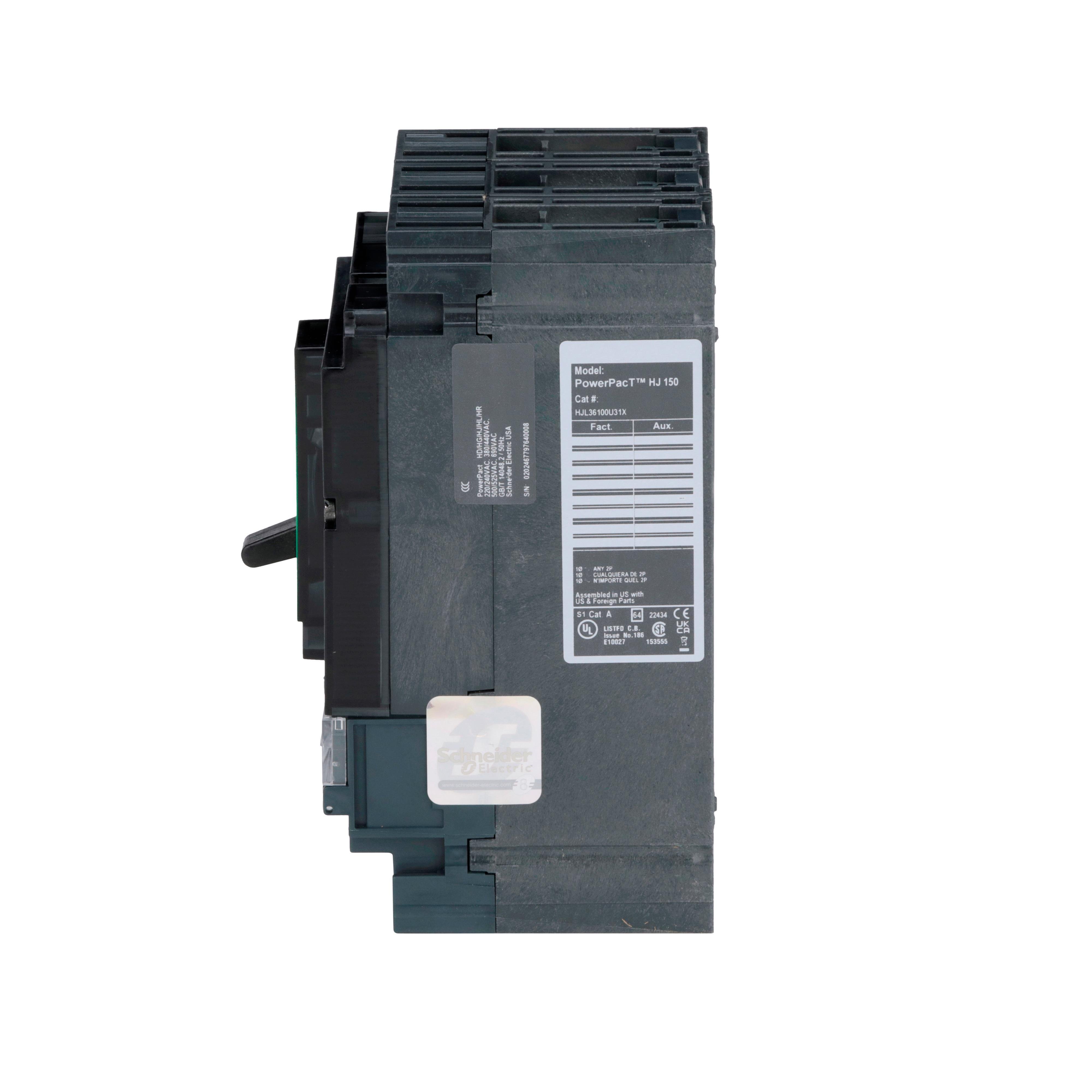

Picture of HJL36100U31X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, Micrologic 3.2, 80% Picture of HJL36100U31X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, Micrologic 3.2, 80%
Picture of HJL36100U31X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, Micrologic 3.2, 80% Picture of HJL36100U31X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, Micrologic 3.2, 80%
Square D™

HJL36100U31X - Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, Micrologic 3.2, 80%

Item Code: 1012385
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HJL36100U31X

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

5.79

Width

7.18

Length

8.36

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HJL36100U31X/HJL36100U31X.spin

AD All Features

Standard 80% or 100% rating

AD Alternative Part Number

13948636

AD Application

Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901755104

AD Gtin

00785901755104

AD IDEA Index ID

13948636

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 100A 3 J

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Keywords

PowerPact HJL36100U31X Type HJL H Molded Case Circuit Breaker, 600 V AC, 100 A, 25/65/100 kA Interrupt, 3 Poles, Electronic Trip ; Schneider Electric ; Square D ; HJL36100U31X ; HJL36100U31X ; 785901755104 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

8.3600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

5.7900

AD Package Weight UOM

LB

AD Package Width

7.1800

AD Package Width UOM

IN

AD Part Number Keywords

HJL36100U31X ; 13948636 ; 785901755104 ; 78590175510 ; 00785901755104 ; 0785901755104

AD Video Links

https://www.youtube.com/embed/4wUOBk4oUmk

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

40

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Electronic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type HJL

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

14 to 3/0 AWG Al/Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

100

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

4.36 in L x 4.12 in W x 6.4 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

J

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

25/65/100

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
