Square D™

HJL36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%

Category Miscellaneous

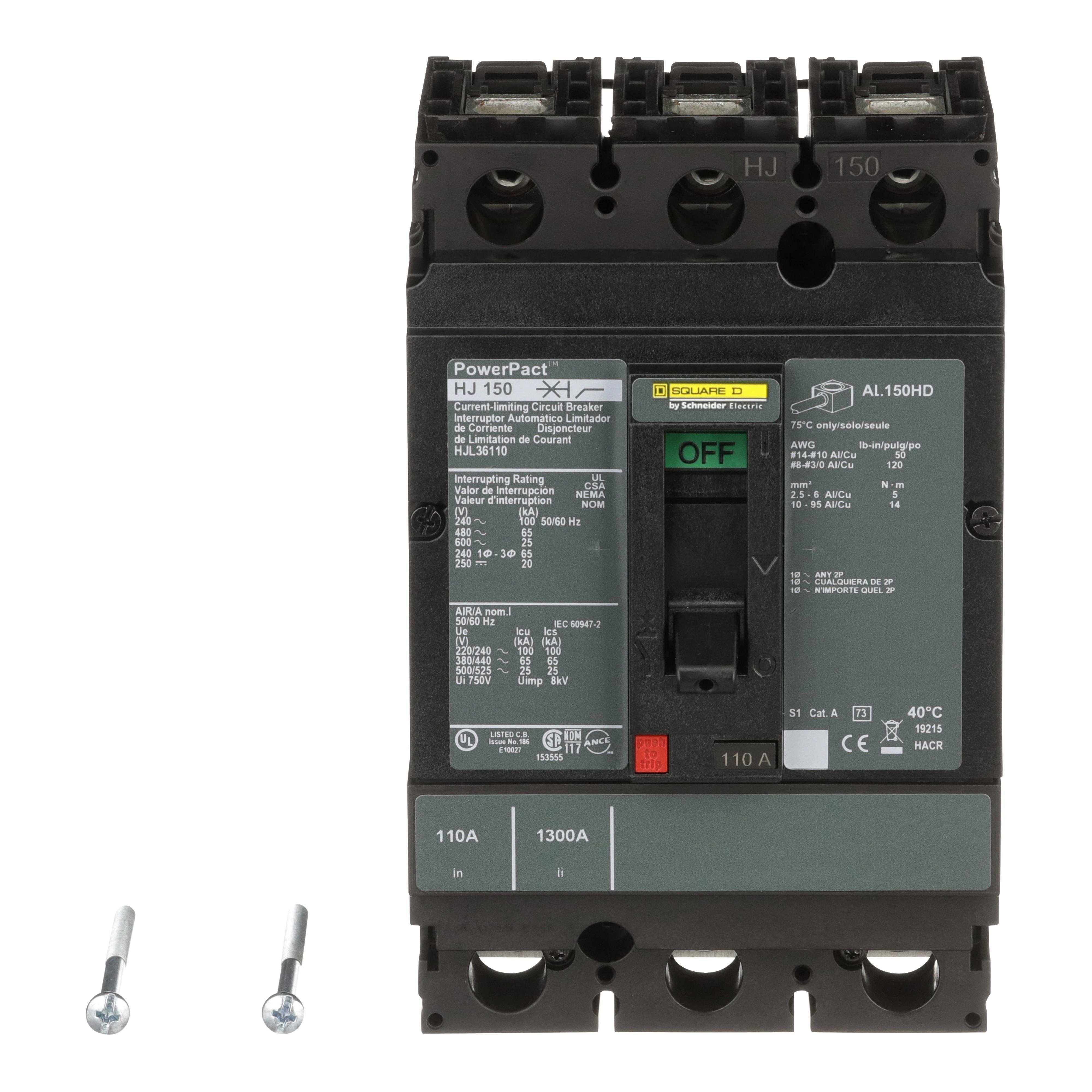

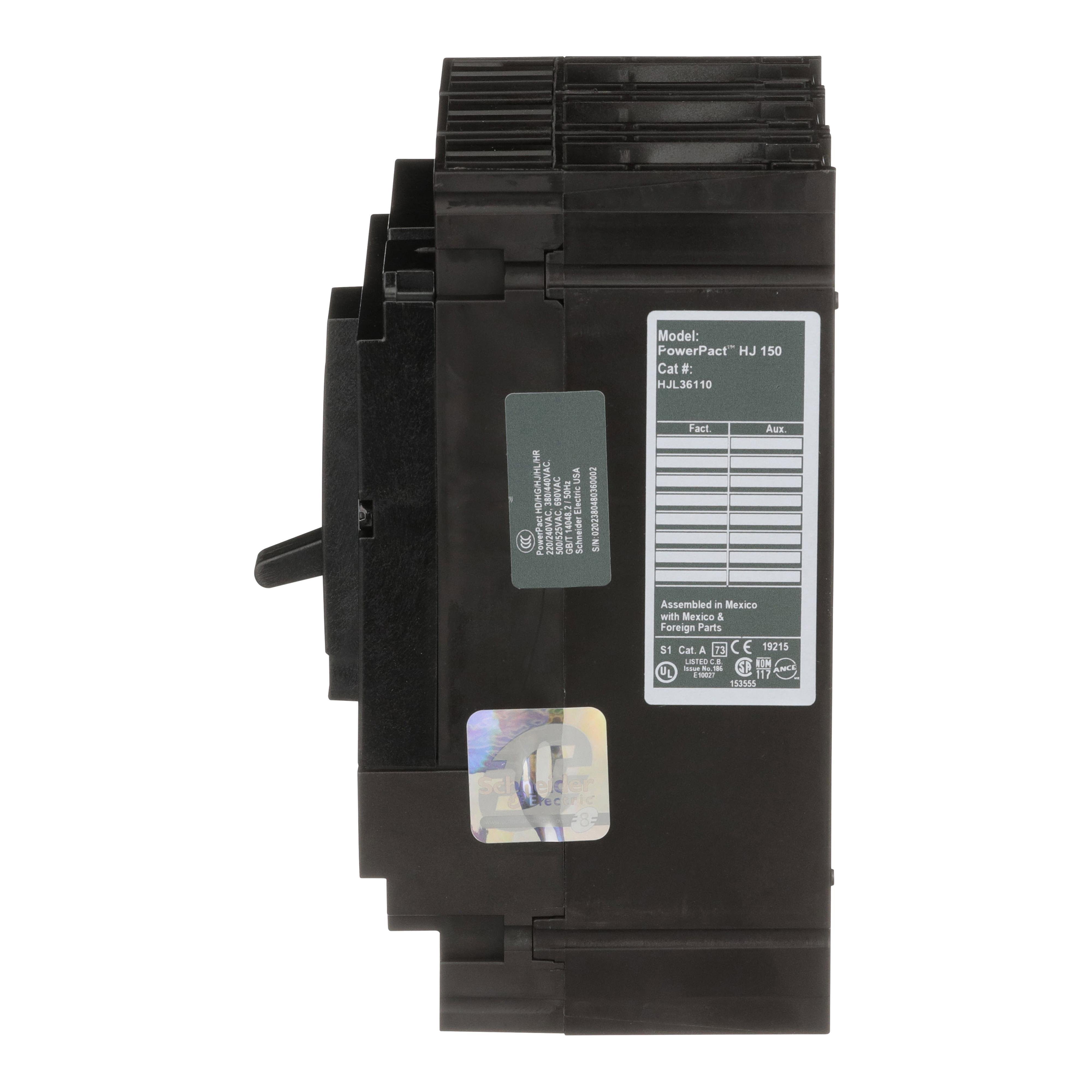

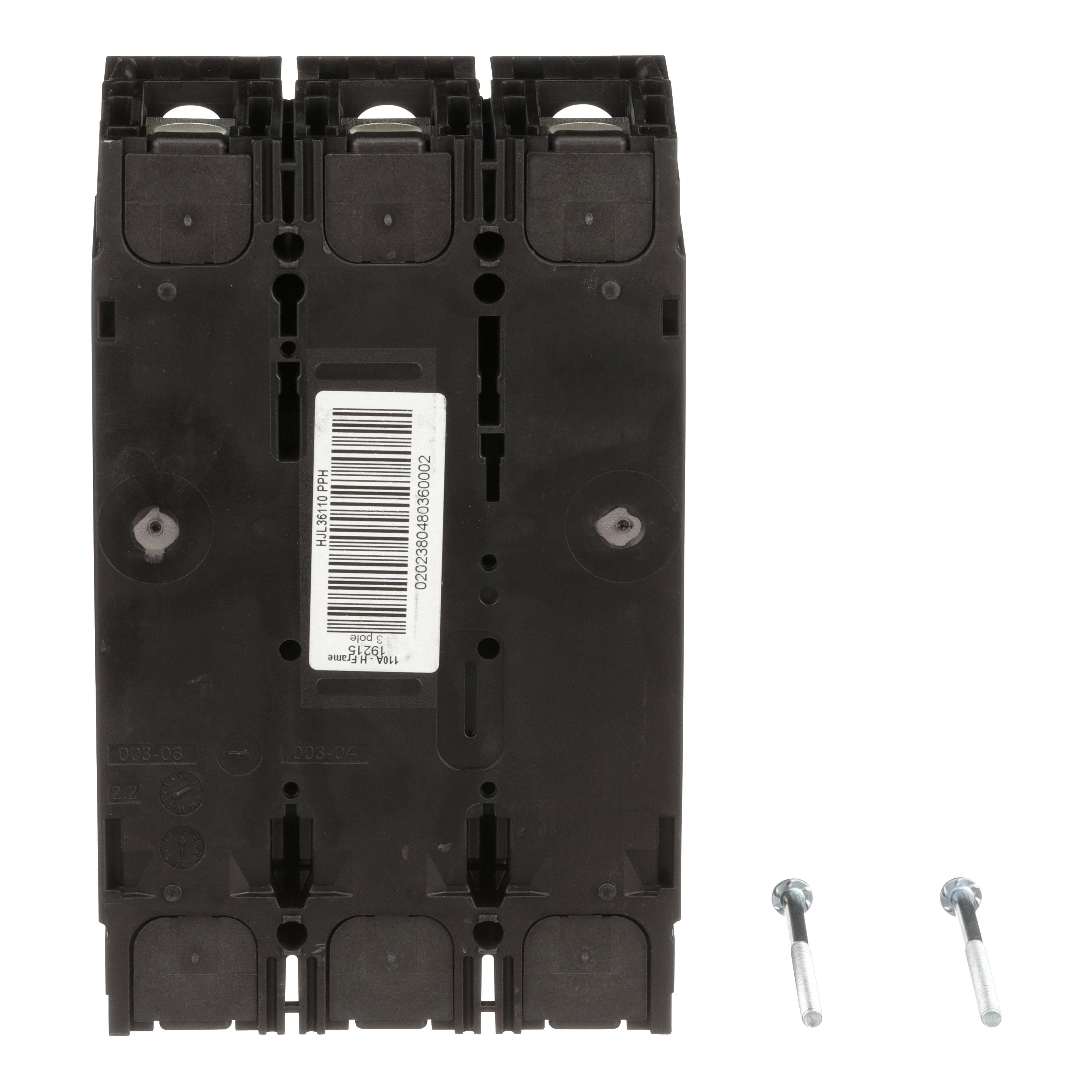

Picture of HJL36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80% Picture of HJL36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%
Picture of HJL36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80% Picture of HJL36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%
Picture of HJL36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80% Picture of HJL36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%
Picture of HJL36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80% Picture of HJL36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%
Square D™

HJL36110 - Circuit breaker, PowerPacT H, 110A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%

Item Code: 1012164
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HJL36110

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 110A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

4.07

Width

7.23

Length

8.72

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HJL36110/HJL36110.spin

AD All Features

Standard 80% or 100% rating

AD Alternative Part Number

8114065

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901623229

AD Gtin

00785901623229

AD IDEA Index ID

8114065

AD Invoice Description

BREAKER CKT CASE MLD 600 VAC/250 VDC 3 J

AD Item Features 01

Standard 80% or 100% rating

AD Item Features 02

Available in Unit mount, I-line or Drawout constructions

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

8.7200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

4.0700

AD Package Weight UOM

LB

AD Package Width

7.2300

AD Package Width UOM

IN

AD Part Number Keywords

HJL36110 ; 8114065 ; 785901623229 ; 78590162322 ; 00785901623229 ; 0785901623229

AD Video Links

https://www.youtube.com/embed/08co8m1vWjY

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

104

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

900 to 1700

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type HJL

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute Value

600 V AC/250 V DC

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

14 to 3/0 AWG Al/Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

110

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

4.12 in W x 4.36 in D x 6.4 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

J

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250 VDC

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
