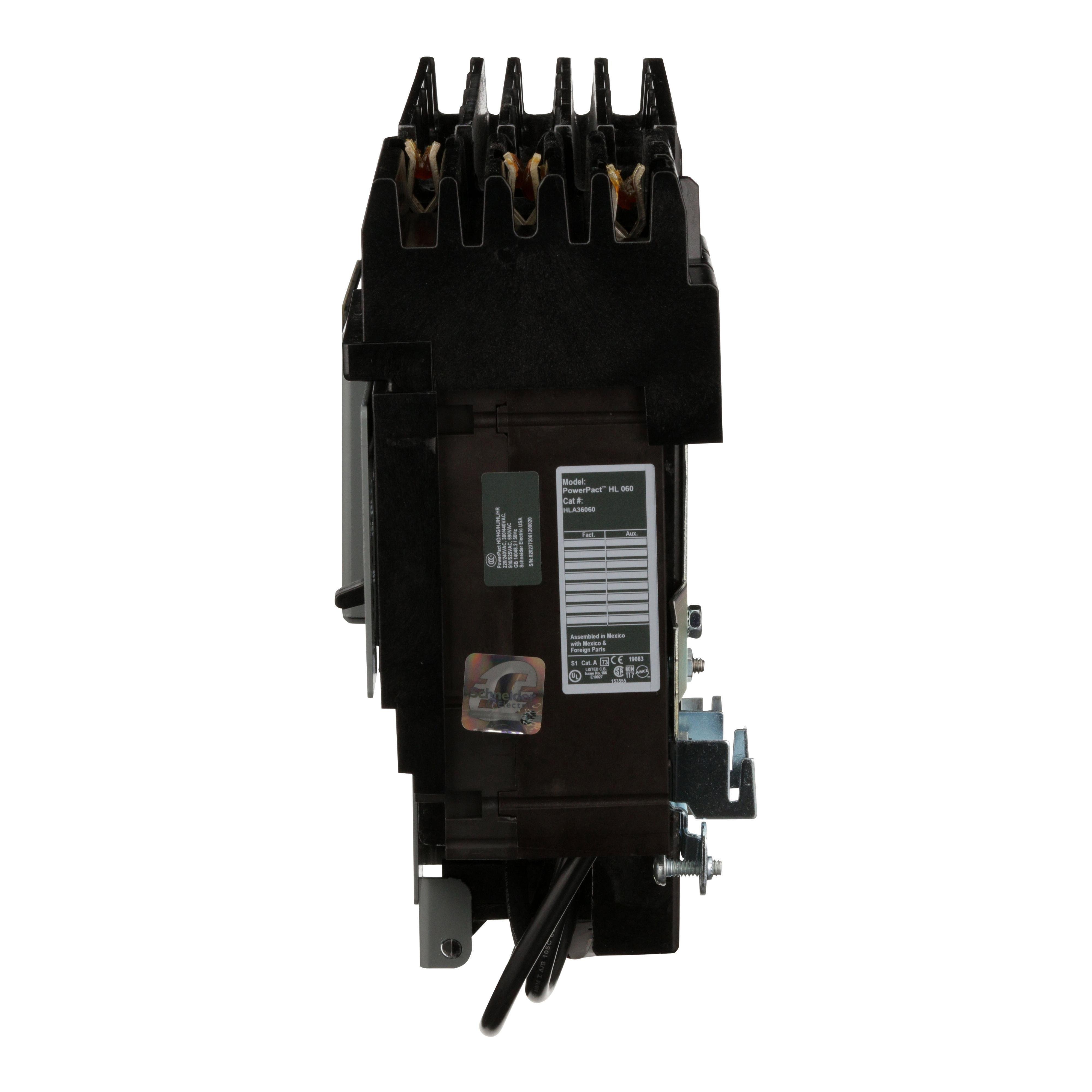

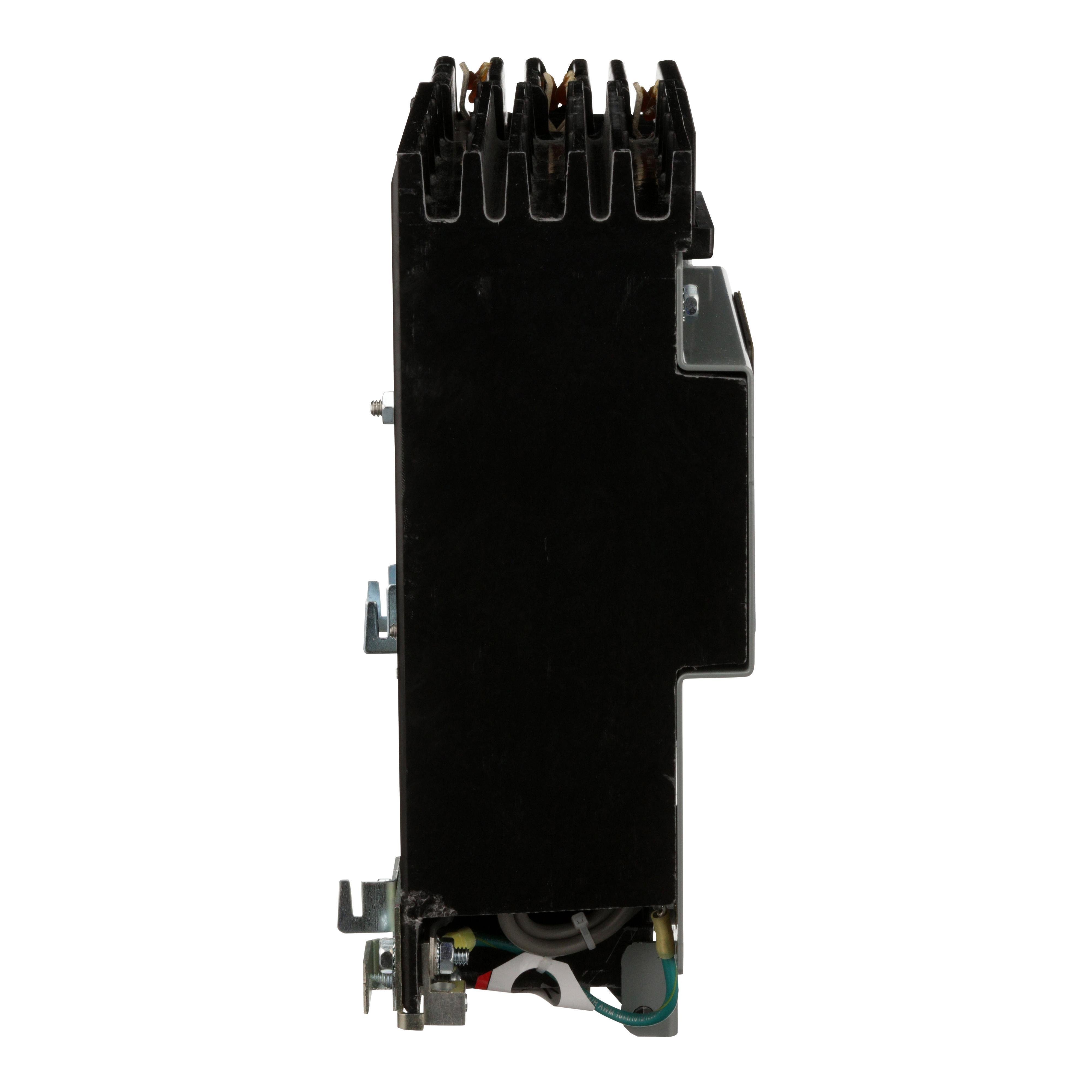

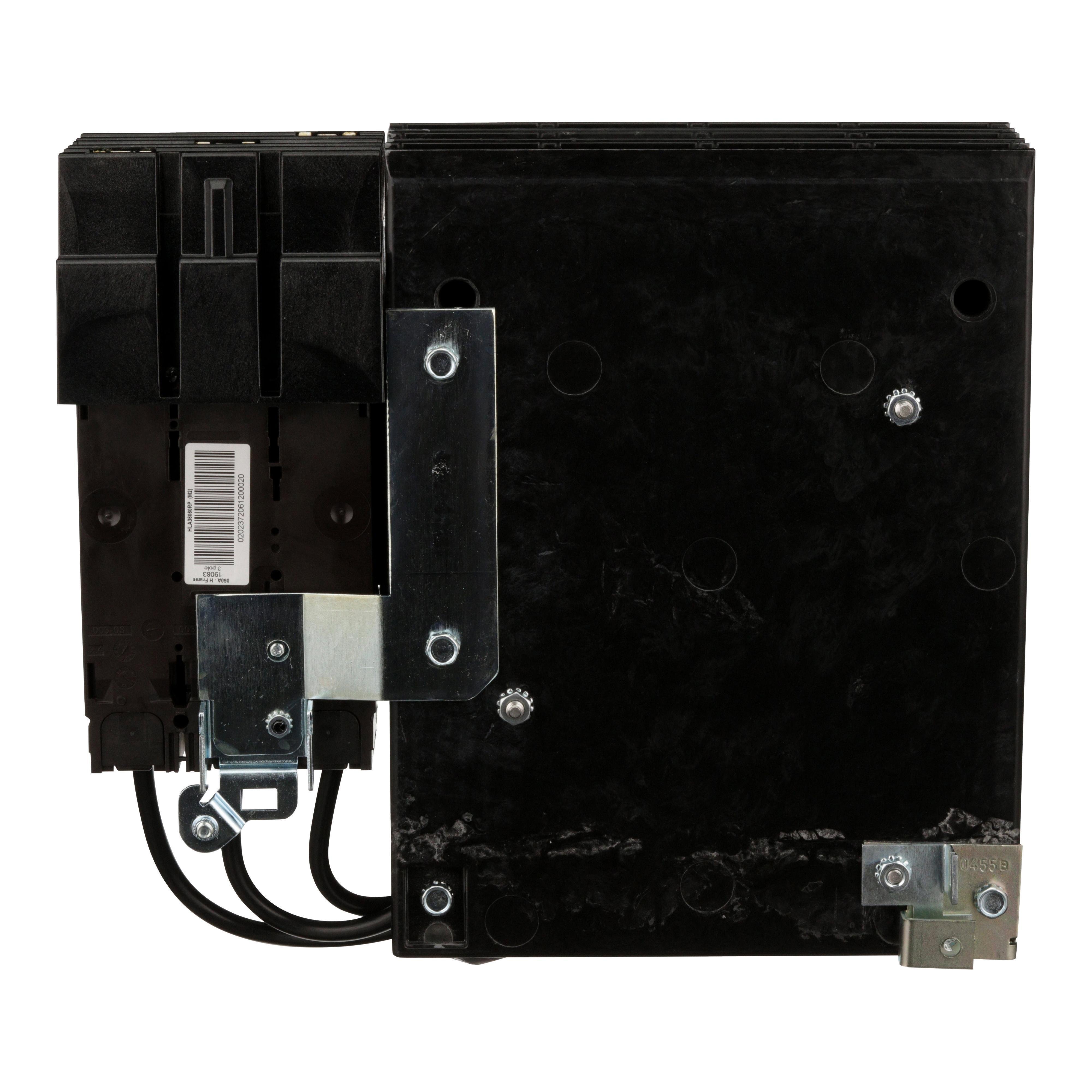

Picture of HL4IMA16C - Surge protection device, Surgelogic, HL, 160kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 2

HL4IMA16C - Surge protection device, Surgelogic, HL, 160kA, 480Y/277 VAC, 3 phase, 4 wire, SPD type 2

Item Code: 1193801

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref HL4IMA16C

Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

Surgelogic™ EMA and EBA series SPDs offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems. This Surelogic SPD device is a three phase, 4-wire grounded wye system that has a peak surge current rating of 160 kA. This device has operational voltage of 208Y/120 Vac and has a short circuit rating of 200 kA. This SPD is in a NEMA 2 enclosure that is 308.9 tall, 341.9 mm wide and 142.1 mm deep.

Specifications

Weight

22.14

Width

15.85

Length

17.34

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HL4IMA16C/HL4IMA16C.spin

AD Alternative Part Number

11198343

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Full Engineering Drawing

AD Gtin

00785901865179

AD IDEA Index ID

11198343

AD Includes

Audible Alarm with Enable/Disable Switch, Surge Counter and Circuit breaker

AD Invoice Description

DEVICE PROT SRG 480Y/277VAC 60 A

AD Item Features 01

Installs in two minutes or less

AD Item Features 02

Easy field mounting and retrofitting

AD Item Features 03

Audible, visual and remote signaling

AD Item Features 04

Manages both thermal and high current events

AD Item Features 05

Advanced diagnostics

AD Item Features 06

Type T units are designed for the global market and are the best choice when size and cost are of concern

AD Keywords

Surgelogic HL4IMA16C I-Line Type HL Internally Mounted Surge Protective Device, 480Y/277 V AC, 60 A, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase ; Schneider Electric ; Square D ; HL4IMA16C ; HL4IMA16C ; 785901865179 ; AC Surge Protective Devices

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

AD Package Length

17.3400

AD Package Length UOM

AD Package Quantity

AD Package Weight

22.1400

AD Package Weight UOM

AD Package Width

15.8500

AD Package Width UOM

AD Part Number Keywords

HL4IMA16C ; 11198343 ; 785901865179 ; 78590186517 ; 00785901865179

Brand

Square D

Spec 1 Attribute

Clamping Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

150

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

Spec 11 Attribute

Number Of Wires

Spec 11 Attribute Value

Spec 12 Attribute

Peak Surge Current

Spec 12 Attribute UOM

Spec 12 Attribute Value

160

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

Spec 14 Attribute

Series

Spec 14 Attribute Value

I-Line

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

Spec 15 Attribute Value

200

Spec 16 Attribute

Type

Spec 16 Attribute Value

Type HL Internally Mounted

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

12.16 in H x 13.46 in W x 5.59 in D

Spec 3 Attribute

Electrical Ratings

Spec 3 Attribute Value

480Y/277 V AC, 60 A

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 2

Spec 5 Attribute

Environmental Conditions

Spec 5 Attribute Value

-40 to 149 deg F Operating Temperature, 0 to 95% Non-Condensing Relative Humidity

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Indicator Type

Spec 7 Attribute Value

Led

Spec 8 Attribute

Modes of Protection

Spec 8 Attribute Value

L-N/L-G/L-L/N-G

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Panel/Plug-On
