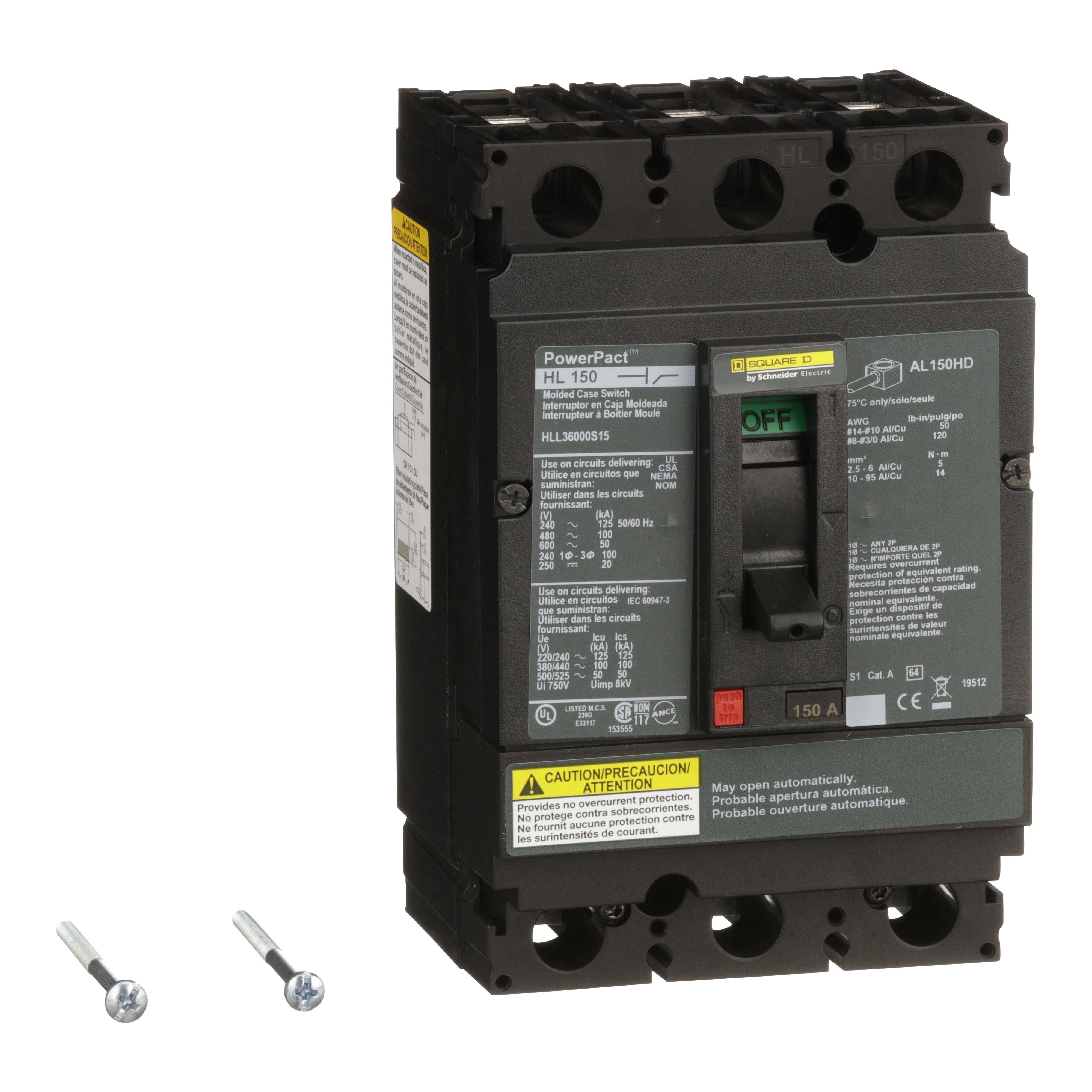

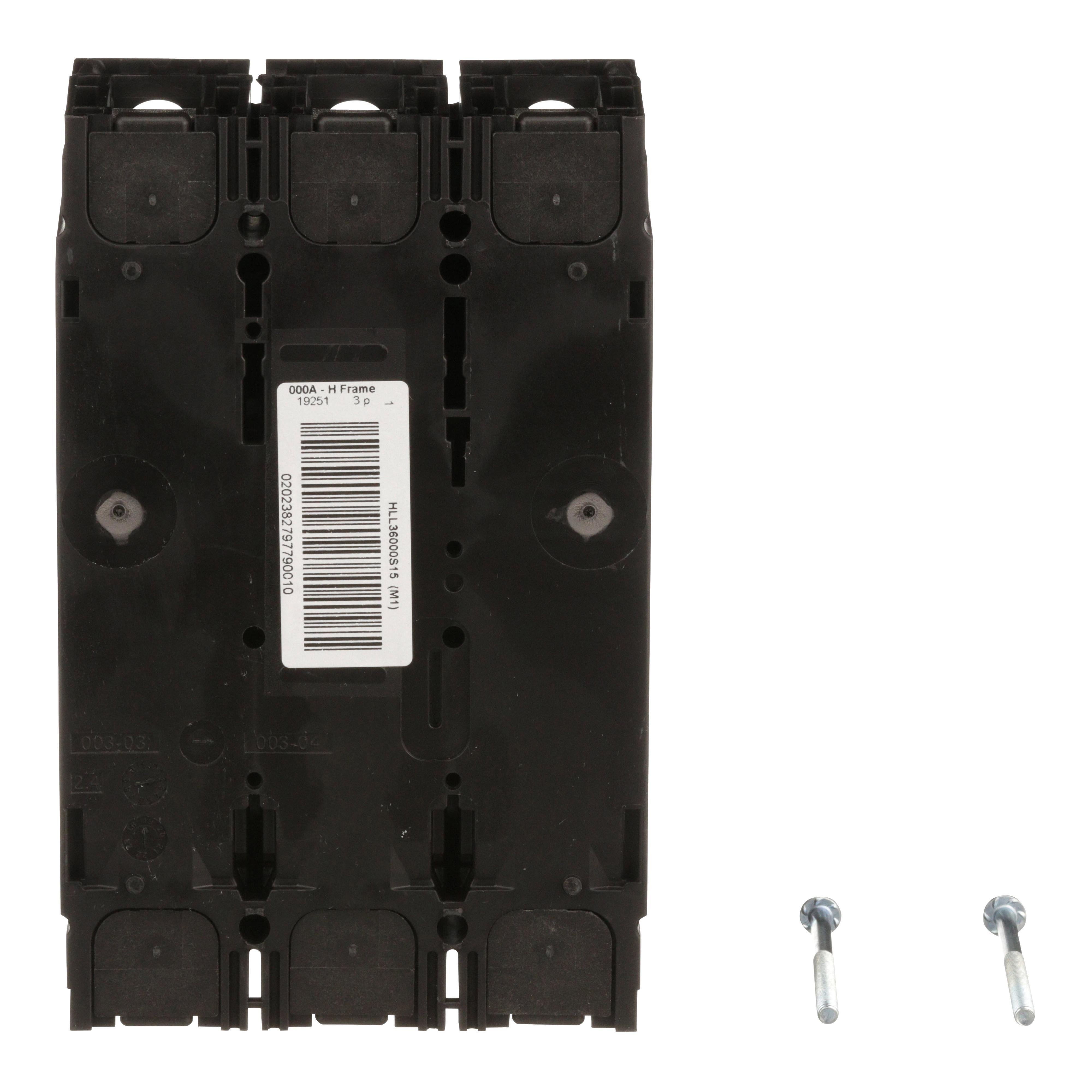

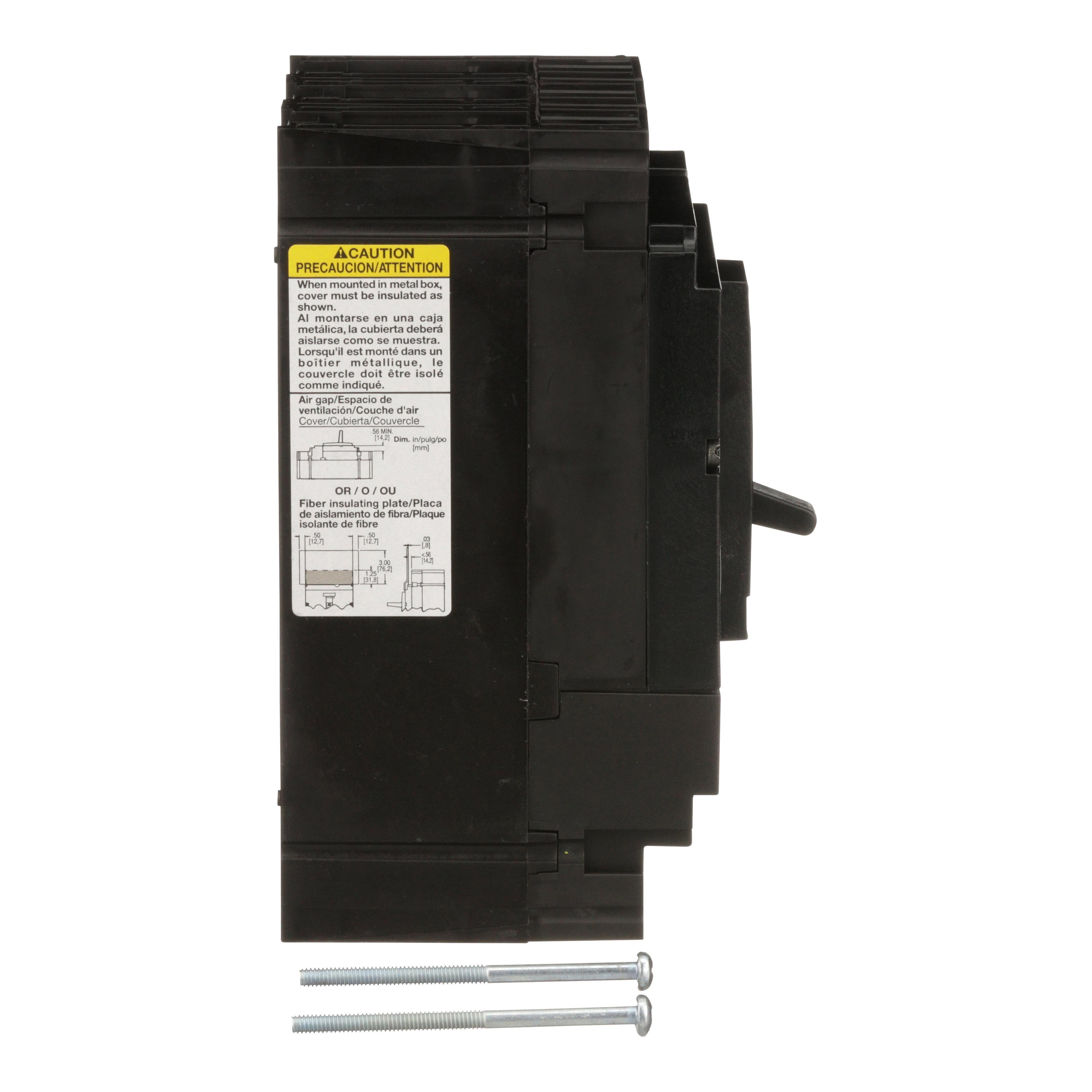

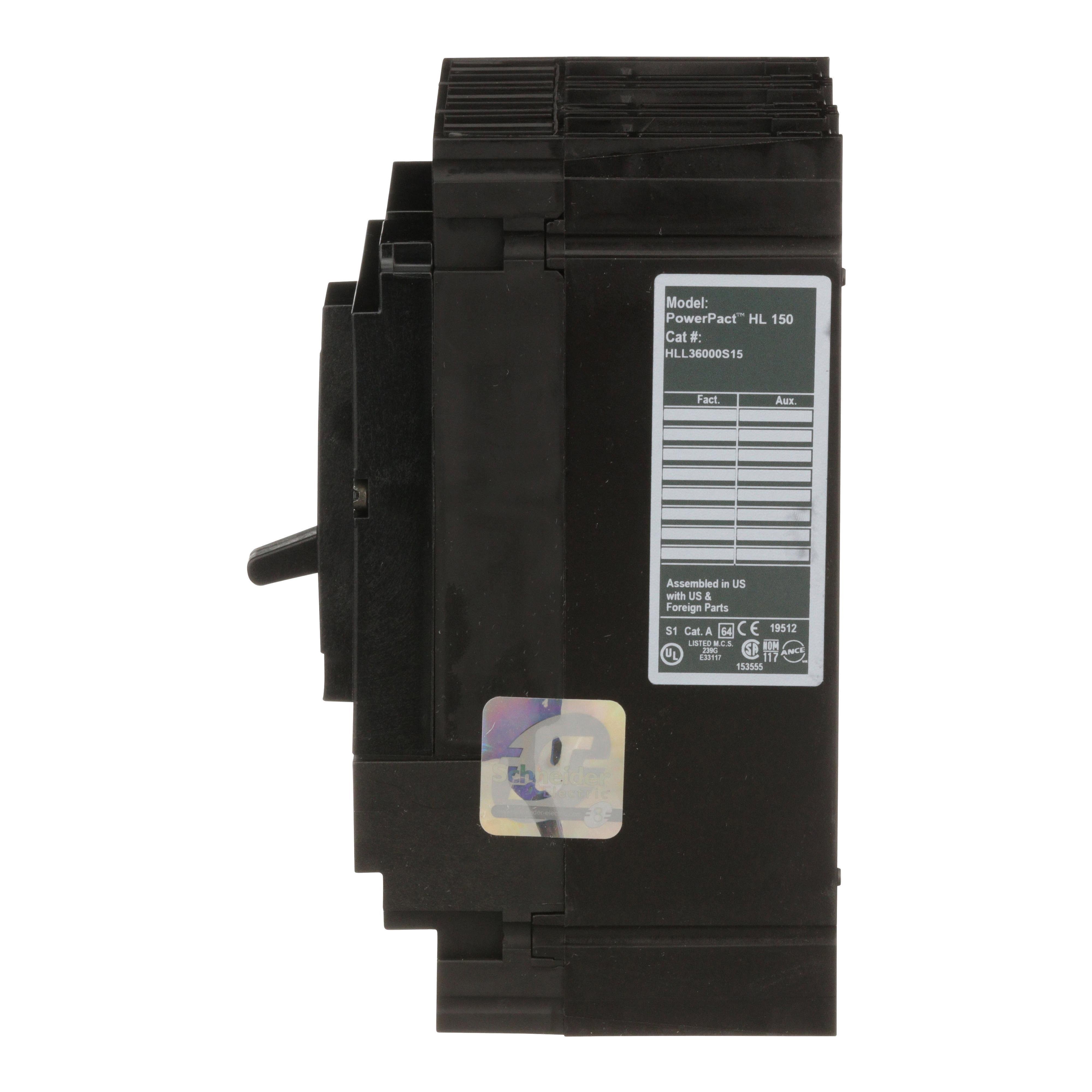

HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic

Category Miscellaneous
Picture of HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic Picture of HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic
Picture of HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic Picture of HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic
Picture of HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic Picture of HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic
Picture of HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic Picture of HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic
Picture of HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic Picture of HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic
Square D

HLL36000S15 - Automatic switch, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, magnetic

Item Code: 1113878
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HLL36000S15

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the H-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT H-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch is unit mount and has lugs on both line and load sides. This PowerPacT H, 150A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT H automatic switches comply to UL, CSA, ANCE, and IEC standards.
