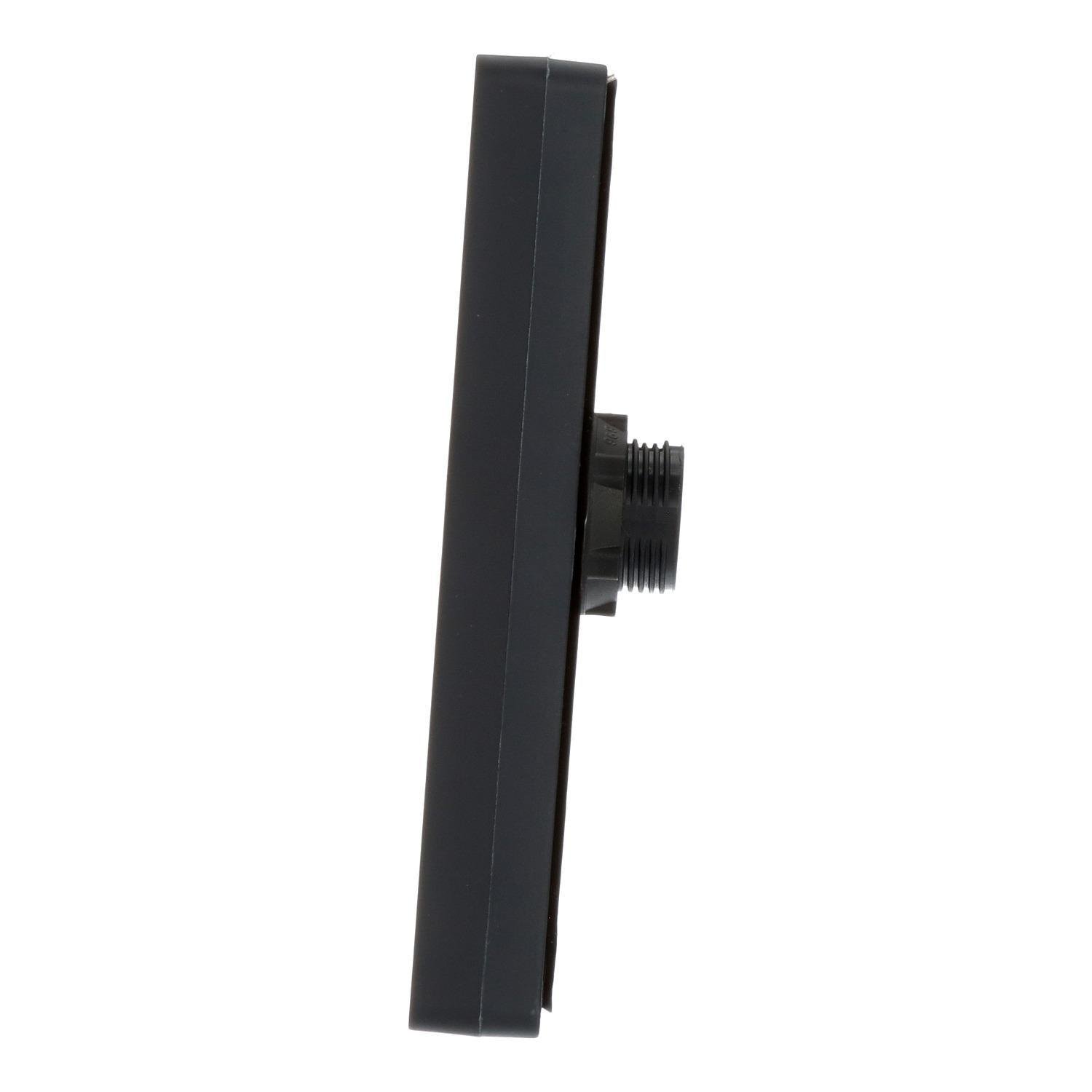

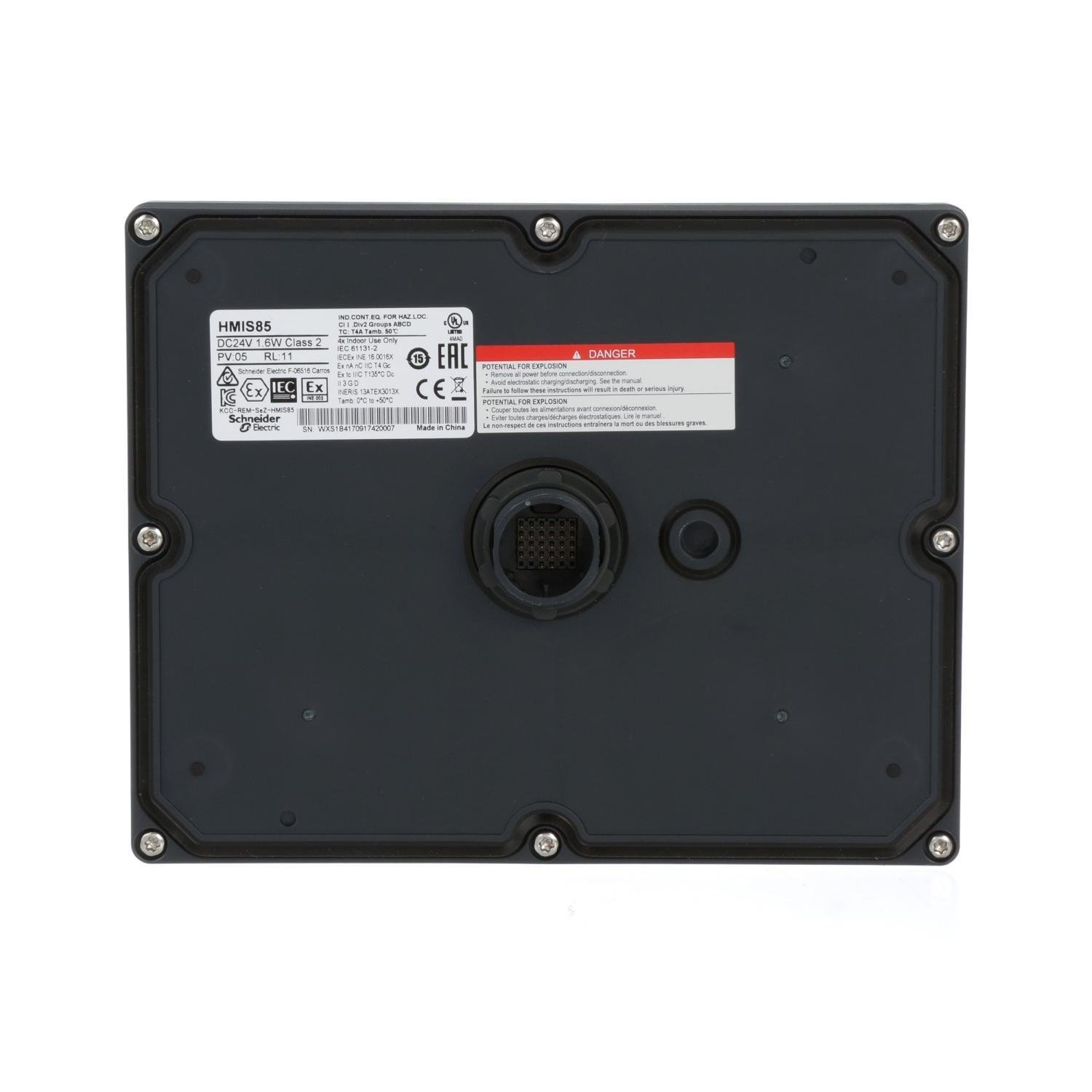

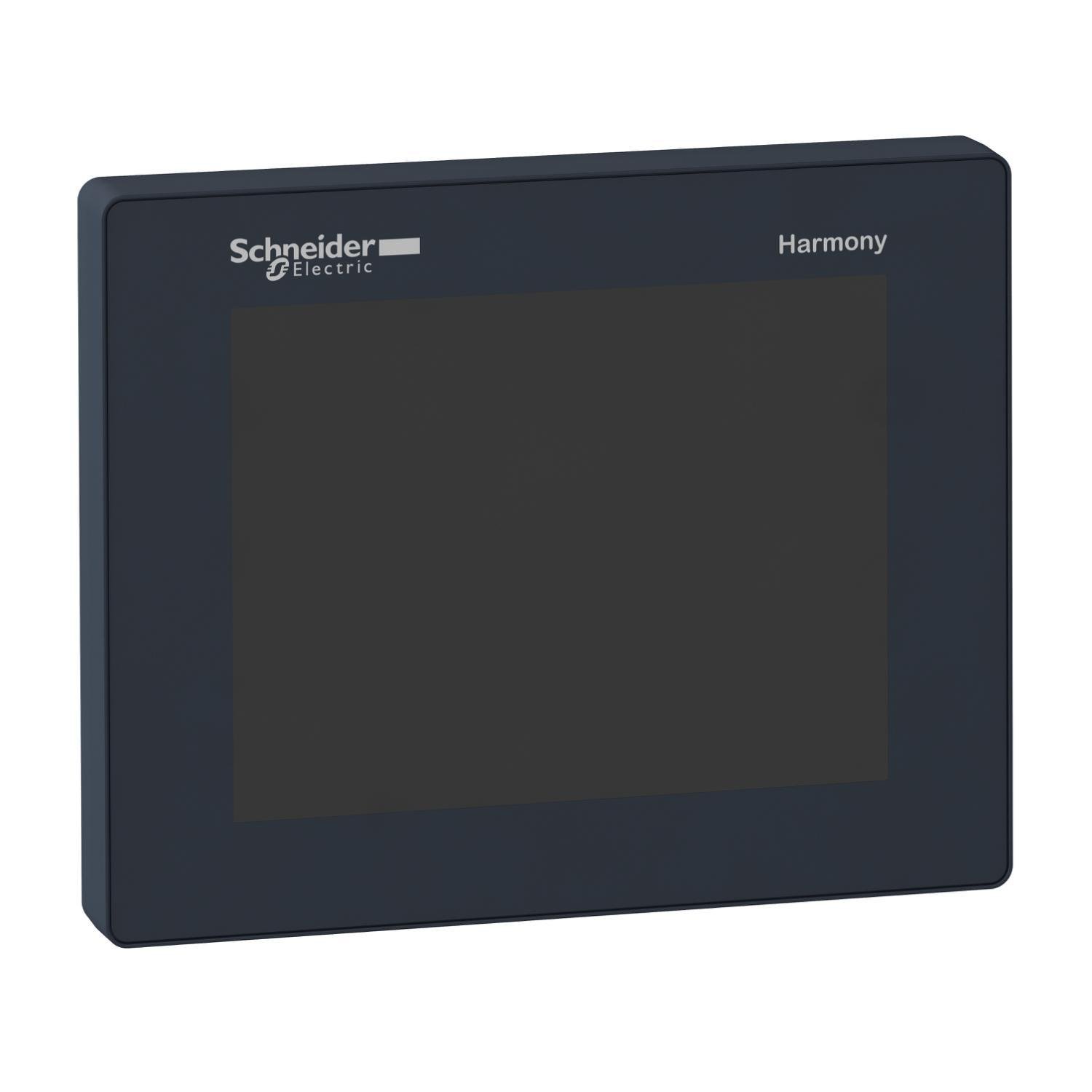

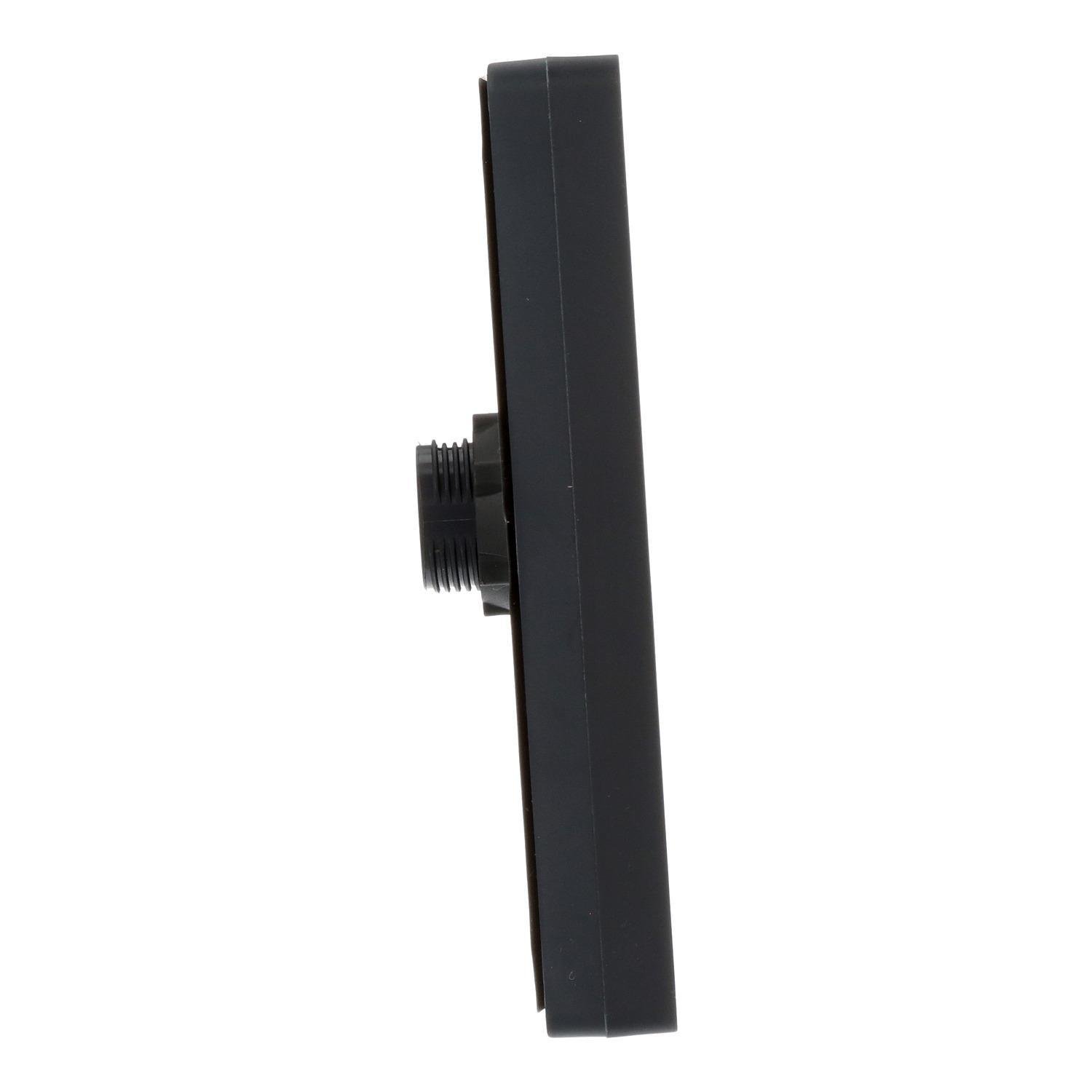

HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD

Picture of HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD Picture of HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD
Picture of HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD Picture of HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD
Picture of HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD Picture of HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD
Picture of HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD Picture of HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD
Picture of HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD Picture of HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD

HMIS85 - Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD

Item Code: 1043501
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HMIS85
Call for Availability
Compare

Description

The HMI small touchscreen features 5.7inch backlight LED color TFT LCD display, supports 320 x 240 pixels QVGA resolution. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth). It weighs 0.405kg. It is suitable for use with small machines, HVAC, pumping and packaging applications. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with the EcoStruxure Machine Expert, delivers adequate functionality for control of small machines.

Specifications

Weight

1.45

Width

2.18

Length

10.41

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION ACCESSORIES

Dimensions

163 mm W x 129.4 mm D

Maximum Resolution

320 x 240 pixel

Screen Size

5.7 in

Series

Magelis™ SCU

Type

Front Module Small HMI
