Schneider Electric

HMISCU8A5 - 5”7 color touch controller panel - Dig 16 inputs/10 outputs

Category Programmable Logic & Automation Accessories

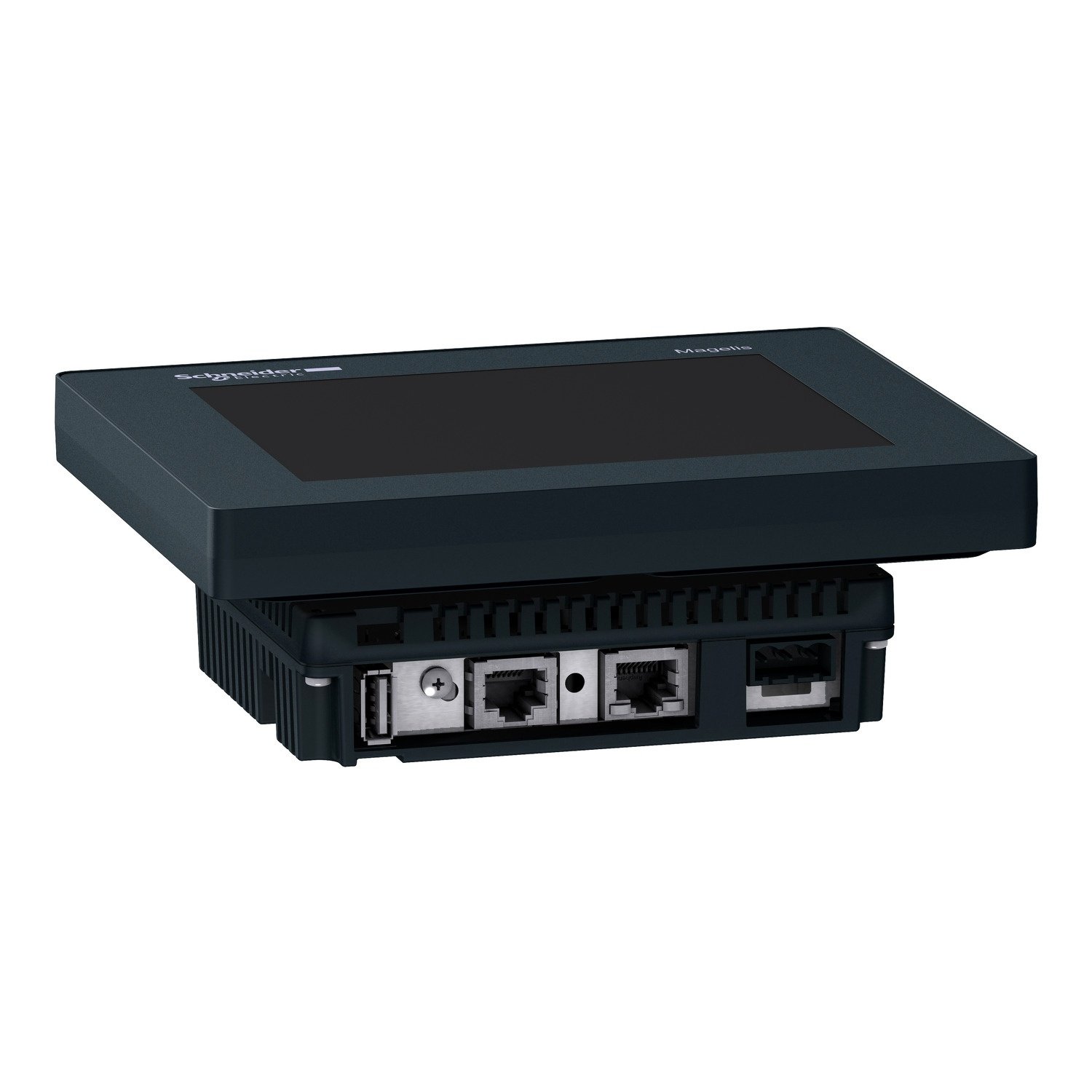

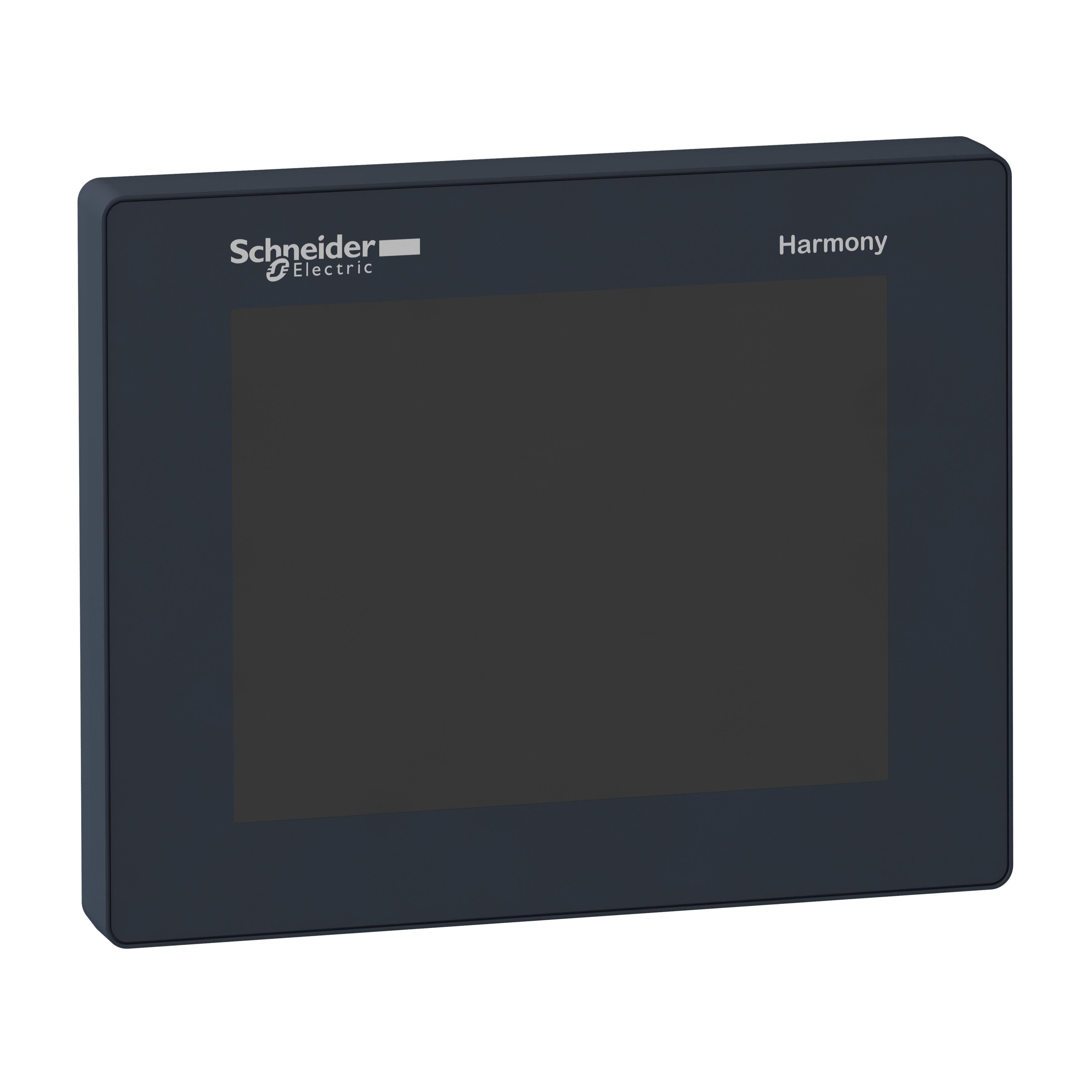

Picture of HMISCU8A5 - 5”7 color touch controller panel - Dig 16 inputs/10 outputs Picture of HMISCU8A5 - 5”7 color touch controller panel - Dig 16 inputs/10 outputs
Picture of HMISCU8A5 - 5”7 color touch controller panel - Dig 16 inputs/10 outputs Picture of HMISCU8A5 - 5”7 color touch controller panel - Dig 16 inputs/10 outputs
Picture of HMISCU8A5 - 5”7 color touch controller panel - Dig 16 inputs/10 outputs Picture of HMISCU8A5 - 5”7 color touch controller panel - Dig 16 inputs/10 outputs
Schneider Electric

HMISCU8A5 - 5”7 color touch controller panel - Dig 16 inputs/10 outputs

Item Code: 1005127
Category Programmable Logic & Automation Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HMISCU8A5

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display and 128MB EPROM. It also has 16 digital inputs, 10 digital outputs, 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 CANopen port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 and CANopen host ports make it ideal to supervise and control simple systems and machines. Its multiple I/O, including high speed counters, allowing you to processes with fast sensing chains.

Specifications

Weight

3.23lb

Height

129.4mm

Width

7.21mm

Length

10.53mm

Depth

76.22mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/hmiscu8a5/hmiscu8a5.spin

AD All Features

Saves time, space and cost

AD Alternative Part Number

14838263

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3595864175577

AD Gtin

03595864175577

AD IDEA Index ID

14838263

AD Invoice Description

PANEL CONT HMI 24 VDC 30 A 24 W 5.7IN

AD Item Features 01

Saves time, space and cost

AD Item Features 02

State-of-the-art display provides clear readability

AD Item Features 03

Rich communication capabilities

AD Item Features 04

Single software suite EcoStruxure Machine Expert

AD Item Features 05

Easy machine maintenance and upgrade

AD Keywords

Square D Magelis SCU HMISCU8A5 Small Touch HMI Controller Panel, 24 V DC, 30 A, 24 W, 5.7 in Backlit LED Color TFT LCD Display, 2 USB/COM1/CANopen ; Schneider Electric ; Schneider Electric ; HMISCU8A5 ; 785901189923 ; Operator Interfaces Terminals

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

10.5300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.2300

AD Package Weight UOM

LB

AD Package Width

7.2100

AD Package Width UOM

IN

AD Part Number Keywords

HMISCU8A5 ; 14838263 ; 785901189923 ; 78590118992 ; 03595864175577 ; 3595864175577

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION ACCESSORIES

Spec 1 Attribute

Brightness

Spec 1 Attribute Value

16 Level

Spec 10 Attribute

Software

Spec 10 Attribute Value

SoMachine

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

32 To 122

Spec 12 Attribute

Type

Spec 12 Attribute Value

Small Touch

Spec 13 Attribute

Viewing Area

Spec 13 Attribute Value

60 deg Left/Right/Bottom/40 deg Top

Spec 2 Attribute

Communication Ports

Spec 2 Attribute Value

2 USB/COM1/CANopen

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

76.22 mm L x 163 mm W x 129.4 mm H

Spec 4 Attribute

Display Resolution

Spec 4 Attribute Value

320 x 240 pixel QVGA

Spec 5 Attribute

Display Size

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

5.7

Spec 6 Attribute

Display Type

Spec 6 Attribute Value

Backlit LED Color TFT LCD

Spec 7 Attribute

Material

Spec 7 Attribute Value

Polycarbonate/Polybutylene Terephthalate and Polyacrylic Acid

Spec 8 Attribute

Memory

Spec 8 Attribute Value

128 MB Flash NAND/128 kB Internal FRAM/128 MB Application DRAM

Spec 9 Attribute

Power Source

Spec 9 Attribute Value

24 V DC, 30 A, 24 W
