Schneider Electric

HMIST6200 - touch panel screen, Harmony ST6, 4inch wide display, 1COM, 1Ethernet, USB host and device, 24V DC

Category Programmable Logic & Automation Accessories

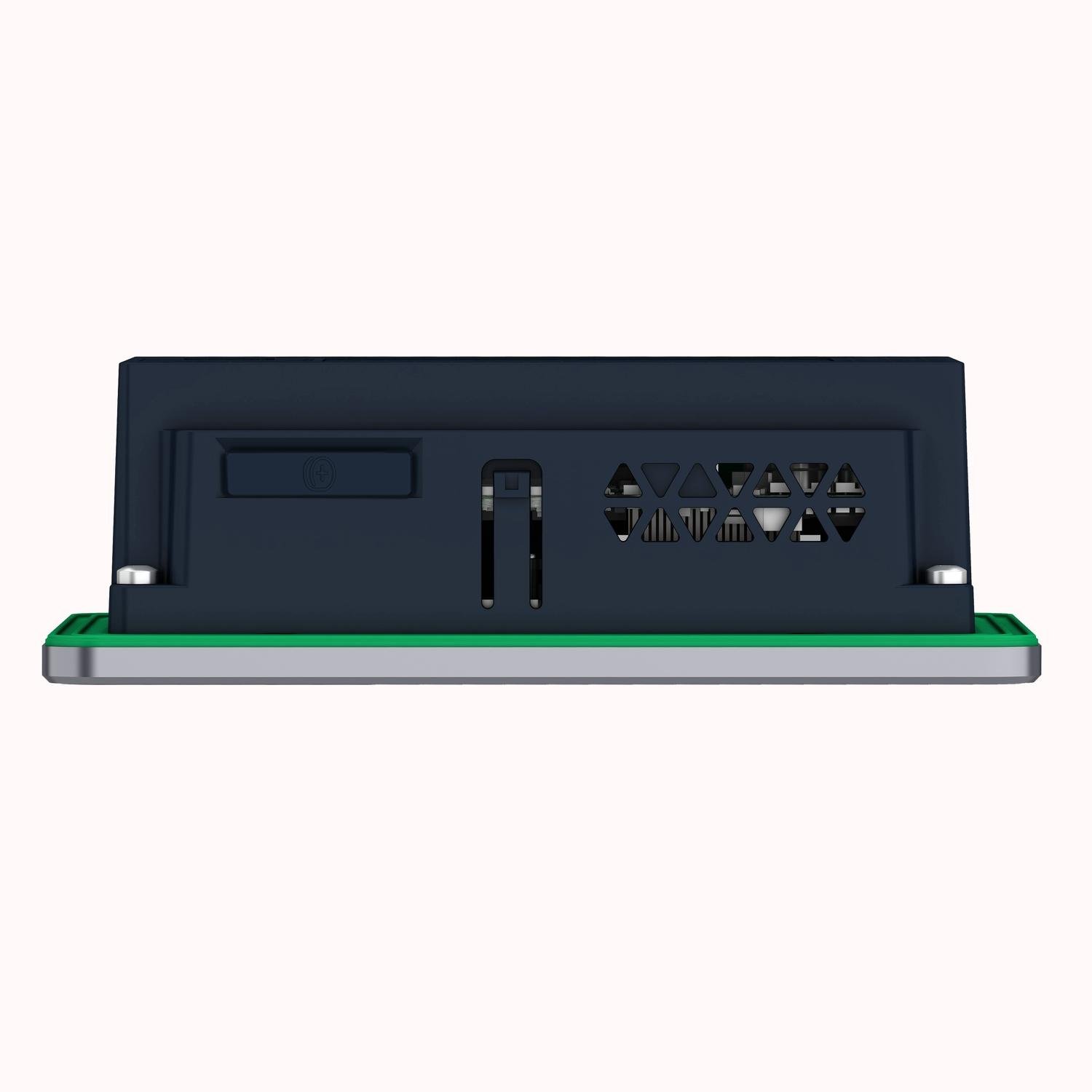

Picture of HMIST6200 - touch panel screen, Harmony ST6, 4inch wide display, 1COM, 1Ethernet, USB host and device, 24V DC Picture of HMIST6200 - touch panel screen, Harmony ST6, 4inch wide display, 1COM, 1Ethernet, USB host and device, 24V DC
Picture of HMIST6200 - touch panel screen, Harmony ST6, 4inch wide display, 1COM, 1Ethernet, USB host and device, 24V DC Picture of HMIST6200 - touch panel screen, Harmony ST6, 4inch wide display, 1COM, 1Ethernet, USB host and device, 24V DC
Schneider Electric

HMIST6200 - touch panel screen, Harmony ST6, 4inch wide display, 1COM, 1Ethernet, USB host and device, 24V DC

Item Code: 1146364
Category Programmable Logic & Automation Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HMIST6200

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inch wide with 16 million colors and 480 x 272 pixel resolution. It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 1x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

Specifications

Weight

0.99

Width

5.34

Length

7.25

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

GRPH TERM 24VDC 4IN COLOR TFT LCD

AD Item Features 01

High-resolution screen powered by EcoStruxure Operator Terminal Expert software, with multi-screen and layout objects (Dock Panel) functions, to combine more information in one page for easy operation

AD Item Features 02

Tool-free fastener for fast and easy mounting

AD Item Features 03

Ability to access all HTML5 servers with Basic Web HMI, Harmony STW6 version

AD Item Features 04

Availability of Web Viewer function on Harmony HMIST6 and HMISTM6 versions that allows remote visualization of the HMI application on PC/Tablet/Smartphone

AD Item Features 05

Basic HMI, Harmony ST6, and STM6 with the best-in-class user interface for multi-device connection, 2 x Ethernet ports with Dual IP, 2x COM (except 4 in model)/USB host and device

AD Item Features 06

Basic Web HMI, Harmony STW6 with 2 x Ethernet ports with one IP address for daisy chain connection (except 4 in model)

AD Item Features 07

Enhanced cybersecurity from application to firmware level

AD Item Features 08

EcoStruxure Secure Connect Advisor, pre-installed on Harmony HMIST6 and HMISTM6 versions, for secure remote maintenance of HMI and connected devices

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.9900

AD Package Weight UOM

LB

AD Package Width

5.3400

AD Package Width UOM

IN

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION ACCESSORIES

Spec 1 Attribute

Brightness

Spec 1 Attribute Value

16 Levels

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

4.27 in H x 5.30 in W x 1.69 in D

Spec 3 Attribute

Display Resolution

Spec 3 Attribute Value

480 x 272 pixels

Spec 4 Attribute

Display Size

Spec 4 Attribute UOM

IN

Spec 4 Attribute Value

4

Spec 5 Attribute

Display Type

Spec 5 Attribute Value

Color TFT LCD

Spec 6 Attribute

Material

Spec 6 Attribute Value

Polycarbonate/Aluminium

Spec 7 Attribute

Memory

Spec 7 Attribute UOM

MB

Spec 7 Attribute Value

128, 512

Spec 8 Attribute

Power Source

Spec 8 Attribute UOM

V DC

Spec 8 Attribute Value

24

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

32 To 122
