Schneider Electric

touch panel screen, Harmony ST6, 7inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC

Category Programmable Logic & Automation Interface Components

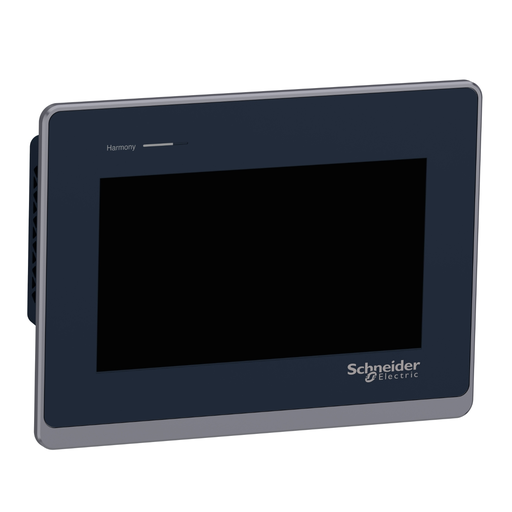

Picture of touch panel screen, Harmony ST6, 7inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC
Schneider Electric

touch panel screen, Harmony ST6, 7inch wide display, 2COM, 2Ethernet, USB host and device, 24V DC

Item Code: 1133218
Category Programmable Logic & Automation Interface Components
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HMIST6400

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 208mm (width) x 153mm (height) x 45mm (depth) and weighs 0.80Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

Specifications

Weight

2.23

Width

6.83

Length

10.53

AD All Features

Reduces implementation time

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

SG

AD Invoice Description

DISPLAY PNL TOUCH 9W 7IN COLOR TFT LCD

AD Item Features 01

Reduces implementation time

AD Item Features 02

Fast maintenance and easy replacement

AD Item Features 03

Single-touch resistive screen for displaying synoptic views

AD Item Features 04

Multicolor status LED for indicating panel's operating mode

AD Item Features 05

Fewer programming steps and fast customization

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

10.5300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.2300

AD Package Weight UOM

LB

AD Package Width

6.8300

AD Package Width UOM

IN

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION INTERFACE COMPONENTS

Spec 1 Attribute

Brightness

Spec 1 Attribute UOM

Level

Spec 1 Attribute Value

16

Spec 10 Attribute

Software

Spec 10 Attribute Value

EcoStruxure Operator Terminal Expert

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

32 To 122

Spec 2 Attribute

Communication Ports

Spec 2 Attribute Value

1 COM1 Serial Link - 1 SUB-D 9-Pin Female - RS232C 2400 to 115200 bps bottom, 1 COM2 Serial Link - Female RJ45 - RS485 2400 to 115200 bps Back, COM2 Serial Link 2400 to 187500 bps Back, 1 USB 2.0 Type A Bottom and 1 USB 2.0 Type Micro B and 2 Ethernet

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

8.19 in W x 1.77 in D x 6.02 in H

Spec 4 Attribute

Display Resolution

Spec 4 Attribute UOM

pixel

Spec 4 Attribute Value

800 x 480

Spec 5 Attribute

Display Size

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

7

Spec 6 Attribute

Display Type

Spec 6 Attribute Value

LCD/Color TFT

Spec 7 Attribute

Material

Spec 7 Attribute Value

Polycarbonate

Spec 8 Attribute

Memory

Spec 8 Attribute Value

1 GB Device Memory, 128 MB User Data Memory, 512 kB Backup Memory

Spec 9 Attribute

Power Source

Spec 9 Attribute UOM

W

Spec 9 Attribute Value

9
