Schneider Electric

HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide

Category Programmable Logic & Automation Interface Components

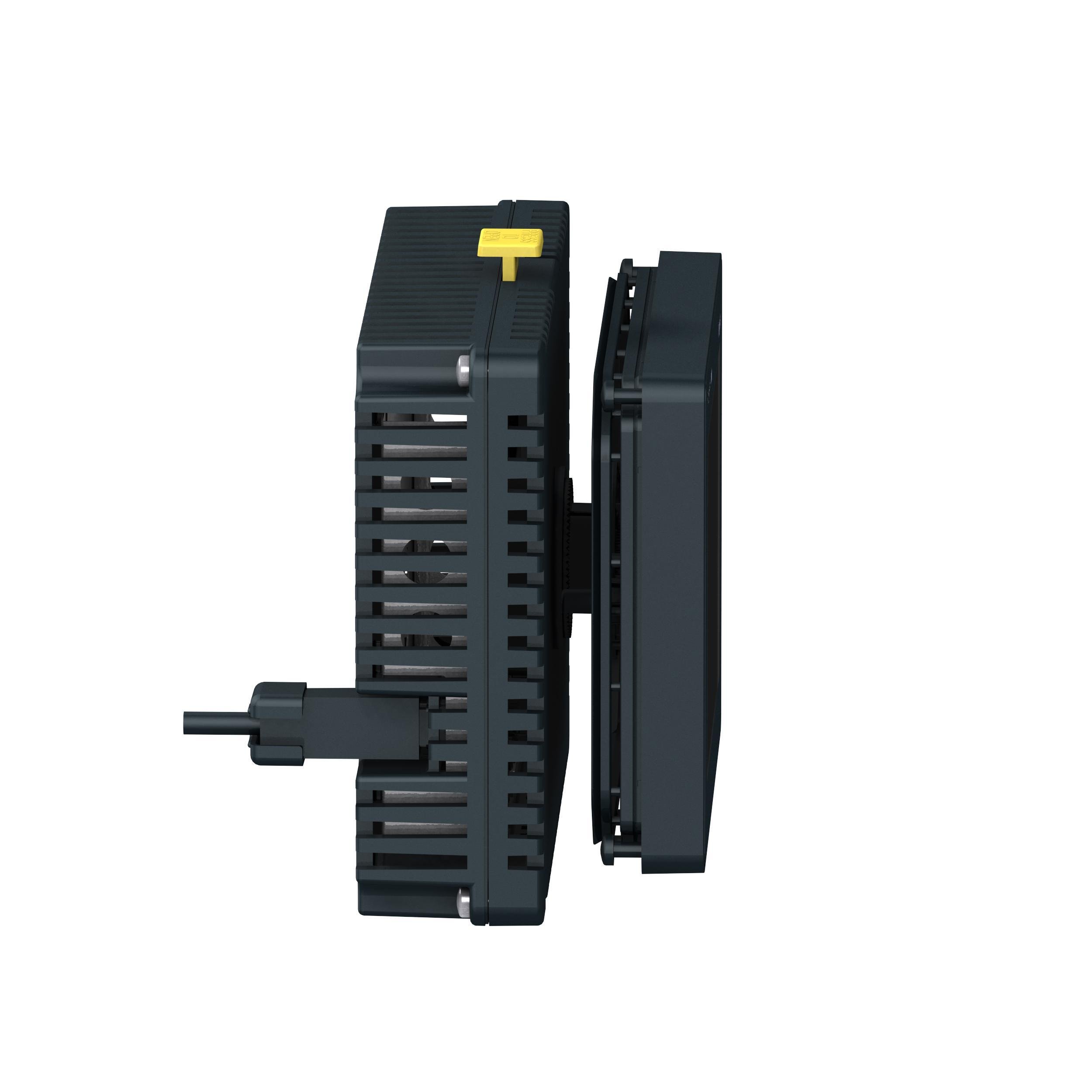

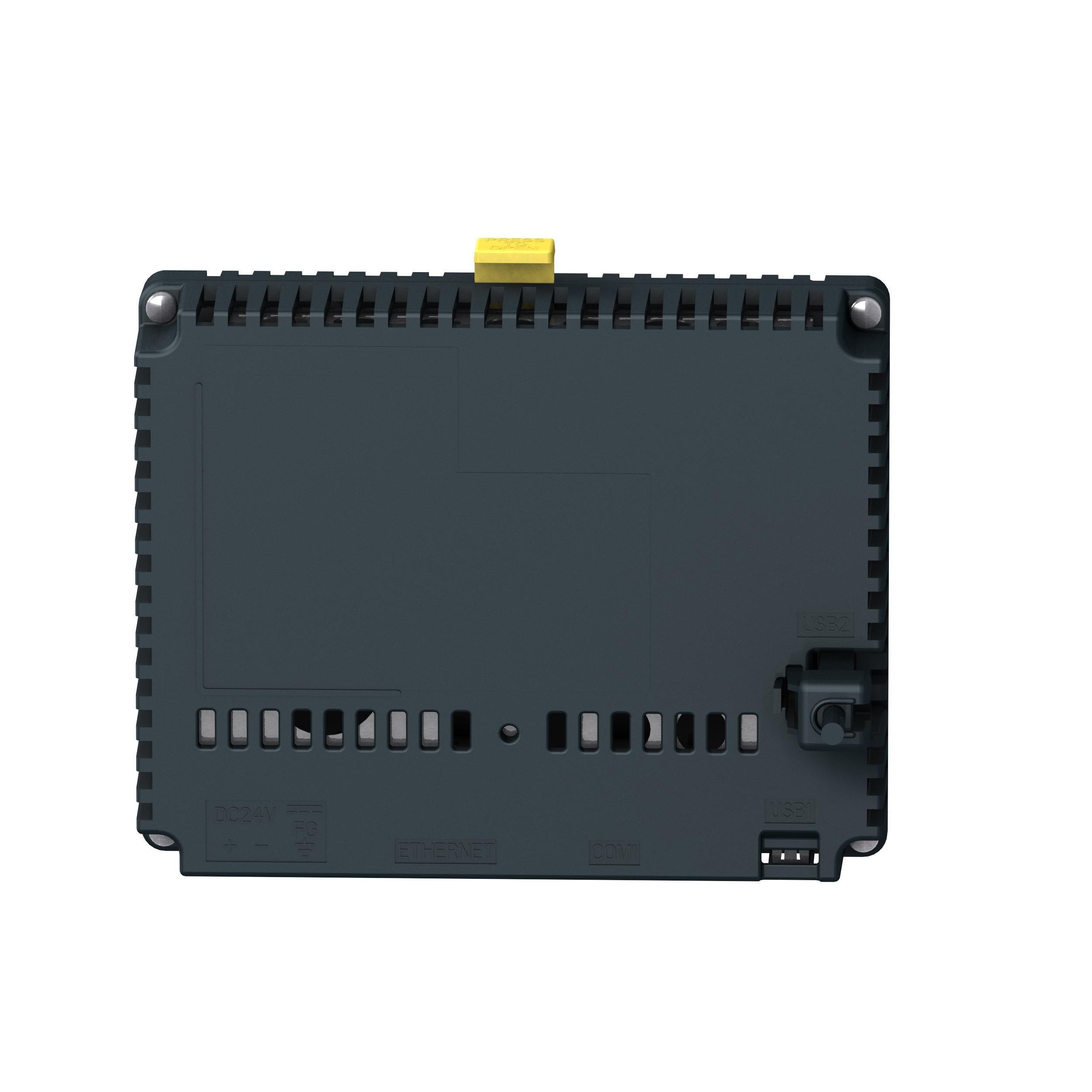

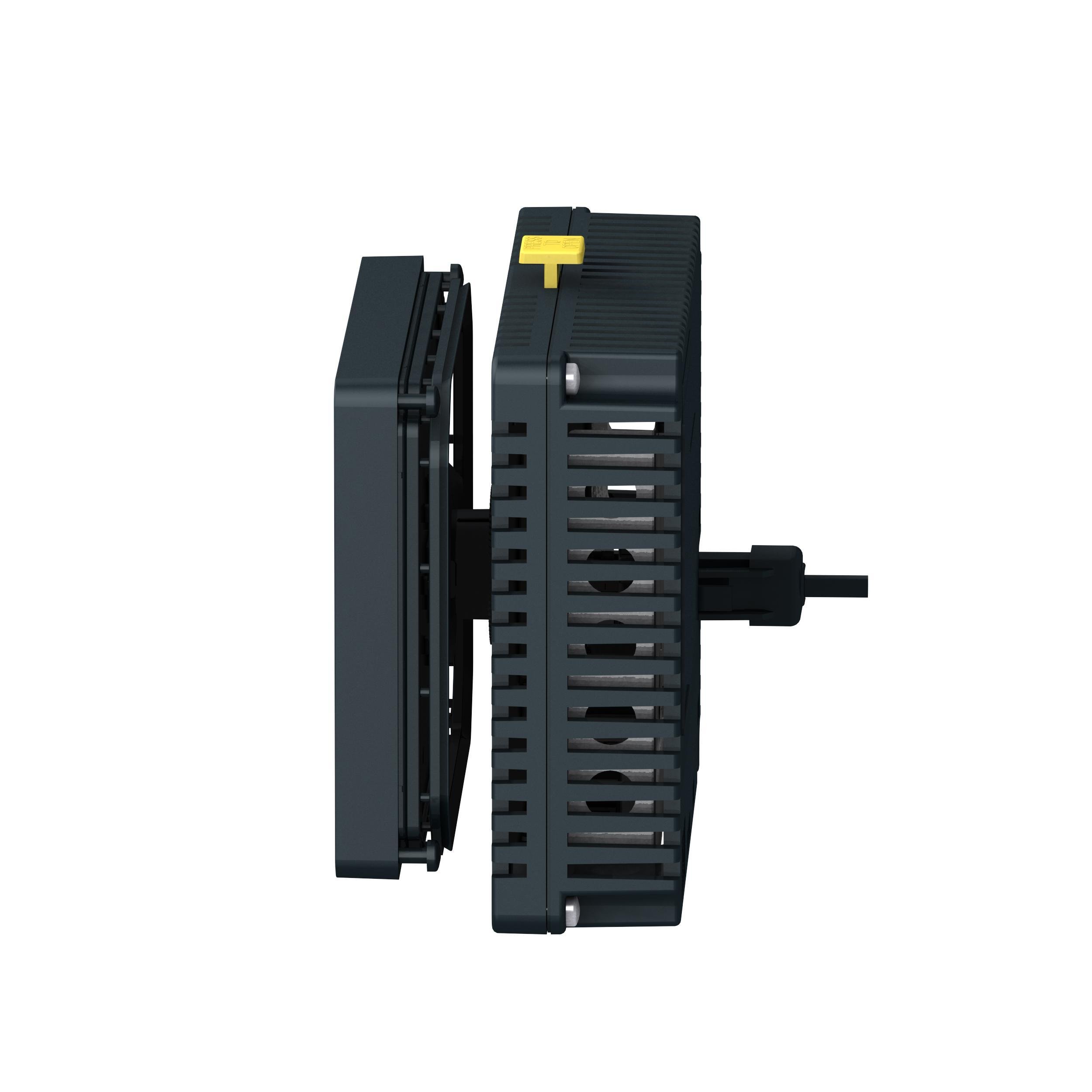

Picture of HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide Picture of HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide
Picture of HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide Picture of HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide
Picture of HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide Picture of HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide
Picture of HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide Picture of HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide
Schneider Electric

HMISTU655 - colour touch panel screen, Harmony STO & STU, 3.5inch wide

Item Code: 817312
Category Programmable Logic & Automation Interface Components
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HMISTU655

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Specifications

Weight

1.17lb

Height

2.7mm

Width

5.07mm

Length

7.21mm

Depth

55.3mm

AD All Features

Touchscreen for displaying synoptic views

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

PANEL TOUCHSCREEN 3-1/2IN 320 X 240PIXEL

AD Item Features 01

Touchscreen for displaying synoptic views

AD Item Features 02

High definition color TFT QVGA screen

AD Item Features 03

High performance communication

AD Item Features 04

Simplified installation

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.7000

AD Package Height UOM

IN

AD Package Length

7.2100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

102.4900

AD Package Volume UOM

cu-in

AD Package Weight

1.1700

AD Package Weight UOM

LB

AD Package Width

5.0700

AD Package Width UOM

IN

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION INTERFACE COMPONENTS

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

118 mm W x 2.18 in D x 98.15 mm H

Spec 2 Attribute

Environmental Conditions

Spec 2 Attribute Value

0 to 122 deg F Operating Temperature

Spec 3 Attribute

Image Brightness

Spec 3 Attribute Value

16 Levels

Spec 4 Attribute

Maximum Resolution

Spec 4 Attribute UOM

pixel

Spec 4 Attribute Value

320 x 240

Spec 5 Attribute

Power Consumption

Spec 5 Attribute UOM

W

Spec 5 Attribute Value

6.5

Spec 6 Attribute

Screen Size

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

3/1/2002

Spec 7 Attribute

Series

Spec 7 Attribute Value

STO/STU

Spec 8 Attribute

Type

Spec 8 Attribute Value

Small
