Square D

HOM115DF - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug in, UL

Category Plug-In Circuit Breakers

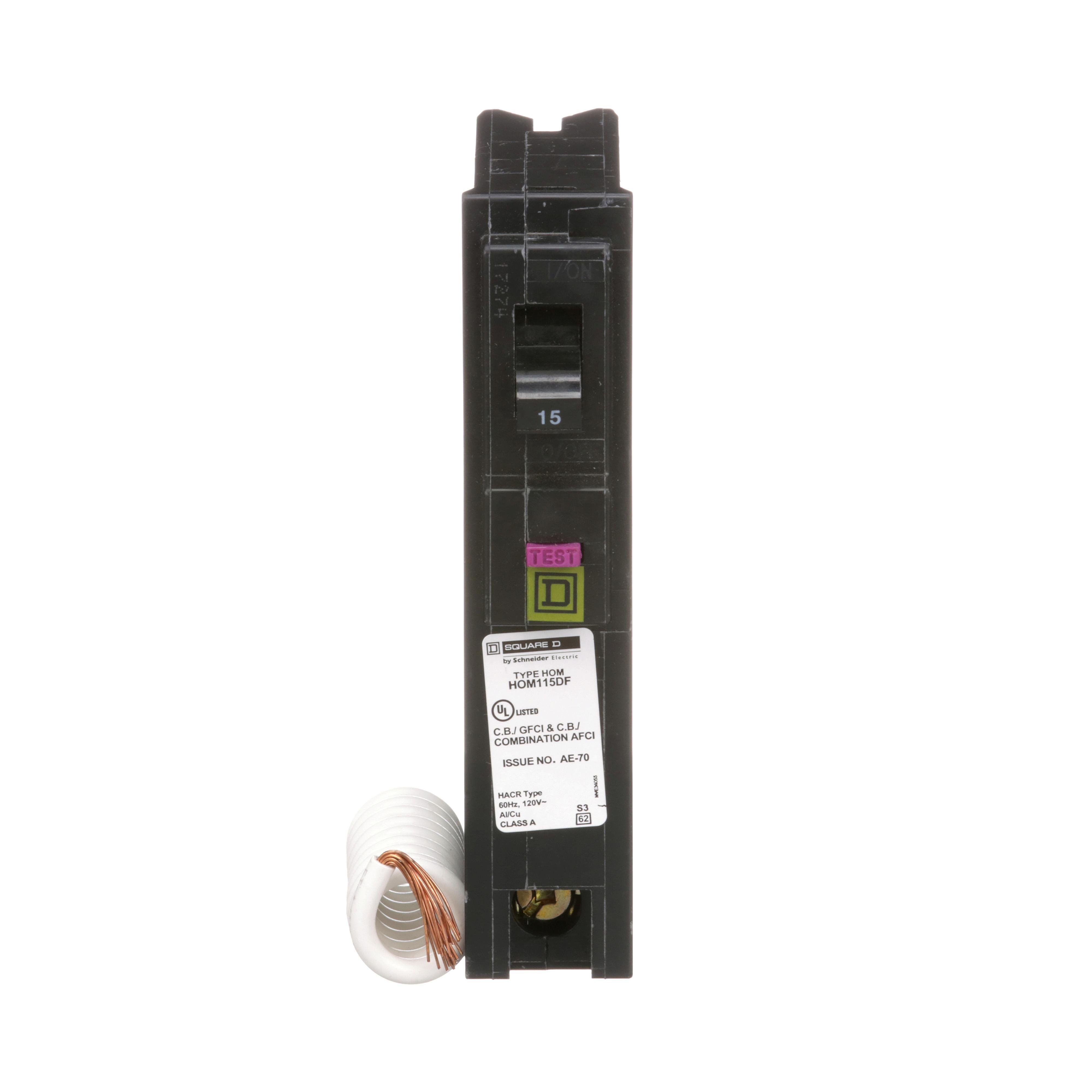

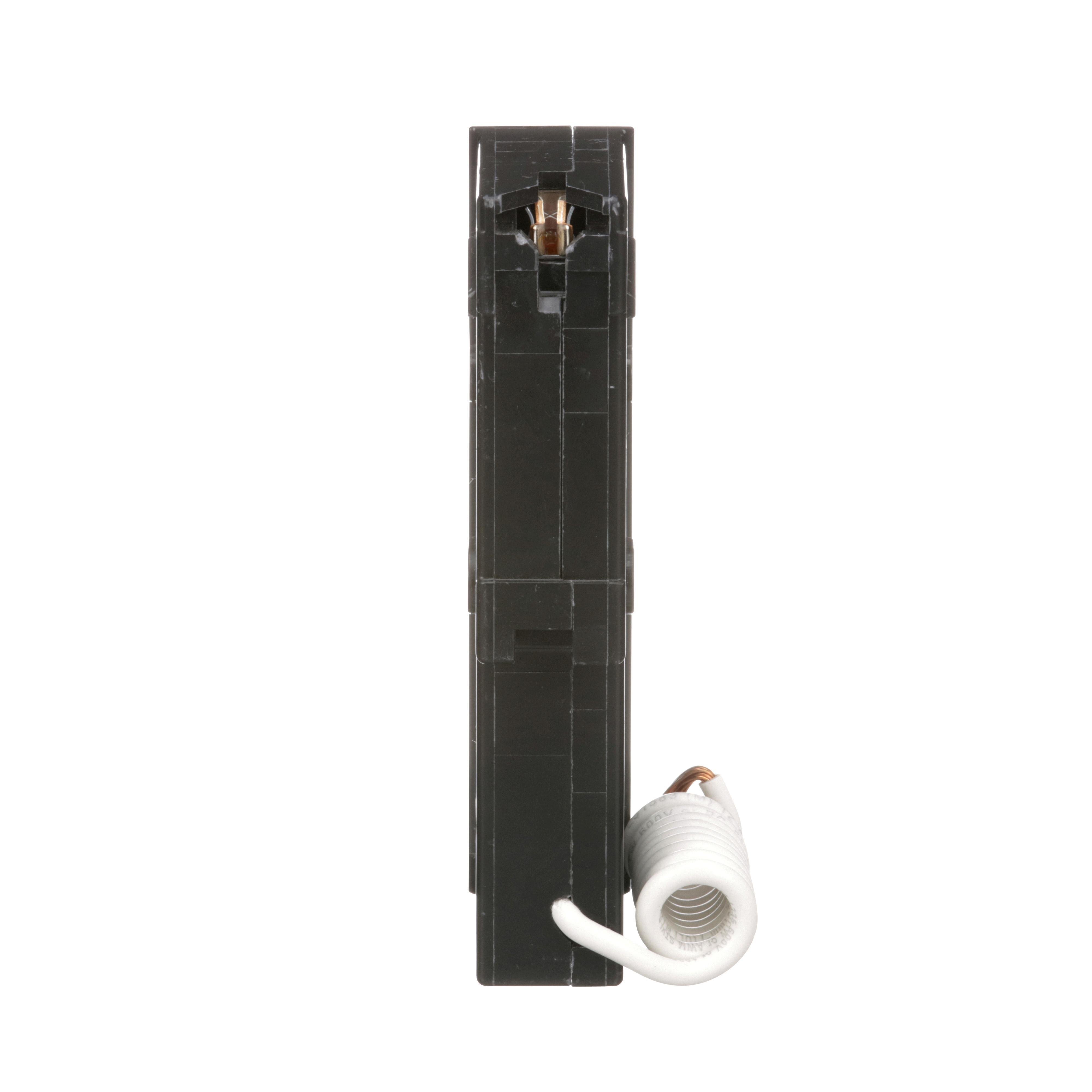

Picture of HOM115DF - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug in, UL
Square D

HOM115DF - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug in, UL

Item Code: 874274
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM115DF

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Warranty Information
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Weight

0.7lb

Height

3.13mm

Width

3.96mm

Length

5.45mm

Depth

2.98mm

Amperage Rating

15 A

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Connection Type

Clamp

Dimensions

2.98 in L x 1 in W x 3.13 in H

Enclosure Type

NEMA 1/2

Frequency Rating

50/60 Hz

Interrupt Rating

10 kA

Mounting Type

Plug-On

Number Of Poles

1

Temperature Rating

75 Deg C

Trip Type

Thermal Magnetic

Voltage Rating

120 V AC

Wire Size

14 to 8 AWG, 14 to 10 AWG
