Square D

HOM115GFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, ground fault class A, plug in, UL

Category Plug-In Circuit Breakers

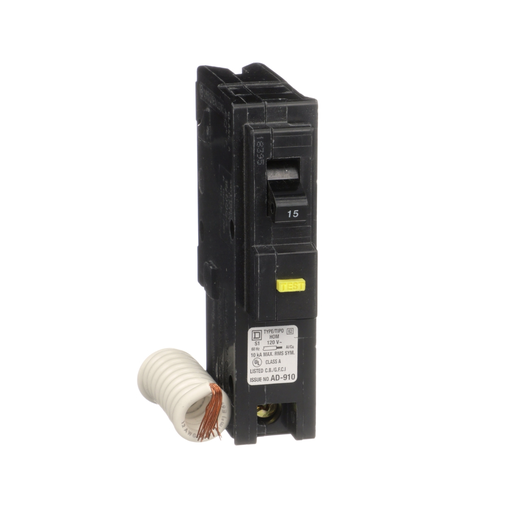

Picture of HOM115GFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, ground fault class A, plug in, UL
Square D

HOM115GFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, ground fault class A, plug in, UL

Item Code: 18145
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM115GFI

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Weight

0.6lb

Height

1.4mm

Width

5.35mm

Length

1.29mm

Depth

2.98mm

AD All Features

Homeline GFCI MCB are designed to protect against irregular electrical current

AD Application

For providing overload and short circuit protection and AC systems

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 15A 10KA 1

AD Item Features 01

Homeline GFCI MCB are designed to protect against irregular electrical current

AD Item Features 02

Compatible with Homeline electrical panel and CSEDs

AD Item Features 03

Protects against overload, short curcuits, and ground faults with a current greater than 6mA

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.4000

AD Package Height UOM

IN

AD Package Length

1.2900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

29.2600

AD Package Volume UOM

cu-in

AD Package Weight

0.6000

AD Package Weight UOM

LB

AD Package Width

5.3500

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

40

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Class A Ground Fault

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120/240

Spec 14 Attribute

Wire Size

Spec 14 Attribute UOM

AWG

Spec 14 Attribute Value

14 to 10

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw Terminal

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.98 in L x 1 in W x 3.13 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1/2

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Series

Spec 9 Attribute Value

HOM
