Square D

HOM115PCAFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL

Category Plug-In Circuit Breakers

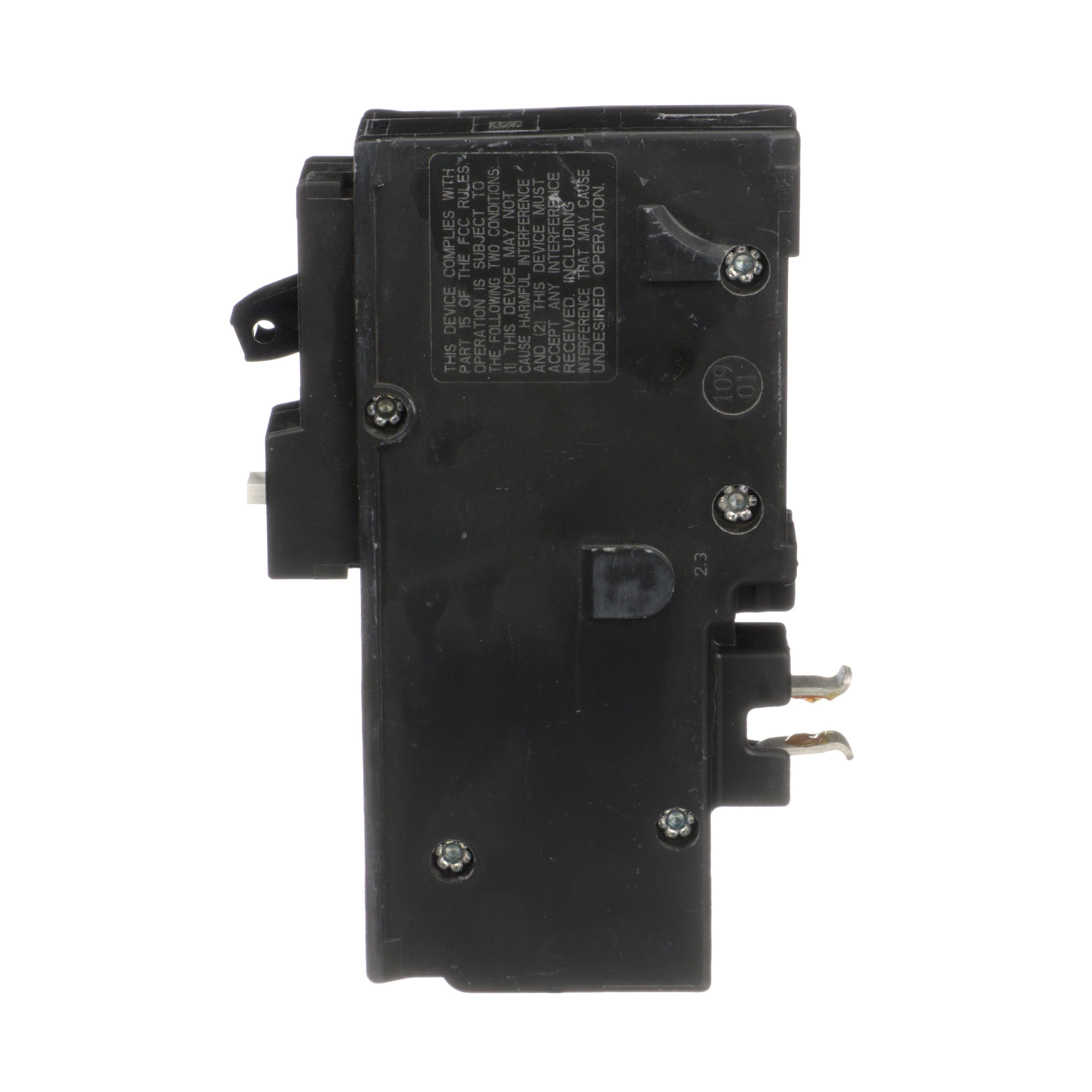

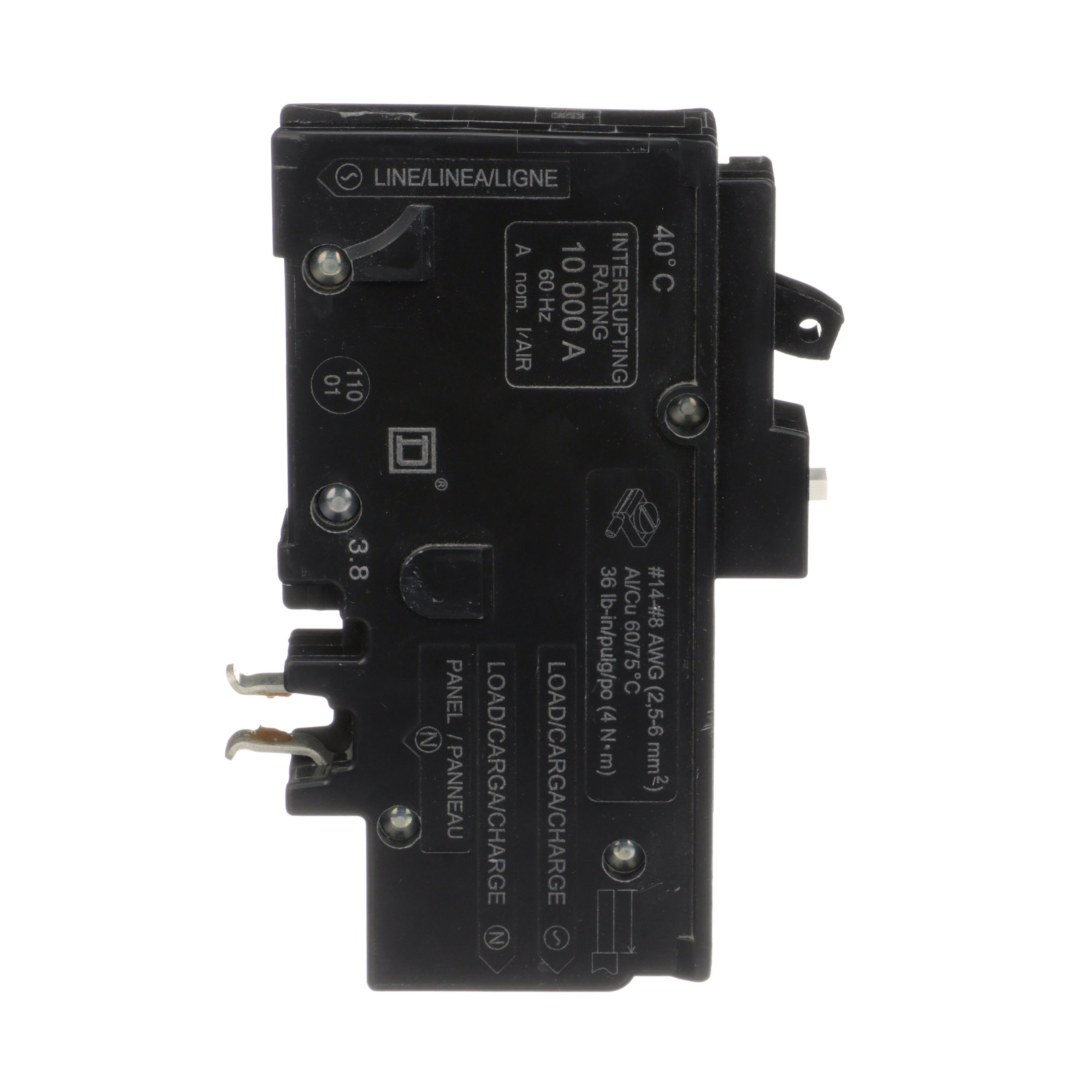

Picture of HOM115PCAFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL Picture of HOM115PCAFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL
Picture of HOM115PCAFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL Picture of HOM115PCAFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL
Picture of HOM115PCAFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL Picture of HOM115PCAFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL
Square D

HOM115PCAFI - [TAA] Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL

Item Code: 887121
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM115PCAFI

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a plug on neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Purchasing Quantities

EACH

1

BOX

40

Specifications

Weight

0.65lb

Height

4mm

Width

1.39mm

Length

5.05mm

Depth

2.98mm

AD All Features

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Application

For Homeline™ load centers, residential and light commercial circuit protection, 1-phase applications, ground fault protection, overload, short circuit protection and series and parallel arc fault protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT FLT ARC COMBINATION 15A 10KA

AD Item Features 01

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Item Features 02

Designed to protect against equipment overloads and short-circuits

AD Item Features 03

Easy plug on design with SE Homeline Loadcenters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.0000

AD Package Height UOM

IN

AD Package Length

5.0500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

28.5600

AD Package Volume UOM

cu-in

AD Package Weight

0.6500

AD Package Weight UOM

LB

AD Package Width

1.3900

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type HOM

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

14 to 8

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Terminal Screw

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.98 in L x 1 in W x 3.13 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

104
