Square D

HOM120GFI - [TAA] Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, ground fault class A, plug in, UL

Category Plug-In Circuit Breakers

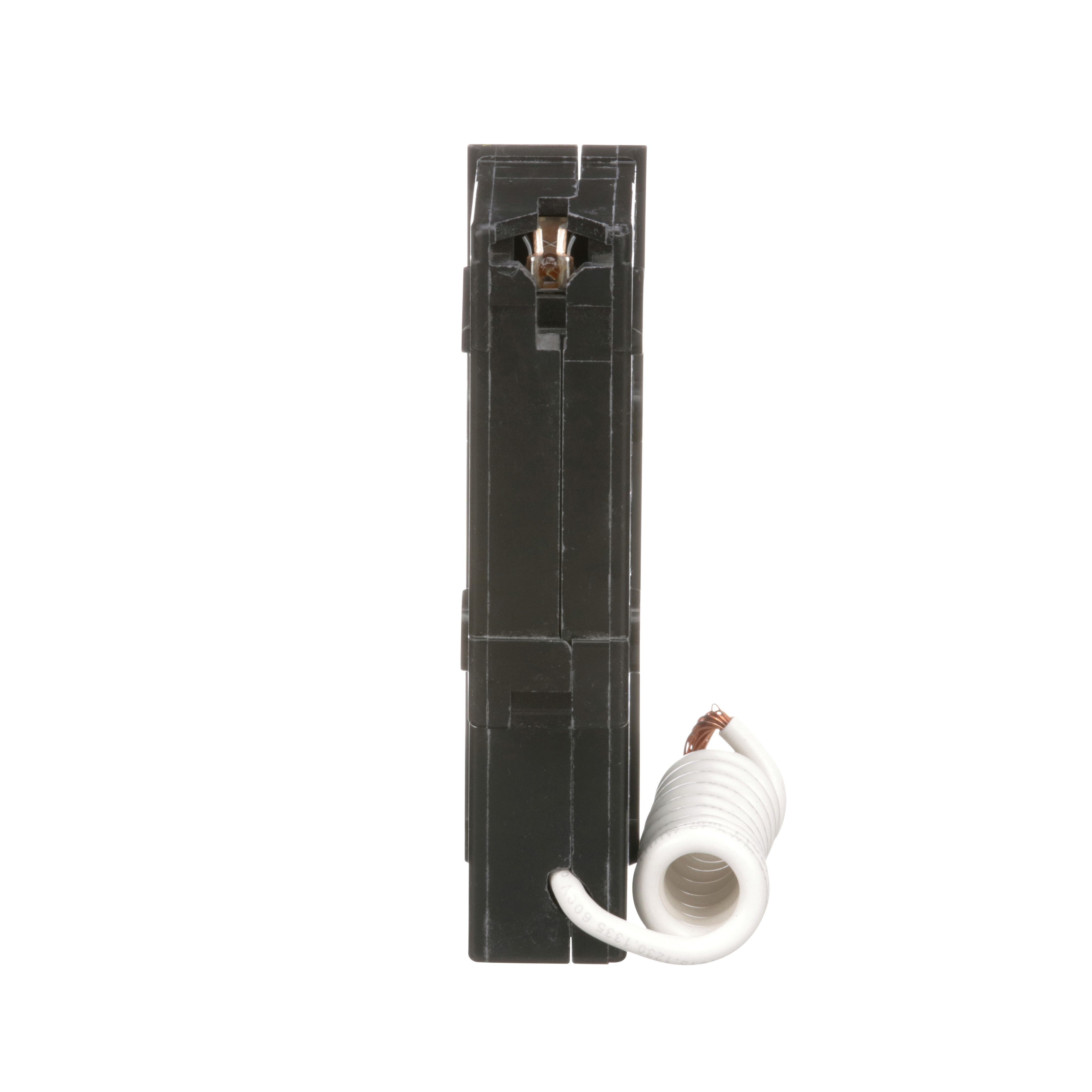

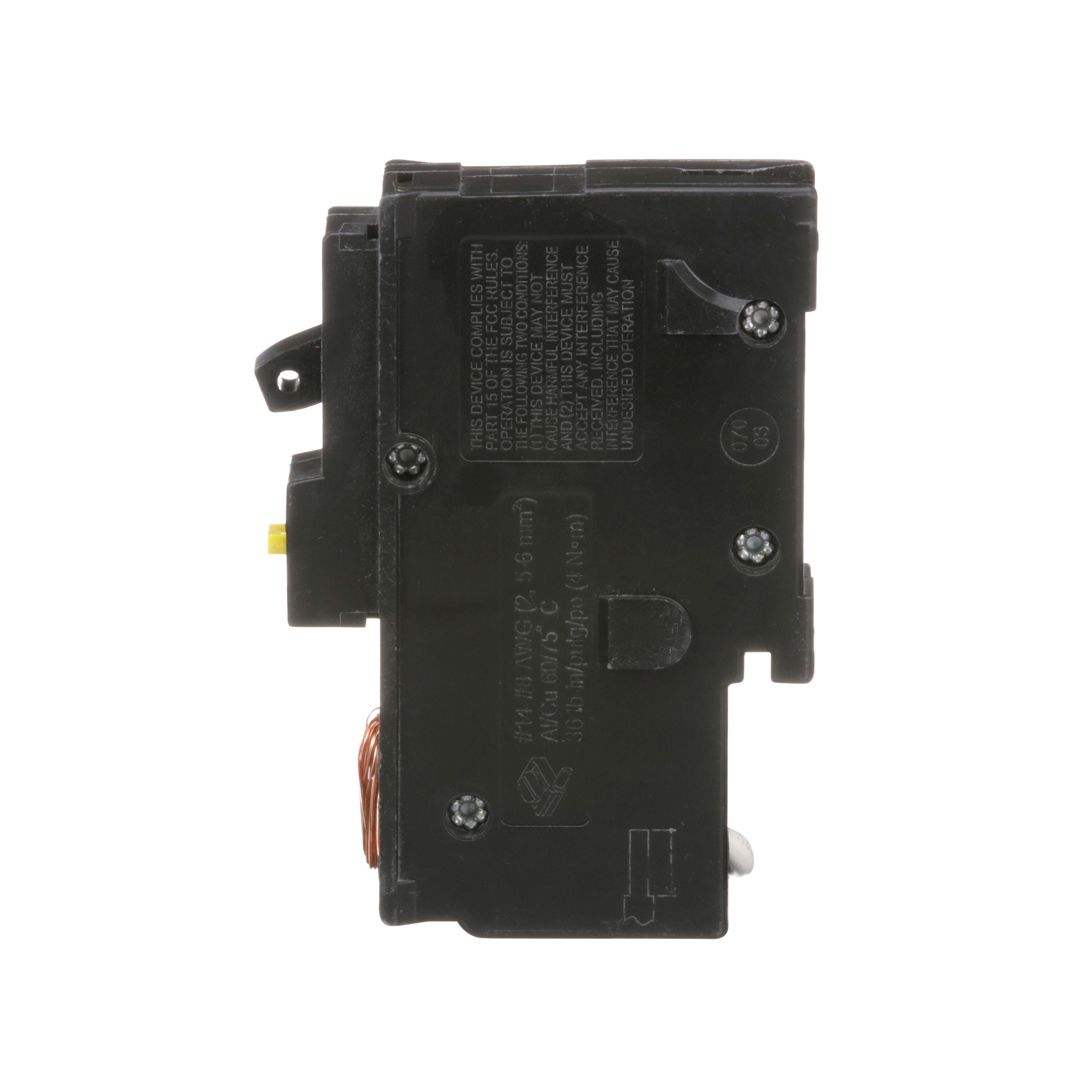

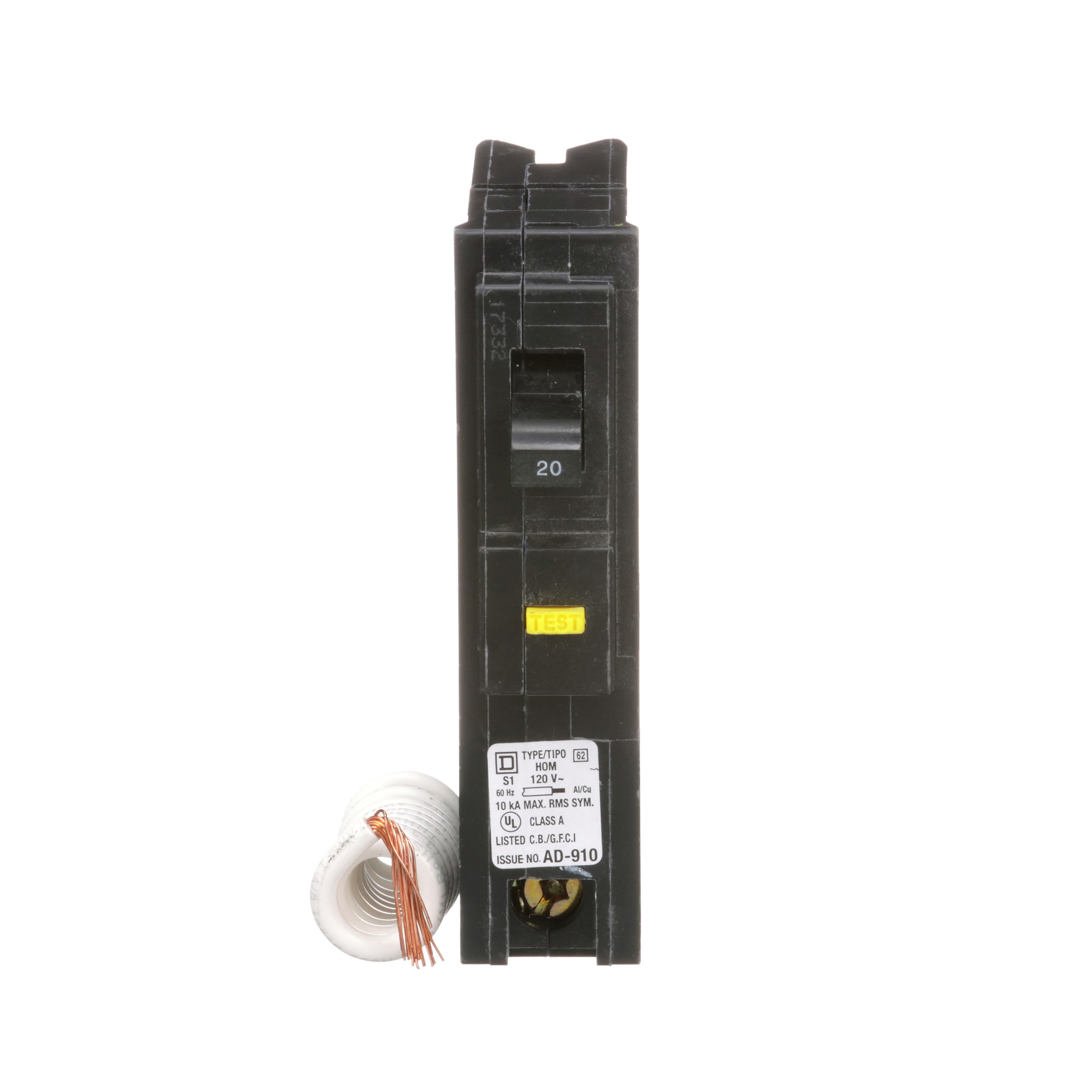

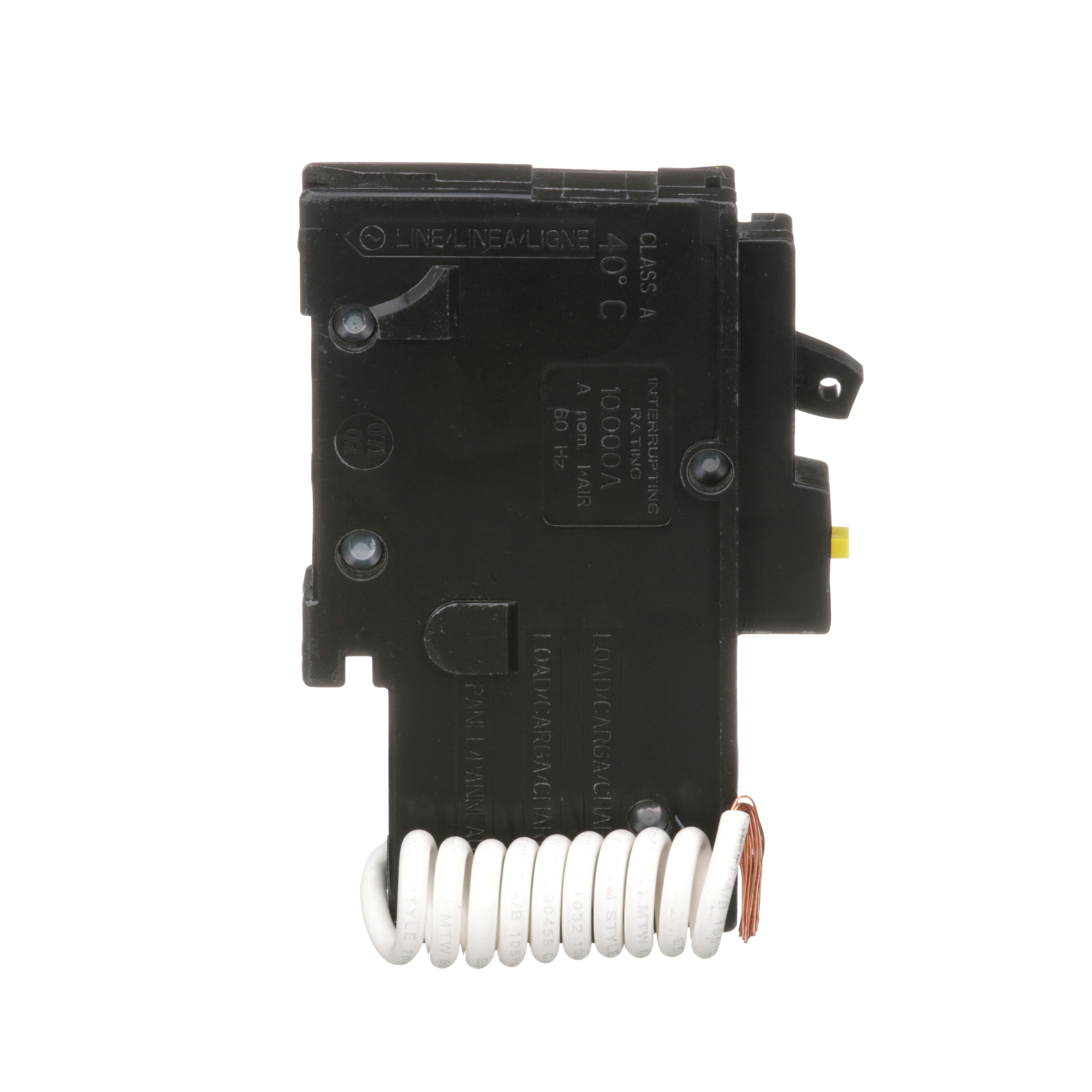

Picture of HOM120GFI - [TAA] Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, ground fault class A, plug in, UL
Square D

HOM120GFI - [TAA] Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, ground fault class A, plug in, UL

Item Code: 18148
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM120GFI

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Warranty Information
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Weight

0.65lb

Height

1.3mm

Width

0.4mm

Length

4.31mm

Depth

2.98mm

Amperage Rating

20 A

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Connection Type

Terminal Screw

Dimensions

2.98 in L x 1 in W x 3.13 in H

Frequency Rating

50/60 Hz

Interrupt Rating

10 kA

Mounting Type

Plug-In

Number Of Poles

1

Phase

1

Series

HOM

Temperature Rating

40 deg C

Trip Type

Thermal Magnetic

Type

Class A Ground Fault

Voltage Rating

120/240 V AC

Wire Size

14 To 10 AWG
