Square D

HOM2040M100PC1AVP - Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 100A convertible main breaker, PoN, NEMA1, value pack

Category Miscellaneous

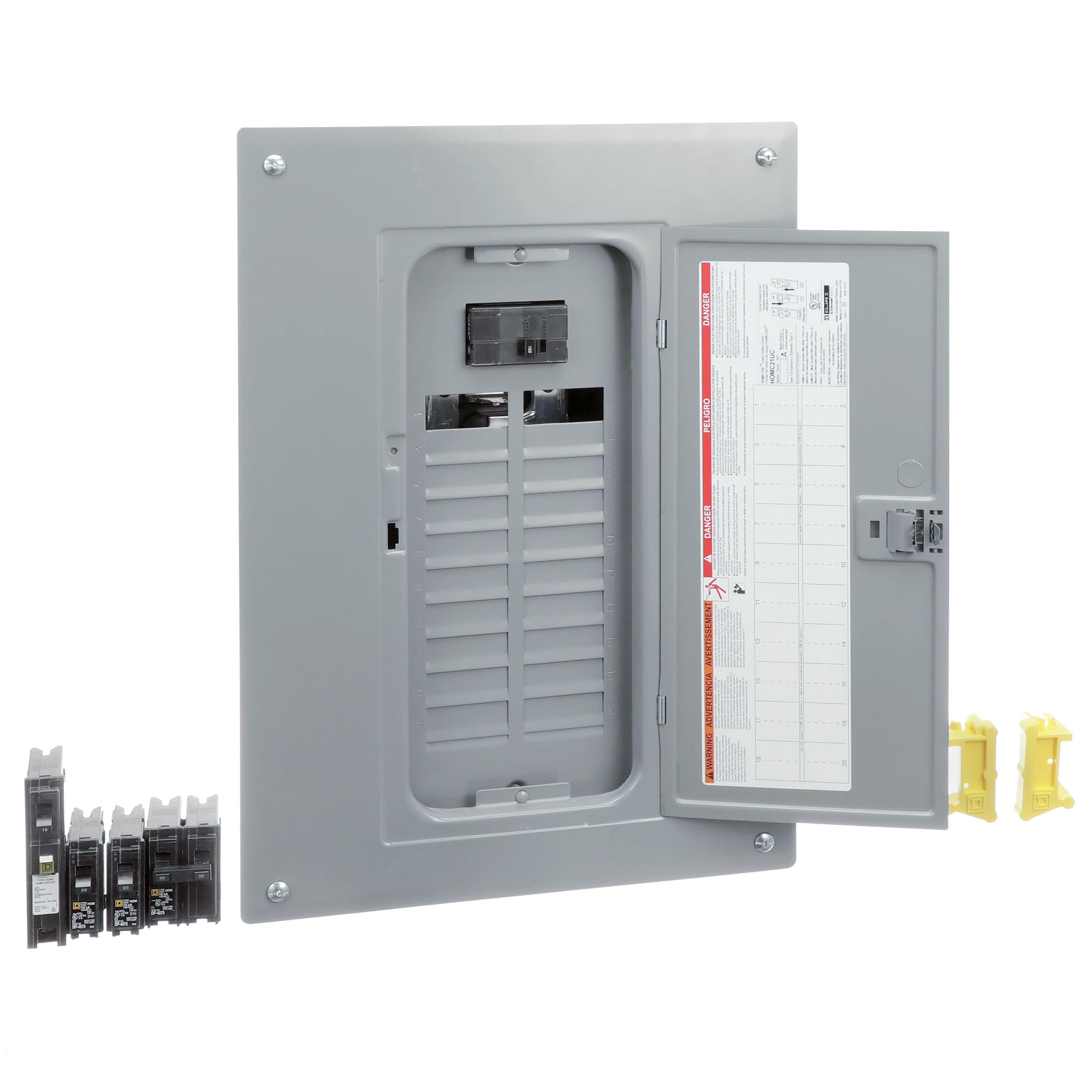

Picture of HOM2040M100PC1AVP - Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 100A convertible main breaker, PoN, NEMA1, value pack Picture of HOM2040M100PC1AVP - Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 100A convertible main breaker, PoN, NEMA1, value pack
Picture of HOM2040M100PC1AVP - Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 100A convertible main breaker, PoN, NEMA1, value pack Picture of HOM2040M100PC1AVP - Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 100A convertible main breaker, PoN, NEMA1, value pack
Square D

HOM2040M100PC1AVP - Load center, Homeline, 1 phase, 20 spaces, 40 circuits, 100A convertible main breaker, PoN, NEMA1, value pack

Item Code: 1115544
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM2040M100PC1AVP

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 100A 120/240 VAC single phase. Load center is also supplied with a two pole 30A 120/240 VAC circuit breaker, a one pole 20A 120/240 VAC circuit breaker and a 1 pole 15A 120/240 VAC arc fault circuit breaker. Homeline load center provides a 22 kA breaking capacity. This system provides 20 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 3 AWG copper or 6 AWG to 1 AWG aluminum wire. This Homeline load center has a height of 20.90 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. Load center is a value packed system.

Specifications

Weight

23.25

Height

5.6

Width

15.85

Length

23.38

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HOM2040M100PC1AVP/HOM2040M100PC1AVP.spin

AD All Features

Fast installation, reliability, and superior circuit protection

AD Alternative Part Number

12953329

AD Application

For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD EAN

0785901977353

AD Gtin

00785901977353

AD IDEA Index ID

12953329

AD Includes

(2) 20 A 120/240 VAC Circuit Breaker, (1) 100 A 120/240 VAC Main Supply Ready Assembled Circuit Breaker, (1) 30 A 120/240 VAC Circuit Breaker, (1) 15 A 120/240 VAC Arc Fault Circuit Breaker

AD Invoice Description

CENTER MAIN BRKR LOAD 120/240VAC 100A 40

AD Item Features 01

Fast installation, reliability, and superior circuit protection

AD Item Features 02

Protects against equipment overloads and short-circuits

AD Item Features 03

Tin and copper plated aluminum bus bars

AD Item Features 04

Replacement covers in gray and white

AD Item Features 05

Distributed neutral bars keeps wiring tidy

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.6000

AD Package Height UOM

IN

AD Package Length

23.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2127.7800

AD Package Volume UOM

cu-in

AD Package Weight

23.2500

AD Package Weight UOM

LB

AD Package Width

15.8500

AD Package Width UOM

IN

AD Part Number Keywords

HOM2040M100PC1AVP ; 12953329 ; 785901977353 ; 78590197735 ; 00785901977353 ; 0785901977353

AD Video Links

https://www.youtube.com/embed/B5LRuRQEvMI

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

40

Spec 11 Attribute

Number of Spaces

Spec 11 Attribute Value

20

Spec 12 Attribute

Type

Spec 12 Attribute Value

1-Phase Convertible Value Pack

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120/240

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

6 to 2/0 AWG Aluminum, 6 to 1/0 AWG Copper

Spec 15 Attribute

Wiring Configuration

Spec 15 Attribute Value

3-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

HOM

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

14.25 in W x 3.75 in D x 20.92 in H

Spec 4 Attribute

Enclosure Box Size

Spec 4 Attribute Value

7

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

22

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Flush
