Square D

HOM2110 - Mini circuit breaker, Homeline, 110A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

Category Miscellaneous

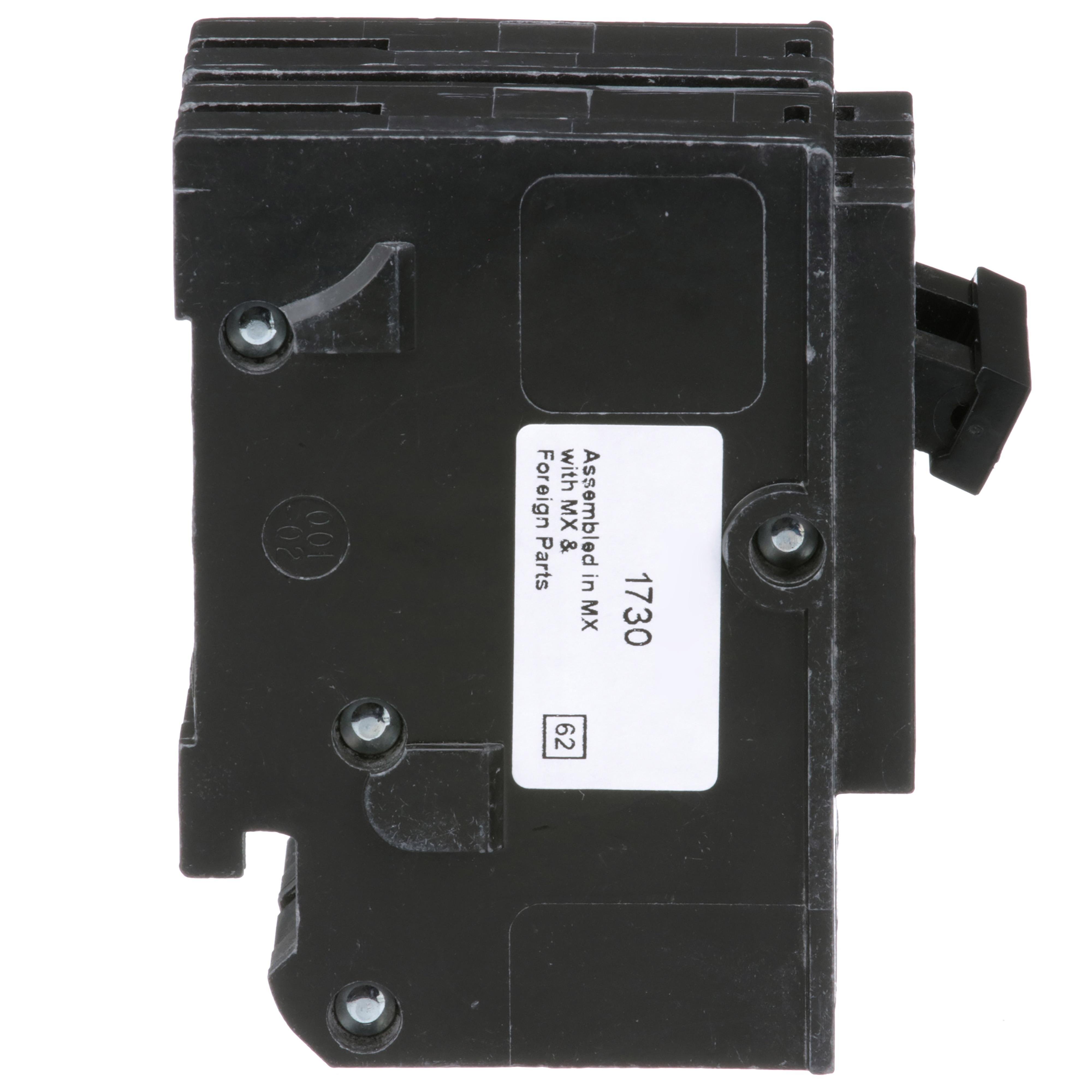

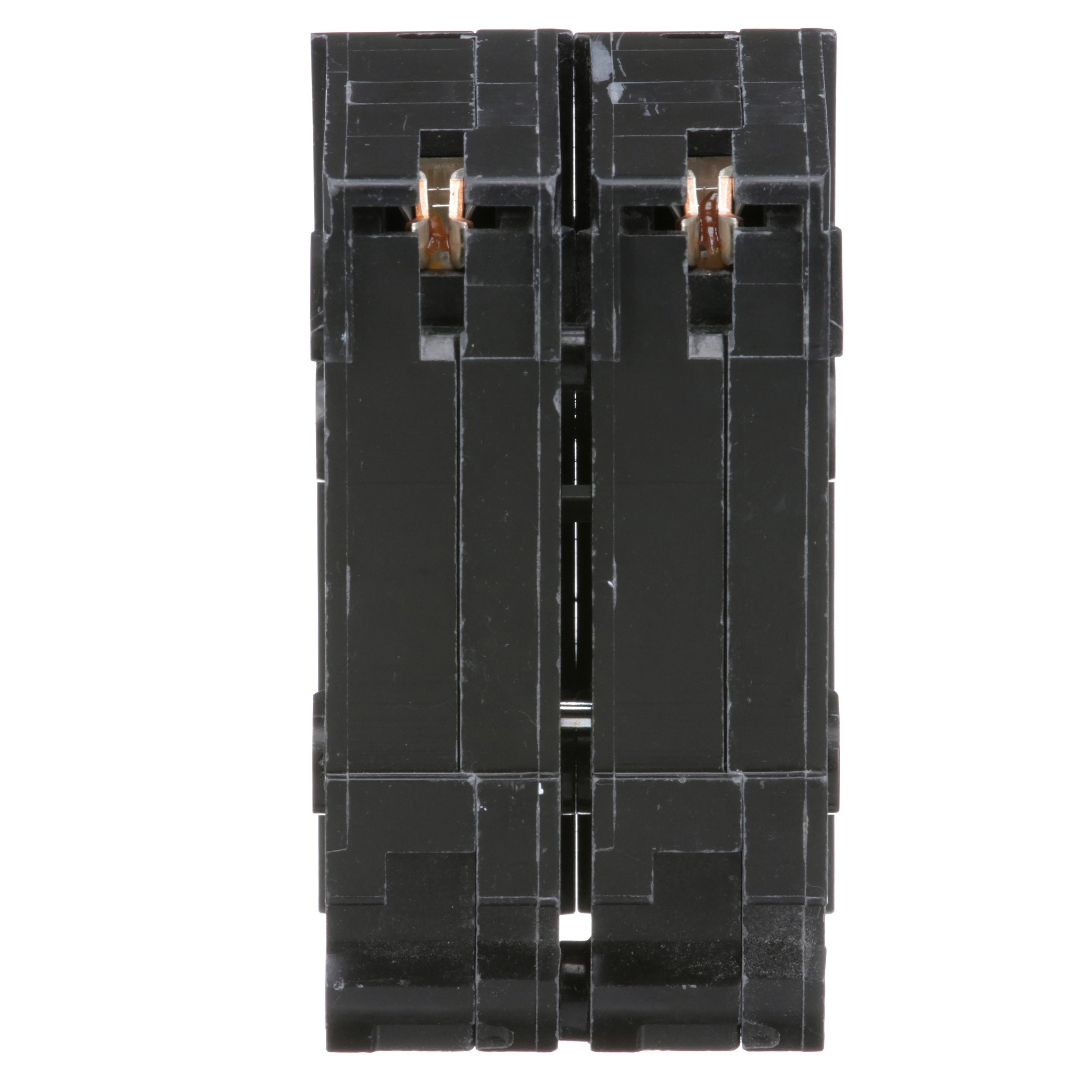

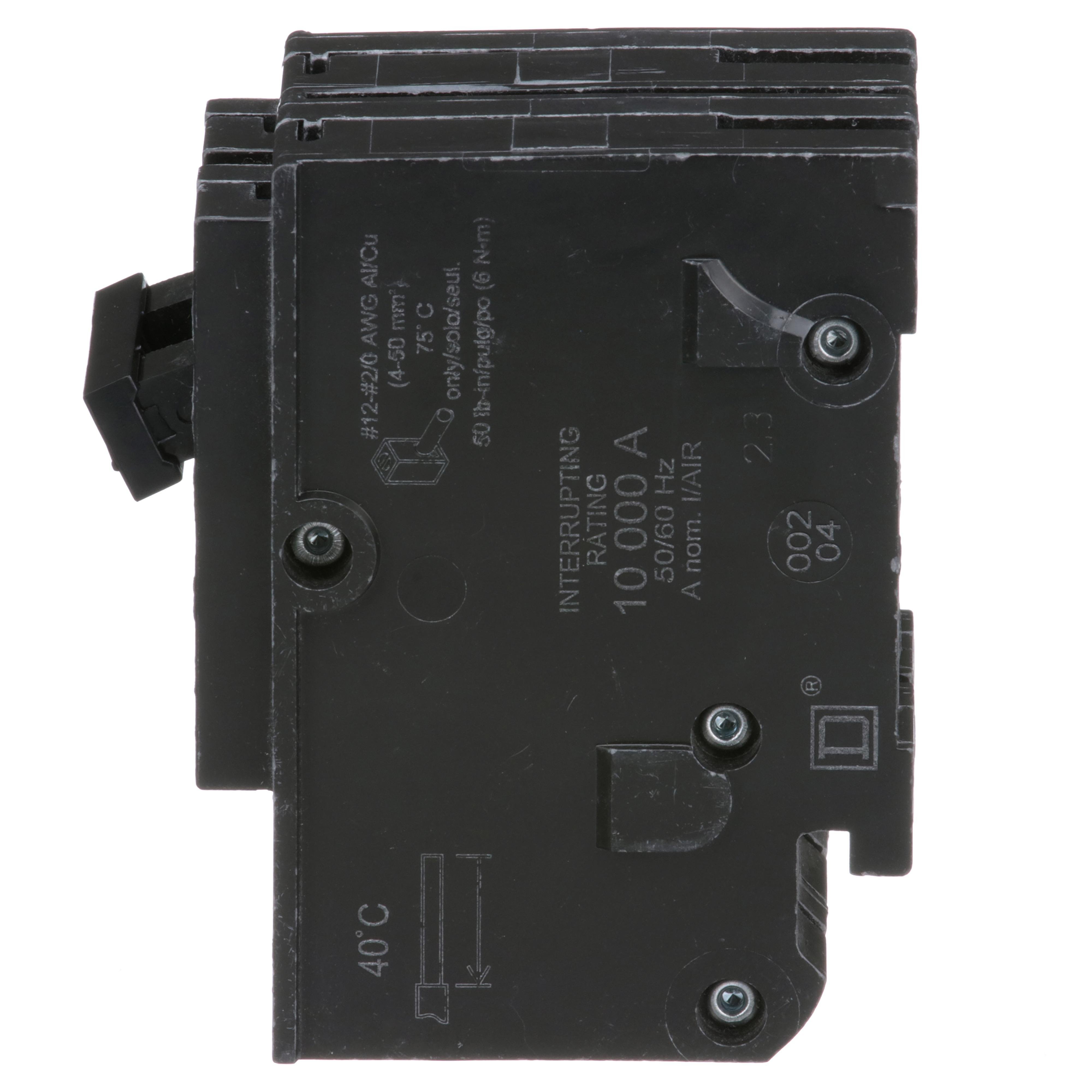

Picture of HOM2110 - Mini circuit breaker, Homeline, 110A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL Picture of HOM2110 - Mini circuit breaker, Homeline, 110A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Picture of HOM2110 - Mini circuit breaker, Homeline, 110A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL Picture of HOM2110 - Mini circuit breaker, Homeline, 110A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Picture of HOM2110 - Mini circuit breaker, Homeline, 110A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL Picture of HOM2110 - Mini circuit breaker, Homeline, 110A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Picture of HOM2110 - Mini circuit breaker, Homeline, 110A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL Picture of HOM2110 - Mini circuit breaker, Homeline, 110A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Square D

HOM2110 - Mini circuit breaker, Homeline, 110A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

Item Code: 571903
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM2110

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 110A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Weight

0.86

Height

3.8

Width

3.47

Length

2.28

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/hom2110/hom2110.spin

AD All Features

Easy plug on design with SE Homeline Loadcenters

AD Alternative Part Number

8032258

AD Application

For overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901114826

AD Gtin

00785901114826

AD IDEA Index ID

8032258

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 110A 10KA

AD Item Features 01

Easy plug on design with SE Homeline Loadcenters

AD Keywords

HomeLine HOM2110 Standard Miniature Circuit Breaker, 120/240 V AC, 110 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; HOM2110 ; HOM2110 ; 785901114826 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.8000

AD Package Height UOM

IN

AD Package Length

2.2800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

30.5900

AD Package Volume UOM

cu-in

AD Package Weight

0.8600

AD Package Weight UOM

LB

AD Package Width

3.4700

AD Package Width UOM

IN

AD Part Number Keywords

HOM2110 ; 8032258 ; 785901114826 ; 78590111482 ; 00785901114826 ; 0785901114826

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

110

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Standard

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

4 to 2/0

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.98 in L x 2 in W x 3.13 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1/2

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

10

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-In

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

40
