Square D™

HOM2175BB - Mini branch circuit breaker, Homeline, 175A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

Category Miscellaneous

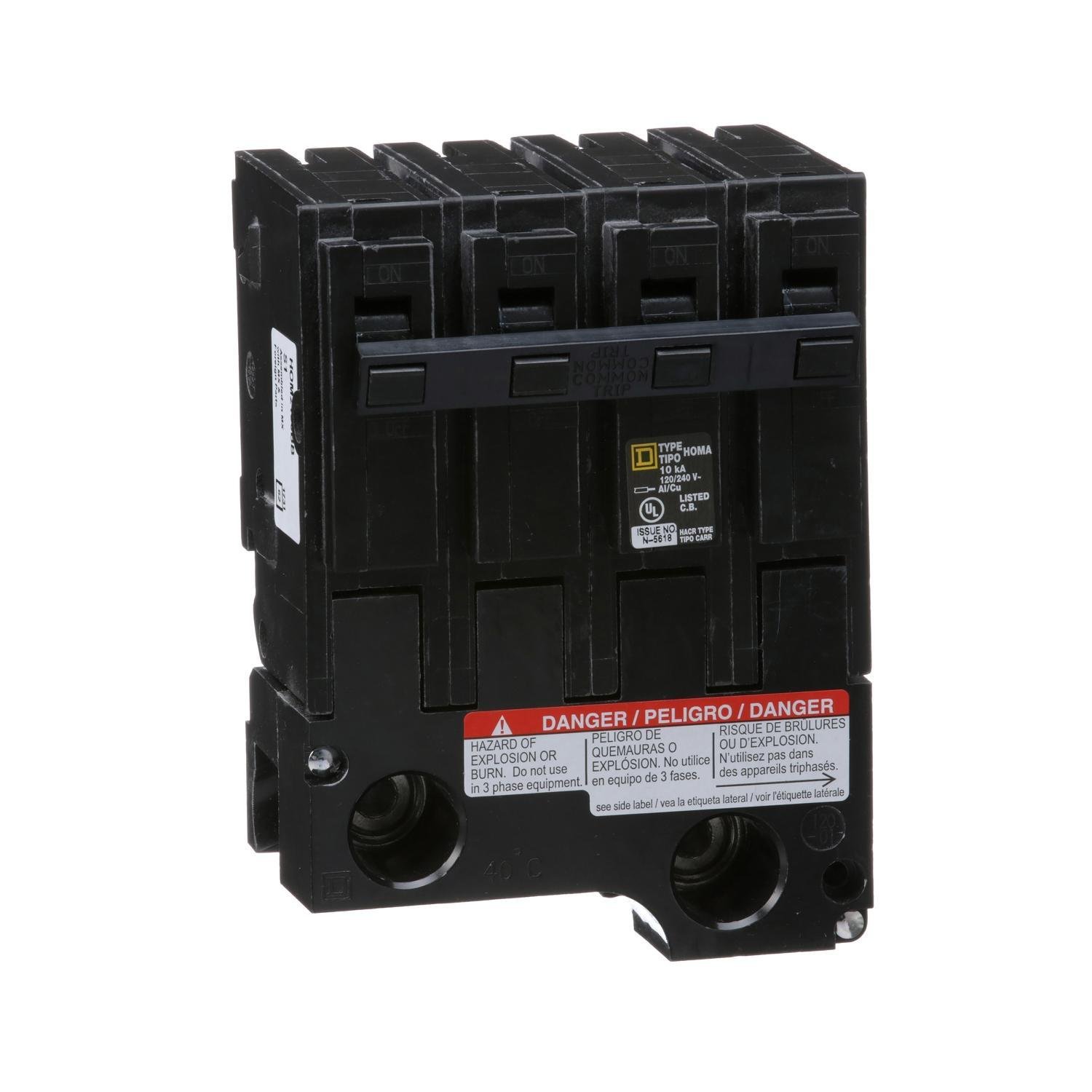

Picture of HOM2175BB - Mini branch circuit breaker, Homeline, 175A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Square D™

HOM2175BB - Mini branch circuit breaker, Homeline, 175A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

Item Code: 1714170
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM2175BB

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 175 A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.39 inches, a width of 3.98 inch and depth of 3.13 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Weight

2.99

Height

0.39

Width

6.74

Length

7.63

AD All Features

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Alternative Part Number

8111189

AD Application

Residential and Light Commercial, Commercial and Industrial Circuit Protection, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault Protection Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901264477

AD Gtin

00785901264477

AD IDEA Index ID

8111189

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 175A 10KA

AD Item Features 01

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Item Features 02

Designed to protect against equipment overloads and short-circuits

AD Item Features 03

Easy plug on design with SE Homeline Loadcenters

AD Keywords

Homeline HOM2175BB Type HOM Miniature Circuit Breaker, 120/240 V AC, 175 A, 10 kA Interrupt, 2 Poles ; Schneider Electric ; Square D ; HOM2175BB ; HOM2175BB ; 785901264477 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

0.3900

AD Package Height UOM

IN

AD Package Length

7.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

0.0600

AD Package Volume UOM

cu-in

AD Package Weight

2.9900

AD Package Weight UOM

LB

AD Package Width

6.7400

AD Package Width UOM

IN

AD Part Number Keywords

HOM2175BB ; 8111189 ; 785901264477 ; 78590126447 ; 00785901264477 ; 0785901264477

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

175

Spec 10 Attribute

Type

Spec 10 Attribute Value

Type HOM

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

120/240

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

4 AWG to 300 kcmil Al/Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3.13 in L x 3.98 in W x 5.39 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

40
