Square D

HOM2175SB - Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1

Category Receptacles & Surge Protectors

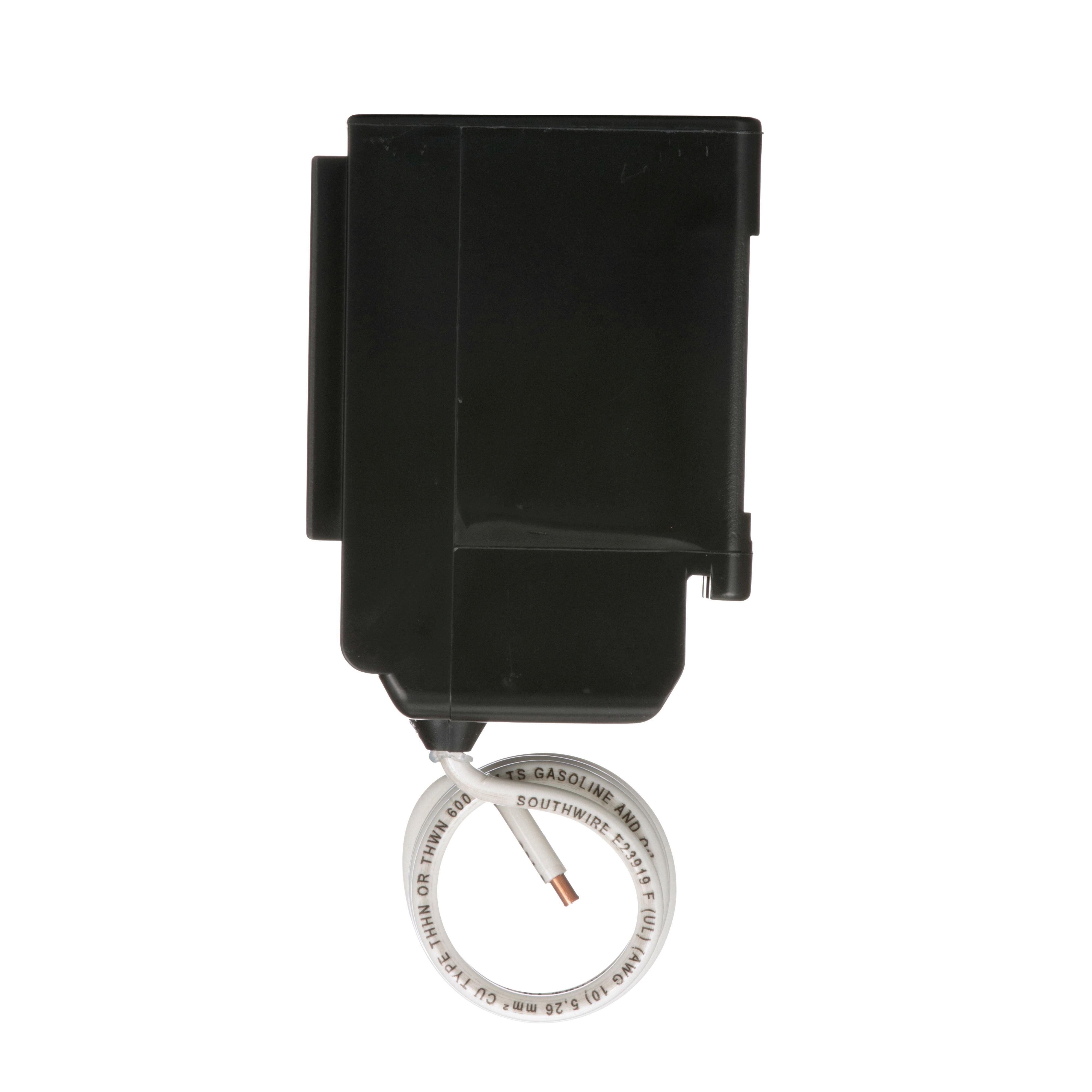

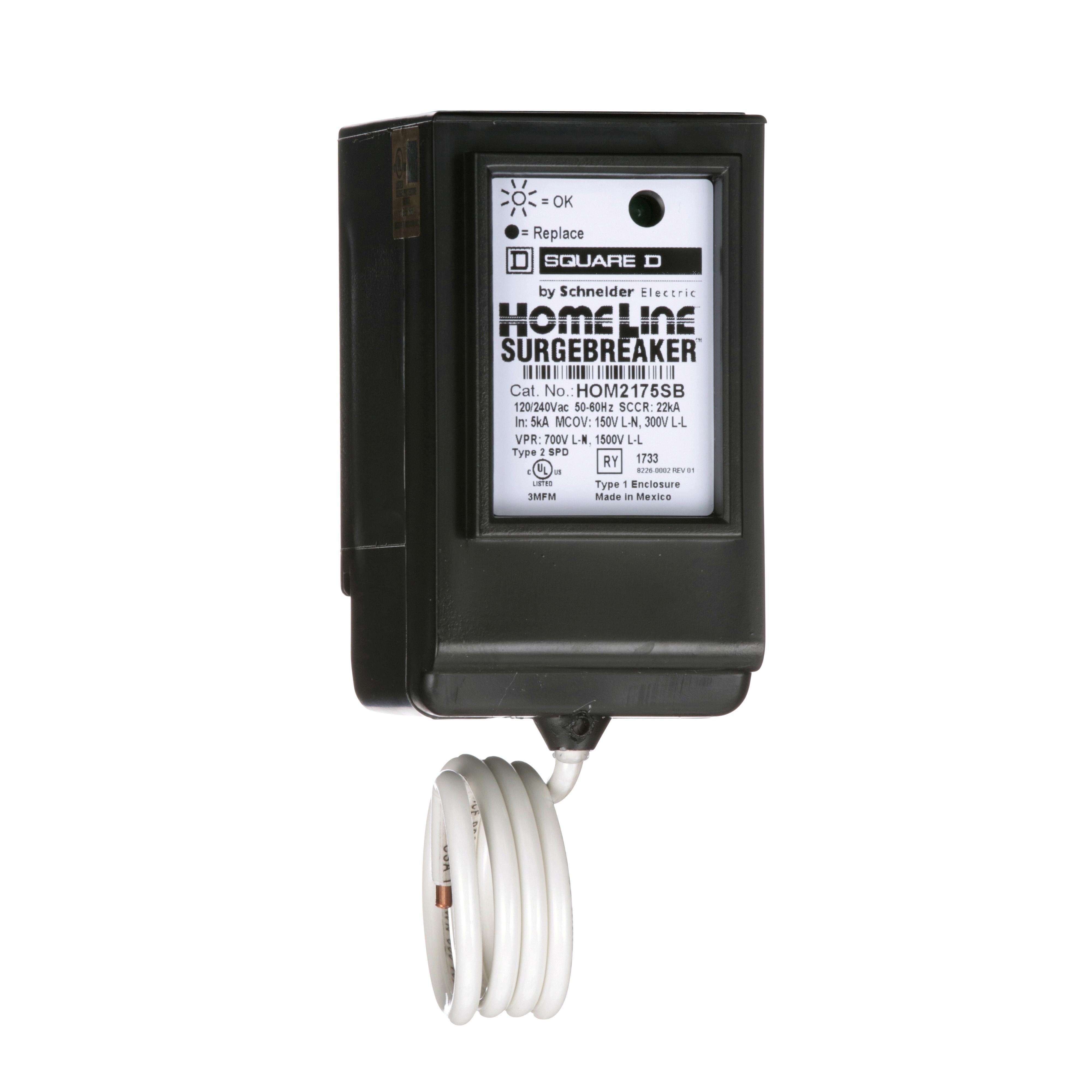

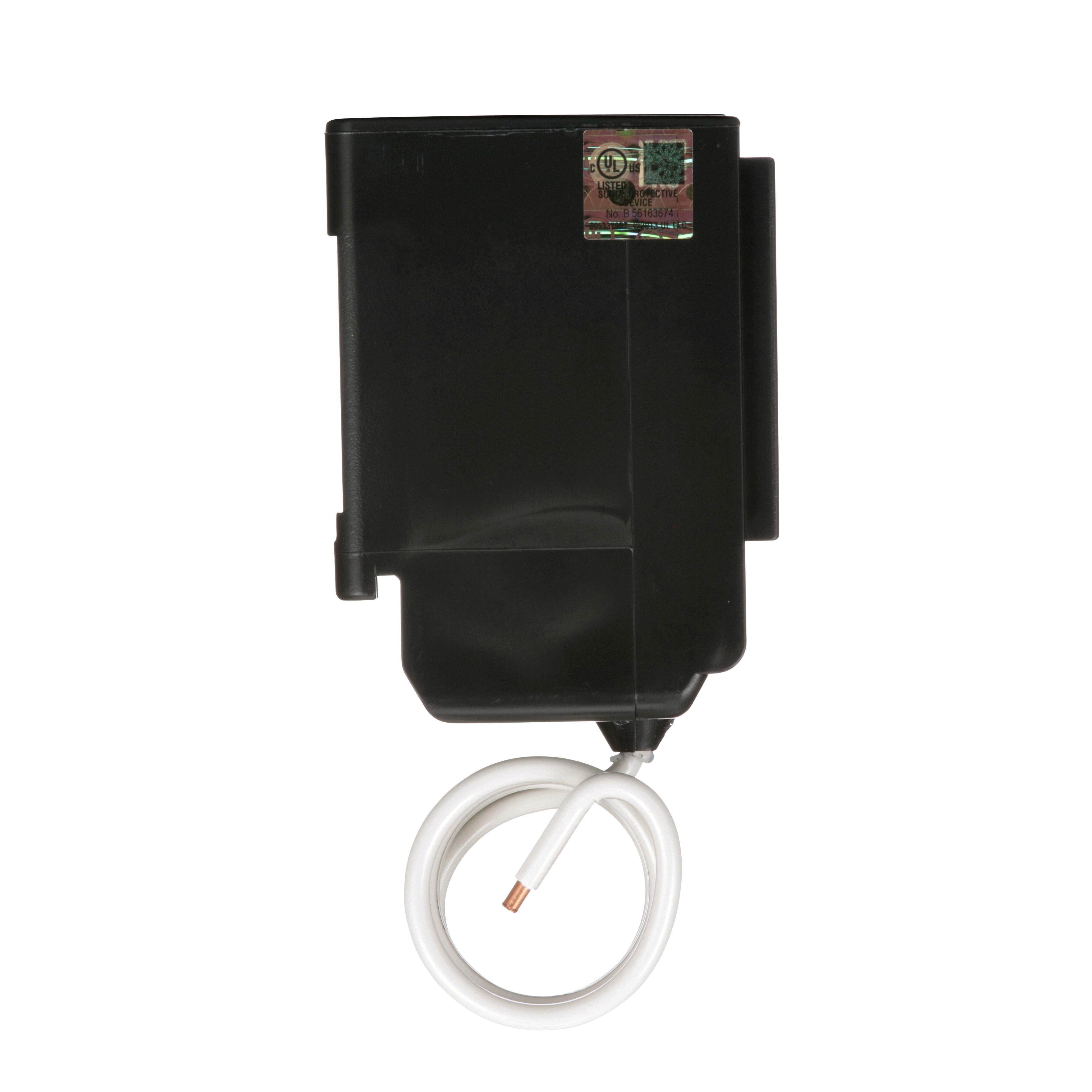

Picture of HOM2175SB - Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1 Picture of HOM2175SB - Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1
Picture of HOM2175SB - Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1 Picture of HOM2175SB - Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1
Picture of HOM2175SB - Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1 Picture of HOM2175SB - Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1
Picture of HOM2175SB - Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1 Picture of HOM2175SB - Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1
Square D

HOM2175SB - Surge protection device, Surgebreaker, 25kA, 120/240VAC, 1 phase, 3 wire, SPD type 1

Item Code: 18164
Category Receptacles & Surge Protectors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM2175SB

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Surgebreaker is a secondary surge arrestor for Homeline load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 1 indoor rating. This secondary surge protector is rated at 5 kA and has a SCCR of 25 kA. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The HOM Surgebreaker is UL Listed.

Specifications

Weight

0.81lb

Height

2.2mm

Width

2.67mm

Length

5.25mm

Depth

2.6mm

AD All Features

Quick plug on for easy installation

AD Application

For surge suppression of 1-phase, 3-wire, 120/240 VAC, 50/60 Hz electrical services and appliances and load centers and CSEDS

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

MODULE SRG PROTECTION 175VAC 50/60HZ 1 3

AD Item Features 01

Quick plug on for easy installation

AD Item Features 02

Directly connected to the equipment bus for short lead lengths

AD Item Features 03

Single phase rated for 25 kA surge current

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.2000

AD Package Height UOM

IN

AD Package Length

5.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8100

AD Package Weight UOM

LB

AD Package Width

2.6700

AD Package Width UOM

IN

Brand

Square D

Category

RECEPTACLES & SURGE PROTECTORS

Spec 1 Attribute

Clamping Voltage

Spec 1 Attribute UOM

V AC

Spec 1 Attribute Value

150/300

Spec 10 Attribute

Peak Surge Current

Spec 10 Attribute UOM

KA

Spec 10 Attribute Value

22.5

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

1

Spec 12 Attribute

Short Circuit Current Rating

Spec 12 Attribute UOM

KA

Spec 12 Attribute Value

22

Spec 13 Attribute

Type

Spec 13 Attribute Value

2-Space Secondary SPD Type 2

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

2 in W x 2.6 in D x 3.7 in H

Spec 3 Attribute

Electrical Ratings

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

175

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Environmental Conditions

Spec 5 Attribute Value

149 deg F Operating Temperature

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Indicator Type

Spec 7 Attribute Value

Led

Spec 8 Attribute

Material

Spec 8 Attribute Value

Plastic

Spec 9 Attribute

Number Of Wires

Spec 9 Attribute Value

3
