Square D™

HOM220EPD - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class B, plug in, UL [TAA]

Category Miscellaneous

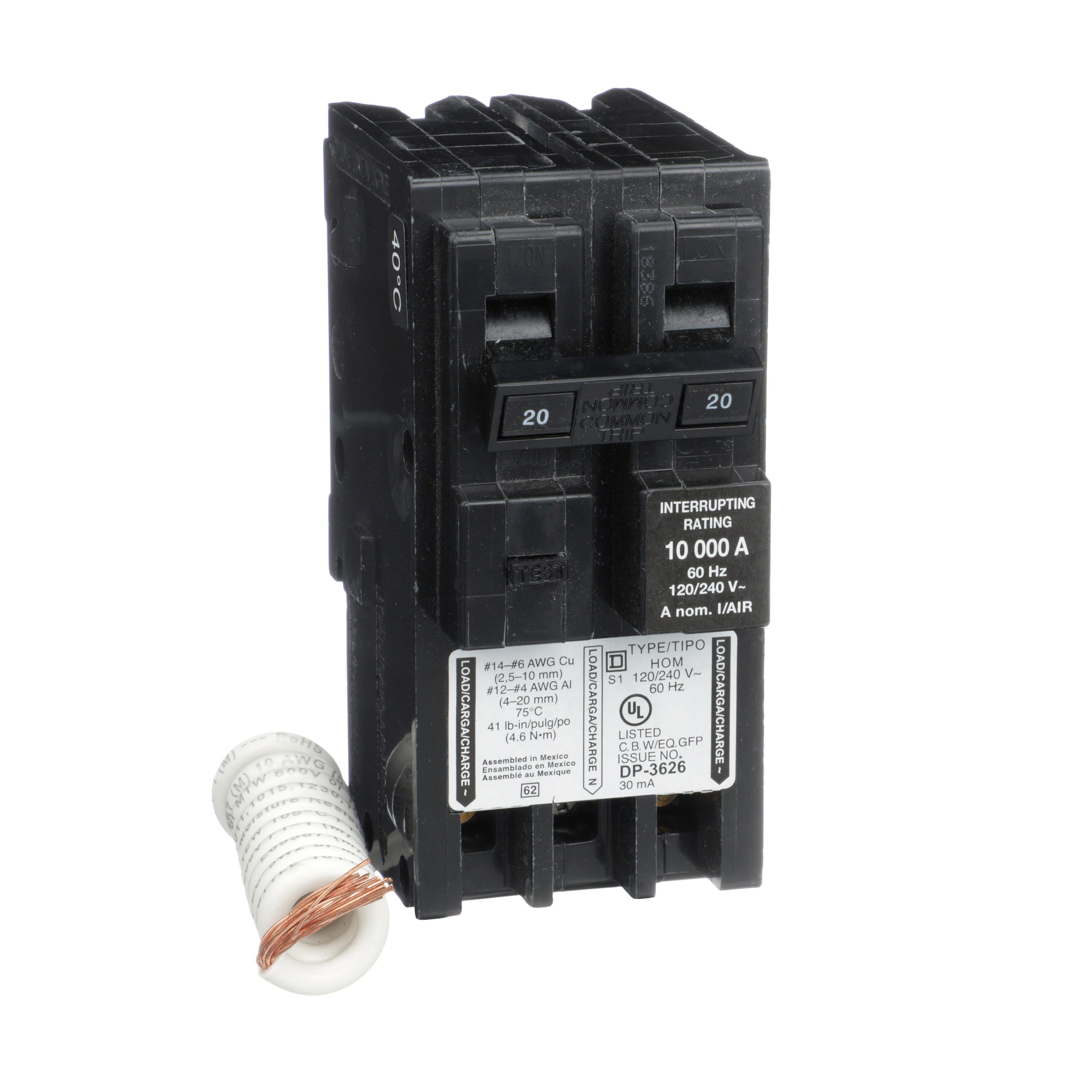

Picture of HOM220EPD - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class B, plug in, UL [TAA]
Square D™

HOM220EPD - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class B, plug in, UL [TAA]

Item Code: 127866
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM220EPD

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline circuit breaker has Class B equipment protection ground fault protection. This Homeline circuit breakers has 30mA equipment ground fault protection. The electrical connection is a clamp terminal that will accept 1 wire. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Weight

1.14

Height

2.2

Width

3.37

Length

5.25

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HOM220EPD/HOM220EPD.spin

AD All Features

Homeline GFCI MCB are designed to protect against irregular electrical current

AD Alternative Part Number

8093401

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Owners/User Manual

AD Document Caption 5

Full Engineering Drawing

AD EAN

0785901564300

AD Gtin

00785901564300

AD IDEA Index ID

8093401

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 20A 10KA 2

AD Item Features 01

Homeline GFCI MCB are designed to protect against irregular electrical current

AD Item Features 02

Compatible with Homeline electrical panel and CSEDs

AD Item Features 03

Protects against overload, short curcuits, and ground faults with a current greater than 6mA

AD Keywords

Homeline HOM220EPD Class B Ground Fault Standard Miniature Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; HOM220EPD ; HOM220EPD ; 785901564300 ; Ground-Fault Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.2000

AD Package Height UOM

IN

AD Package Length

5.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

39.6400

AD Package Volume UOM

cu-in

AD Package Weight

1.1400

AD Package Weight UOM

LB

AD Package Width

3.3700

AD Package Width UOM

IN

AD Part Number Keywords

HOM220EPD ; 8093401 ; 785901564300 ; 78590156430 ; 00785901564300 ; 0785901564300

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Class B Ground Fault Standard

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

14 to 8

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw Terminal

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 1/2

Spec 4 Attribute

Interrupt Rating

Spec 4 Attribute UOM

KA

Spec 4 Attribute Value

10

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Plug-In

Spec 6 Attribute

Number Of Poles

Spec 6 Attribute Value

2

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Series

Spec 8 Attribute Value

HOM

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

75
