Square D

HOM220GFIC - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA]

Category Miscellaneous

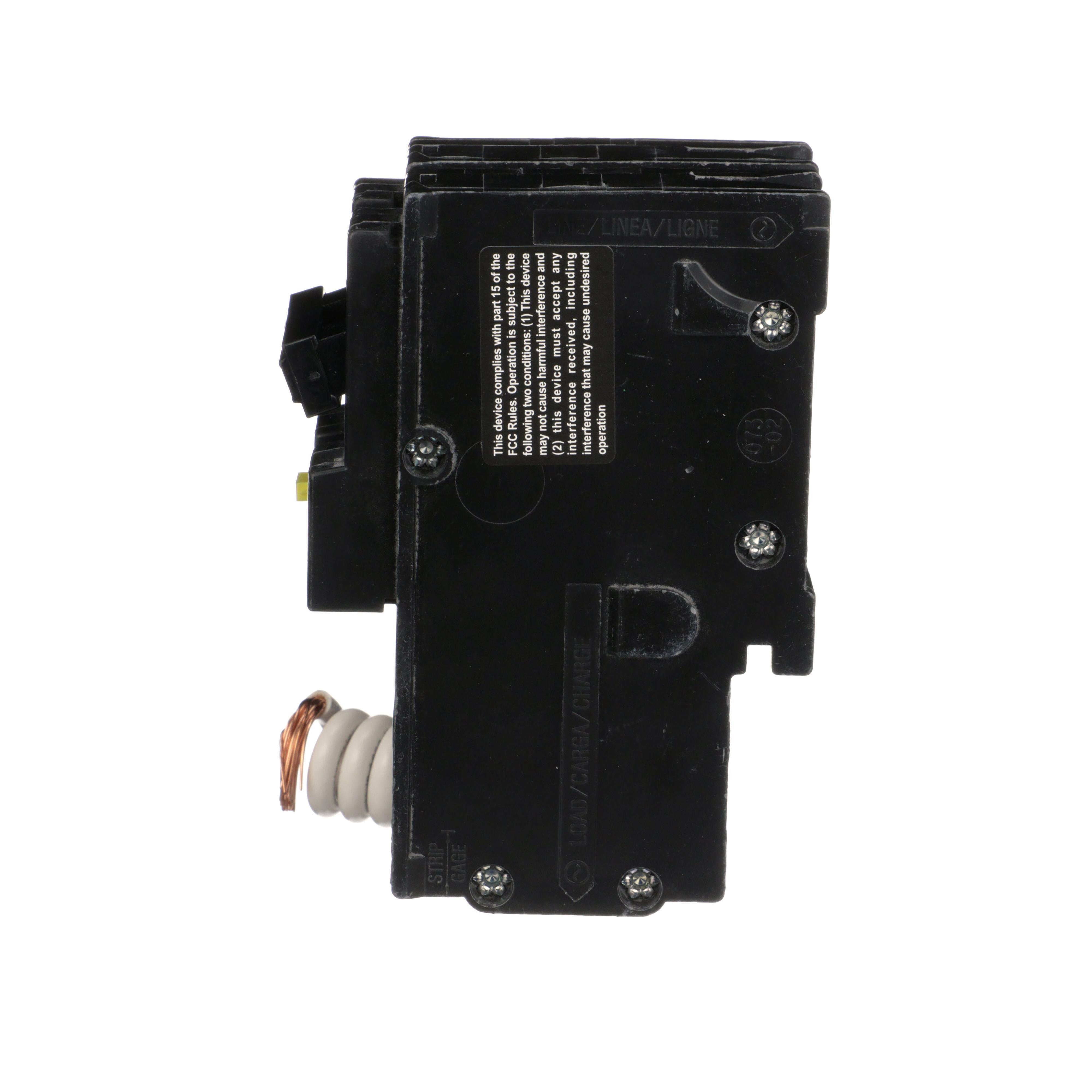

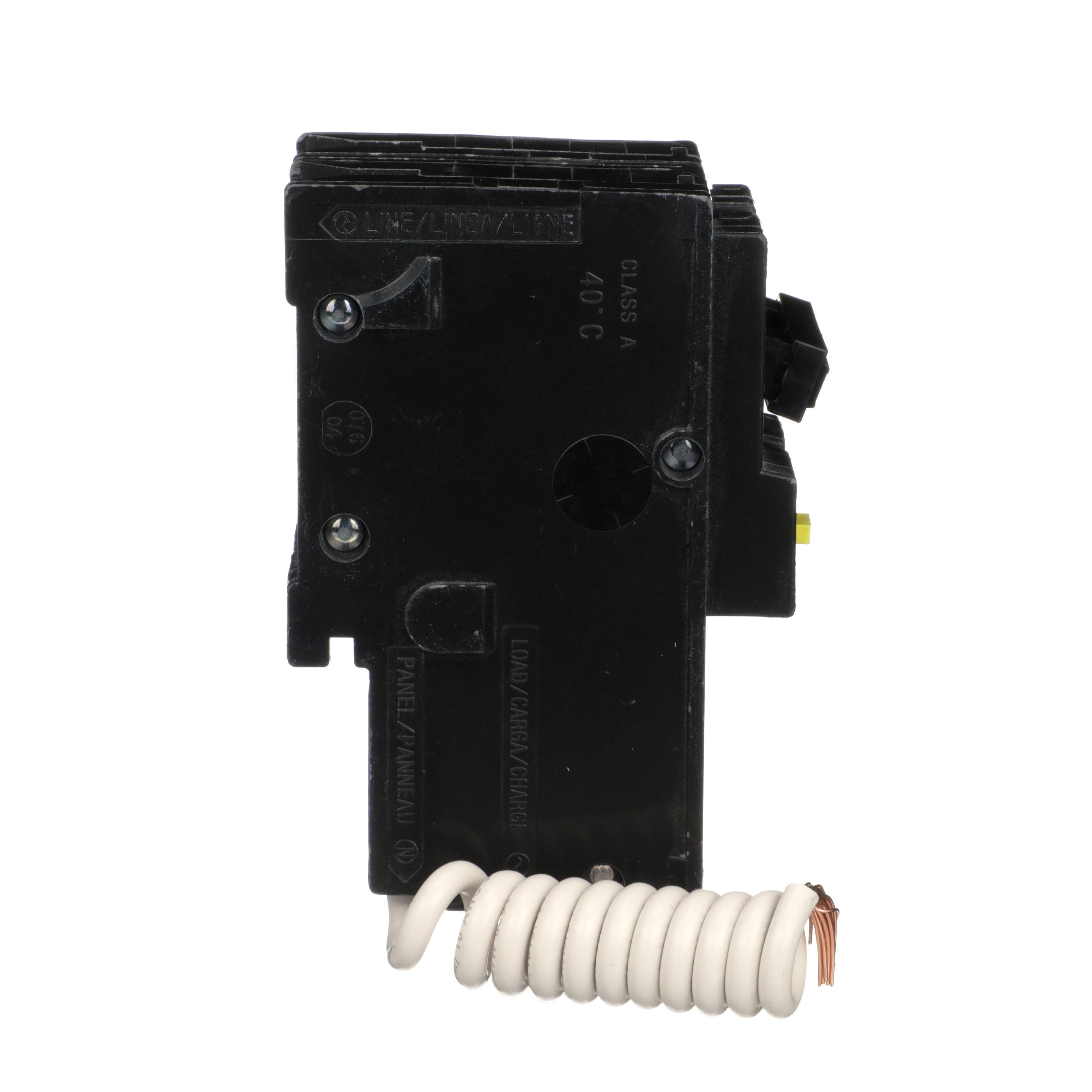

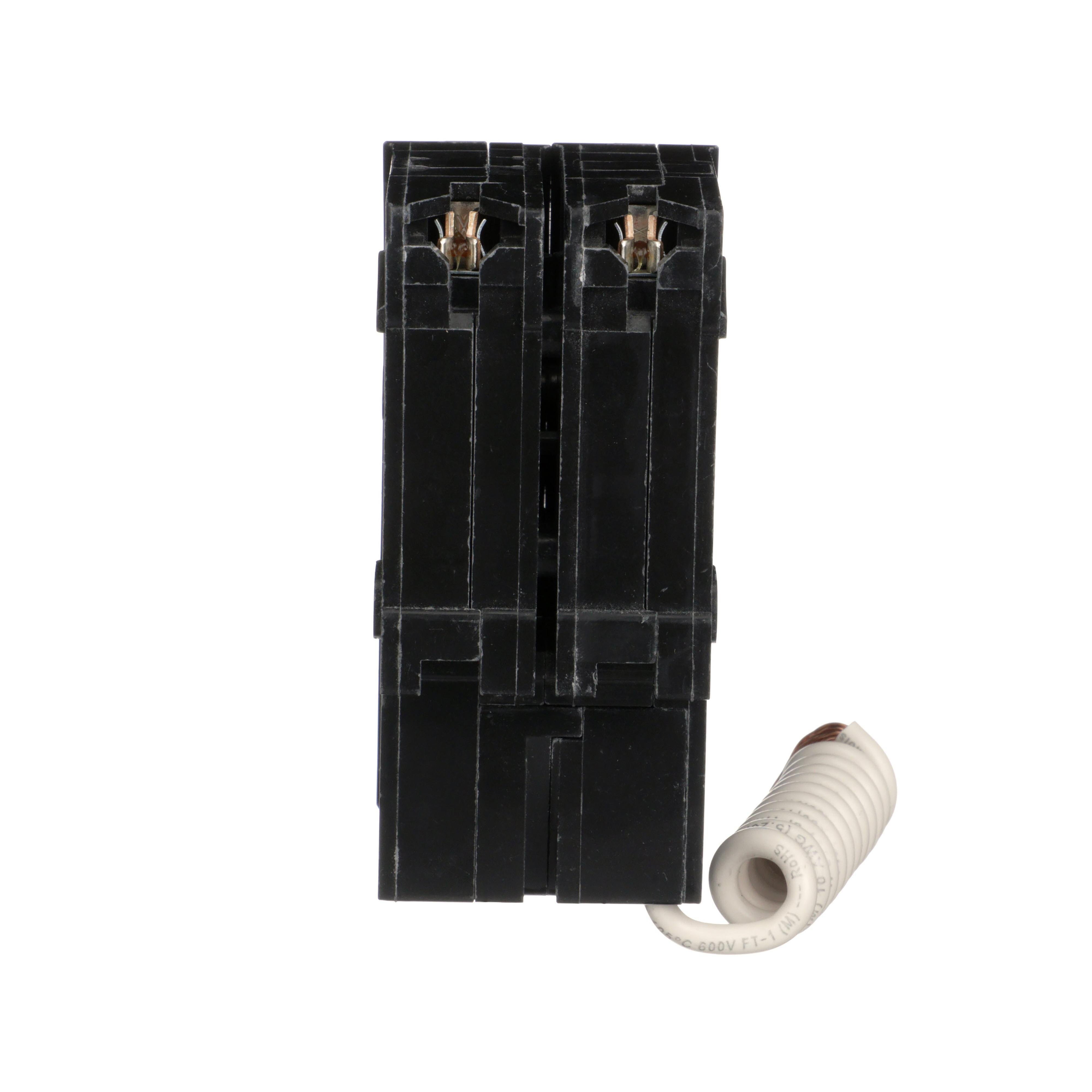

Picture of HOM220GFIC - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA] Picture of HOM220GFIC - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA]
Picture of HOM220GFIC - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA] Picture of HOM220GFIC - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA]
Picture of HOM220GFIC - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA] Picture of HOM220GFIC - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA]
Picture of HOM220GFIC - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA] Picture of HOM220GFIC - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA]
Square D

HOM220GFIC - Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL [TAA]

Item Code: 1146393
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM220GFIC

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is shipped in a clam package.

Specifications

Weight

1.2

Width

4.46

Length

2.28

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HOM220GFIC/HOM220GFIC.spin

AD All Features

Homeline GFCI MCB are designed to protect against irregular electrical current

AD Alternative Part Number

13832860

AD Application

Residential and Light Commercial, Commercial and Industrial Circuit Protection, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault Protection Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Owners/User Manual

AD Document Caption 5

Full Engineering Drawing

AD EAN

0785901163701

AD Gtin

00785901163701

AD IDEA Index ID

13832860

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 20A 10KA

AD Item Features 01

Homeline GFCI MCB are designed to protect against irregular electrical current

AD Item Features 02

Compatible with Homeline electrical panel and CSEDs

AD Item Features 03

Protects against overload, short curcuits, and ground faults with a current greater than 6mA

AD Keywords

HOM220GFIC Type HOM Miniature Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 2 Poles ; Schneider Electric ; Square D ; HOM220GFIC ; HOM220GFIC ; 785901163701 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.2800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.2000

AD Package Weight UOM

LB

AD Package Width

4.4600

AD Package Width UOM

IN

AD Part Number Keywords

HOM220GFIC ; 13832860 ; 785901163701 ; 78590116370 ; 00785901163701 ; 0785901163701

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Wire Size

Spec 10 Attribute Value

12 to 4 AWG Al, 14 to 6 AWG Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw clamp

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2 in W x 2.98 in D x 3.13 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

Type

Spec 8 Attribute Value

Type HOM

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

120/240
