Square D

HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL

Category Miscellaneous

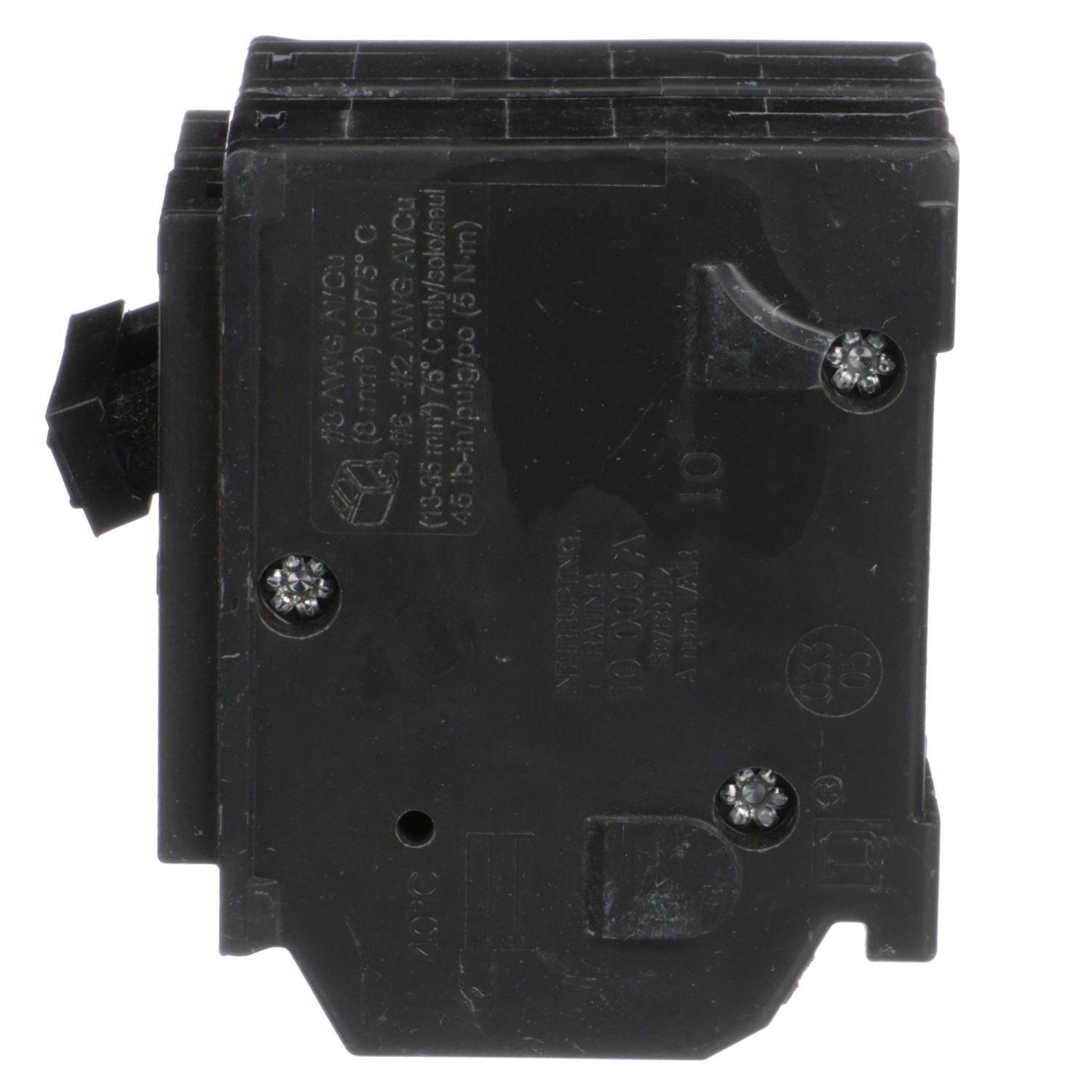

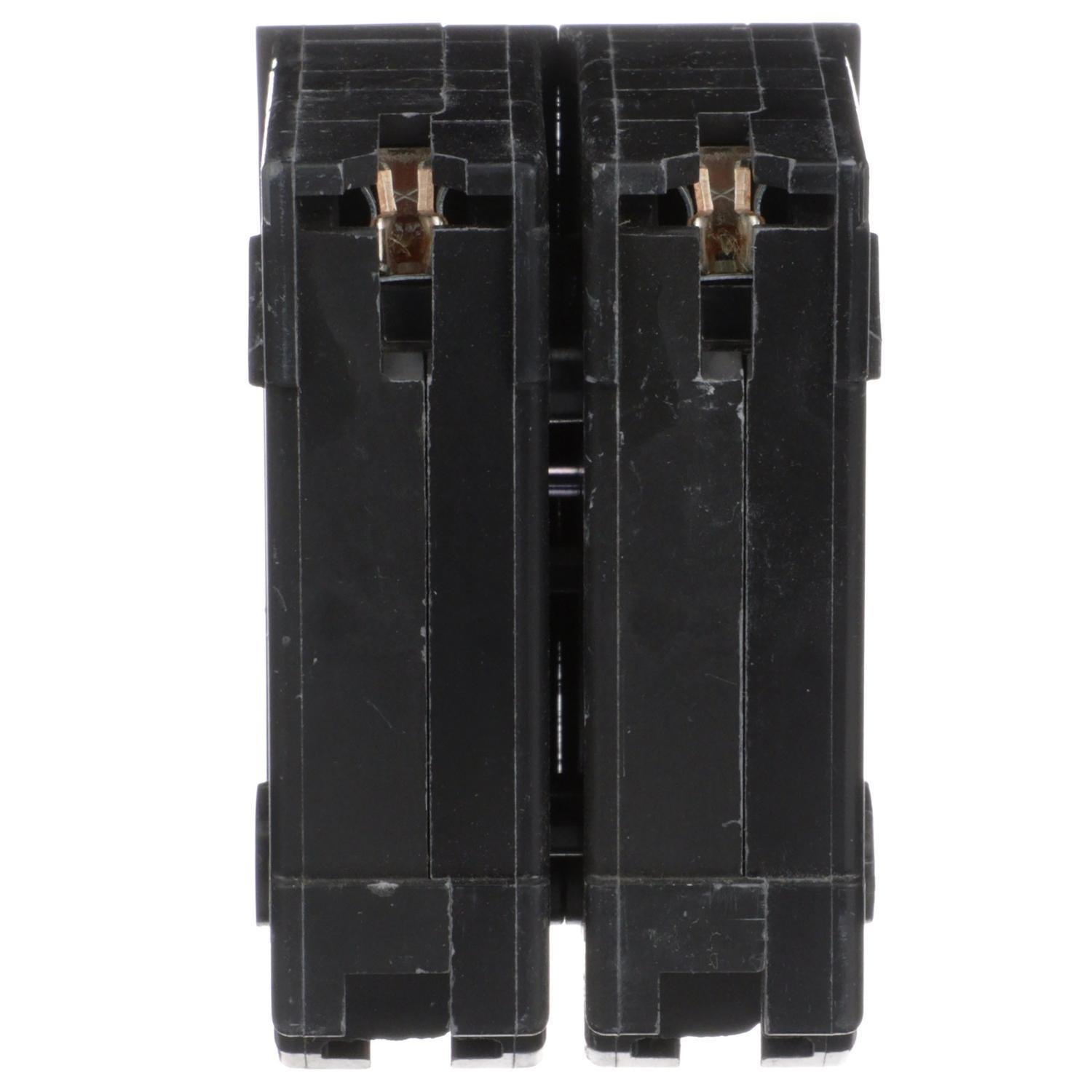

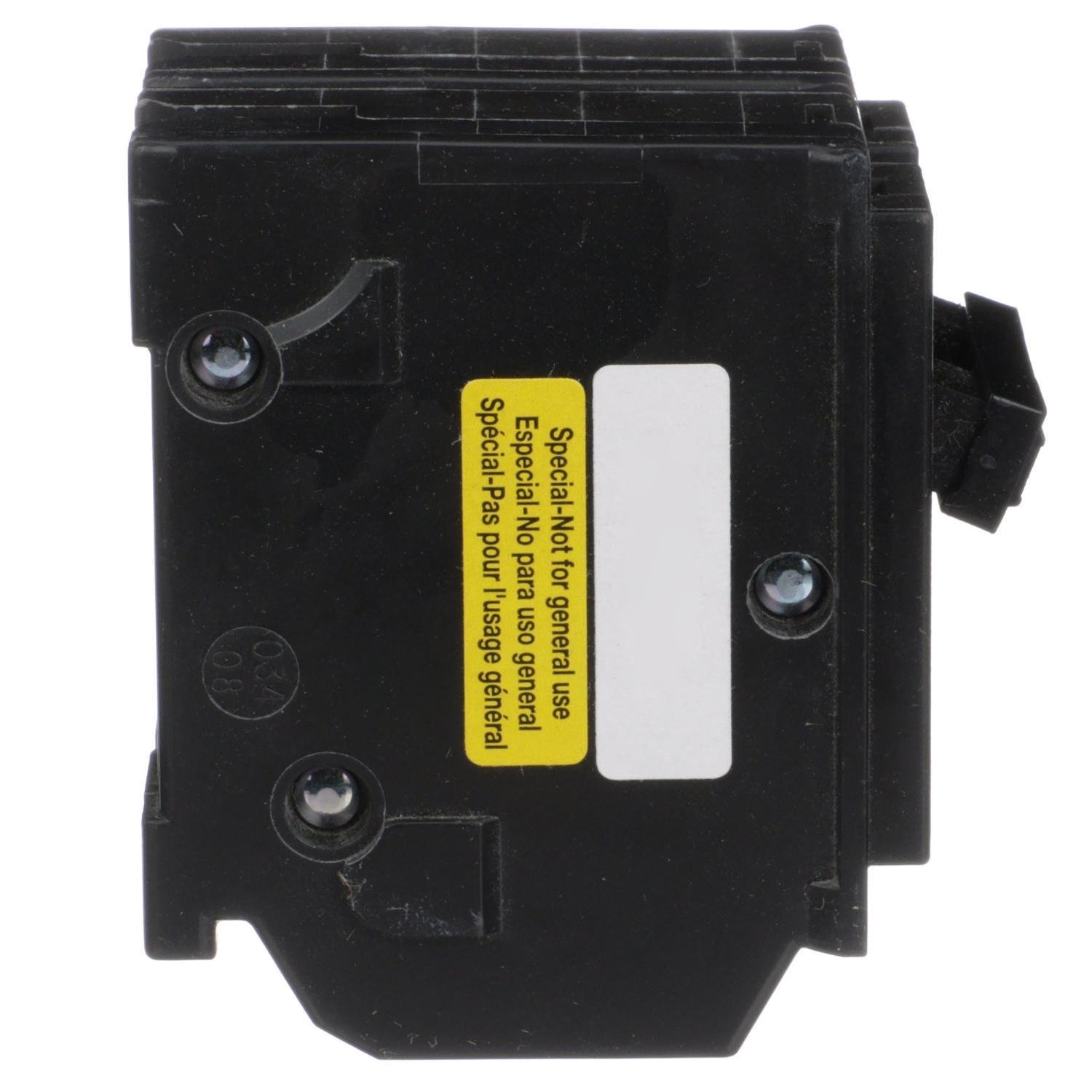

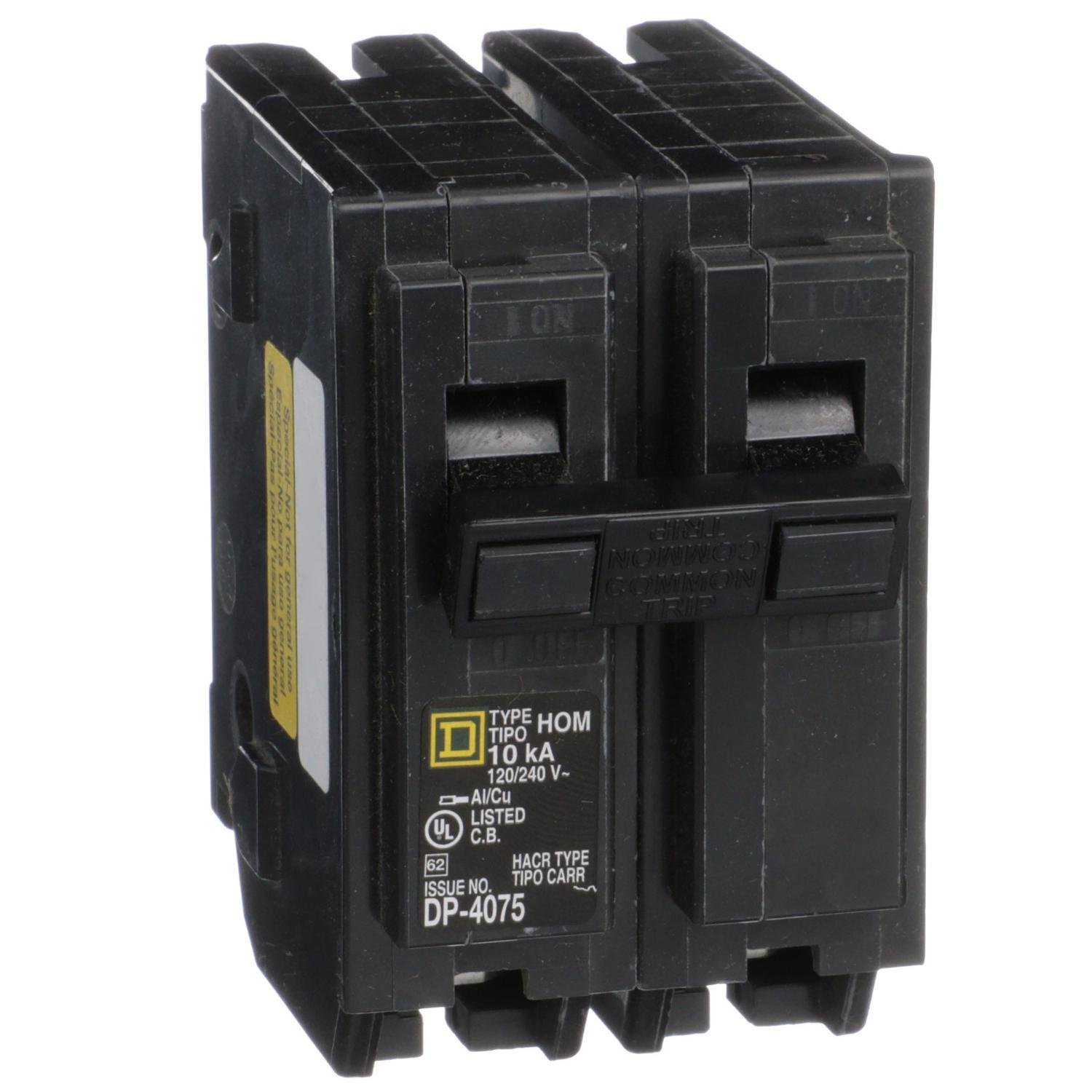

Picture of HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL Picture of HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL
Picture of HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL Picture of HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL
Picture of HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL Picture of HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL
Picture of HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL Picture of HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL
Picture of HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL Picture of HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL
Square D

HOM2255219 - Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, high amp lug, UL

Item Code: 1151672
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM2255219

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 25A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a high amperage box lug that will accept 1 wire. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Weight

0.71

Height

2.1

Width

3.07

Length

3.37

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/hom2205219/hom2205219.spin

AD All Features

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Alternative Part Number

8087731

AD Application

Residential and Light Commercial, Commercial and Industrial Circuit Protection, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault Protection Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901213031

AD Gtin

00785901213031

AD IDEA Index ID

8087731

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 25A 10KA

AD Item Features 01

Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection

AD Item Features 02

Designed to protect against equipment overloads and short-circuits

AD Item Features 03

Easy plug on design with SE Homeline Loadcenters

AD Keywords

HOM2255219 Type HOM Miniature Circuit Breaker, 120/240 V AC, 25 A, 10 kA Interrupt, 2 Poles ; Schneider Electric ; Square D ; HOM2255219 ; HOM2255219 ; 785901213031 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.1000

AD Package Height UOM

IN

AD Package Length

3.3700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

22.1300

AD Package Volume UOM

cu-in

AD Package Weight

0.7100

AD Package Weight UOM

LB

AD Package Width

3.0700

AD Package Width UOM

IN

AD Part Number Keywords

HOM2255219 ; 8087731 ; 785901213031 ; 78590121303 ; 00785901213031 ; 0785901213031

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

25

Spec 10 Attribute

Wire Size

Spec 10 Attribute Value

8 to 2 AWG Al/Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Box Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3.13 in H x 2 in W x 2.98 in D

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

Type

Spec 8 Attribute Value

Type HOM

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

120/240
