Square D

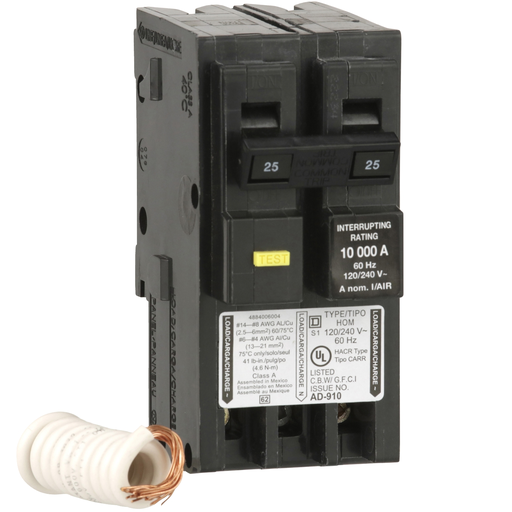

HOM225GFI - [TAA] Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL

Category Plug-In Circuit Breakers

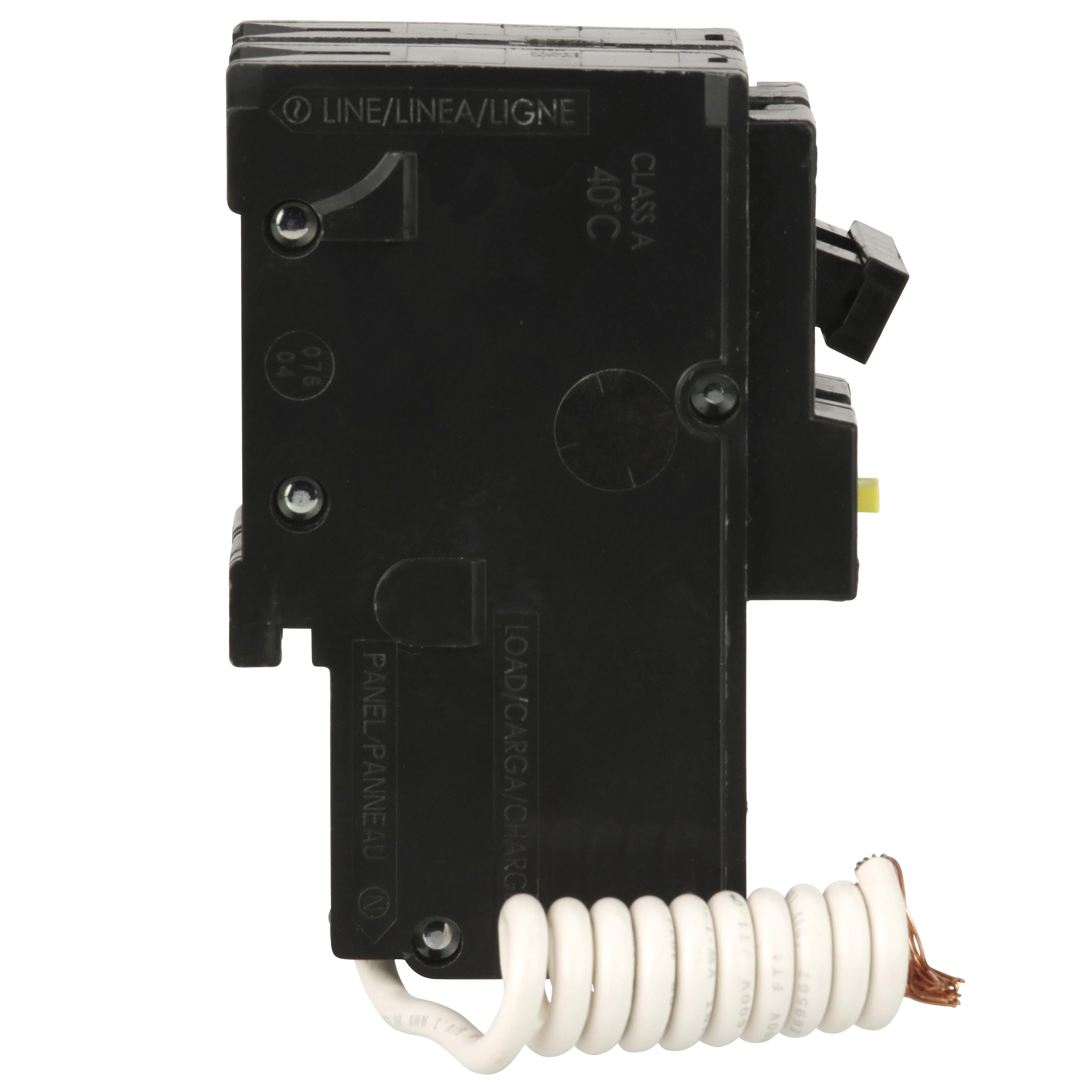

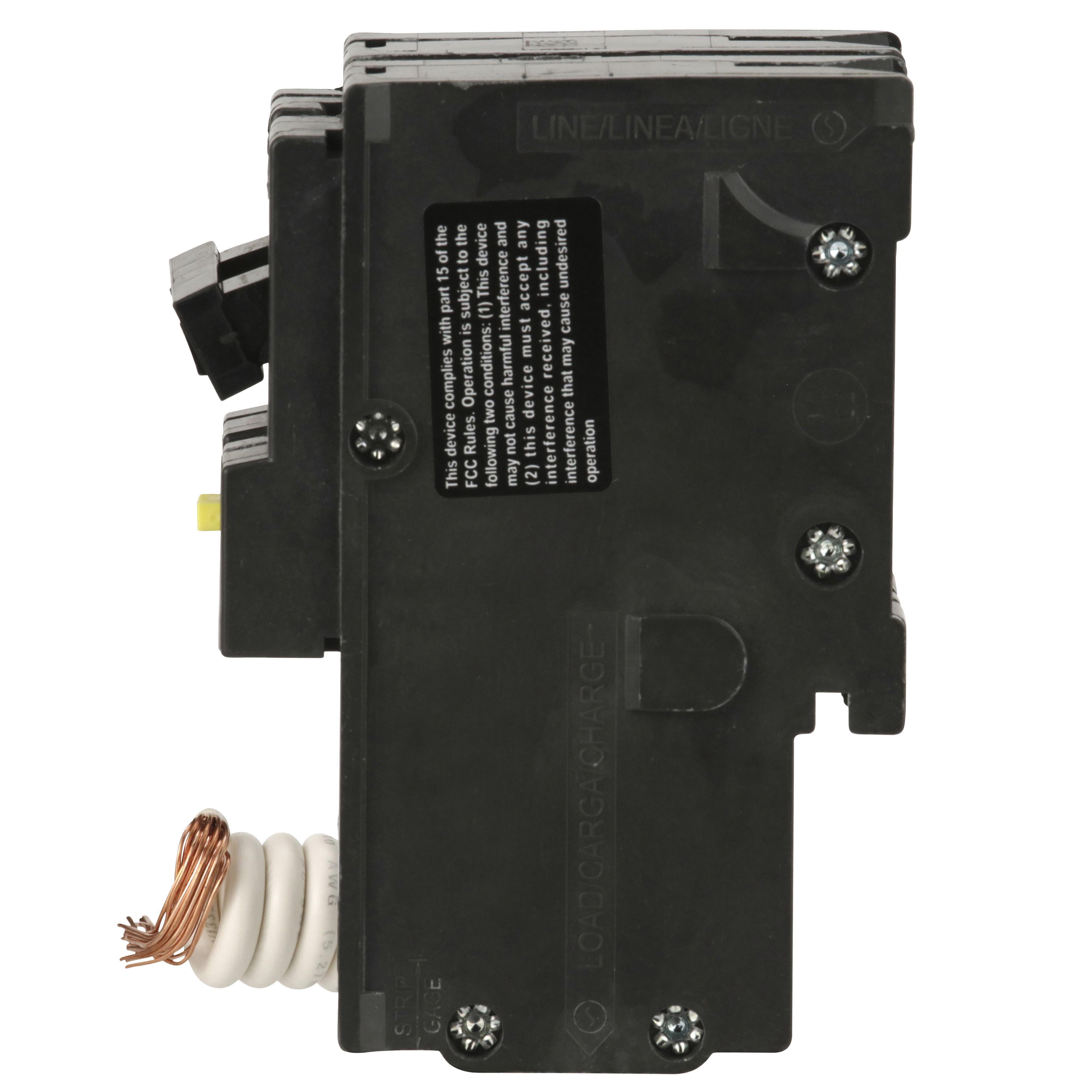

Picture of HOM225GFI - [TAA] Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL Picture of HOM225GFI - [TAA] Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL
Picture of HOM225GFI - [TAA] Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL Picture of HOM225GFI - [TAA] Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL
Picture of HOM225GFI - [TAA] Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL Picture of HOM225GFI - [TAA] Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL
Square D

HOM225GFI - [TAA] Mini circuit breaker, Homeline, 25A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL

Item Code: 655359
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM225GFI

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 25A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Weight

1.16lb

Height

3.8mm

Width

5.25mm

Length

2.38mm

Depth

2.98mm

AD All Features

Protects against overload, short curcuits, and ground faults with a current greater than 6mA

AD Application

Providing Overload and Short Circuit Protection, Residential, Light Commercial, Industrial Circuit, Overcurrent, Short Circuit, Parallel, Series Arc Fault, Ground Fault Protection Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 25A 10KA 2

AD Item Features 01

Protects against overload, short curcuits, and ground faults with a current greater than 6mA

AD Item Features 02

The current capacity that this circuit breaker is able to interrupt before breaking is 10kA

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.8000

AD Package Height UOM

IN

AD Package Length

2.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

48.0700

AD Package Volume UOM

cu-in

AD Package Weight

1.1600

AD Package Weight UOM

LB

AD Package Width

5.2500

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

25

Spec 10 Attribute

Type

Spec 10 Attribute Value

Class A Ground Fault Standard

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

120/240

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

12 to 4 AWG, 14 to 6 AWG

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw Terminal

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.98 in L x 1 in W x 3.13 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

Series

Spec 8 Attribute Value

HOM

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

40
