Square D

HOM2448M100PC - Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 100A convertible main breaker, PoN, NEMA1, combo cover

Category Load Centers & Accessories

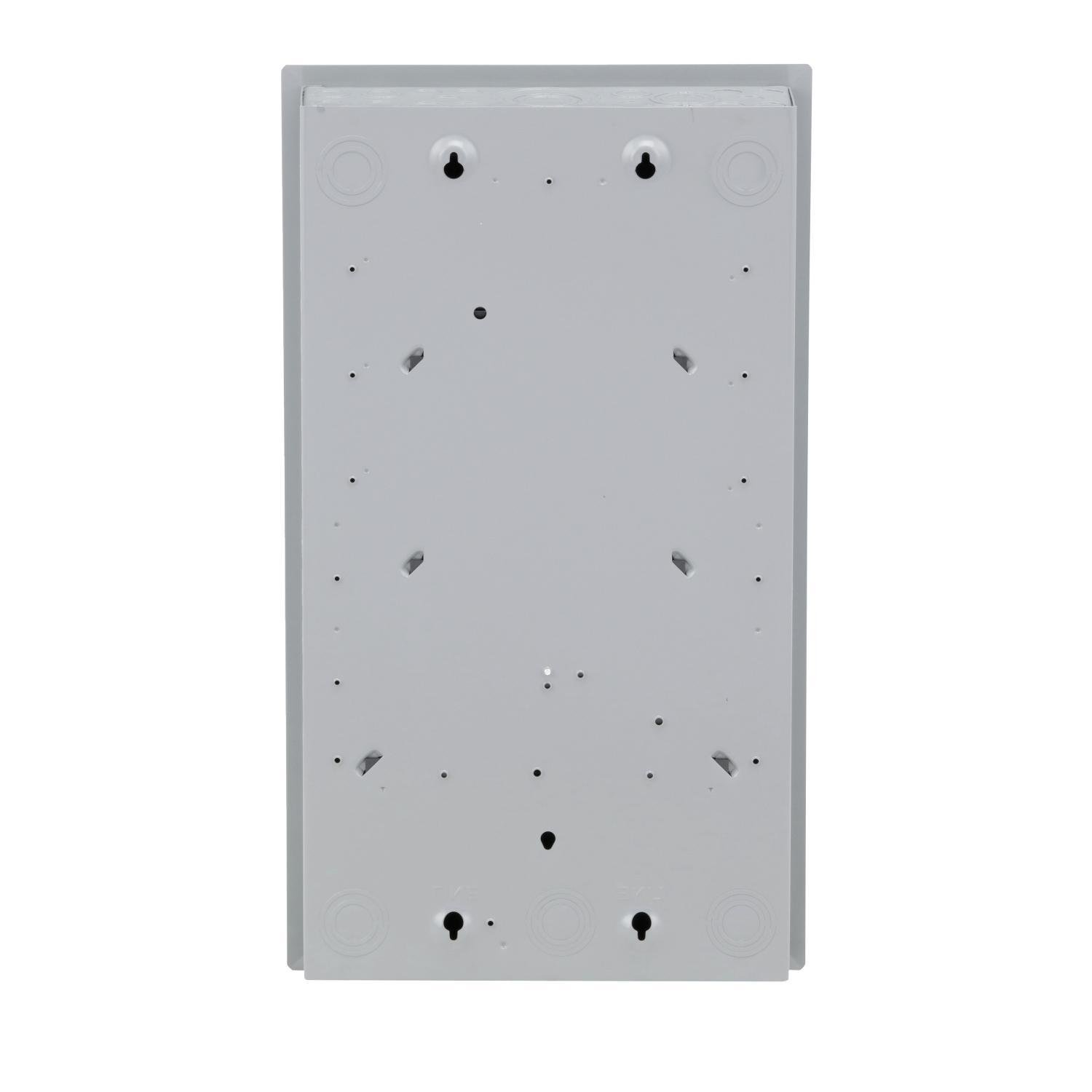

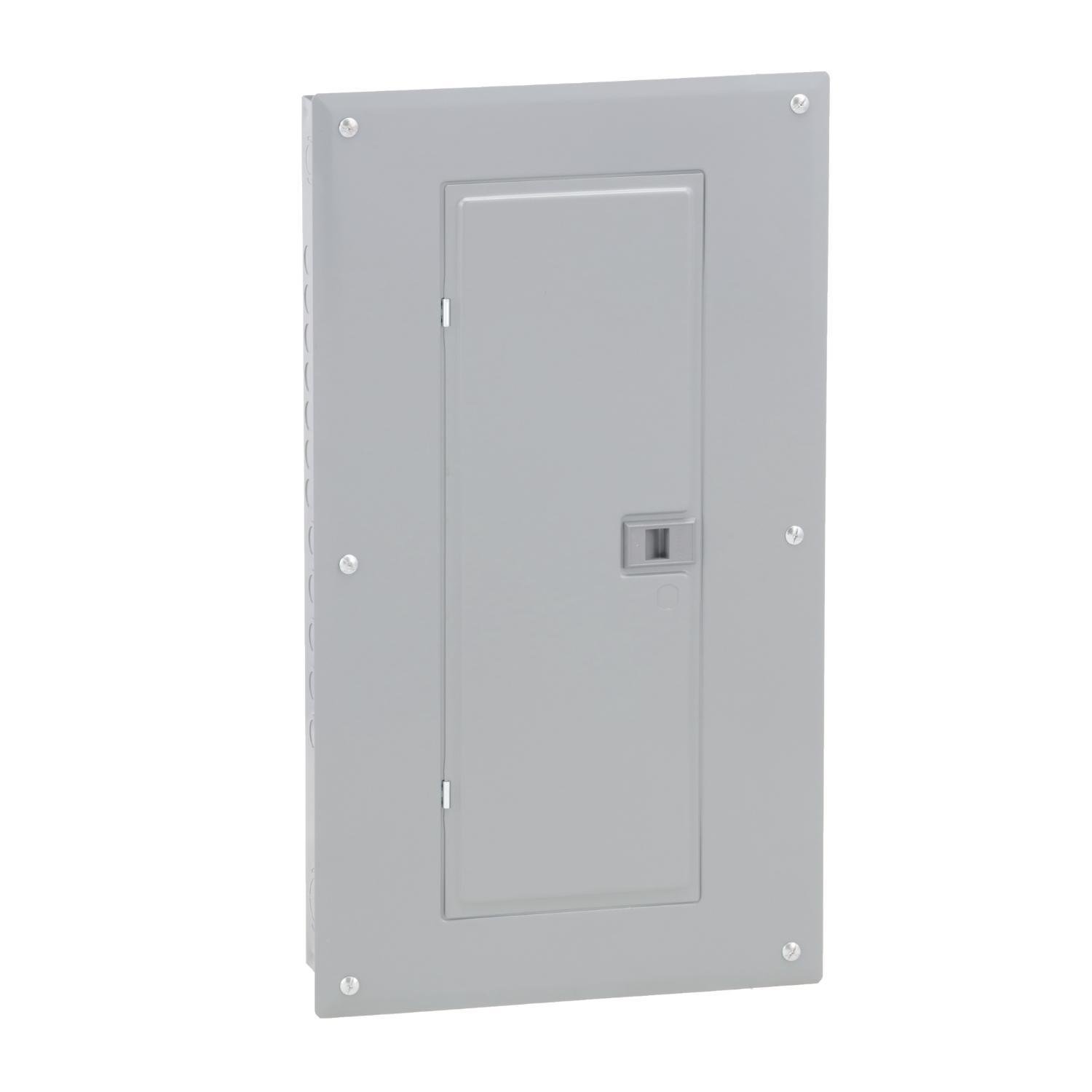

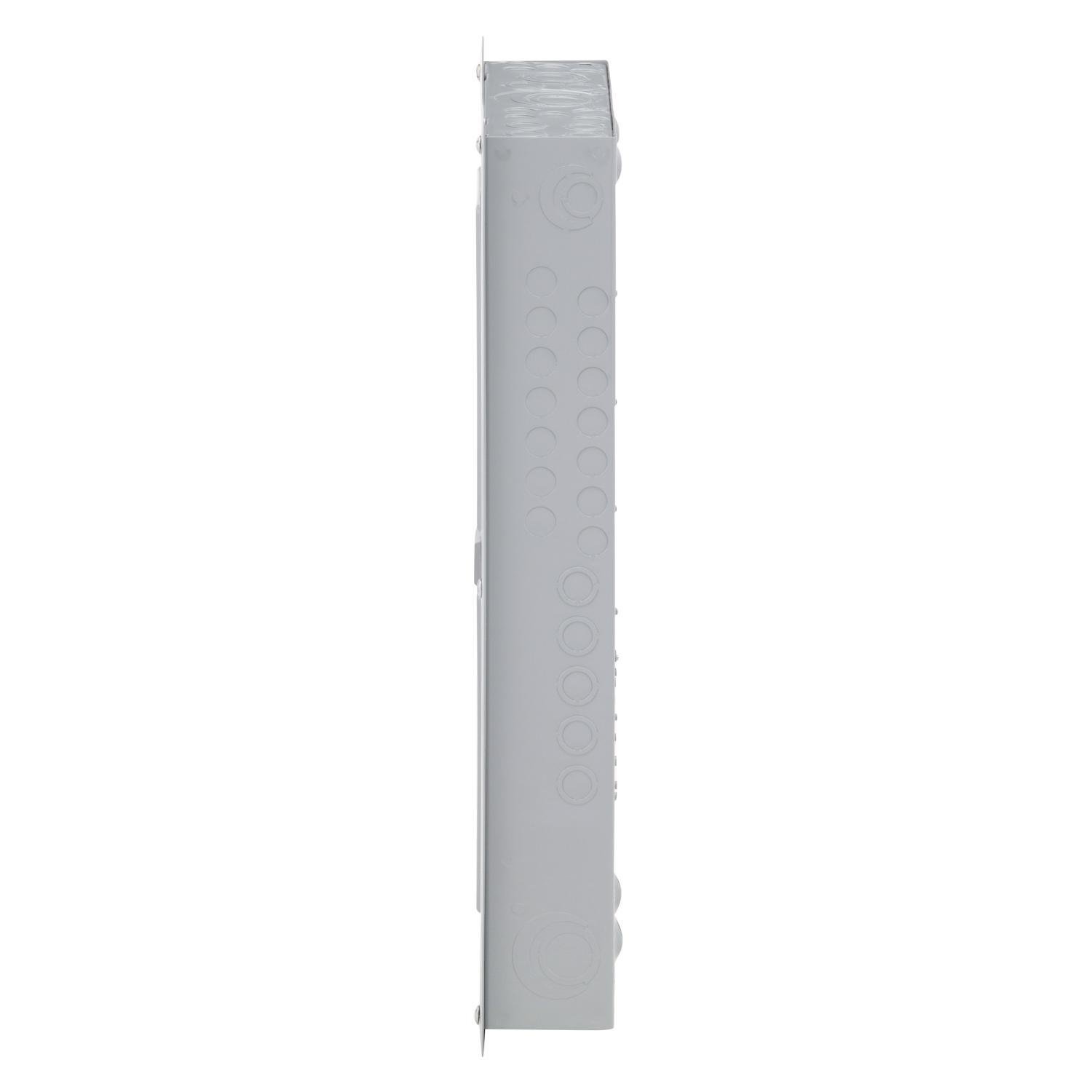

Picture of HOM2448M100PC - Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 100A convertible main breaker, PoN, NEMA1, combo cover
Square D

HOM2448M100PC - Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 100A convertible main breaker, PoN, NEMA1, combo cover

Item Code: 884826
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM2448M100PC

RoHS
Specification Sheet
Warranty Information
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 100A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 20 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This Homeline load center has a height of 26.02 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

Specifications

Weight

24.69lb

Height

661mm

Width

15.85mm

Length

28.23mm

Depth

95mm

Amperage Rating

100 A

Brand

Square D

Breaker Mounting

Panel

Breaker Type

HOM

Category

Load Centers & Accessories

Dimensions

14.25 in W x 3.75 in D x 26.04 in H

Enclosure Box Size

8

Enclosure Type

NEMA 1

Frequency Rating

50/60 Hz

Housing Material

Steel

Interrupt Rating

22 kA

Mounting Type

Flush/Plug-On/Surface

Number of Circuits

48

Number Of Poles

1

Number of Spaces

24

Type

1-Phase Convertible Neutral

Voltage Rating

120/240 V AC

Wire Size

6 to 1 AWG, 6 to 2/0 AWG

Wiring Configuration

3-Wire
