Square D

HOM2448M125PC - Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 125A convertible main breaker, PoN, NEMA1, combo cover

Category Load Centers & Accessories

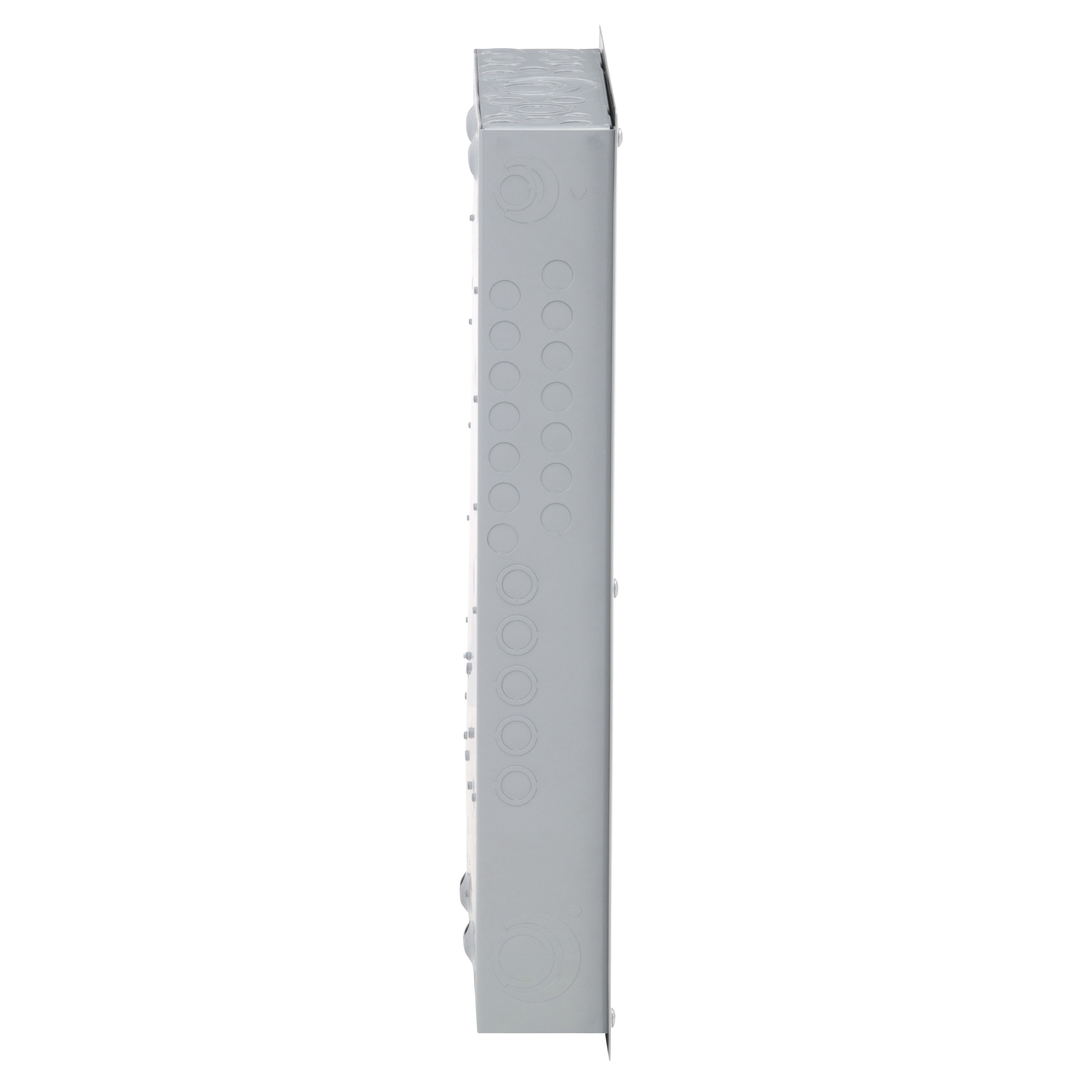

Picture of HOM2448M125PC - Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 125A convertible main breaker, PoN, NEMA1, combo cover Picture of HOM2448M125PC - Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 125A convertible main breaker, PoN, NEMA1, combo cover
Picture of HOM2448M125PC - Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 125A convertible main breaker, PoN, NEMA1, combo cover Picture of HOM2448M125PC - Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 125A convertible main breaker, PoN, NEMA1, combo cover
Square D

HOM2448M125PC - Load center, Homeline, 1 phase, 24 spaces, 48 circuits, 125A convertible main breaker, PoN, NEMA1, combo cover

Item Code: 884828
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM2448M125PC

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 125A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 24 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1/0 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 26.02 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

Specifications

Weight

25.64lb

Height

661mm

Width

16.15mm

Length

28.73mm

Depth

95mm

AD All Features

Fast installation, reliability, and superior circuit protection

AD Application

For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

Combination Flush/surface Cover

AD Invoice Description

LOADCENTER MAIN BRKR 120/240VAC 125A 1 8

AD Item Features 01

Fast installation, reliability, and superior circuit protection

AD Item Features 02

Protects against equipment overloads and short-circuits

AD Item Features 03

Tin and copper plated aluminum bus bars

AD Item Features 04

Replacement covers in gray and white

AD Item Features 05

Distributed neutral bars keeps wiring tidy

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

28.7300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

25.6400

AD Package Weight UOM

LB

AD Package Width

16.1500

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/B5LRuRQEvMI

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Flush/Plug-On/Surface

Spec 11 Attribute

Number of Circuits

Spec 11 Attribute Value

48

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

1

Spec 13 Attribute

Number of Spaces

Spec 13 Attribute Value

24

Spec 14 Attribute

Type

Spec 14 Attribute Value

1-Phase Convertible Neutral

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

120/240

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

4 AWG to 250 kcmil

Spec 17 Attribute

Wiring Configuration

Spec 17 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

HOM

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.25 in W x 3.75 in D x 26.04 in H

Spec 5 Attribute

Enclosure Box Size

Spec 5 Attribute Value

8

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Housing Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

22
