Square D

HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

Category Plug-In Circuit Breakers

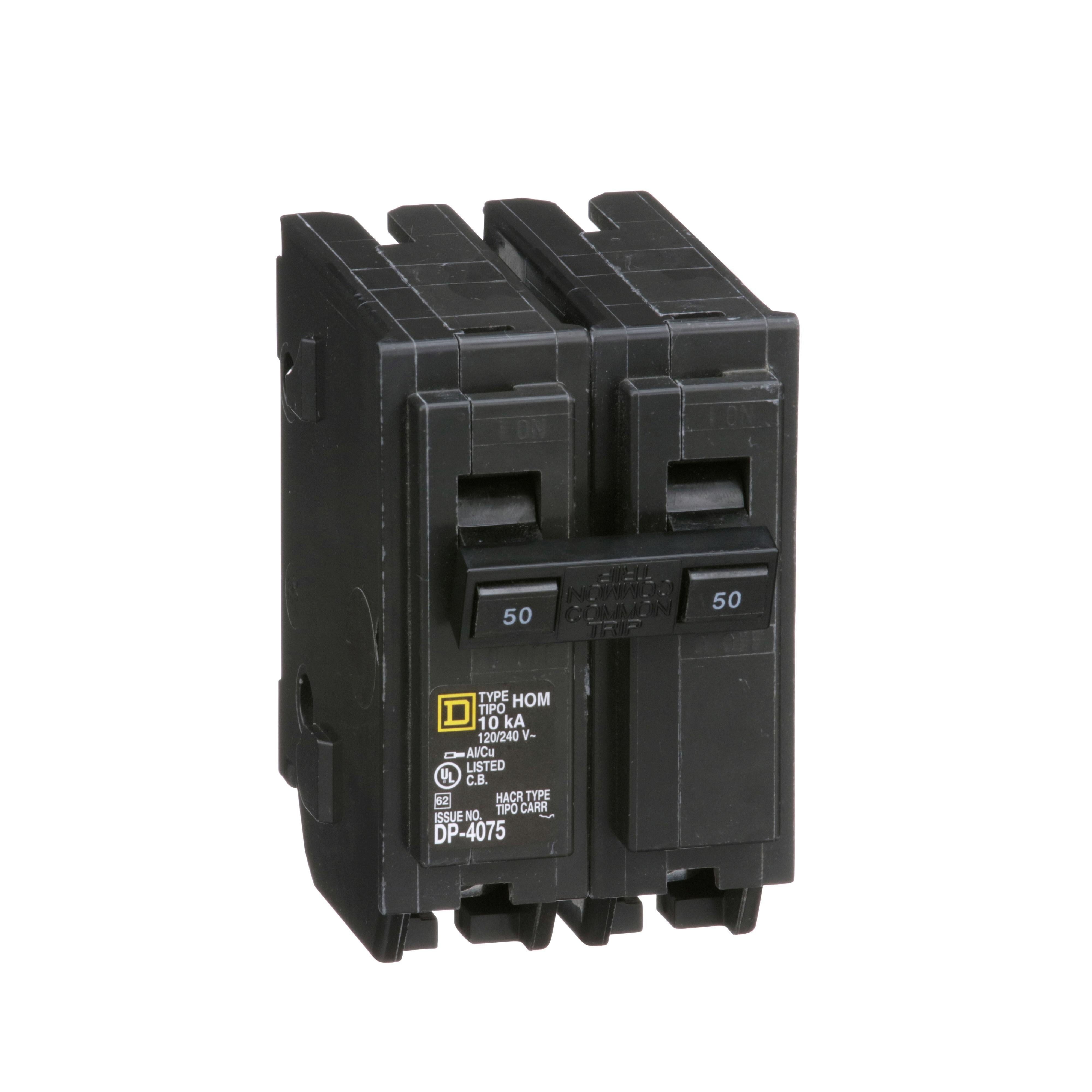

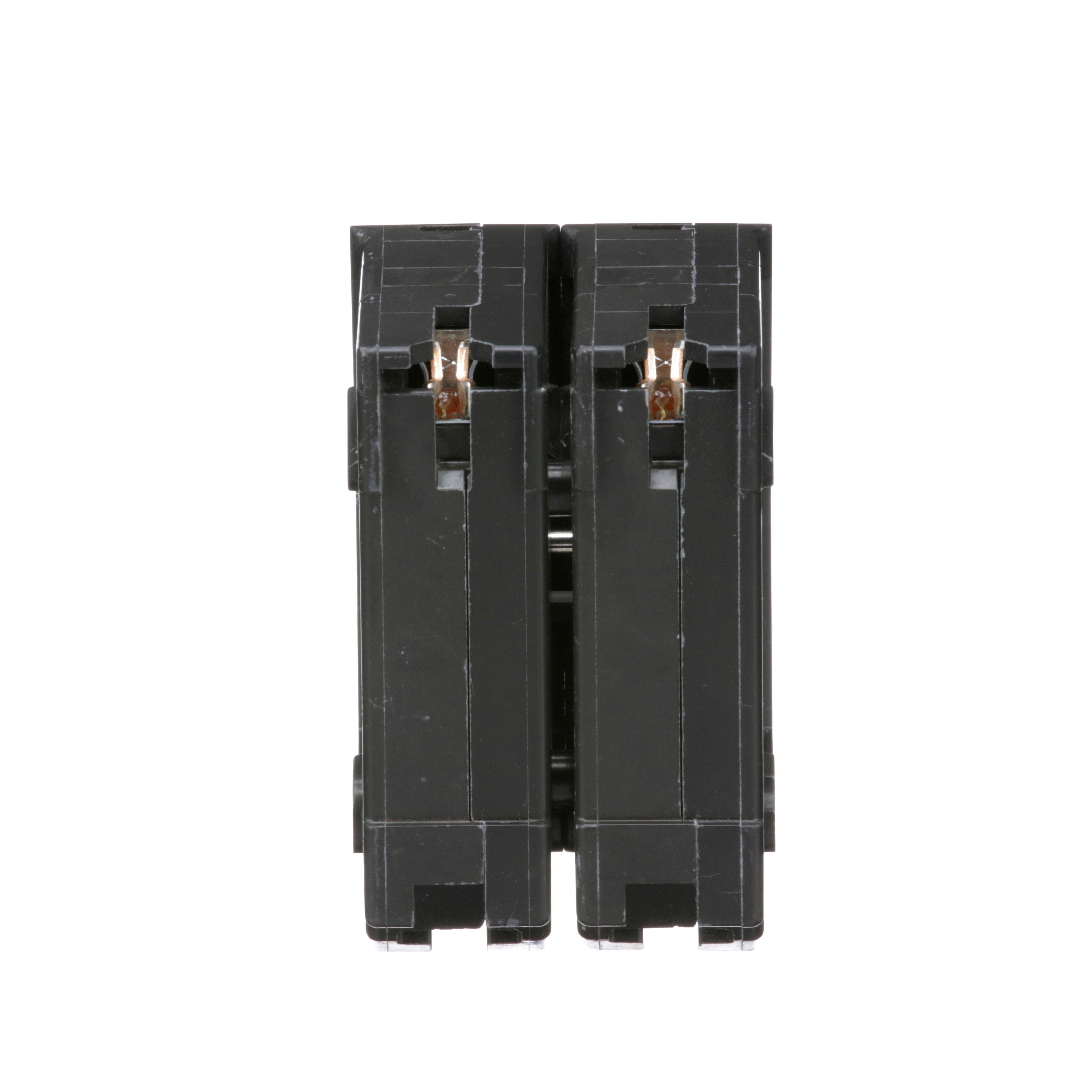

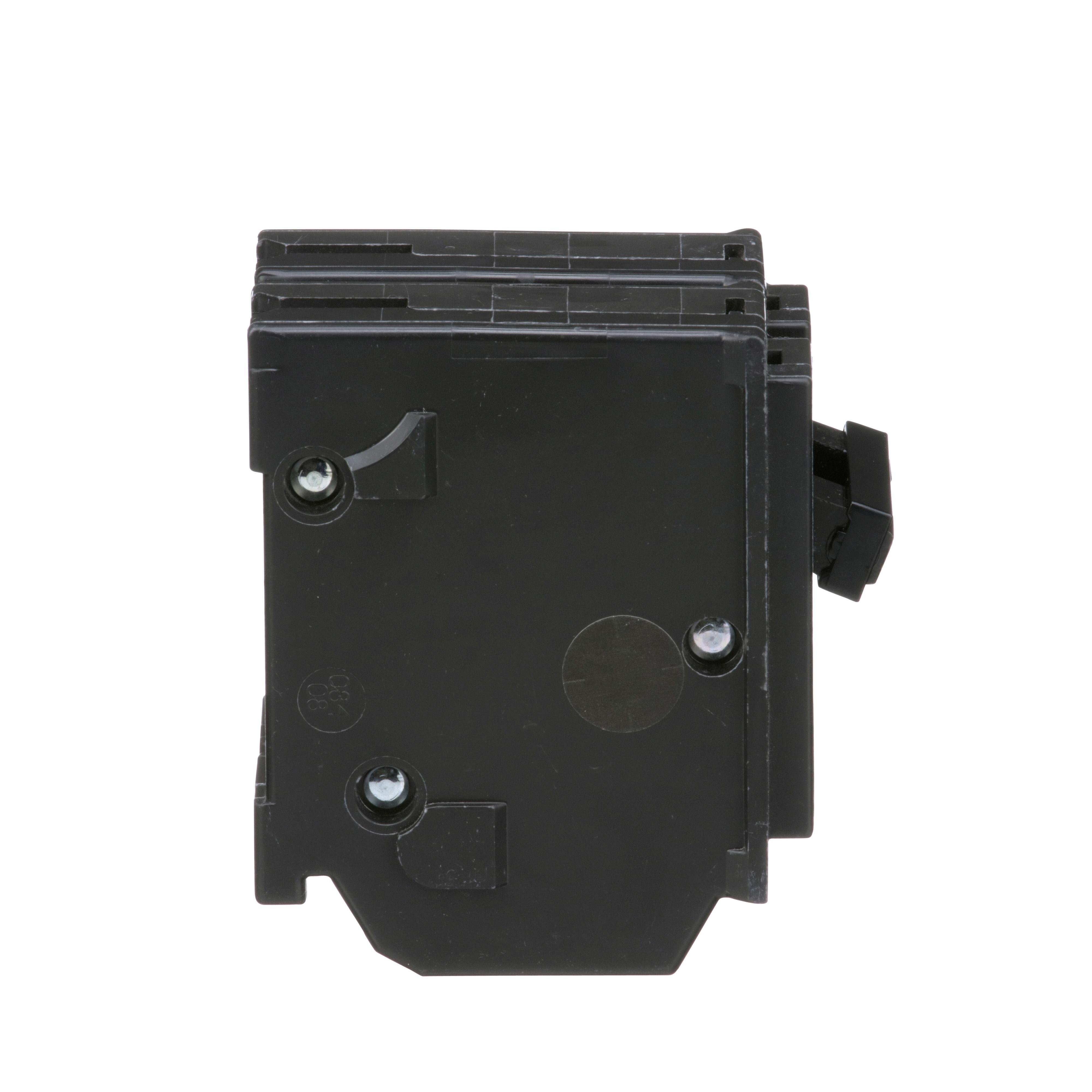

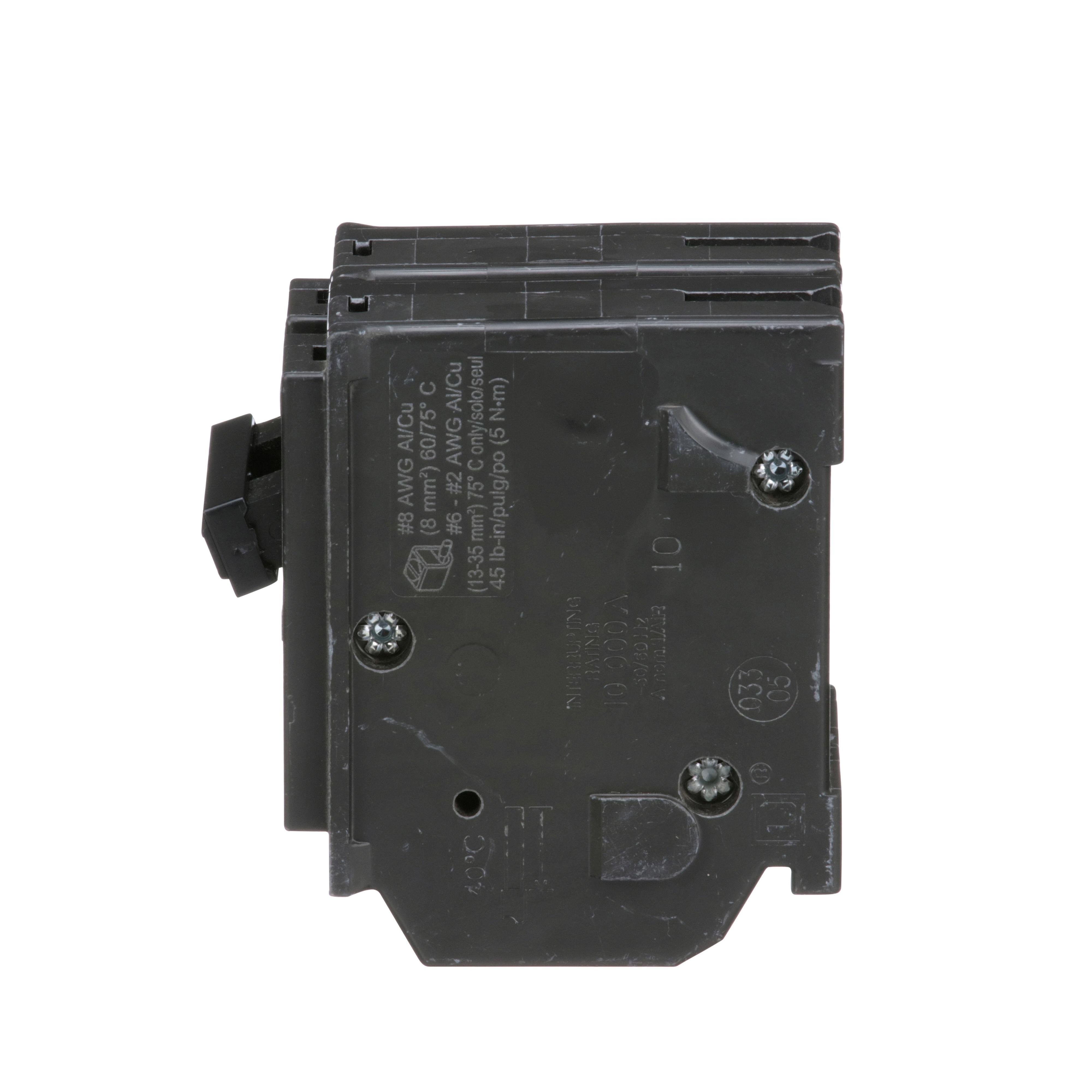

Picture of HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL Picture of HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Picture of HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL Picture of HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Picture of HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL Picture of HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Picture of HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL Picture of HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Picture of HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL Picture of HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Square D

HOM250 - Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

Item Code: 18178
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM250

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Purchasing Quantities

EACH

1

BOX

5

CASE

50

Specifications

Weight

0.7lb

Height

2mm

Width

2.97mm

Length

3.17mm

Depth

2.98mm

AD All Features

Easy plug on design with SE Homeline Loadcenters

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 50A 10KA 2

AD Item Features 01

Easy plug on design with SE Homeline Loadcenters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.0000

AD Package Height UOM

IN

AD Package Length

3.1700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

19.2000

AD Package Volume UOM

cu-in

AD Package Weight

0.7000

AD Package Weight UOM

LB

AD Package Width

2.9700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/aVvIVVo14po

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

50

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Standard

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

8 to 2

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.98 in L x 2 in W x 3.13 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

40
