Square D

HOM250PSPD - Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1

Category Receptacles & Surge Protectors

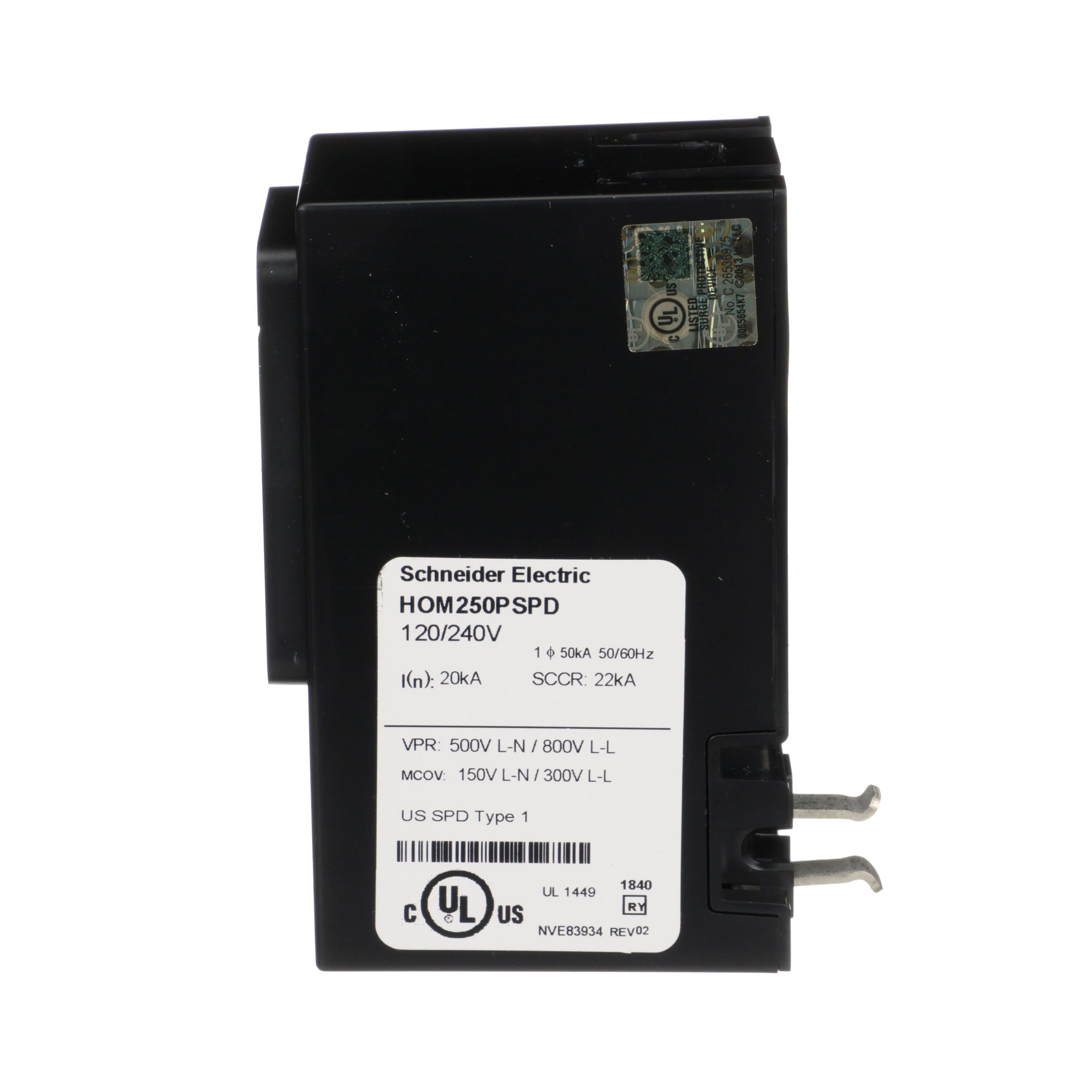

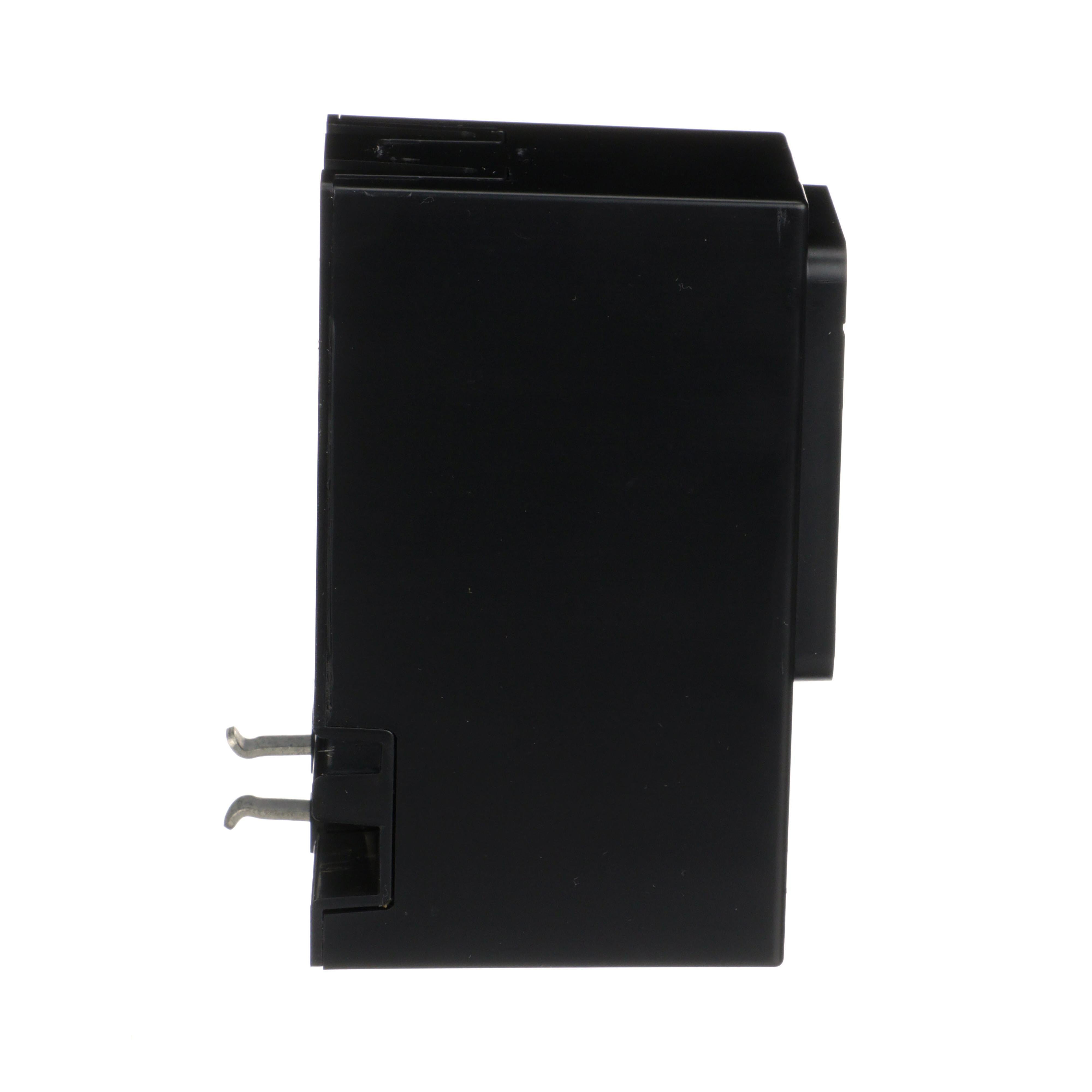

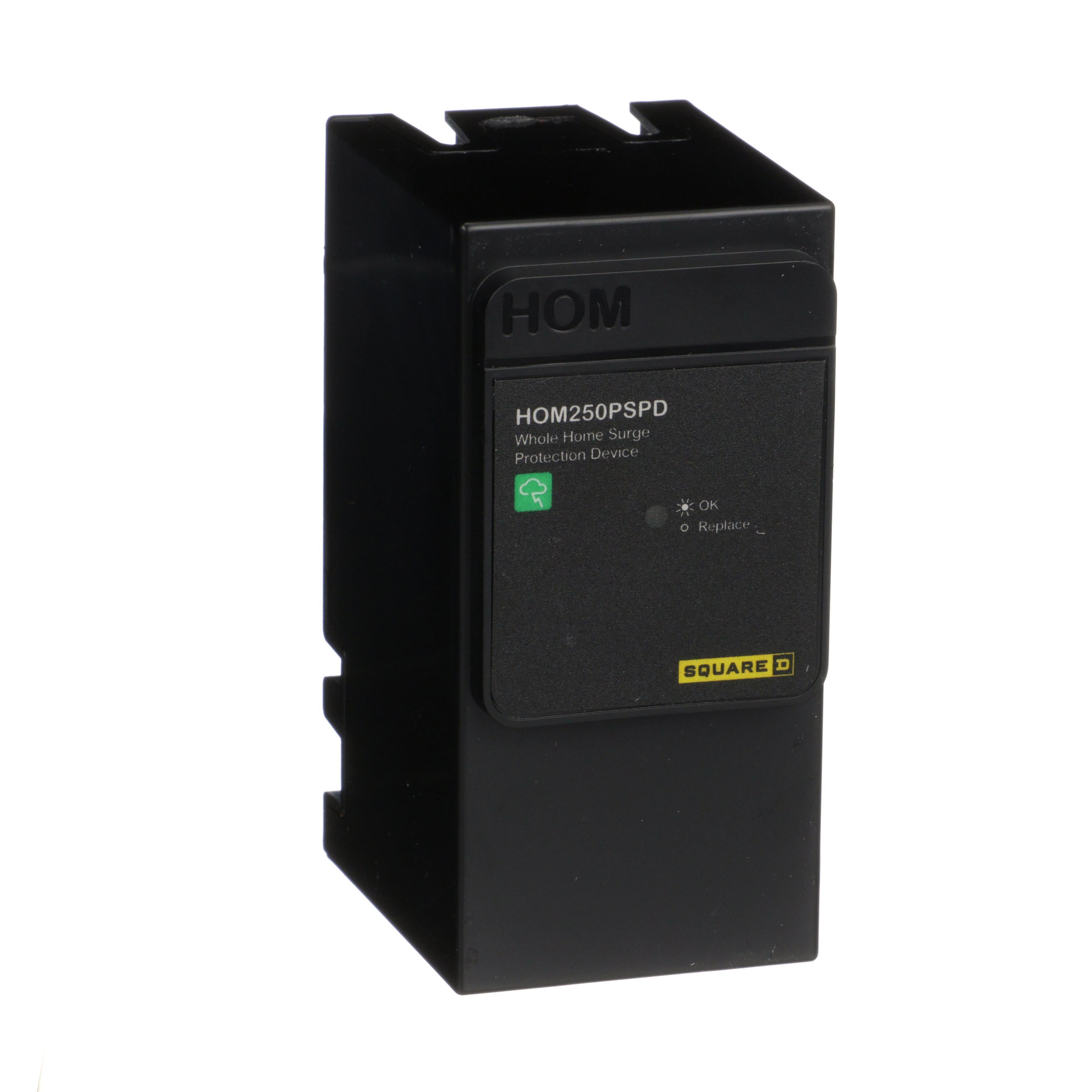

Picture of HOM250PSPD - Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1 Picture of HOM250PSPD - Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Picture of HOM250PSPD - Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1 Picture of HOM250PSPD - Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Picture of HOM250PSPD - Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1 Picture of HOM250PSPD - Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Picture of HOM250PSPD - Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1 Picture of HOM250PSPD - Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Square D

HOM250PSPD - Surge protection device, Homeline, whole home, 50kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1

Item Code: 991112
Category Receptacles & Surge Protectors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM250PSPD

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This is a plug on neutral surge protective device for Homeline load centers. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 2 indoor rating. This surge protection device is rated at 50 kA per phase. This surge protection device has a height of 3.98 inches, a width of 1.97 inches and depth of 2.60 inches. This surge protection device is UL Listed.

Specifications

Weight

0.48lb

Height

101mm

Width

4.95mm

Length

7.43mm

Depth

66mm

AD All Features

Protects against accidental shocks through the use of touch-safe terminals

AD Application

For load centers

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

DEVICE PROT SRG 120/240VAC 22KA 3 50KA

AD Item Features 01

Protects against accidental shocks through the use of touch-safe terminals

AD Item Features 02

Type T units are designed for the global market and are the best choice when size and cost are of concern

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.4300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4800

AD Package Weight UOM

LB

AD Package Width

4.9500

AD Package Width UOM

IN

Brand

Square D

Category

RECEPTACLES & SURGE PROTECTORS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Spec 10 Attribute

Type

Spec 10 Attribute Value

1-Phase

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

120/240

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3.98 in H x 1.97 in W x 2.6 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 2

Spec 4 Attribute

Material

Spec 4 Attribute Value

Plastic

Spec 5 Attribute

Nominal Discharge Current

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

20

Spec 6 Attribute

Number Of Wires

Spec 6 Attribute Value

3

Spec 7 Attribute

Peak Surge Current

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

50

Spec 8 Attribute

Short Circuit Current Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

22

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Plug-In
