Square D

HOM260 - Mini circuit breaker, Homeline, 60A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

Category Plug-In Circuit Breakers

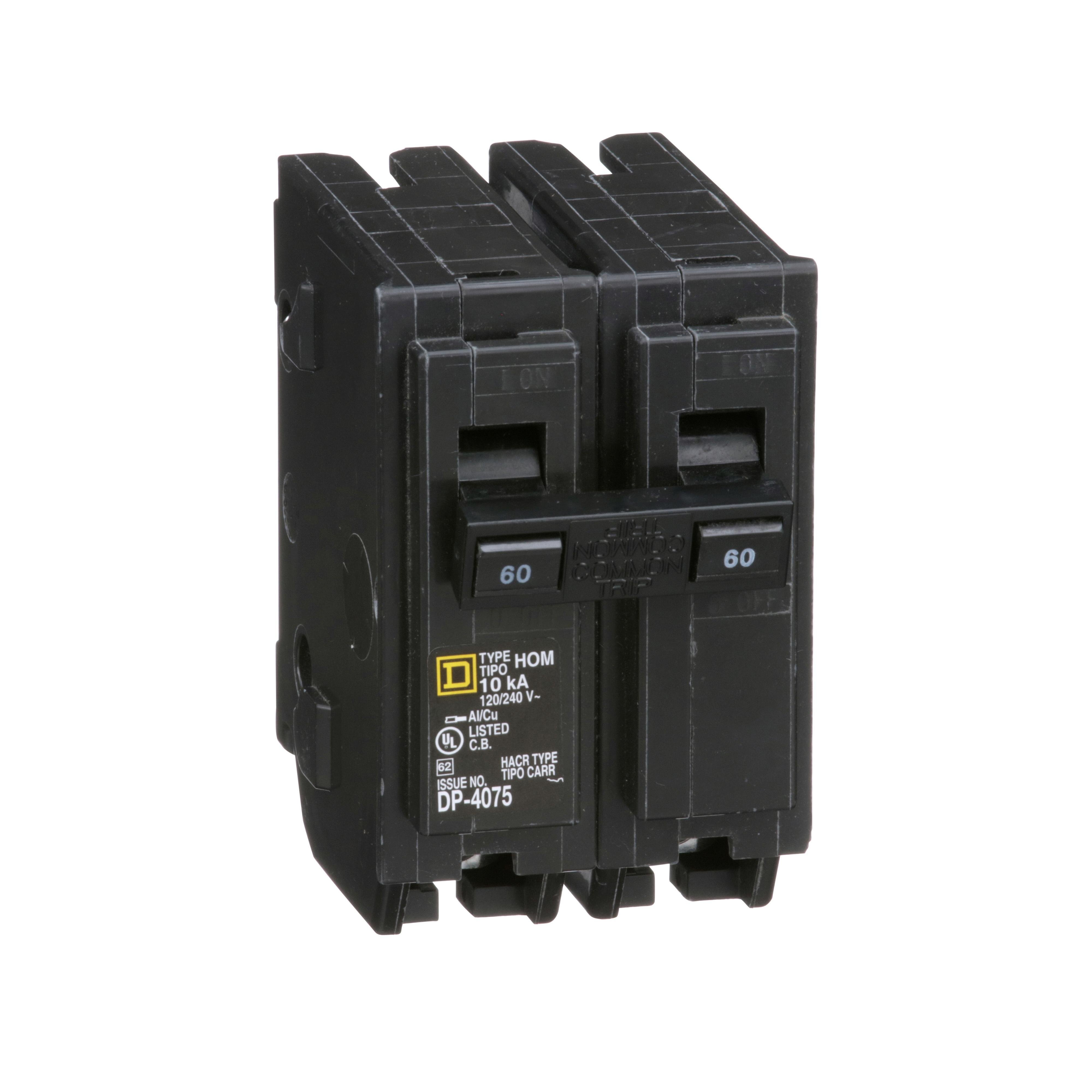

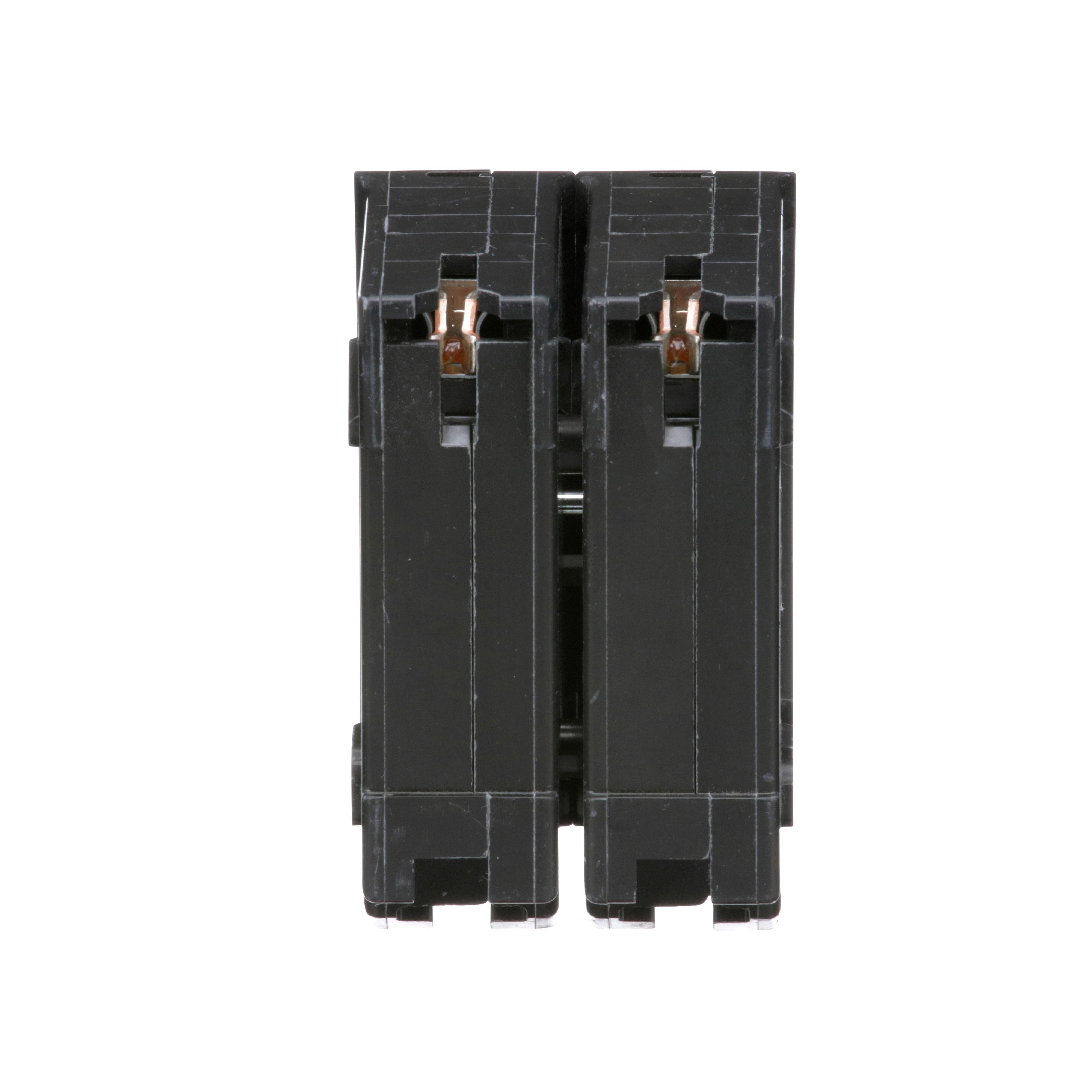

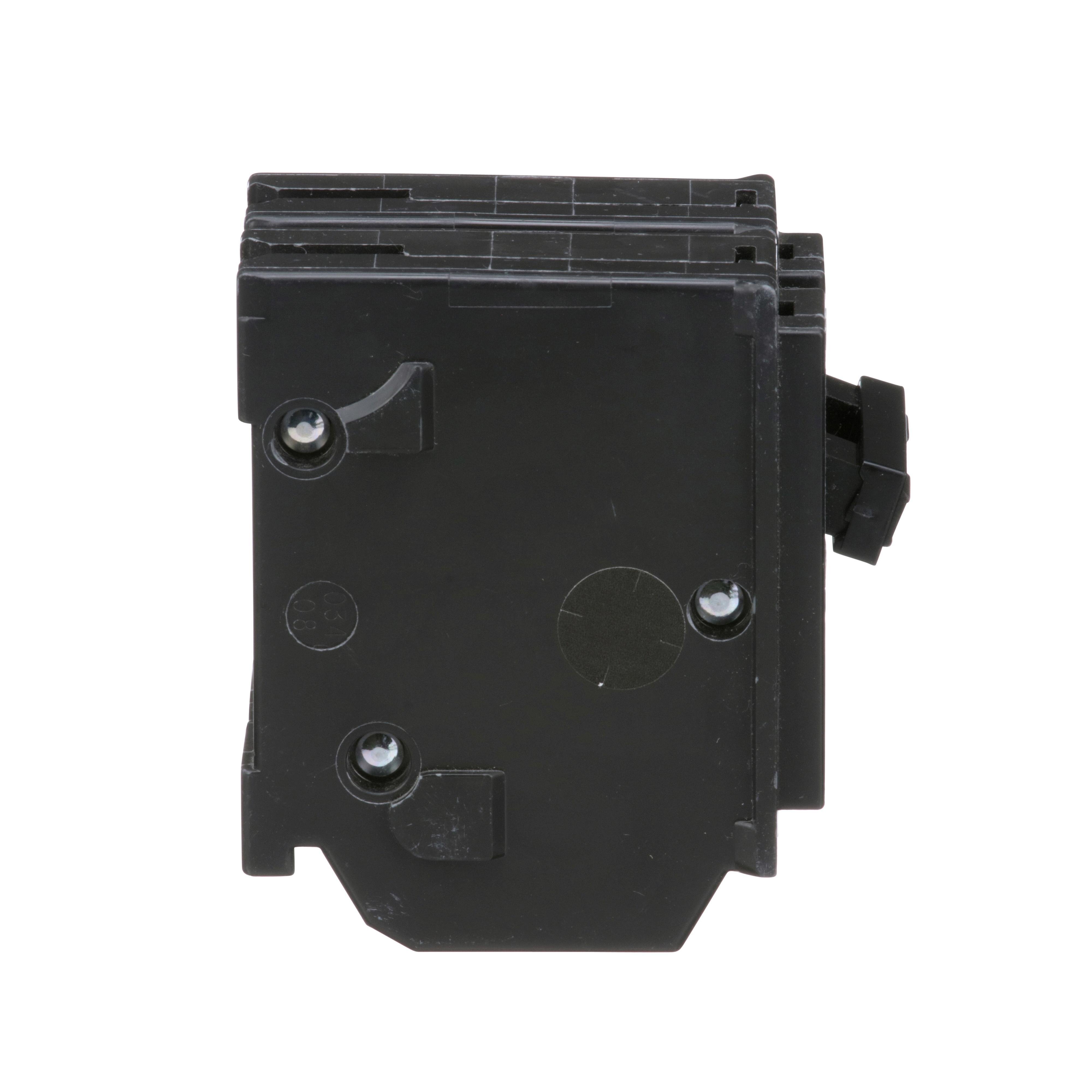

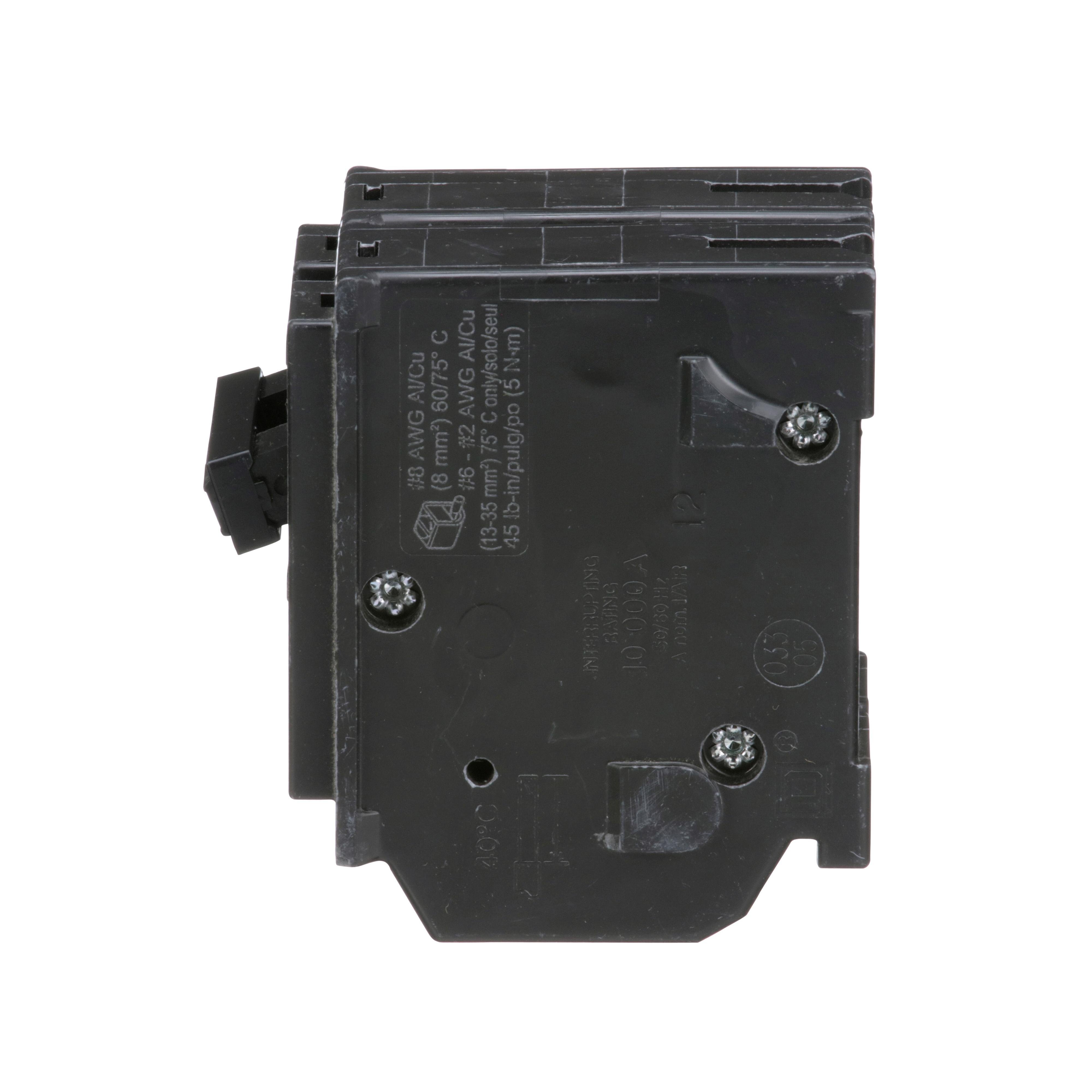

Picture of HOM260 - Mini circuit breaker, Homeline, 60A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Square D

HOM260 - Mini circuit breaker, Homeline, 60A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

Item Code: 18180
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM260

Owners User Manual
RoHS
Specification Sheet
Watch video
Call for Availability
Add to Favorites
Compare

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 60A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Weight

0.7lb

Height

3.1mm

Width

1.57mm

Length

3.12mm

Depth

2.98mm

Amperage Rating

60 A

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Connection Type

Terminal Screw

Dimensions

2.98 in L x 2 in W x 3.13 in H

Frequency Rating

50/60 Hz

Interrupt Rating

10 kA

Mounting Type

Plug-On

Number Of Poles

2

Phase

1

Temperature Rating

104 deg F

Trip Type

Thermal Magnetic

Type

Standard

Voltage Rating

120/240 V AC

Wire Size

8 to 2 AWG
