Square D

HOM3060L225PQGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, Qwik-grip, gnd bar

Category Load Centers & Accessories

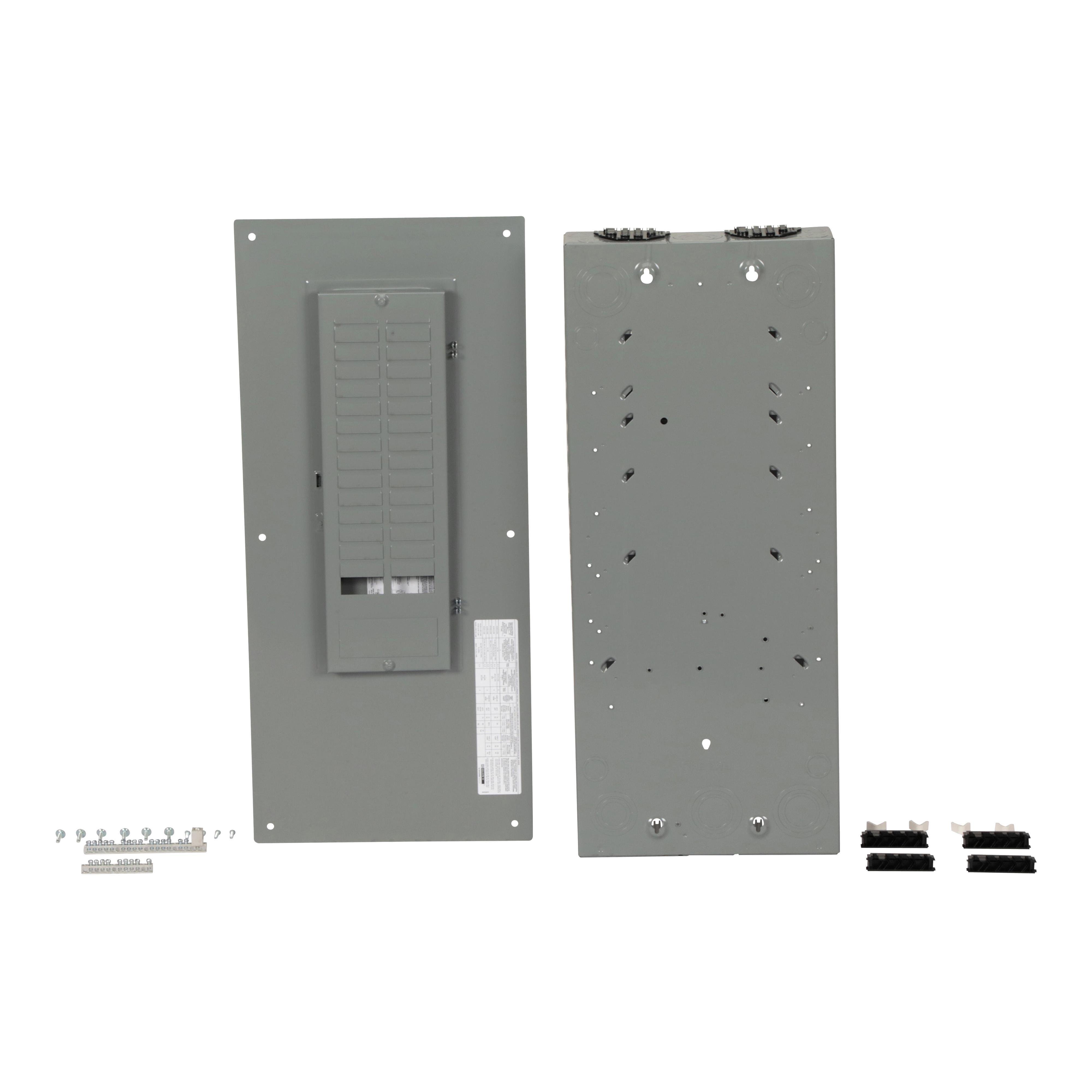

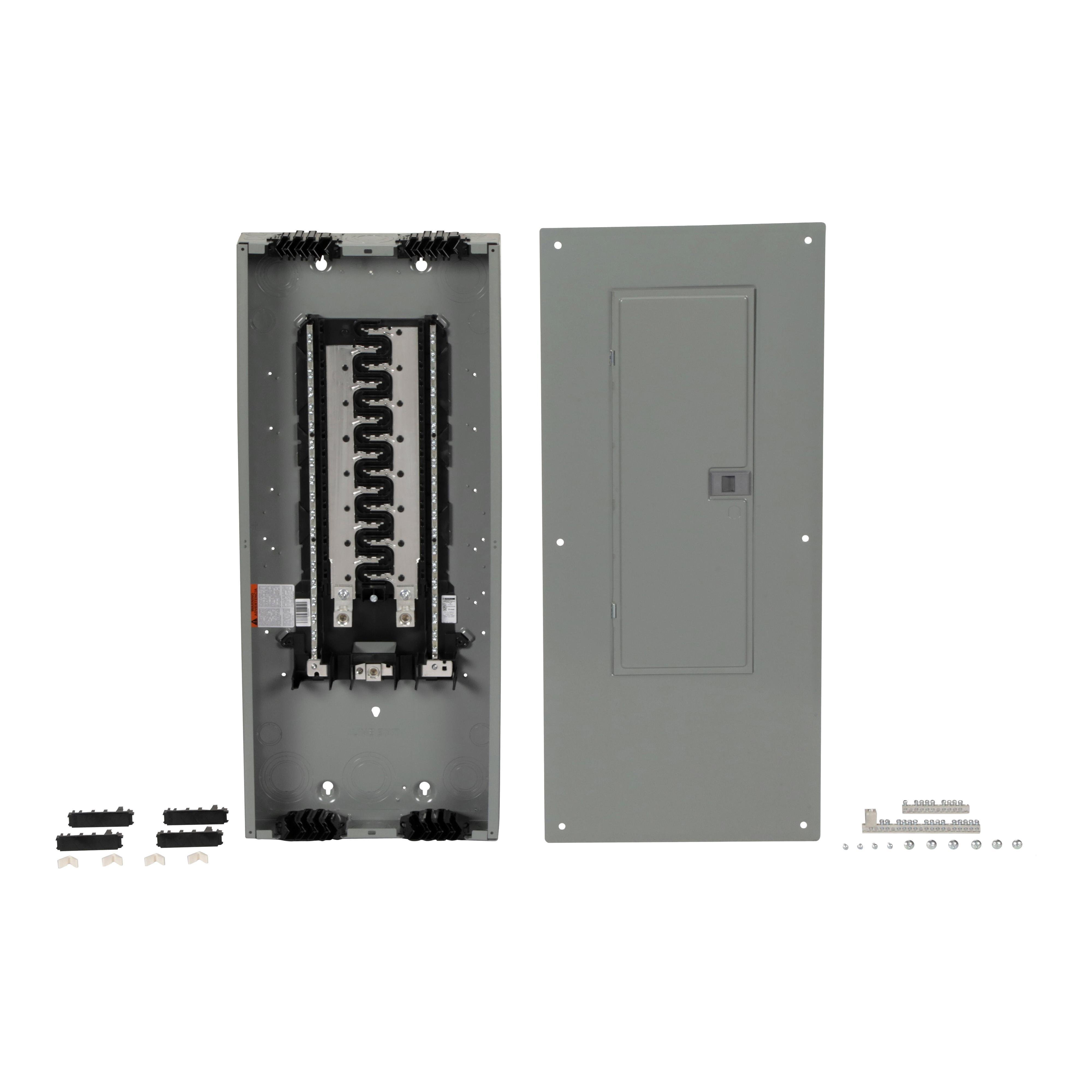

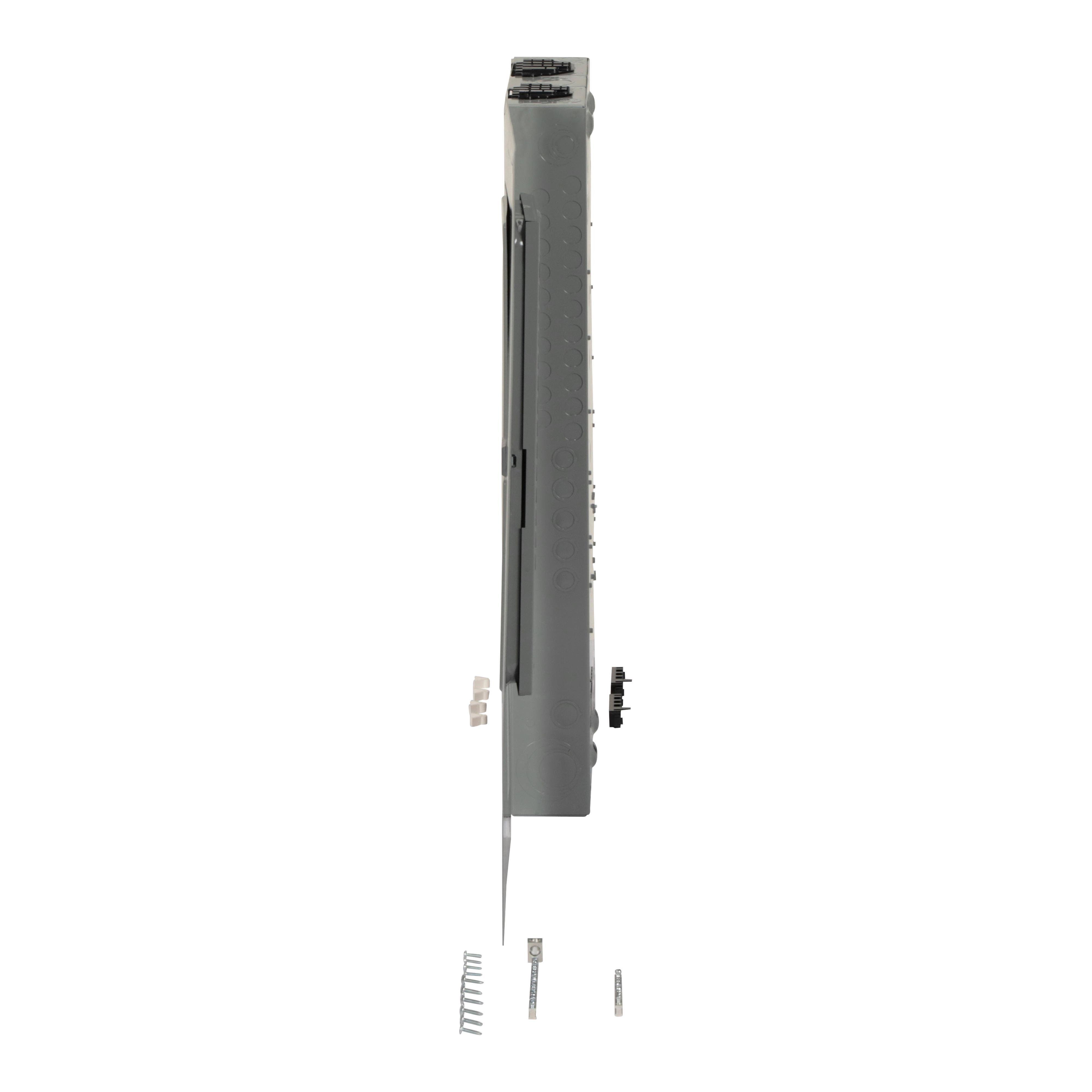

Picture of HOM3060L225PQGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, Qwik-grip, gnd bar Picture of HOM3060L225PQGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, Qwik-grip, gnd bar
Picture of HOM3060L225PQGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, Qwik-grip, gnd bar Picture of HOM3060L225PQGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, Qwik-grip, gnd bar
Picture of HOM3060L225PQGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, Qwik-grip, gnd bar Picture of HOM3060L225PQGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, Qwik-grip, gnd bar
Picture of HOM3060L225PQGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, Qwik-grip, gnd bar Picture of HOM3060L225PQGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, Qwik-grip, gnd bar
Square D

HOM3060L225PQGC - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, Qwik-grip, gnd bar

Item Code: 1000691
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM3060L225PQGC

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 30 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. Load center has a grounding bar. The Homeline load center comes with a Qwik grip assembly kit. This Homeline load center has a height of 33.77 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

Specifications

Weight

30.03lb

Height

858mm

Width

15.85mm

Length

35.91mm

Depth

95mm

AD All Features

Fast installation, reliability, and superior circuit protection

AD Application

Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

Grounding Bar

AD Invoice Description

CENTER LOAD LUG MAIN PH SGL 120/240VAC

AD Item Features 01

Fast installation, reliability, and superior circuit protection

AD Item Features 02

Protects against equipment overloads and short-circuits

AD Item Features 03

Tin and copper plated aluminum bus bars

AD Item Features 04

Replacement covers in gray and white

AD Item Features 05

Distributed neutral bars keeps wiring tidy

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

35.9100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

30.0300

AD Package Weight UOM

LB

AD Package Width

15.8500

AD Package Width UOM

IN

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

225

Spec 10 Attribute

Type

Spec 10 Attribute Value

Convertible Neutral

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

120/240

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

4 AWG to 250 kcmil Aluminum/Copper

Spec 2 Attribute

Enclosure Box Size

Spec 2 Attribute Value

10Q

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 1

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Housing Material

Spec 5 Attribute Value

Galvanized Steel

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

10

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-On

Spec 8 Attribute

Number of Circuits

Spec 8 Attribute Value

60

Spec 9 Attribute

Number of Spaces

Spec 9 Attribute Value

30
