Square D

HOM3060M150PRB - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 150A convertible main breaker, PoN, NEMA3R

Category Load Centers & Accessories

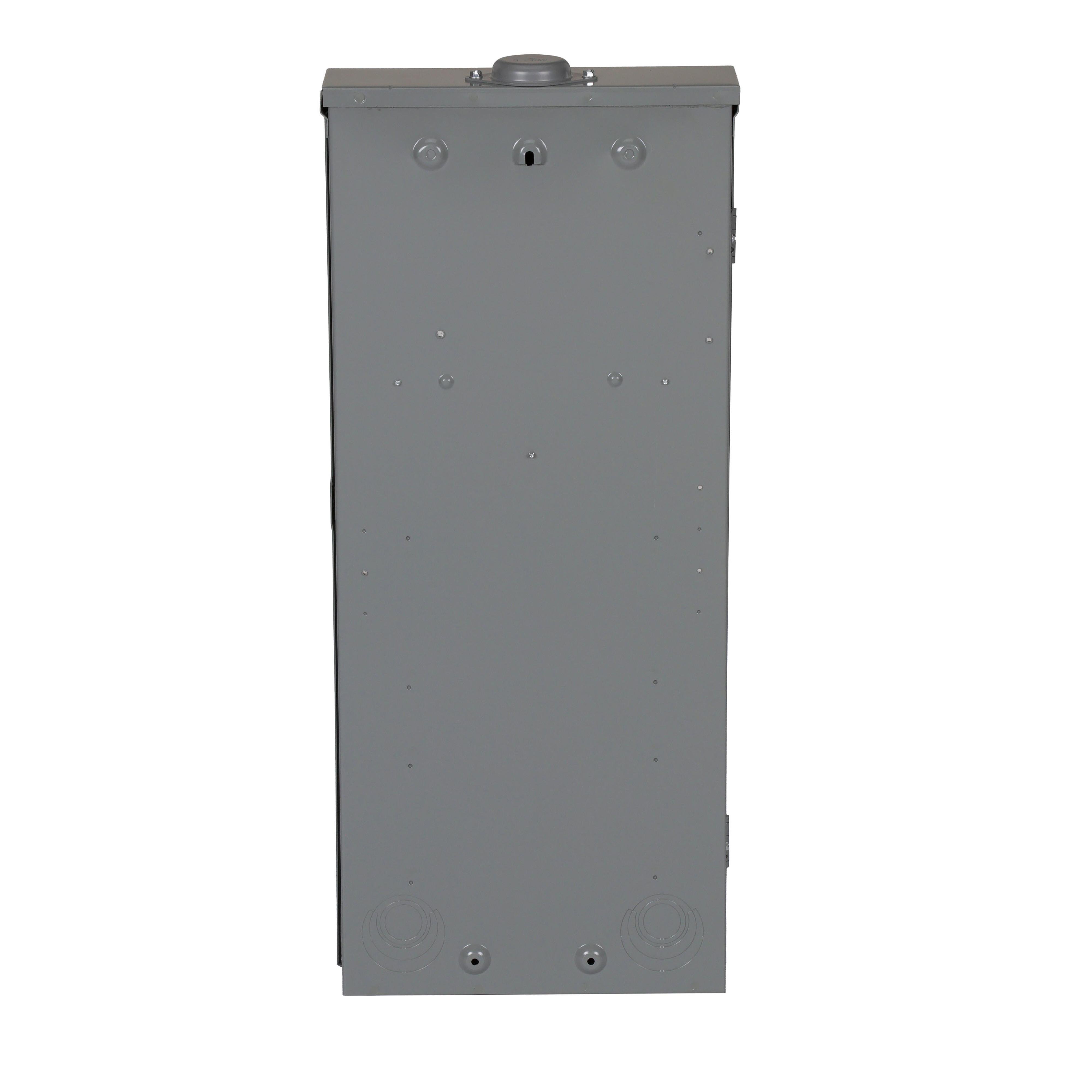

Picture of HOM3060M150PRB - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 150A convertible main breaker, PoN, NEMA3R
Square D

HOM3060M150PRB - Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 150A convertible main breaker, PoN, NEMA3R

Item Code: 980181
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM3060M150PRB

RoHS
Specification Sheet
Warranty Information
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 150A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 30 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 33.77 inches, a width of 14.76 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.

Specifications

Weight

38.84

Width

15.35

Length

35.36

Amperage Rating

150 A

Brand

Square D

Breaker Mounting

Panel

Breaker Type

HOM

Category

Load Centers & Accessories

Dimensions

14.75 in W x 4.52 in D x 33.78 in H

Enclosure Box Size

7r

Enclosure Type

NEMA 3R

Frequency Rating

50/60 Hz

Housing Material

Steel

Interrupt Rating

22 kA

Mounting Type

Plug-On

Number of Circuits

60

Number Of Poles

1

Number of Spaces

30

Type

1-Phase Convertible Neutral Rainproof

Voltage Rating

120/240 V AC

Wire Size

4 AWG to 250 kcmil, 4 AWG to 300 kcmil

Wiring Configuration

3-Wire
