Square D

HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip

Category Load Centers & Accessories

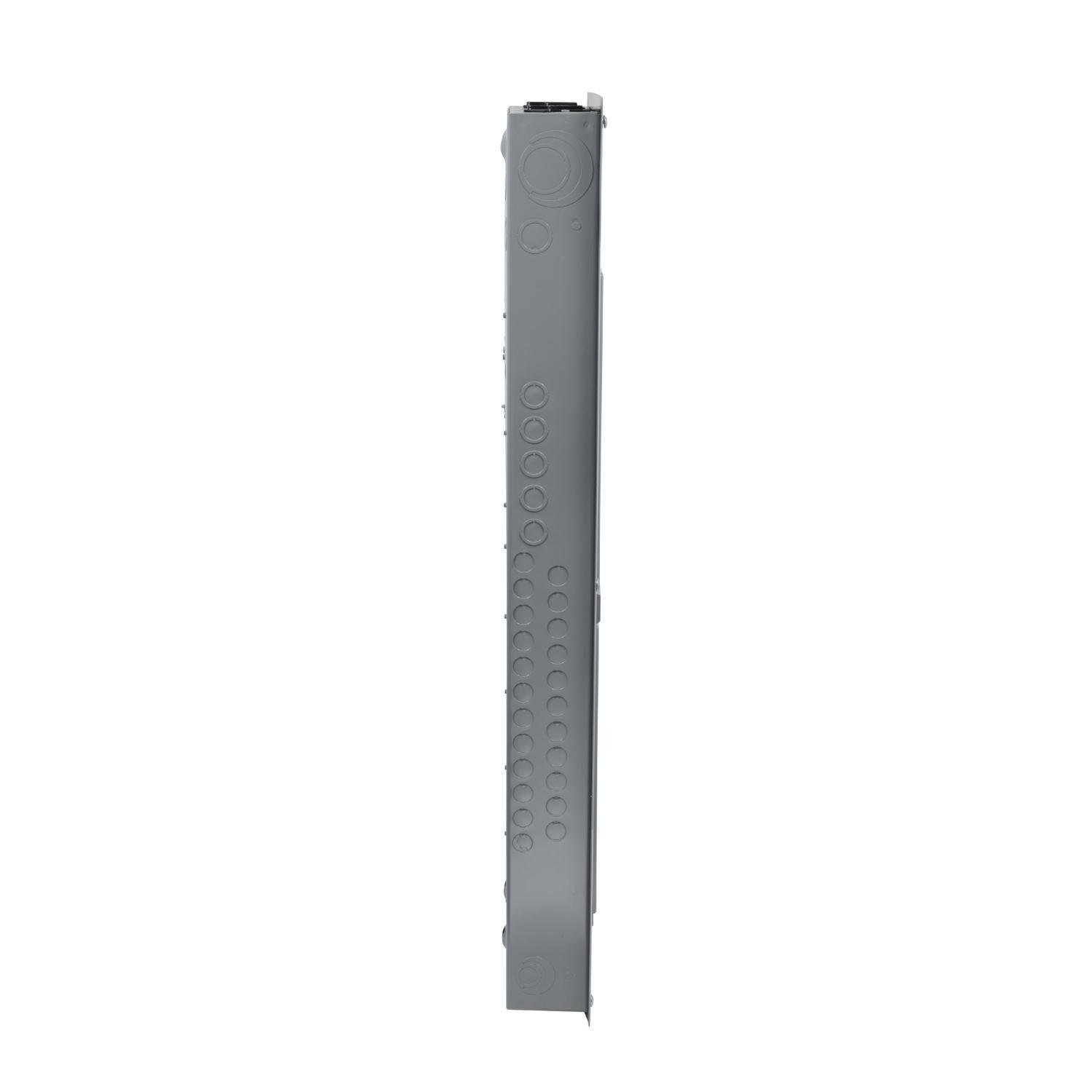

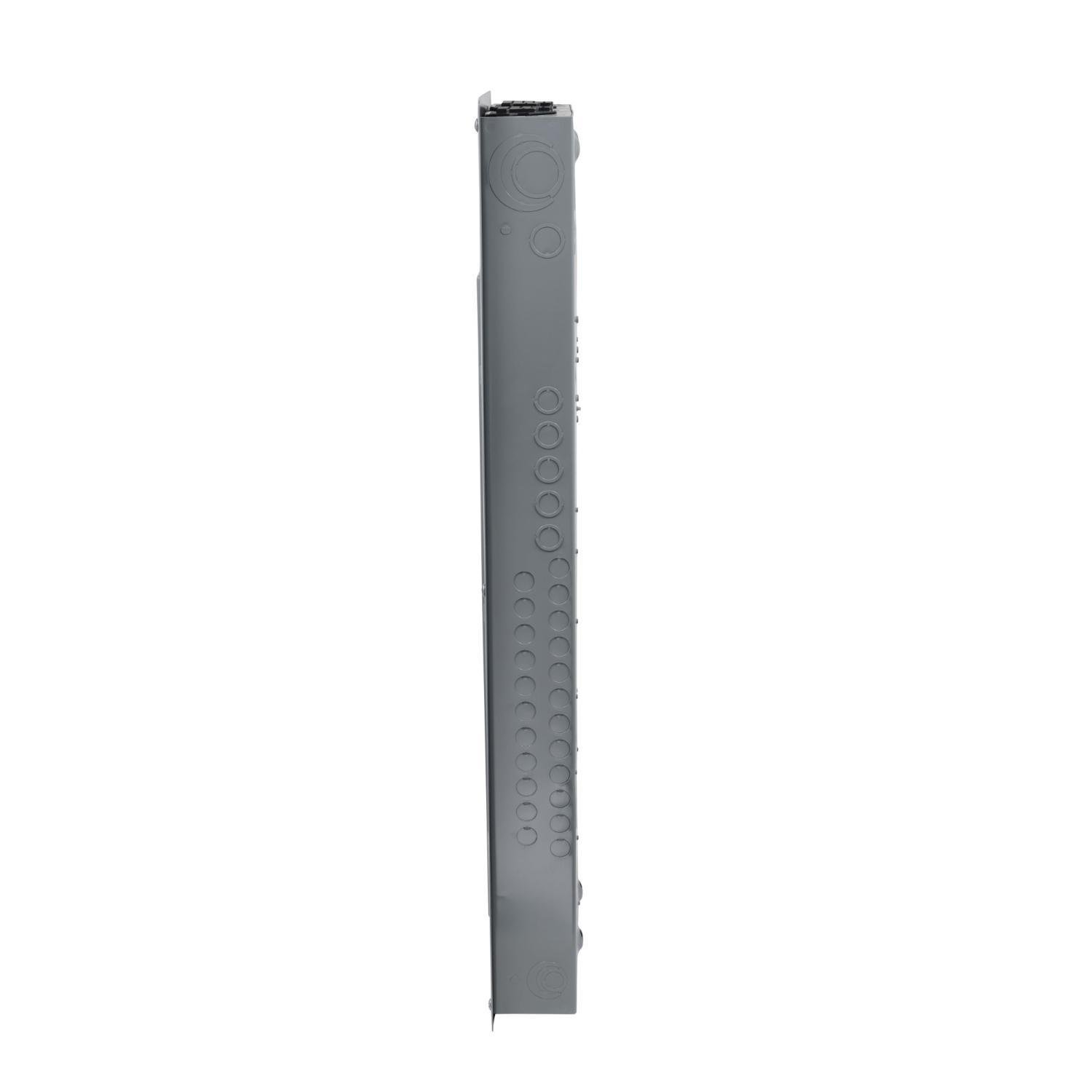

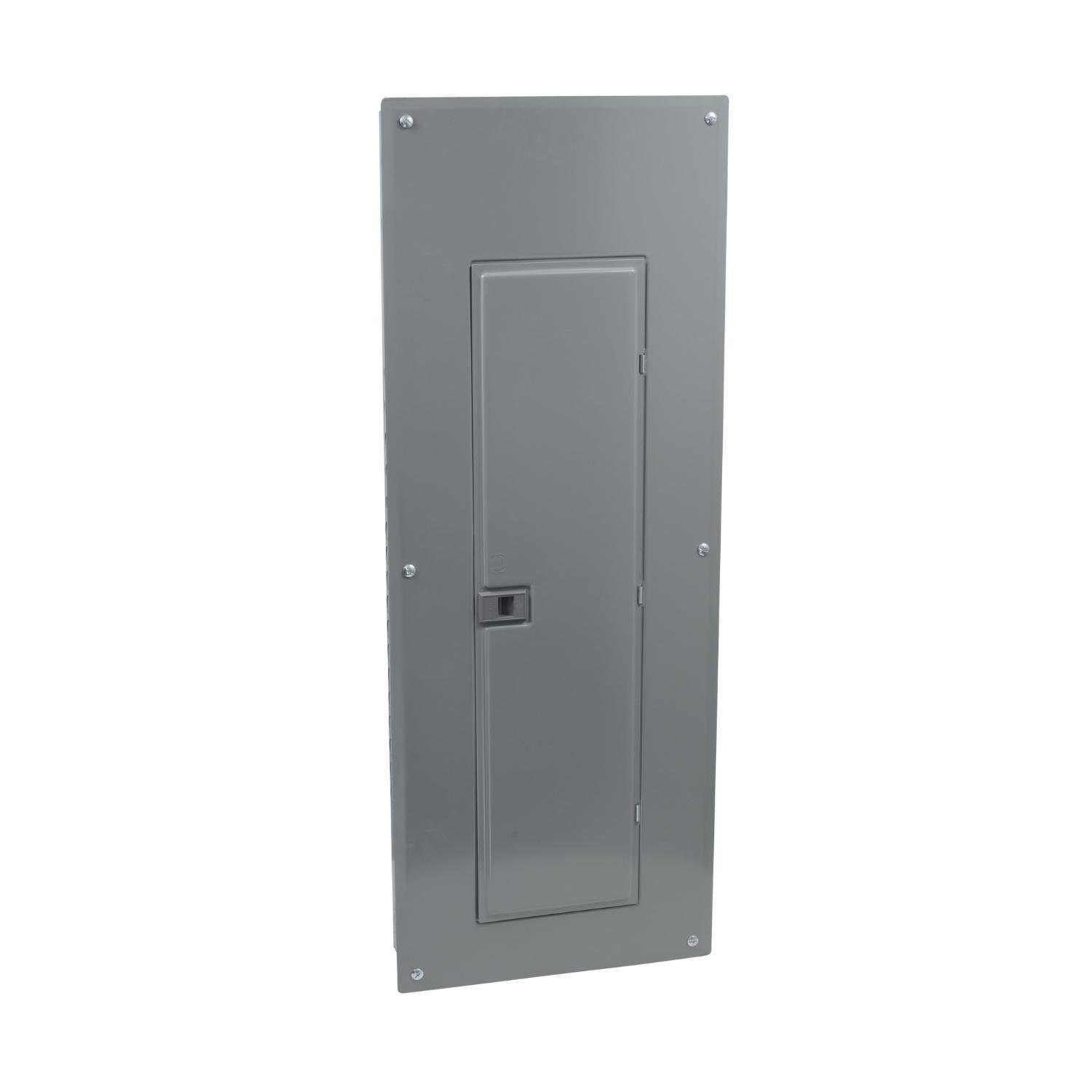

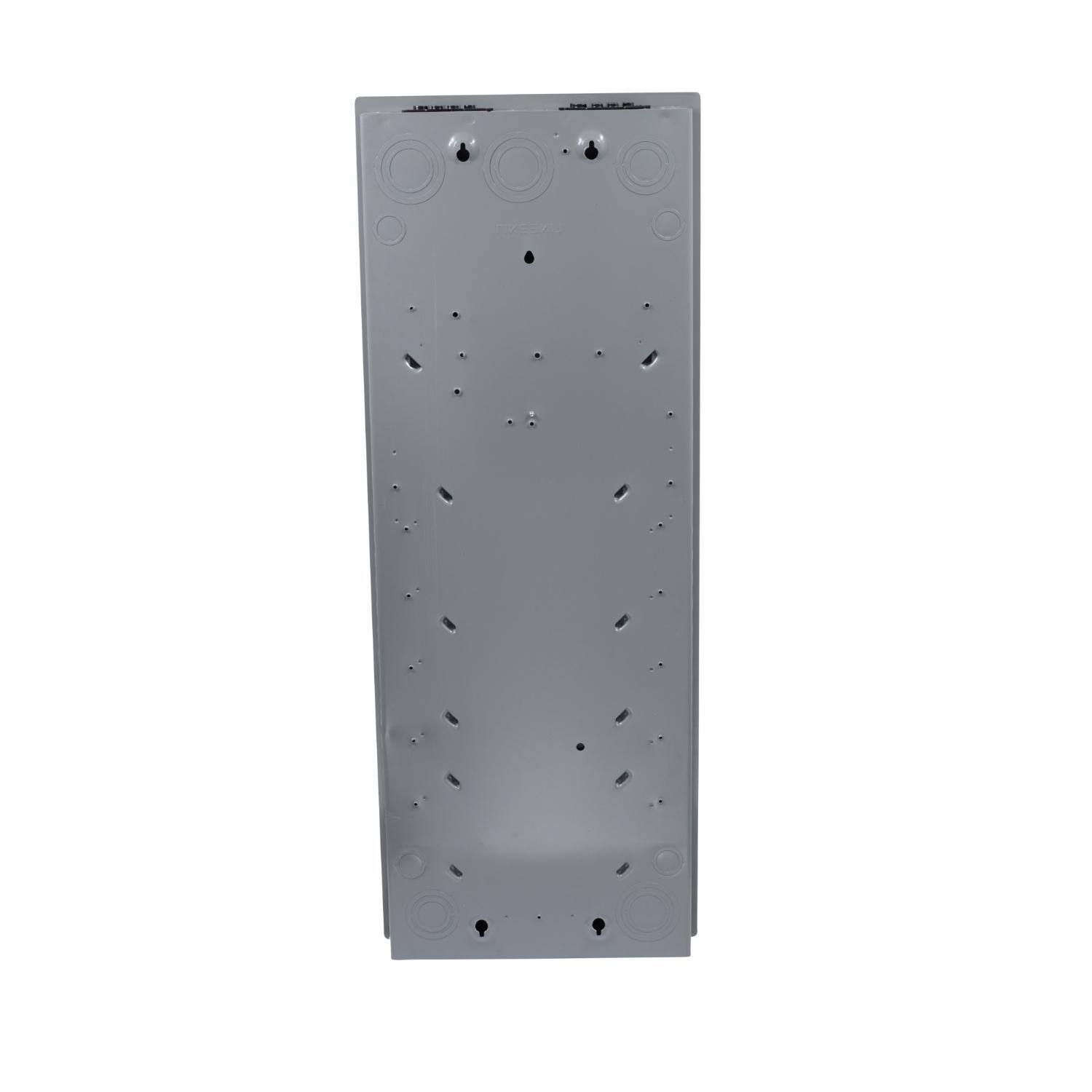

Picture of HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip Picture of HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip
Picture of HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip Picture of HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip
Picture of HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip Picture of HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip
Picture of HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip Picture of HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip
Picture of HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip Picture of HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip
Square D

HOM4080M200PQC - Load center, Homeline, 1 phase, 40 spaces, 80 circuits, 200A convertible main breaker, PoN, NEMA1, Qwik-grip

Item Code: 991510
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM4080M200PQC

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 40 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. The Homeline load center comes with a Qwik grip assembly kit. This Homeline load center has a height of 39.37 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

Specifications

Weight

37.75lb

Height

1000mm

Width

14.12mm

Length

39mm

Depth

95mm

AD All Features

Fast installation, reliability, and superior circuit protection

AD Application

For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

Combination Flush/surface Cover

AD Invoice Description

LOADCENTER MAIN BRKR 120/240VAC 200A 80

AD Item Features 01

Fast installation, reliability, and superior circuit protection

AD Item Features 02

Protects against equipment overloads and short-circuits

AD Item Features 03

Tin and copper plated aluminum bus bars

AD Item Features 04

Replacement covers in gray and white

AD Item Features 05

Distributed neutral bars keeps wiring tidy

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

39.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

37.7500

AD Package Weight UOM

LB

AD Package Width

14.1200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/M83B6j-mAtM

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Number of Spaces

Spec 10 Attribute Value

40

Spec 11 Attribute

Type

Spec 11 Attribute Value

1-Phase Convertible Neutral

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

4 AWG to 250 kcmil Aluminum/Copper

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

12Q

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

14.25 in W x 3.75 in D x 39.37 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Housing Material

Spec 6 Attribute Value

Galvanized Steel

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

22-Oct

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Plug-On

Spec 9 Attribute

Number of Circuits

Spec 9 Attribute Value

80
