Square D

HOM4080M200PQCVP - Value Pack, Load Center, HOM Qwik Grip, Main Brkr, Plug on Neutral, 40/80, 200A

Category Load Centers & Accessories

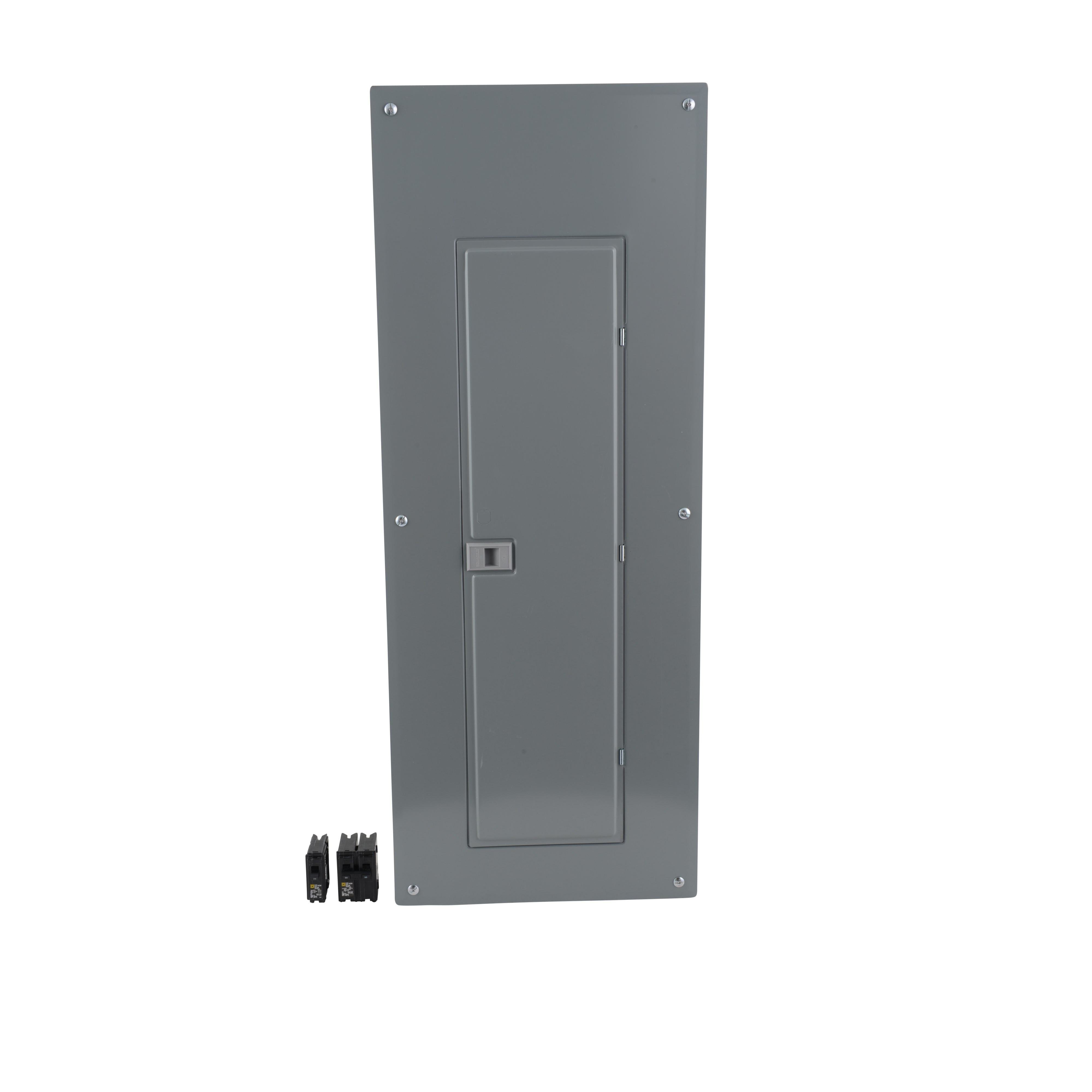

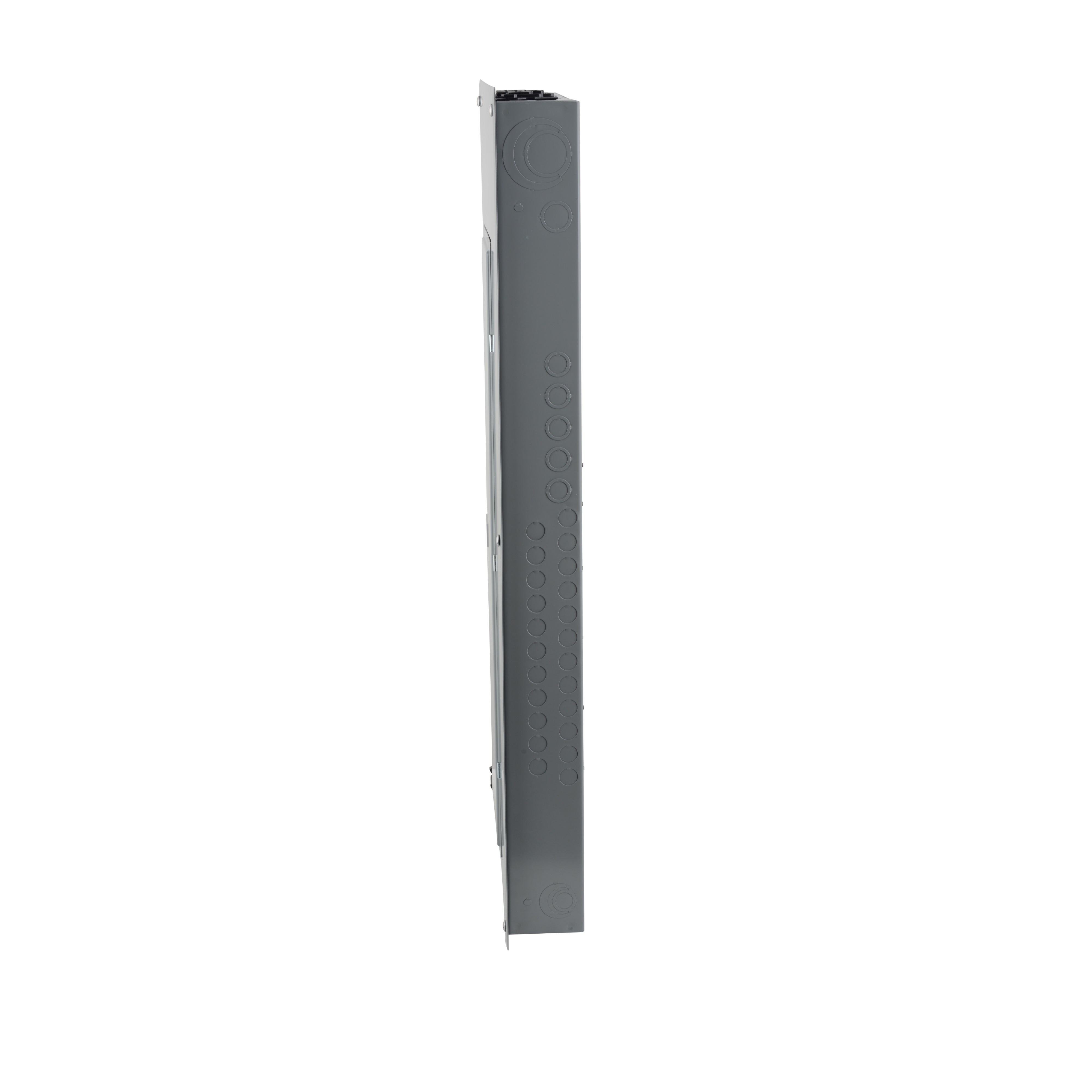

Picture of HOM4080M200PQCVP - Value Pack, Load Center, HOM Qwik Grip, Main Brkr, Plug on Neutral, 40/80, 200A Picture of HOM4080M200PQCVP - Value Pack, Load Center, HOM Qwik Grip, Main Brkr, Plug on Neutral, 40/80, 200A
Picture of HOM4080M200PQCVP - Value Pack, Load Center, HOM Qwik Grip, Main Brkr, Plug on Neutral, 40/80, 200A Picture of HOM4080M200PQCVP - Value Pack, Load Center, HOM Qwik Grip, Main Brkr, Plug on Neutral, 40/80, 200A
Picture of HOM4080M200PQCVP - Value Pack, Load Center, HOM Qwik Grip, Main Brkr, Plug on Neutral, 40/80, 200A Picture of HOM4080M200PQCVP - Value Pack, Load Center, HOM Qwik Grip, Main Brkr, Plug on Neutral, 40/80, 200A
Square D

HOM4080M200PQCVP - Value Pack, Load Center, HOM Qwik Grip, Main Brkr, Plug on Neutral, 40/80, 200A

Item Code: 991516
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM4080M200PQCVP

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Load center is also supplied with a two pole 30A 120/240 VAC circuit breaker and a one pole 20A 120/240 VAC circuit breaker. The load center is also supplied a Qwik grip assembly kit. Homeline load center provides a 10 kA breaking capacity. This system provides 40 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 39.37 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. Load center is a value packed system.

Specifications

Weight

40.5lb

Width

15.95mm

Length

41.61mm

AD Application

For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

(2) 20 A 120/240 VAC Circuit Breaker, (1) 100 A 120/240 VAC Main Supply Ready Assembled Circuit Breaker, (1) 30 A 120/240 VAC Circuit Breaker, (1) Load Center, (1) Qwik-Grip™ Assembly Kit

AD Invoice Description

CENTER MAIN BRKR LOAD 120/240VAC 200A 80

AD Item Features 01

Fast installation, reliability, and superior circuit protection

AD Item Features 02

Protects against equipment overloads and short-circuits

AD Item Features 03

Tin and copper plated aluminum bus bars

AD Item Features 04

Replacement covers in gray and white

AD Item Features 05

Distributed neutral bars keeps wiring tidy

AD Item Features 06

Uses aluminum or copper 4 AWG wiring to allow for efficent power transfer

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

41.6100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

40.5000

AD Package Weight UOM

LB

AD Package Width

15.9500

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/Roe3J3d1ca8

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Number of Spaces

Spec 10 Attribute Value

40

Spec 11 Attribute

Type

Spec 11 Attribute Value

1-Phase Neutral Value Pack

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

4 AWG to 250 kcmil Aluminum/Copper

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

14.25 in W x 3.75 in D x 39.37 in H

Spec 3 Attribute

Enclosure Box Size

Spec 3 Attribute Value

12Q

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Housing Material

Spec 6 Attribute Value

Galvanized Steel

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

10

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Plug-On

Spec 9 Attribute

Number of Circuits

Spec 9 Attribute Value

80
